Description

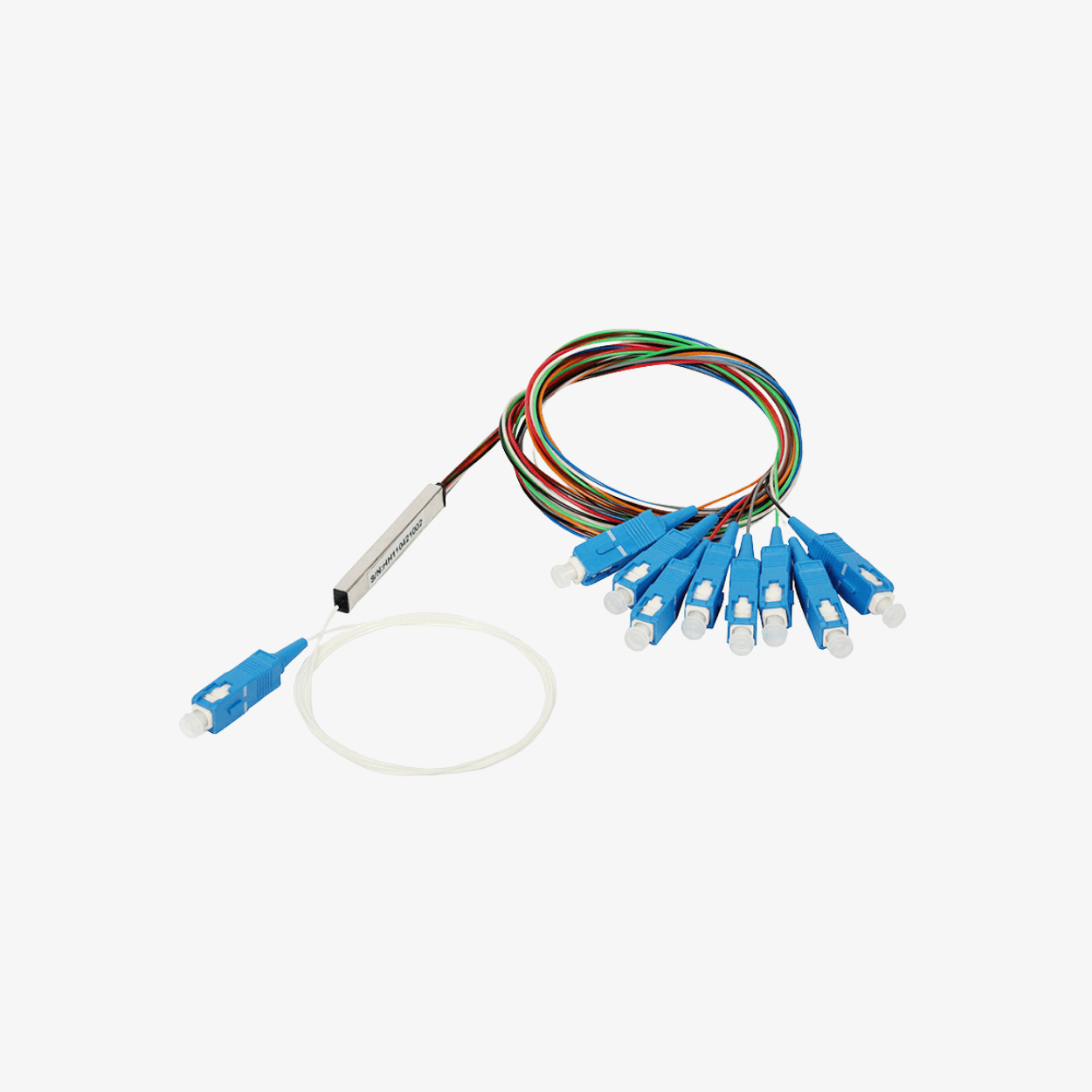

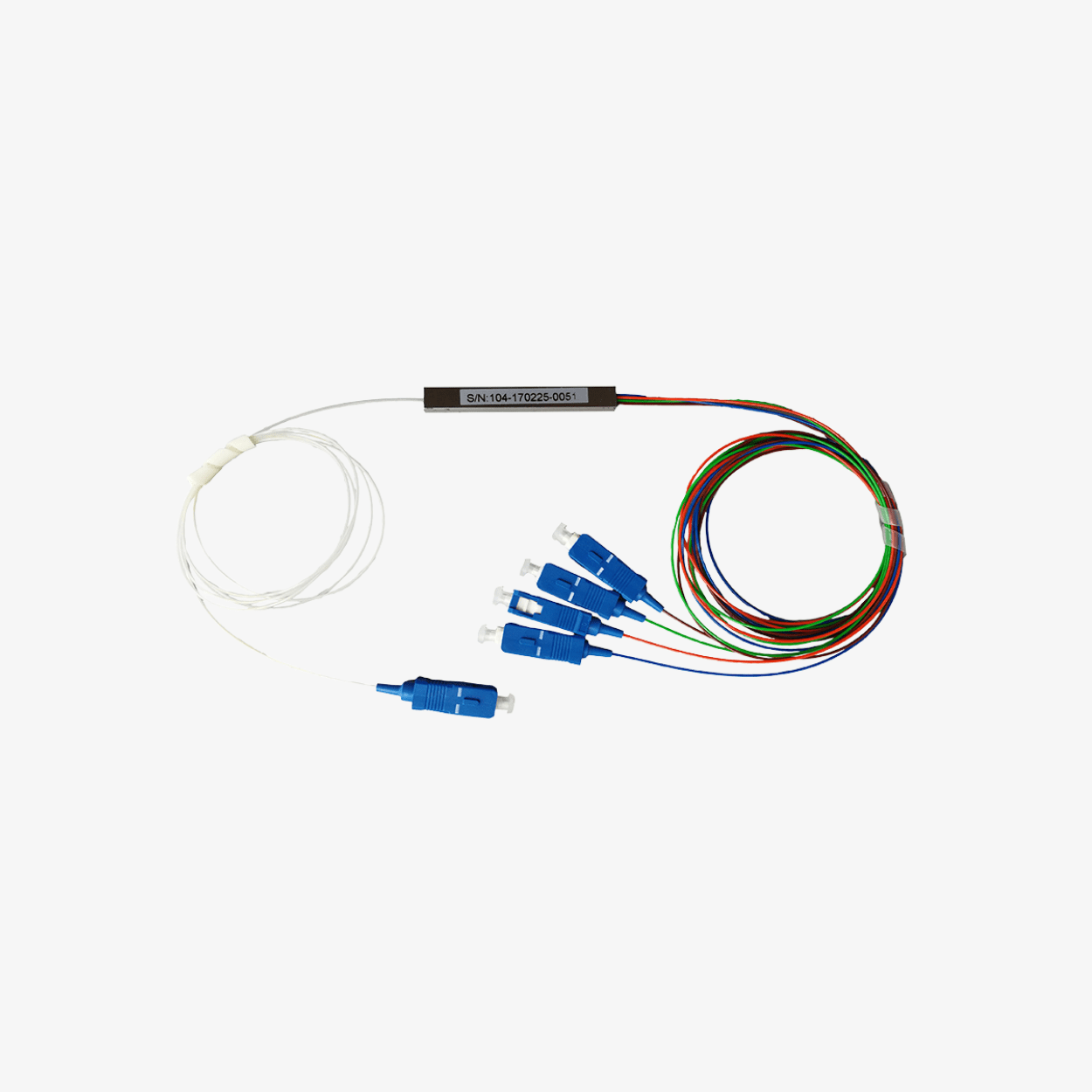

The UT-King Steel Tube PLC Splitter is a professional-grade Planar Lightwave Circuit (PLC) optical splitter series designed to divide one input fiber signal into multiple outputs with uniform optical performance. Available in 1:2, 1:4, 1:8, and 1:16 split ratios, it delivers stable, low-loss signal distribution for FTTH, GPON, EPON, and PON network deployments.
Encased in a stainless-steel micro-tube, the splitter ensures durability, compactness, and long-term stability even in high-temperature and humidity environments. Each splitter includes 1 meter pigtails terminated with SC-UPC connectors, fully tested to meet Telcordia GR-1209 and GR-1221 reliability standards.
Engineered with advanced silica waveguide PLC technology, it supports a wide wavelength range (1260–1650 nm) with minimal insertion loss and excellent signal uniformity. Ideal for ODF frames, joint boxes, splitters, and terminal enclosures, this splitter provides cost-effective and dependable fiber distribution for ISPs and system integrators.
Application
FTTH / FTTx / GPON / EPON / PON systems, Data centers, Optical distribution frames, Splitter boxes, ISP and telecom backbone
Key Features
✔️ 1:2 – 1:16 PLC split ratio for flexible network design
✔️ Compact stainless-steel tube construction for high stability
✔️ 1 m pigtails with pre-terminated SC-UPC connectors
✔️ High uniformity, low insertion loss, and low PDL
✔️ Wide wavelength range (1260 – 1650 nm)
✔️ GR-1209 / GR-1221 compliant for long-term reliability
✔️ Suitable for rack, wall, or outdoor fiber management boxes
✔️ Factory-tested for insertion, return, and environmental stability
