Description

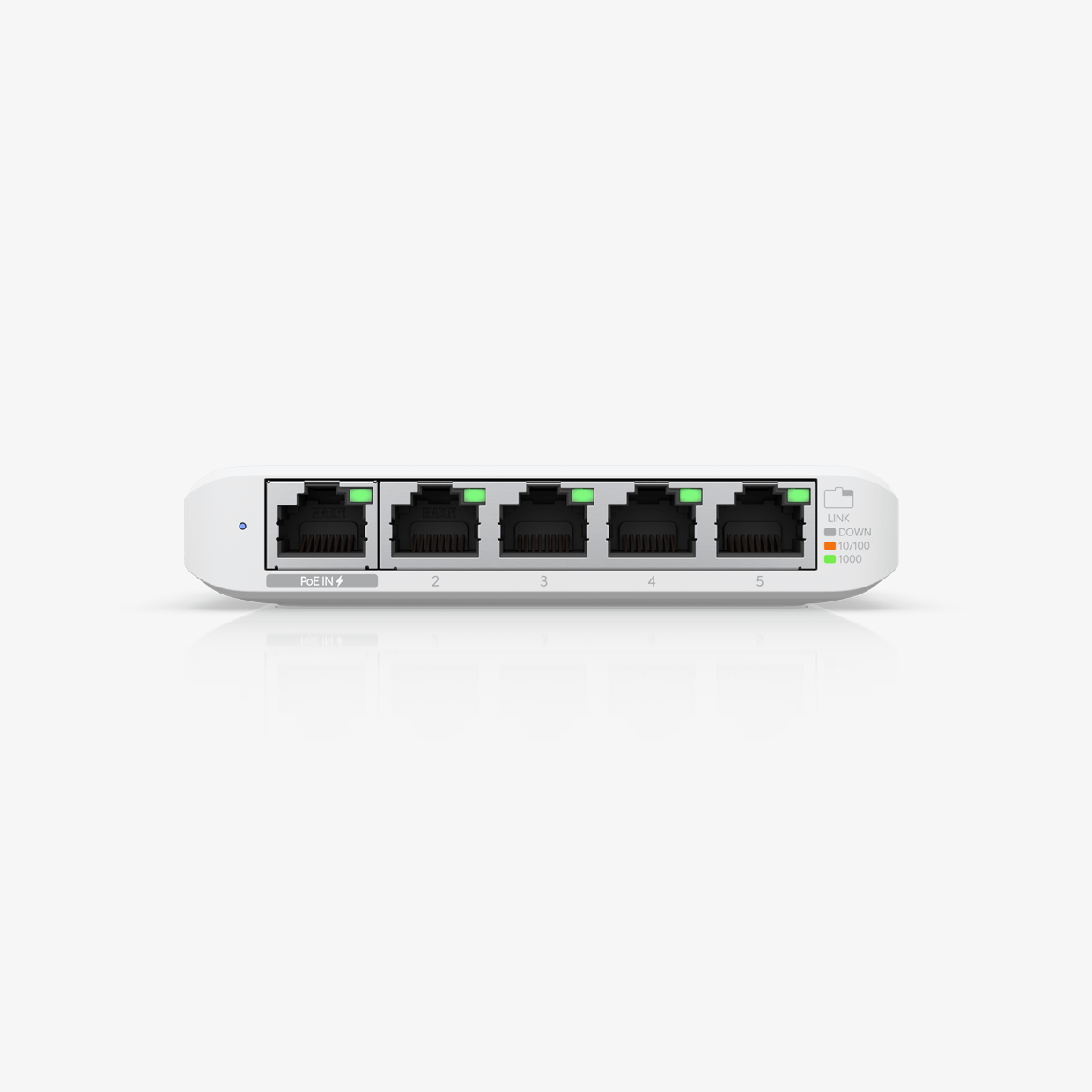

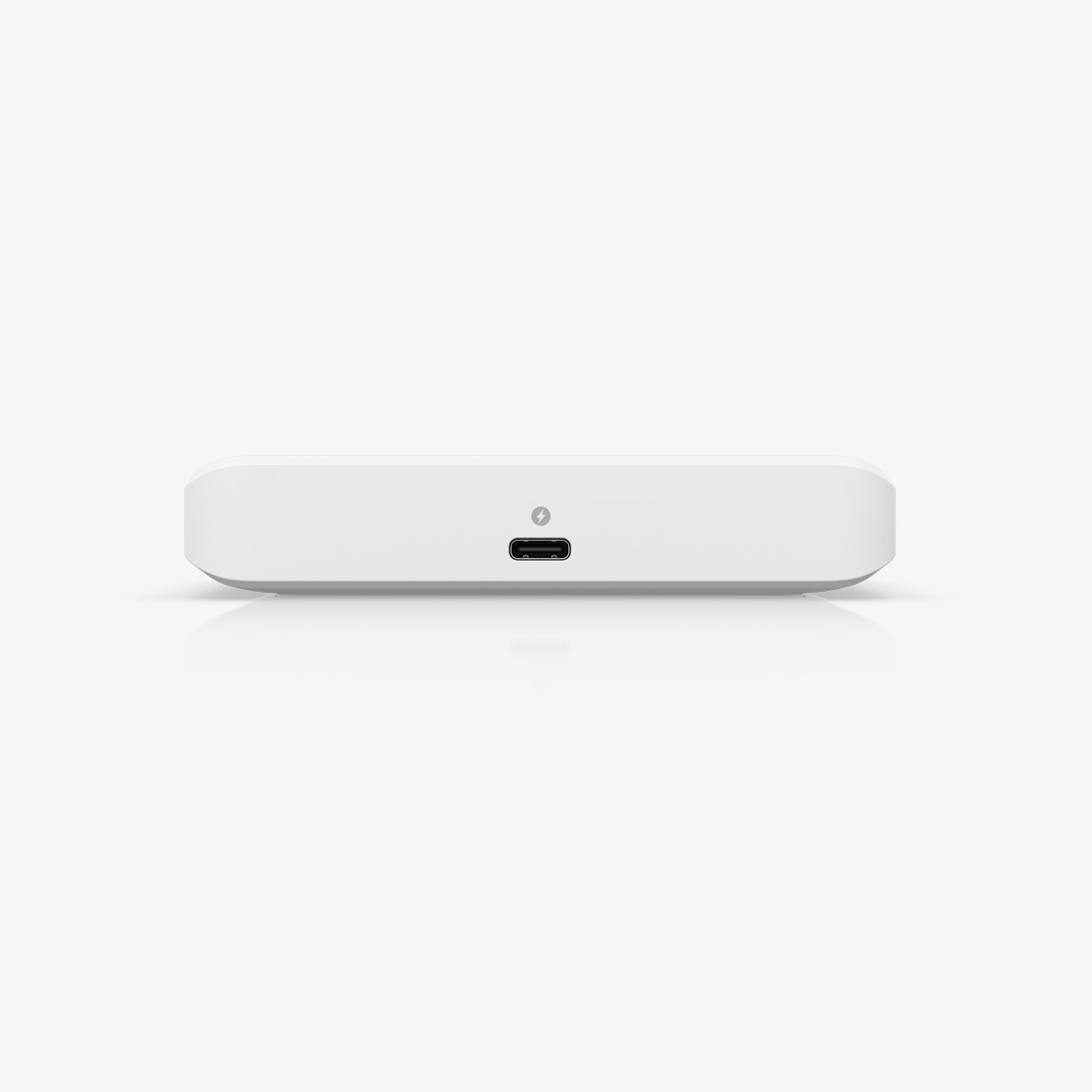

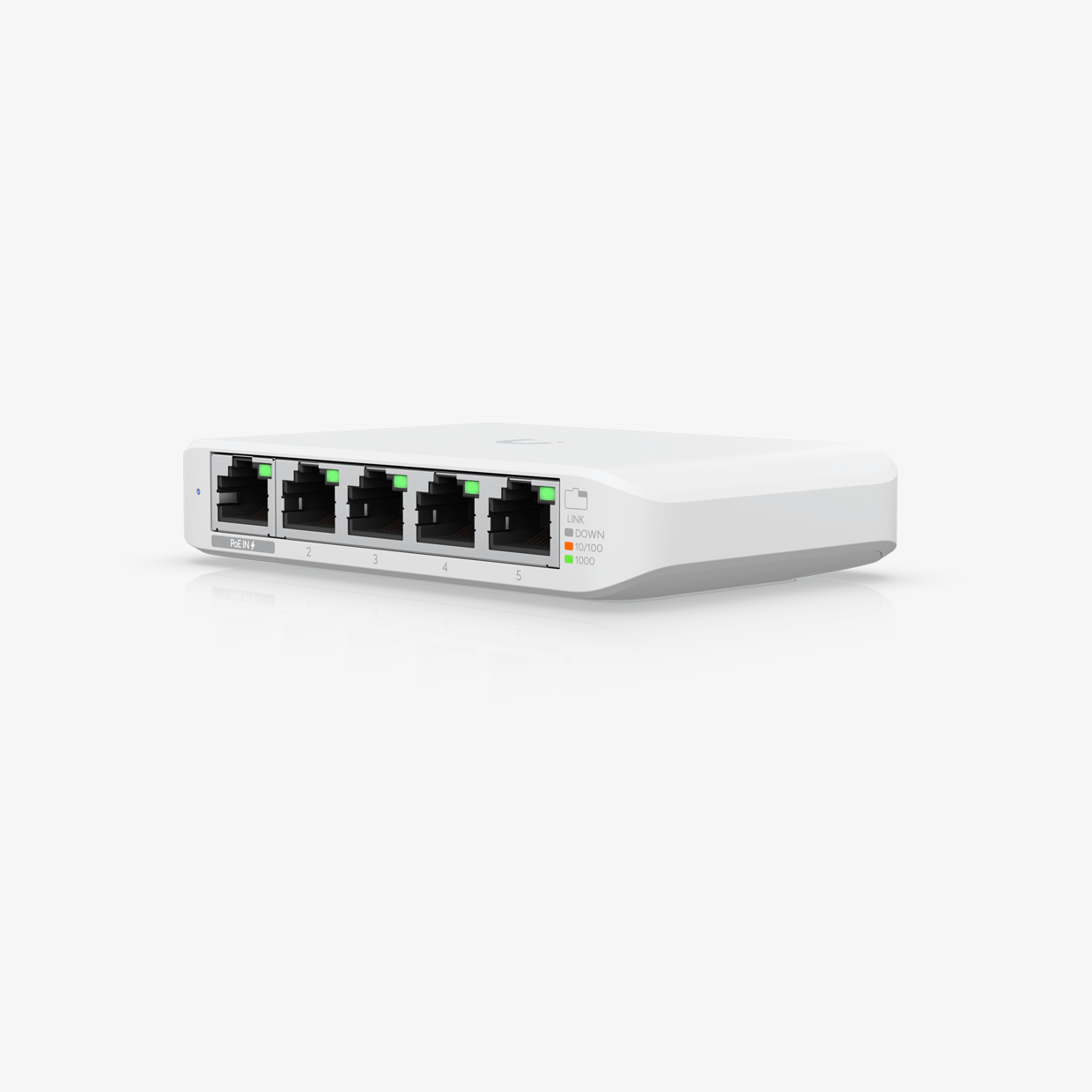

The Ubiquiti UniFi Switch Flex Mini (USW-Flex-Mini) is a sleek, fanless Layer 2 switch designed to expand your network in the most compact of settings. Equipped with five Gigabit RJ45 ports, it offers one PoE-in capable port and four standard data ports. This switch is highly energy-efficient (max 2.5 W) and can be powered using 802.3af/at PoE or a small 5 V/1 A USB-C adapter—making it flexible for deployment under desks, in racks, or behind TVs.
Despite its petite size, the Flex Mini supports a generous 10 Gbps switching capacity, 5 Gbps non-blocking throughput, and a forwarding rate of about 7 Mpps. Layer 2 capabilities include storm control, flow control, egress rate limiting, jumbo frames, port isolation, port mirroring, and more. Managed through the UniFi Network Controller, it grants centralized control, VLAN setup, port mirroring, and real-time visibility.
Its durable polycarbonate body and lightweight (150 g) design make it an elegant and practical solution for network expansion, perfect for power users, WISPs, or enterprise environments needing efficient, space-saving switching.
Application
Home networking, Small office, WISP deployments, Media centers, Desk or wall-mounted expansions
Key Features
✔ 5-port Gigabit Layer 2 switch in a compact desktop form factor
✔ PoE (802.3af/at) or USB-C power input options
✔ Only 2.5 W power consumption—high energy efficiency
✔ 10 Gbps switching capacity; 5 Gbps non-blocking throughput; ~7 Mpps forwarding rate
✔ Advanced Layer 2 controls: storm control, port isolation, jumbo frames, flow control, and port mirroring
✔ Managed via UniFi Network Controller for seamless integration
✔ Lightweight, durable polycarbonate housing—only 150 g
✔ Energy-efficient and NDAA-compliant
