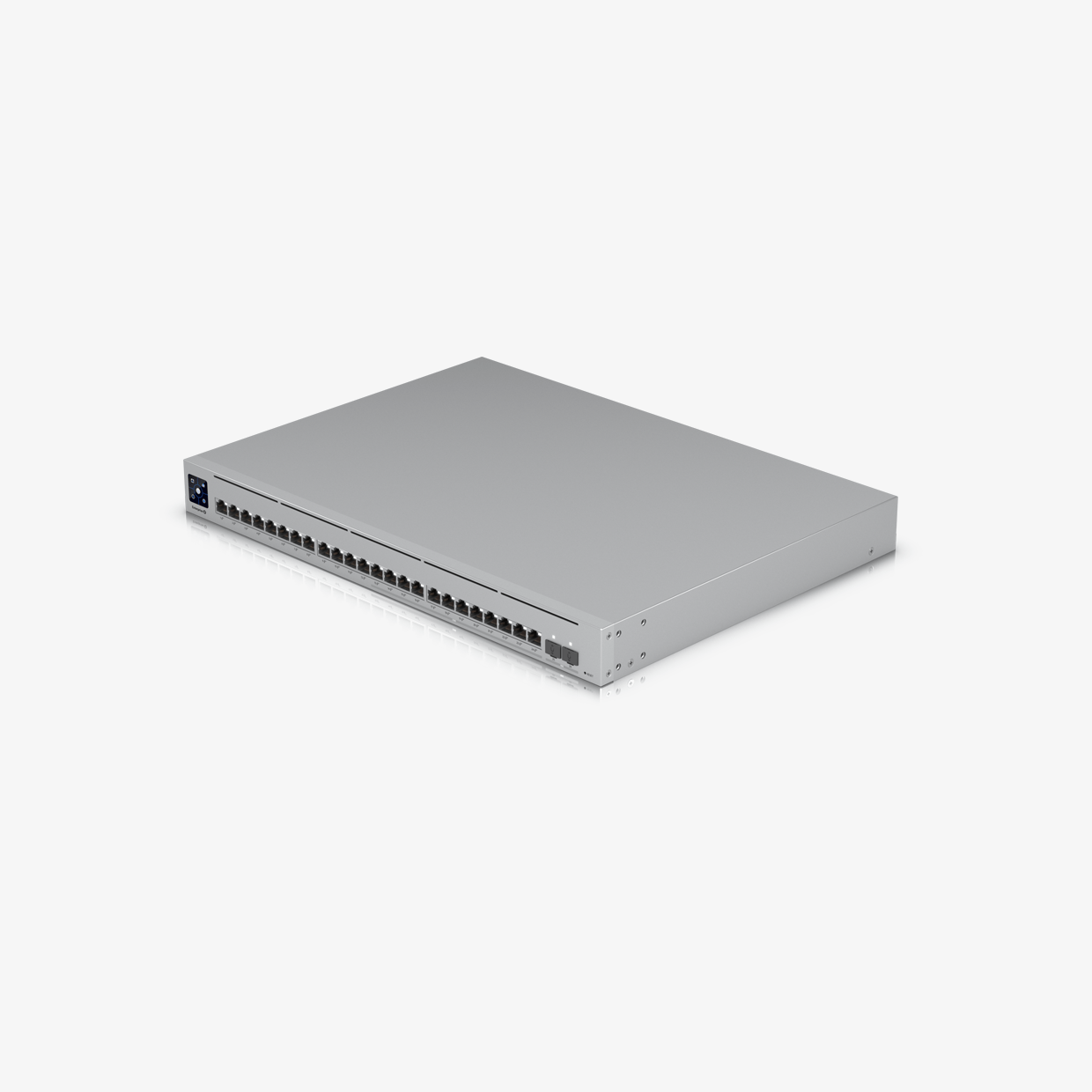

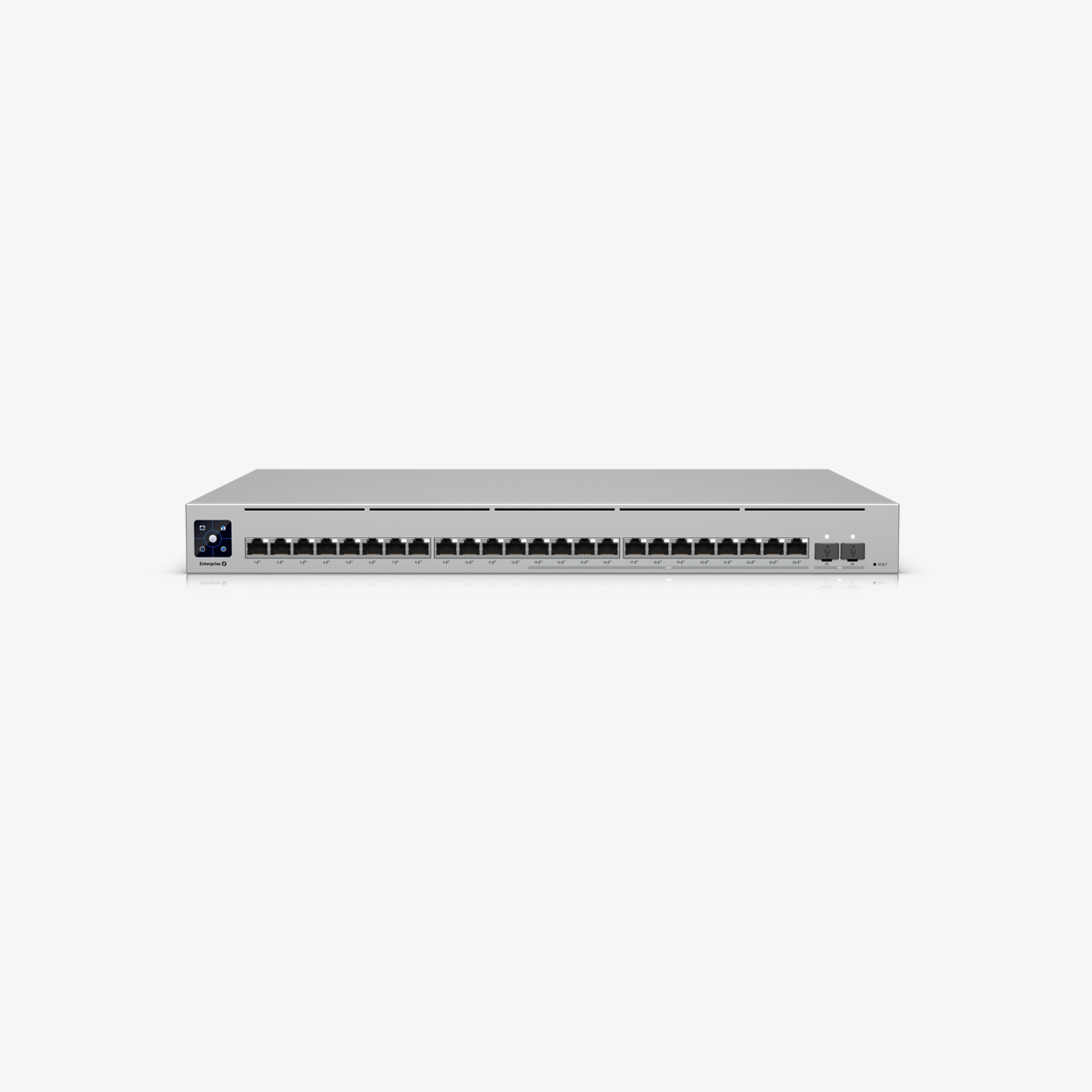

Ubiquiti USW-Enterprise-24-PoE — 24-Port PoE+ Layer 3 Switch

The UniFi Switch Enterprise 24 PoE (USW-Enterprise-24-PoE) is a powerful, compact 1U Layer 3 switch featuring 24 PoE+ ports, split between 12 x 2.5 GbE and 12 x 1 GbE, plus 2 x 10 Gb SFP+ uplinks. With a 400 W PoE budget, 550 W internal PSU, and built-in touchscreen, it’s ideal for dense deployments of high-performance access points and surveillance systems—all managed seamlessly via the UniFi Network Controller.

Request a Quote
5 people are viewing this product

Description

The USW-Enterprise-24-PoE is a high-performance UniFi switch tailored for demanding deployments like enterprise Wi-Fi or IP surveillance rollouts. It provides a versatile port layout with 12 ports capable of 2.5 GbE PoE+—perfect for bandwidth-intensive devices—and 12 standard Gigabit PoE+ ports, along with two 10 Gb SFP+ uplinks for robust network backbone integration.

Featuring a total 400 W PoE budget and 550 W internal power supply, it ensures stable power delivery across high-demand setups. The switch employs a fanless design with SGCC steel construction, and includes a 1.3″ touchscreen for quick diagnostics and seamless integration with the UniFi ecosystem.

Layer 3 capabilities include static routing, DHCP Relay/Server, and inter-VLAN routing. Layer 2 features are comprehensive: VLANs, LACP, STP/RSTP, QoS, ACLs, IGMP snooping, port mirroring, jumbo frames, and more—manageable via UniFi Network Controller or mobile app.

This switch also supports SmartPower RPS redundancy (sold separately) and offers DC backup, enhancing reliability in mission-critical setups.

Application

High-performance Wi-Fi 6/7 AP deployments, Surveillance systems, 10 GbE uplinks, Enterprise PoE hub, Layer 3 edge aggregation

Key Features

  • 12 × 2.5 GbE + 12 × 1 GbE RJ45 PoE+ ports, 2 × 10 Gb SFP+ uplinks

  • 400 W PoE budget; onboard 550 W AC PSU with DC backup readiness

  • 124 Gbps switching capacity; 62 Gbps non-blocking throughput; 92 Mpps forwarding

  • Layer 3 features: static routing, inter-VLAN, DHCP, ACLs, and more

  • Comprehensive Layer 2: VLAN, LACP, STP/RSTP, QoS, jumbo frames, IGMP, mirroring

  • 1.3″ LCM touchscreen for quick diagnostics

  • Fanless, rack-friendly 4.7″ depth design; SGCC steel chassis

  • ESD protection ±16 kV air / ±12 kV contact

  • Supports UniFi SmartPower RPS for redundancy

  • Managed via UniFi Network Controller and mobile app

  • NDAA, CE, FCC, IC, and Anatel certified

Specifications

Specification Details
Brand Ubiquiti
Model / Product Code UniFi Switch Enterprise 24 PoE (USW-Enterprise-24-PoE)
Ports 12 × 2.5 GbE PoE+, 12 × 1 GbE PoE+; 2 × 10 Gb SFP+ uplink
Switching Capacity 124 Gbps
Non-Blocking Throughput 62 Gbps
Forwarding Rate 92 Mpps
Total PoE Budget 400 W
Max PoE Wattage/Port ~34.2 W
Power Supply 550 W internal AC PSU; DC backup (USP-RPS support)
Touchscreen 1.3″ LCM display
Enclosure Material SGCC steel chassis and mount
Dimensions 442 × 325 × 44 mm (17.4 × 12.8 × 1.7″)
Weight 5.1 kg (without mount); 5.2 kg (with mount)
ESD Protection ±16 kV air / ±12 kV contact
Operating Temp –5° to 40 °C (23°–104 °F)
Management UniFi Network Controller / Mobile App; Ethernet (in-band)
Certifications NDAA, CE, FCC, IC, Anatel
