Ubiquiti UniFi Switch Pro 48 PoE (USW-Pro-48-POE)

Description

The Ubiquiti UniFi Switch Pro 48 PoE (USW-Pro-48-POE) is engineered for professional network environments that demand both high-density connectivity and sophisticated power delivery. The 48 Gigabit RJ45 ports include 40 PoE+ and 8 PoE++ ports, supported by a substantial 600 W total PoE budget, powering access points, cameras, and AV devices with ease. Complementing these are 4 × 10G SFP+ uplink ports for high-speed backbone integration.
Performance is robust, offering 176 Gbps switching capacity, 88 Gbps non-blocking throughput, and a 131 Mpps forwarding rate, ensuring smooth data handling even under peak load.

Built for enterprise resilience, the USW-Pro-48-POE supports full Layer 3 functionality—including DHCP server, DHCP relay, inter-VLAN routing, and static routing—managed via UniFi Network Controller. It also provides advanced Layer 2 features such as LACP, STP/RSTP, ACLs, IGMP snooping, Jumbo Frames, and AV-optimized profiles for smooth integration with professional audio/visual systems.

Housed in a 1U rack-mount SGCC steel chassis with a 1.3″ touchscreen LCM, the switch supports dual power inputs—including an internal 660 W supply and external DC backup—for high availability setups. Additional operational specs include a maximum 60 W power draw (excluding PoE output) and robust ESD protections.

Certified to CE, FCC, IC, Anatel standards and NDAA-compliant, the USW-Pro-48-POE is an excellent investment for campus networks, pro AV deployments, and high-performance enterprise environments where centralized management, power redundancy, and PoE flexibility are essential.

Application

Enterprise networks, Pro AV deployments, ISPs, Campus infrastructures, High-density PoE environments

Key Features

✔️ 48 Gigabit RJ45 ports (40 PoE+, 8 PoE++)
✔️ Massive 600 W total PoE budget to power edge infrastructure
✔️ 4 × 10G SFP+ uplinks for high-capacity backbone links
✔️ Enterprise-grade performance: 176 Gbps switching, 131 Mpps forwarding
✔️ Full Layer 3 support: DHCP server/relay, inter-VLAN and static routing
✔️ Advanced Layer 2 and AV features: ACLs, Jumbo Frames, IGMP, AV profiles
✔️ Silent operation with integrated 1.3″ touchscreen for on-site management
✔️ Dual power capabilities: internal PSU plus DC backup support

Specifications

Specification	Details
Brand	Ubiquiti
Model / Product Code	USW-Pro-48-POE
Dimensions	442 × 400 × 44 mm (17.4 × 15.7 × 1.7 in)
Weight	6.2 kg (13.7 lb) without brackets; 6.3 kg (13.9 lb) with brackets
Form Factor	Rack mount (1U)
Ethernet Ports	48 × 10/100/1000 RJ45 (40 PoE+, 8 PoE++)
SFP+ Ports	4 × 10G SFP+ uplinks
Switching Capacity	176 Gbps
Non-Blocking Throughput	88 Gbps
Forwarding Rate	131 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
Packet Buffer Size	4 MB
Layer 3 Features	DHCP server, DHCP relay, inter-VLAN routing, static routing
Layer 2 Features	LACP, STP/RSTP, QoS (DSCP), AV Profiles, IGMP Snooping, 802.1X, ACLs, Jumbo Frames, Port Mirroring, Loop Protection, etc. (techspecs.ui.com)
PoE Ports	PoE+: 40 ports; PoE++: 8 ports
Total PoE Budget	600 W
Max Power Consumption	60 W (excluding PoE output); 660 W (including PoE)
Power Supply	Internal AC/DC 660 W; supports USP RPS DC input
Cooling	Fanless (passive)
Enclosure Material	SGCC steel
Supported Rack Depth	400–1200 mm (15.7–47.2 in)
LCM Display	1.3″ touchscreen
ESD Protection	Air: ±16 kV; Contact: ±12 kV
Operating Temperature	–5 to 40 °C (23 to 104 °F)
Operating Humidity	10–90% non-condensing
Certifications & Compliance	CE, FCC, IC, Anatel; NDAA compliant
Warranty	1-year limited (per vendor policy)

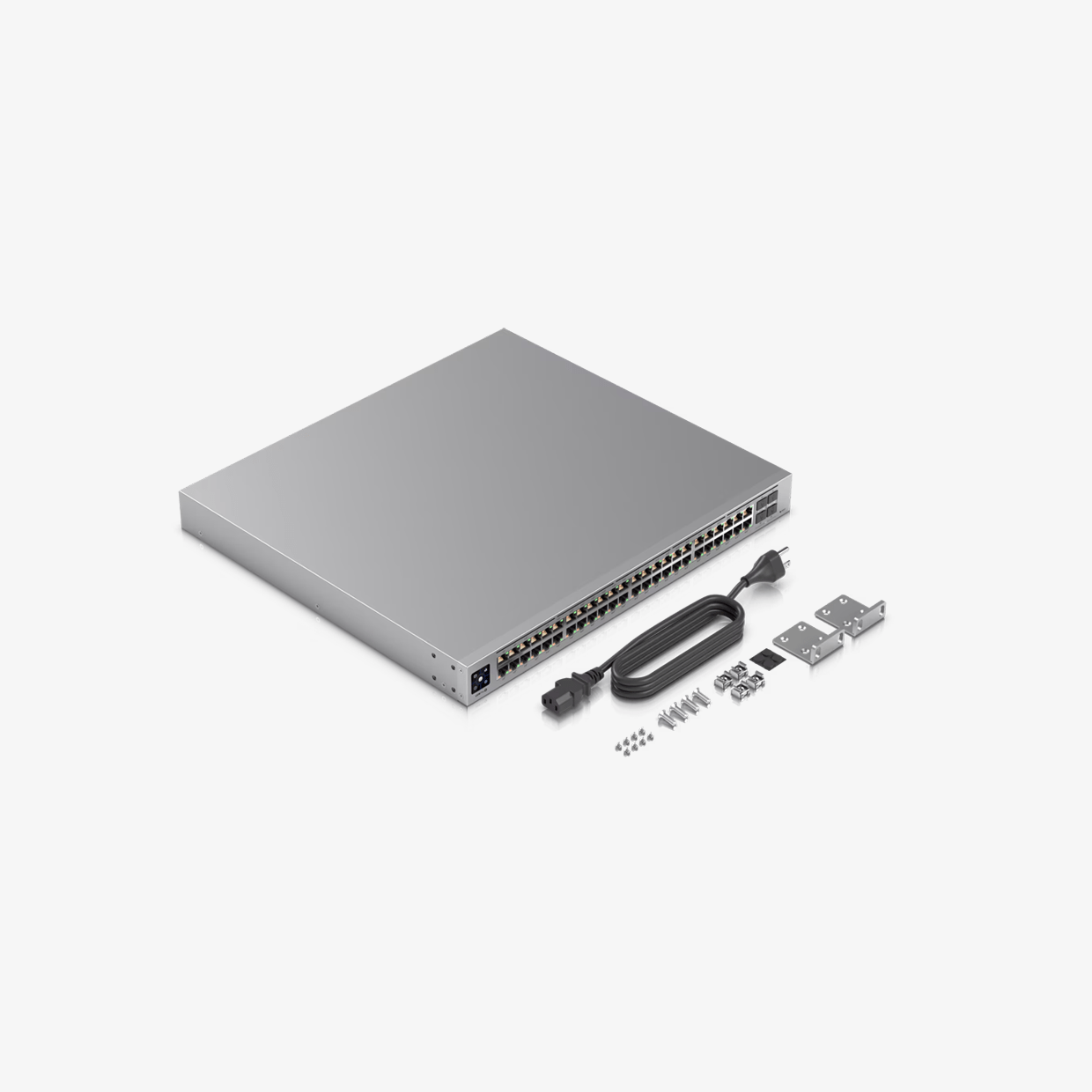

Package Contents	Switch unit, power cord, rack brackets, screws
