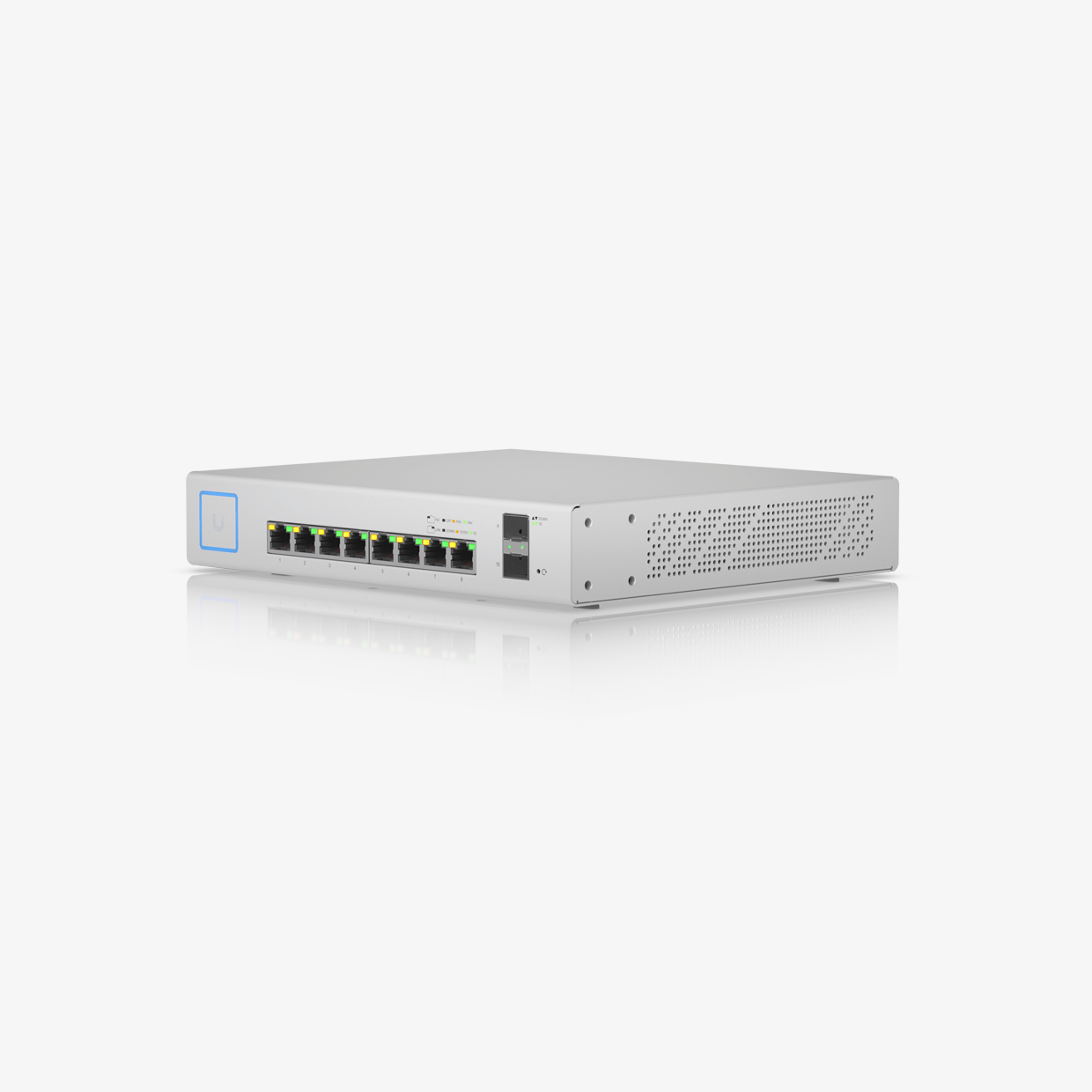

Ubiquiti UniFi Switch 8 150W (US-8-150W) — 8 PoE+ Ports, 2 SFP

The Ubiquiti UniFi Switch 8 150W (US-8-150W) is a compact, fanless managed switch with eight Gigabit RJ45 ports and two SFP uplinks. Delivering up to 130 W of total PoE power with support for 802.3af/at and 24V passive PoE, it efficiently powers access points, cameras, and VoIP phones. Featuring a 20 Gbps switching capacity, silent operation, and UniFi Network application management, the US-8-150W is a versatile choice for small offices, businesses, and ISP networks needing reliable wired connectivity with advanced features.

Description

The Ubiquiti UniFi Switch 8 150W (US-8-150W) is a fully managed Gigabit PoE switch designed to deliver powerful performance in a compact form factor. Featuring eight RJ45 Gigabit Ethernet ports with auto-sensing 802.3af/at and configurable 24V passive PoE, it provides up to 130 W of total PoE budget, making it ideal for powering UniFi access points, IP cameras, and VoIP phones. In addition, it includes two SFP uplink ports, enabling seamless fiber connectivity and flexible network expansion.

With a non-blocking throughput of 10 Gbps, a switching capacity of 20 Gbps, and a forwarding rate of 14.88 Mpps, the US-8-150W ensures smooth handling of high-bandwidth traffic. The fanless design guarantees silent operation, making it suitable for office environments. It also supports enterprise features such as VLANs, link aggregation, ACLs, IGMP, RADIUS, and port isolation, delivering flexibility and control for professional networks.

Managed through the UniFi Network application, administrators gain centralized visibility, configuration, and monitoring across their entire UniFi infrastructure. Compact yet powerful, the US-8-150W is an excellent solution for small offices, enterprises, and ISPs seeking reliable Gigabit connectivity with robust PoE support.


Application

Small offices, Enterprise networks, ISPs


Key Features

✔️ 8 × Gigabit RJ45 ports with 802.3af/at & 24V passive PoE support
✔️ 2 × 1 Gbps SFP uplink ports for fiber connectivity
✔️ 130 W total PoE budget for APs, cameras, and VoIP phones
✔️ Fanless, silent design for office and desktop deployments
✔️ Switching capacity up to 20 Gbps, forwarding rate 14.88 Mpps
✔️ Managed centrally via UniFi Network application
✔️ Rich Layer 2 features: VLANs, LACP, ACLs, IGMP, RADIUS, port isolation
✔️ Compact and versatile, with wall-mount or desktop placement options

Specifications

SpecificationDetails
BrandUbiquiti
Model / Product CodeUniFi Switch 8 150W (US-8-150W)
Form FactorDesktop or wall-mount
Dimensions235 × 43 × 204 mm (9.3 × 1.7 × 8 in)
Weight1.65 kg (3.63 lb)
Ethernet Ports8 × 10/100/1000 Mbps RJ45 with PoE
SFP Ports2 × 1 Gbps SFP
Switching Capacity20 Gbps
Non-Blocking Throughput10 Gbps
Forwarding Rate14.88 Mpps
MAC Address Table Size16,000 entries
Supported VLANs256
Max PoE Power Budget130 W
PoE StandardsIEEE 802.3af/at PoE+, Configurable 24V passive PoE
Max PoE per PortUp to 34.2 W (802.3at), 17 W (24V passive)
Power SupplyInternal AC (100–240V AC, 50/60 Hz)
Max Power Consumption150 W (with PoE load), ~20 W (without PoE)
CoolingFanless (silent)
Operating Temperature–5 to 45 °C (23 to 113 °F)
Operating Humidity5–95% noncondensing
Enclosure MaterialMetal
Certifications & ApprovalsCE, FCC, IC
ProtectionsESD/EMP ±24 kV air/contact discharge; ETSI300-019-1.4 shock/vibration
Package ContentsUniFi Switch 8 150W, Power cord, Mount accessories, Quick Start Guide
WarrantyNot specified by vendor
