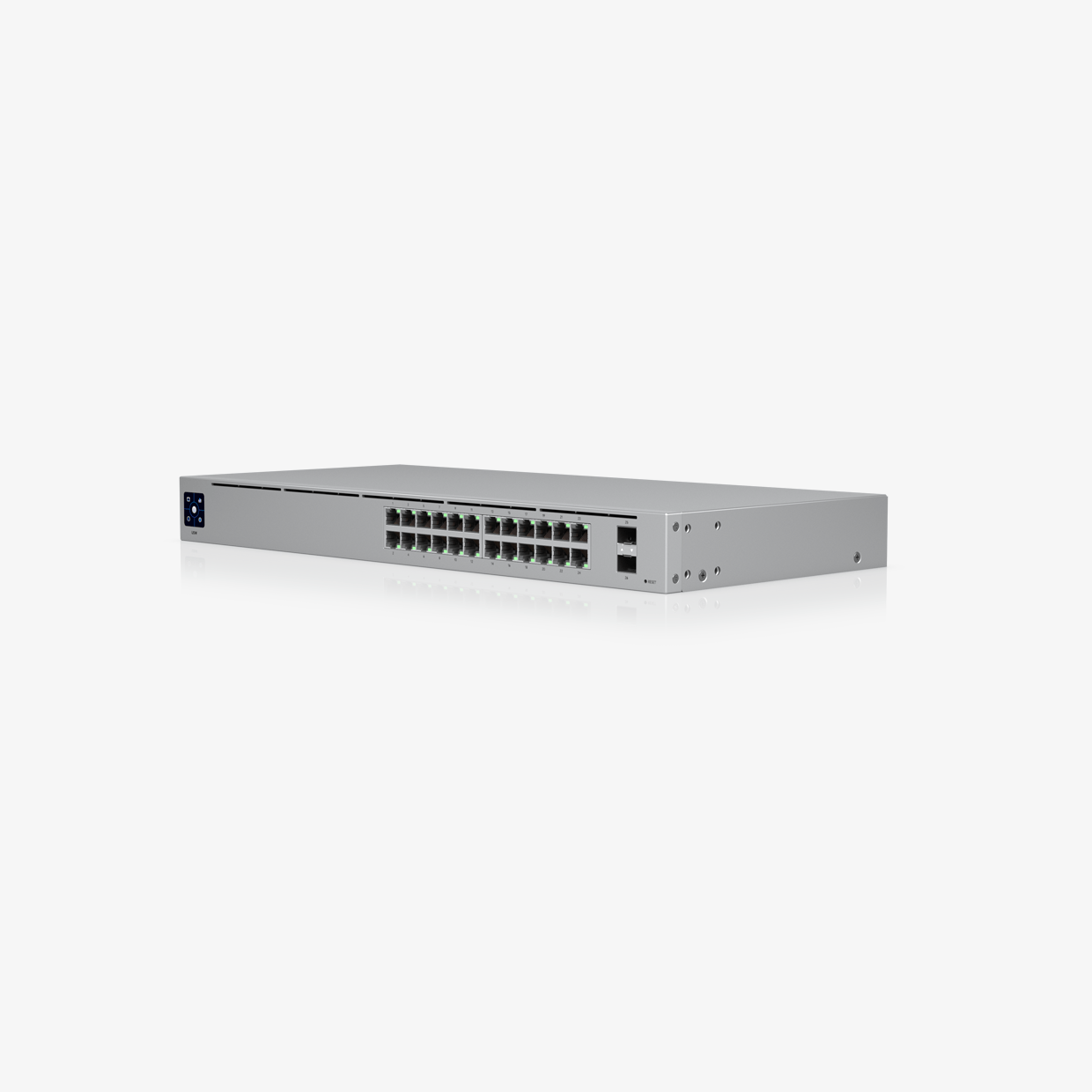

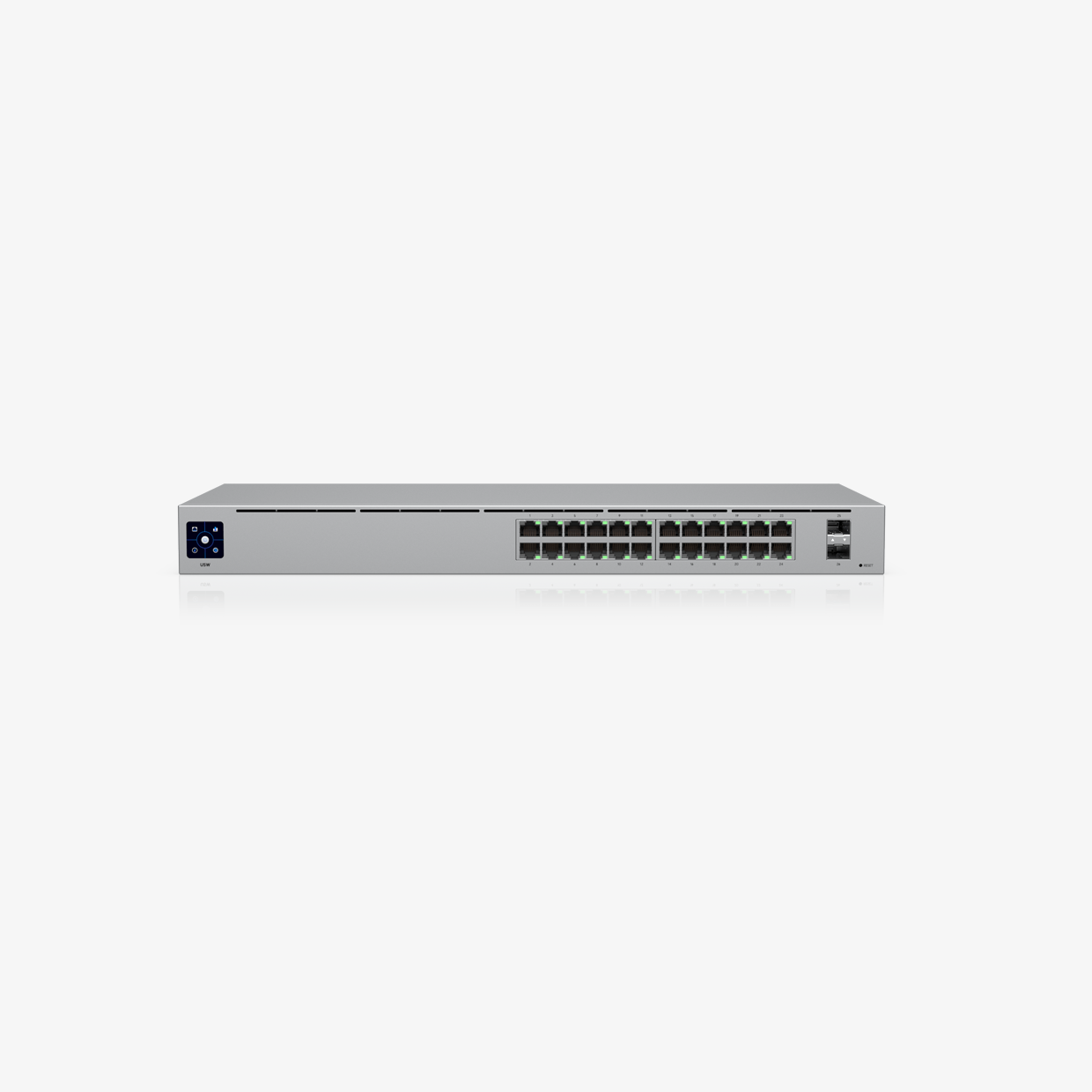

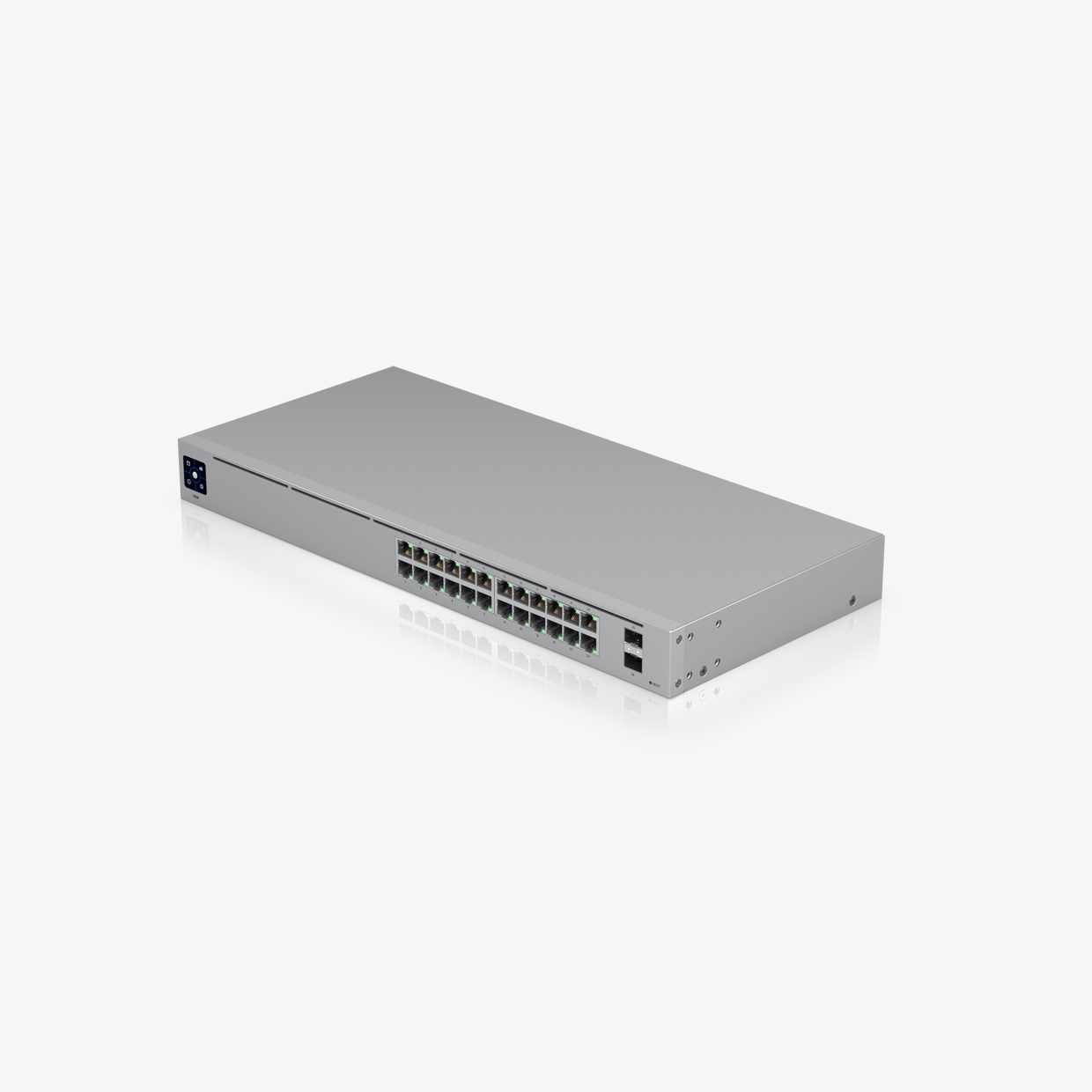

Ubiquiti UniFi Switch 24 (USW-24) —Gigabit Managed Switch

The Ubiquiti UniFi Switch 24 (USW-24) is a fully managed Layer 2 switch designed for small to medium businesses, enterprises, and ISPs. Featuring 24 Gigabit Ethernet ports and two SFP uplink ports, it provides reliable high-speed connectivity for wired networks. Managed through the UniFi Network Controller, it supports advanced switching features and seamless integration with UniFi devices. Its fanless design ensures silent operation, while its sturdy build delivers dependable performance for professional environments.

5 people are viewing this product

Description

The Ubiquiti UniFi Switch 24 (USW-24) is a versatile, enterprise-grade Layer 2 switch that provides efficient network management and reliable wired performance. Designed for businesses, ISPs, and professional deployments, the USW-24 features 24 Gigabit Ethernet ports for high-speed device connections, along with 2 SFP ports that enable fiber uplinks and long-distance connectivity.

The USW-24 is fully manageable through the UniFi Network Controller (UniFi OS), offering centralized configuration, monitoring, and advanced management tools. Administrators can configure VLANs, enable port profiles, monitor traffic, and integrate seamlessly with other UniFi devices in the ecosystem.

Built with a fanless cooling system, the USW-24 operates silently, making it suitable for offices, workstations, or any noise-sensitive environment. Its rack-mountable metal chassis ensures durability and easy integration into professional IT racks.

With its balance of performance, management flexibility, and quiet operation, the USW-24 is an ideal choice for expanding wired networks in small offices, enterprises, and service provider setups.


Application

Enterprise networks, Small offices, ISPs, Data centers


Key Features

✔️ 24 Gigabit Ethernet ports for high-speed connections
✔️ 2 SFP ports for fiber uplinks and long-distance links
✔️ Layer 2 managed switching with UniFi Network Controller integration
✔️ Silent, fanless cooling for noise-sensitive environments
✔️ Centralized management with VLAN and port profile configuration
✔️ Rack-mountable, durable metal chassis
✔️ Ideal for professional business and ISP deployments
✔️ Seamless integration with the UniFi ecosystem

Specifications

Specification Details
Brand Ubiquiti
Model / Product Code USW-24
CPU / Chipset Not specified by vendor
Memory Not specified by vendor
Storage Not specified by vendor
Dimensions 442 × 200 × 44 mm (17.4 × 7.9 × 1.7 in)
Weight 2.7 kg (6 lb) without brackets; 2.8 kg (6.2 lb) with brackets
Form Factor Rack-mountable, 1U
Ethernet Ports 24 × 1G RJ45 (10/100/1000 Mbps)
SFP Ports 2 × 1G SFP
Switching Capacity 52 Gbps
Total Non-Blocking Throughput 26 Gbps
Forwarding Rate 39 Mpps
Supported VLANs 1,000
MAC Address Table Size 8,000
Packet Buffer Size 0.5 MB
Access Lists IPv4: 128, MAC: 128
Layer 2 Features LACP, STP/RSTP, IGMP Snooping & Advanced Config, 802.1X, ACLs, DHCP Snooping, Flow/Storm Control, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection
Power Consumption Max. 25W
Power Method Universal input, 100–240V AC, 50/60 Hz
Power Supply Internal AC/DC, 36W
Heat Dissipation 85.3 BTU/hr
Cooling Fanless
Enclosure Material SGCC steel
Mounting Options Rack depth: 400–1200 mm (15.7–47.2 in)
LCM Display 1.3″ touchscreen
Operating Temperature –5 to 45 °C (23 to 113 °F)
Operating Humidity 10 to 90% noncondensing
Environmental Rating NDAA compliant
Certifications & Approvals CE, FCC, IC, Anatel
Warranty 1-year limited (per vendor policy)

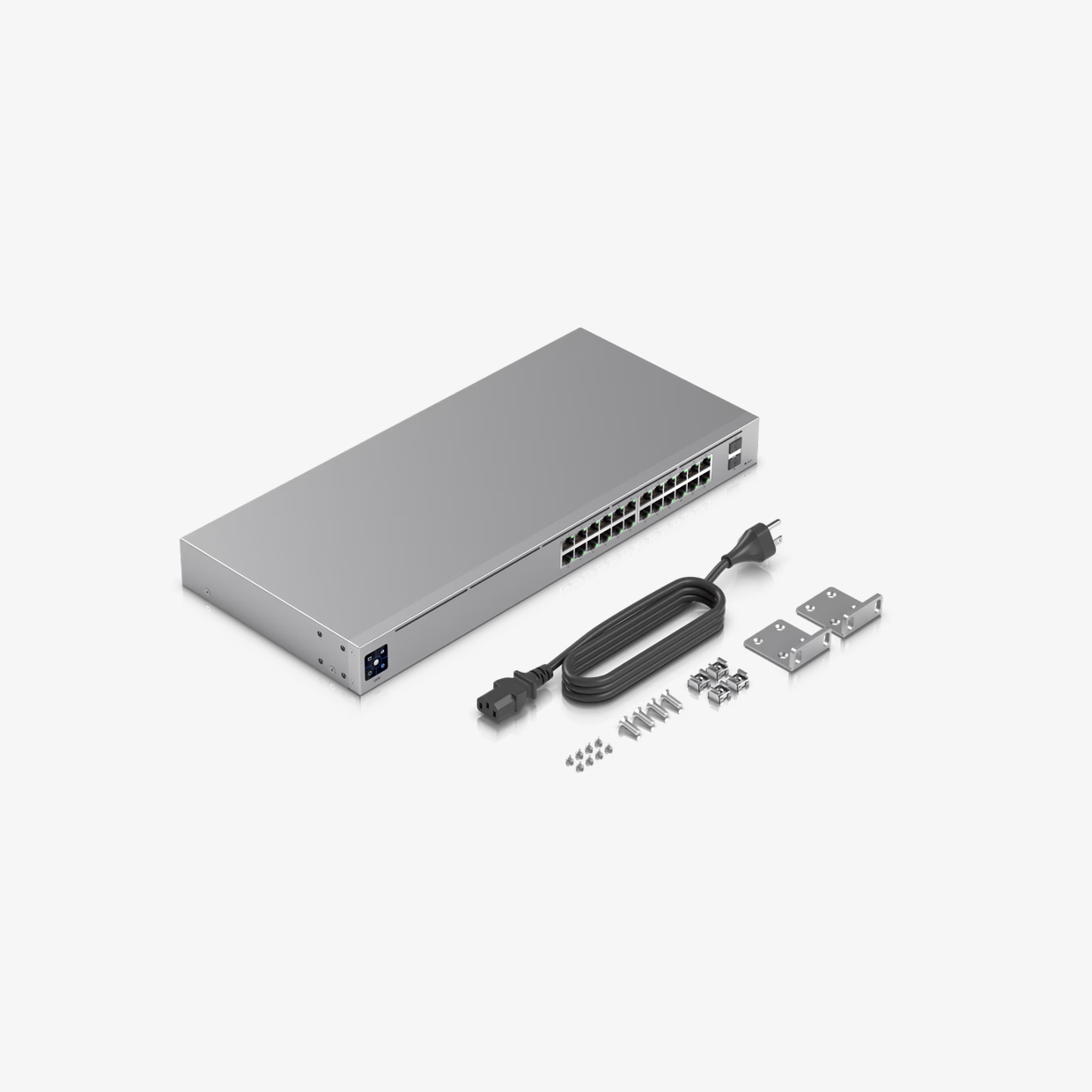

Package Contents USW-24 unit, Power cord, Rack-mount brackets, Screws
