Ubiquiti UniFi Switch 24 PoE — Managed Gigabit 24 PORT

The Ubiquiti UniFi Switch 24 PoE (USW‑24‑POE) is a managed Layer 2 Gigabit switch featuring 24 auto-sensing PoE+ ports, dual SFP fiber uplinks, and silent, fanless cooling. With a 95 W PoE budget and intuitive UniFi Controller integration, it’s ideal for expanding campus or enterprise networks using a centralized management platform.

Request a Quote
8 people are viewing this product

Description

The UniFi Switch 24 PoE by Ubiquiti offers robust performance with 24 Gigabit Ethernet ports—including 16 PoE+ outputs—and two 1 Gbps SFP uplinks in a 1U rackmount, fanless form. Its compact depth and silent operation make it suitable for both server racks and quiet office environments. Powered by an internal 120 W AC/DC supply, the switch provides overall Total PoE availability of 95 W. Advanced Layer 2 capabilities—including VLANs, port mirroring, LACP, storm control, and 802.1X—are configurable via the UniFi Management platform, enhancing deployment flexibility and visibility.

Application
Enterprise PoE deployments, Unified network infrastructure, Campus networks, HVAC and security device integration

Key Features

  • Fanless, low-noise rackmount with 1U profile

  • 16 auto-sensing 802.3af/at PoE+ ports and 8 non-PoE gigabit ports

  • Dual 1 Gbps SFP uplink ports

  • 95 W total PoE budget

  • Full Layer 2 switch features: VLAN, LACP, ACLs, QoS, and more

  • Seamless control via UniFi Network Controller

  • Silent operation, ideal for quiet environments

Specifications

Specification Details
Brand Ubiquiti
Model / Product Code USW‑24‑POE (UniFi Switch 24 PoE)
Switch Type Layer 2 Managed PoE+ Gigabit Switch
Ports – RJ45 24 × Gigabit Ethernet (16 PoE+, 8 data-only)
Ports – SFP 2 × Gigabit SFP
PoE Standard 802.3af/at
Total PoE Budget 95 W
Switching Capacity 52 Gbps
Latency / Throughput 26 Gbps non-blocking throughput
Packet Forwarding Rate 39 Mpps
VLAN & MAC Table Supports up to 1,000 VLANs and 8,000 MAC entries
Dimensions 442 × 200 × 44 mm (Rackmount, 1U)
Power Input 100–240 V AC, internal 120 W power supply
Max Power Consumption (No PoE) 25 W
Enclosure SGCC Steel
Ambient Operating Temperature –5 °C to +40 °C
Certifications & Compliance CE, FCC, IC, Anatel
Weight ~3 kg (6.6 lb) (without brackets)
Management Interface UniFi Network Controller
Warranty / Support UI Care five-year extended coverage available

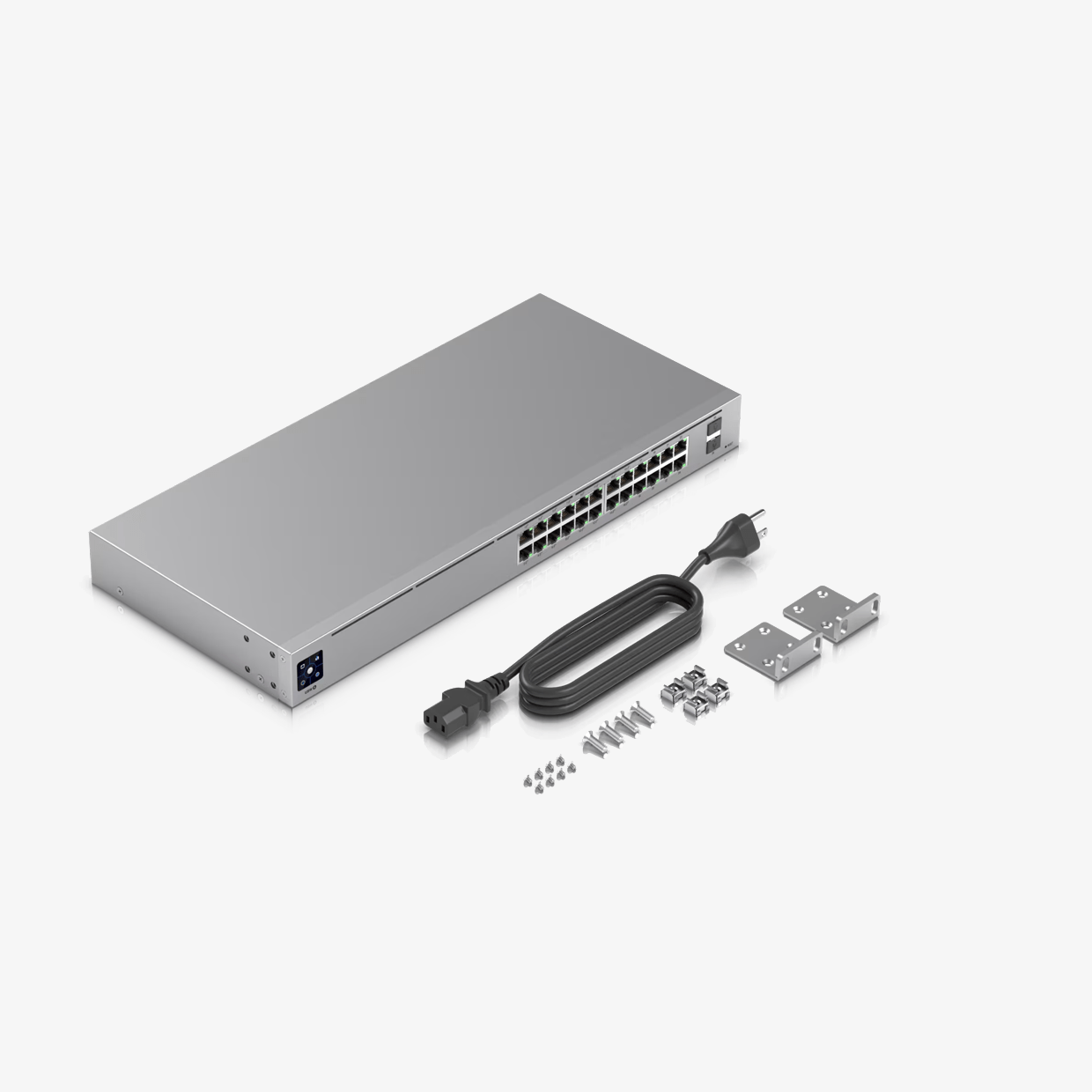

Package Contents USW-24-PoE switch, rackmount kit, power cable
