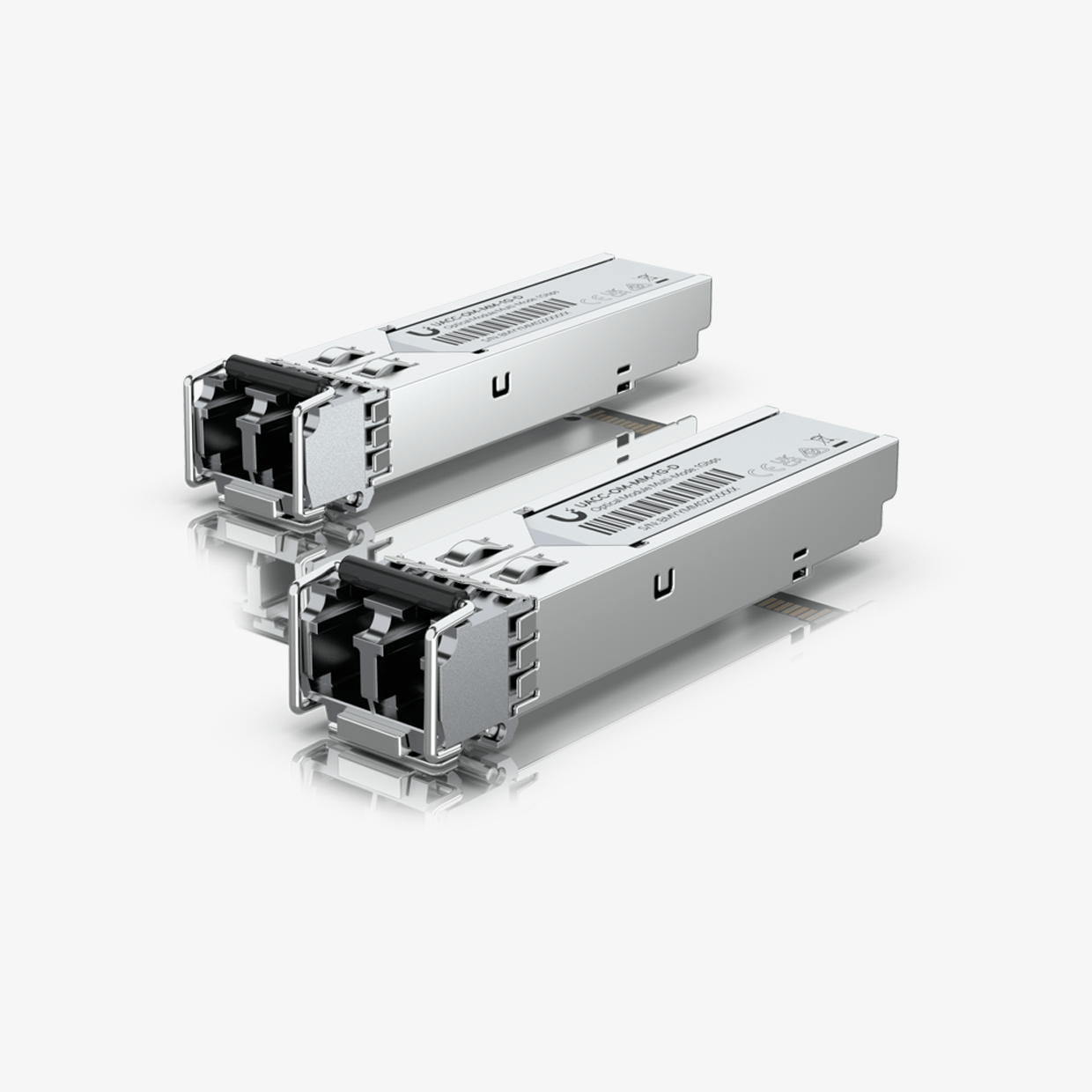

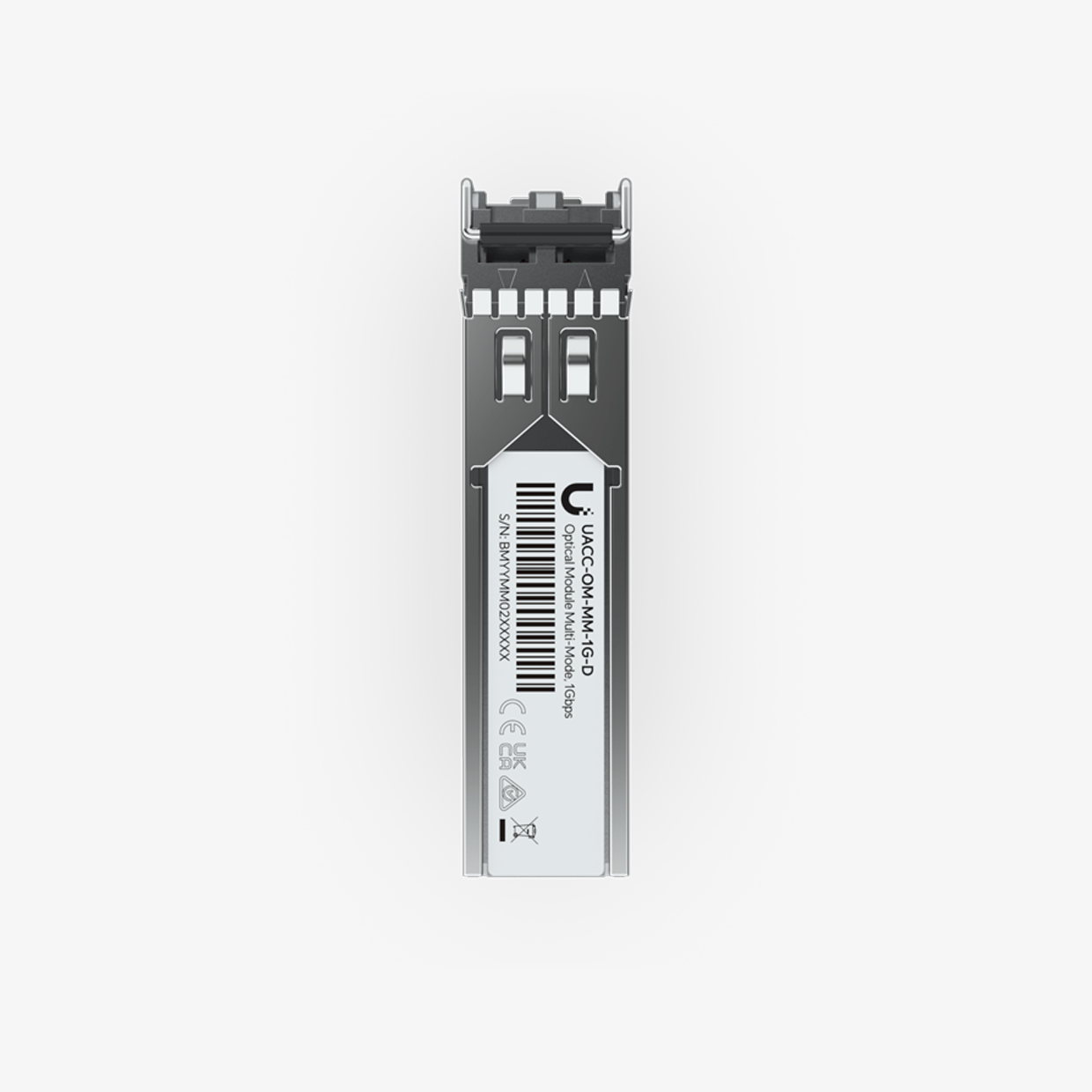

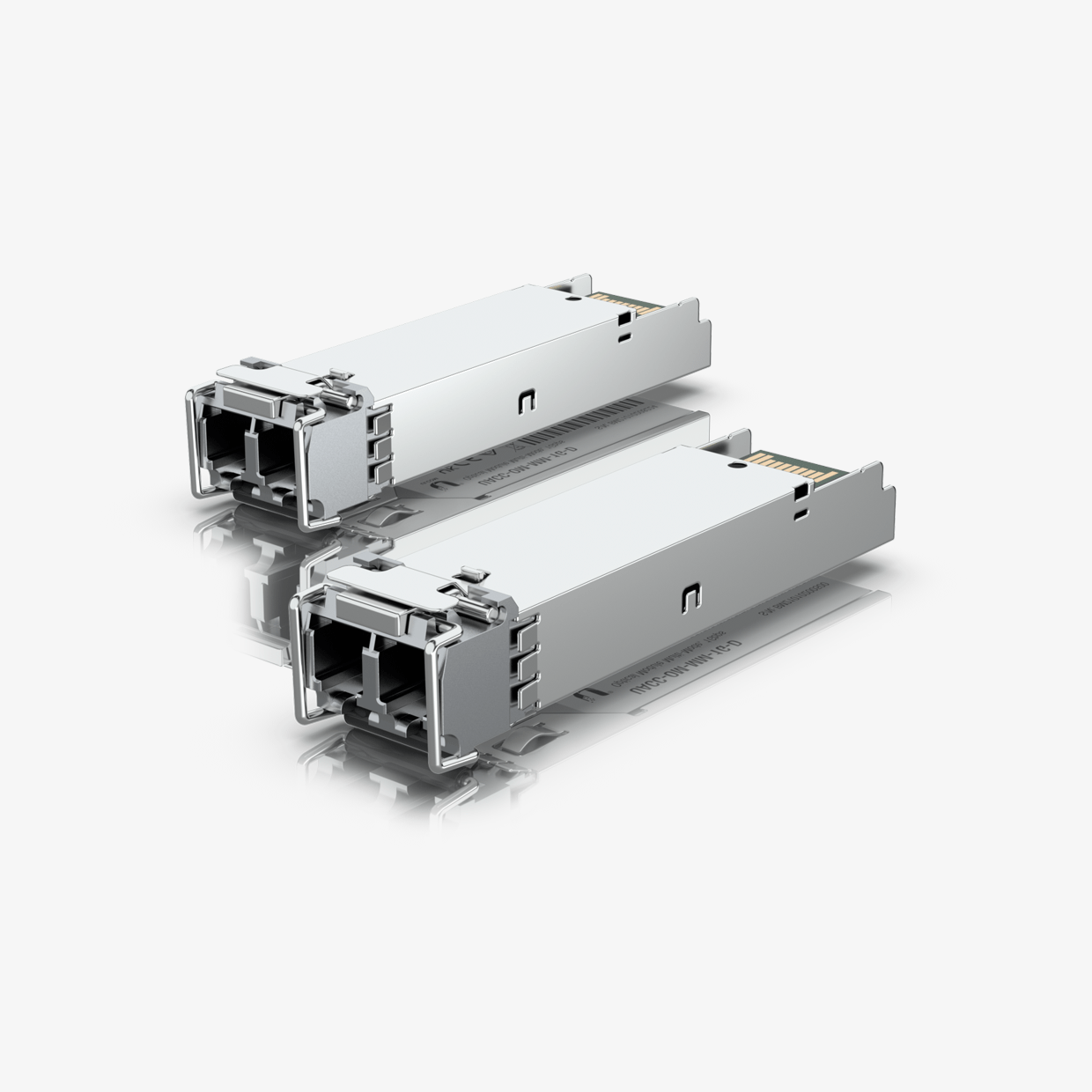

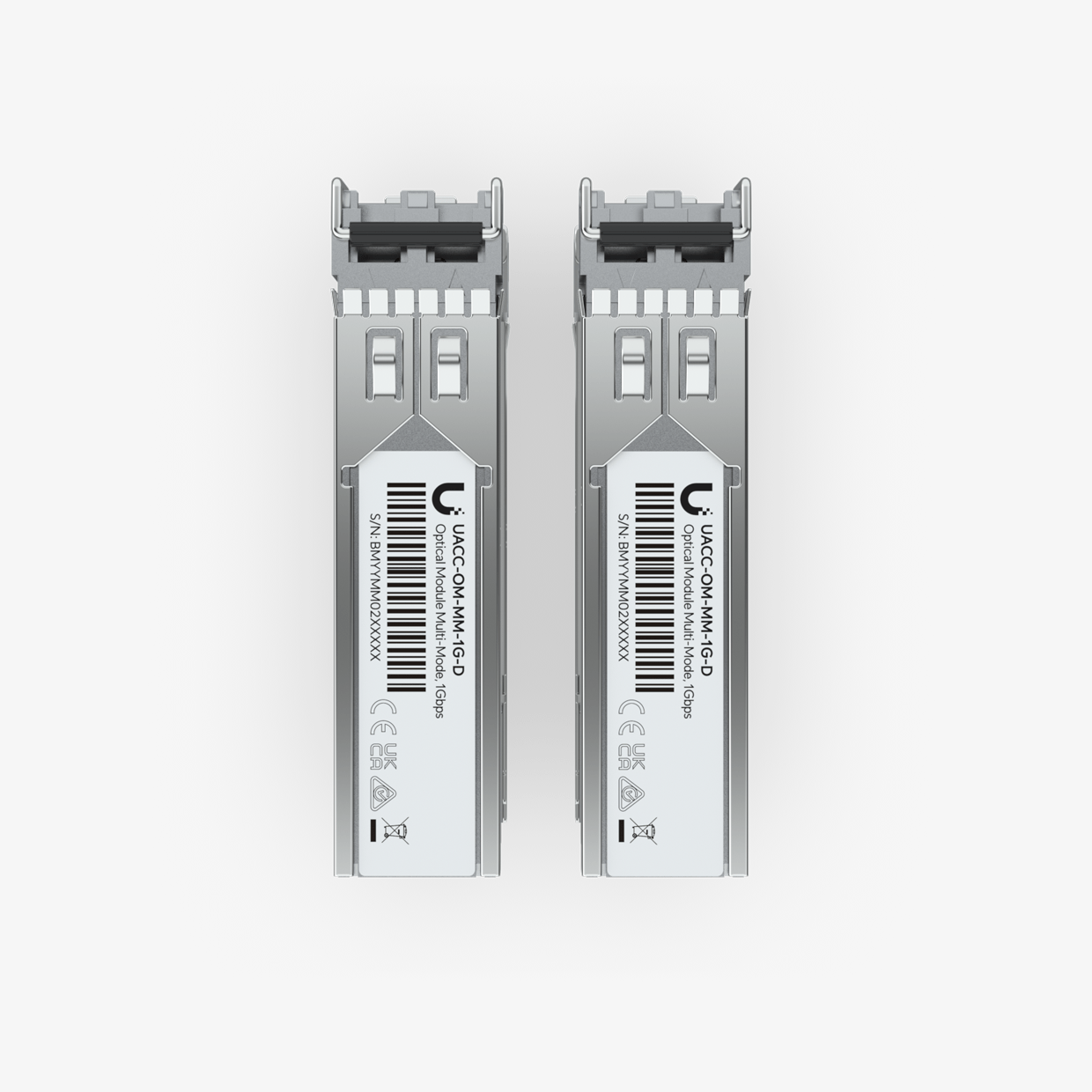

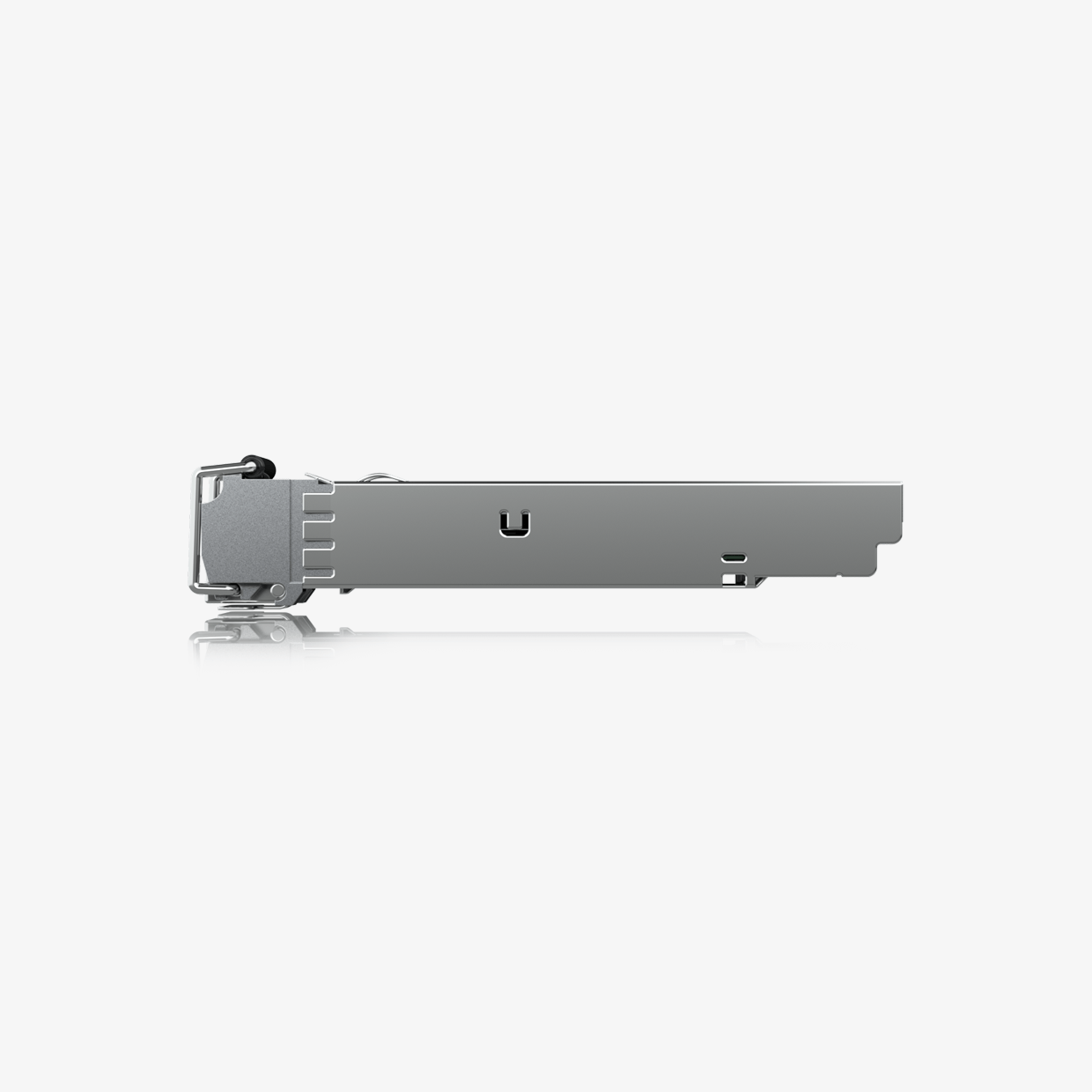

Ubiquiti UACC-OM-MM-1G-D-2 —Multi-Mode Fiber SFP (2-Pack)

The Ubiquiti UACC-OM-MM-1G-D-2 is a compact, duplex 1 Gbps SFP module engineered for multi-mode fiber connections with LC UPC connectors. With an 850 nm laser and compatibility across UniFi and UISP switches, it supports up to 550 meters over OM3/OM4 fiber, making it ideal for extending network backhaul in enterprise and WISP environments. Comes as a convenient 2-pack.

  • User Manual
Request a Quote
10 people are viewing this product

Description

The UACC-OM-MM-1G-D-2 multi-mode SFP transceiver packs reliable fiber connectivity into a slim, rack-friendly module format. Delivering up to 1.25 Gbps real-world speeds, it’s perfectly suited for gigabit Ethernet over multi-mode fiber with extended reach of up to 550 meters (1,804 ft) at an 850 nm wavelength.

These SFPs feature LC UPC duplex connectors, low power draw (0.66 W), a robust temperature range (0–70 °C), and NDAA compliance—ideal for both data centers and outdoor networking applications. Packaged as a 2-unit set, they’re cost-effective, scalable, and compatible with a wide range of UniFi and UISP products.

Application

Fiber networking in enterprise/ISP deployments: uplinks for switches, bridges, campus links, or long-range wireless nodes in both UniFi and UISP ecosystems.

Key Features

✔ Duplex LC UPC connector, 850 nm wavelength
✔ Supports 1 Gbps Ethernet over multi-mode fiber up to 550 m
✔ Low power: ~0.66 W max consumption
✔ NDAA compliant, compact SFP MSA form factor
✔ Minimal installation effort – 2-pack bundle for convenience

Specifications

Specification Details
Brand Ubiquiti
Model / Product Code UACC-OM-MM-1G-D-2
Form Factor SFP (mini-GBIC)
Connector Type Duplex LC UPC
Fiber Type Multi-Mode Fiber (MMF)
Wavelength 850 nm
Max Data Rate 1 Gbps (supports up to 1.25 Gbps)
Max Range 550 m (1,804 ft) over MMF
Power Consumption 0.66 W
Operating Temperature 0–70 °C (32–158 °F)
Compliance NDAA compliant, Class 1 laser product
Pack Quantity 2 units ″pack
Applications Gigabit Ethernet, fiber uplinks, networking gear
