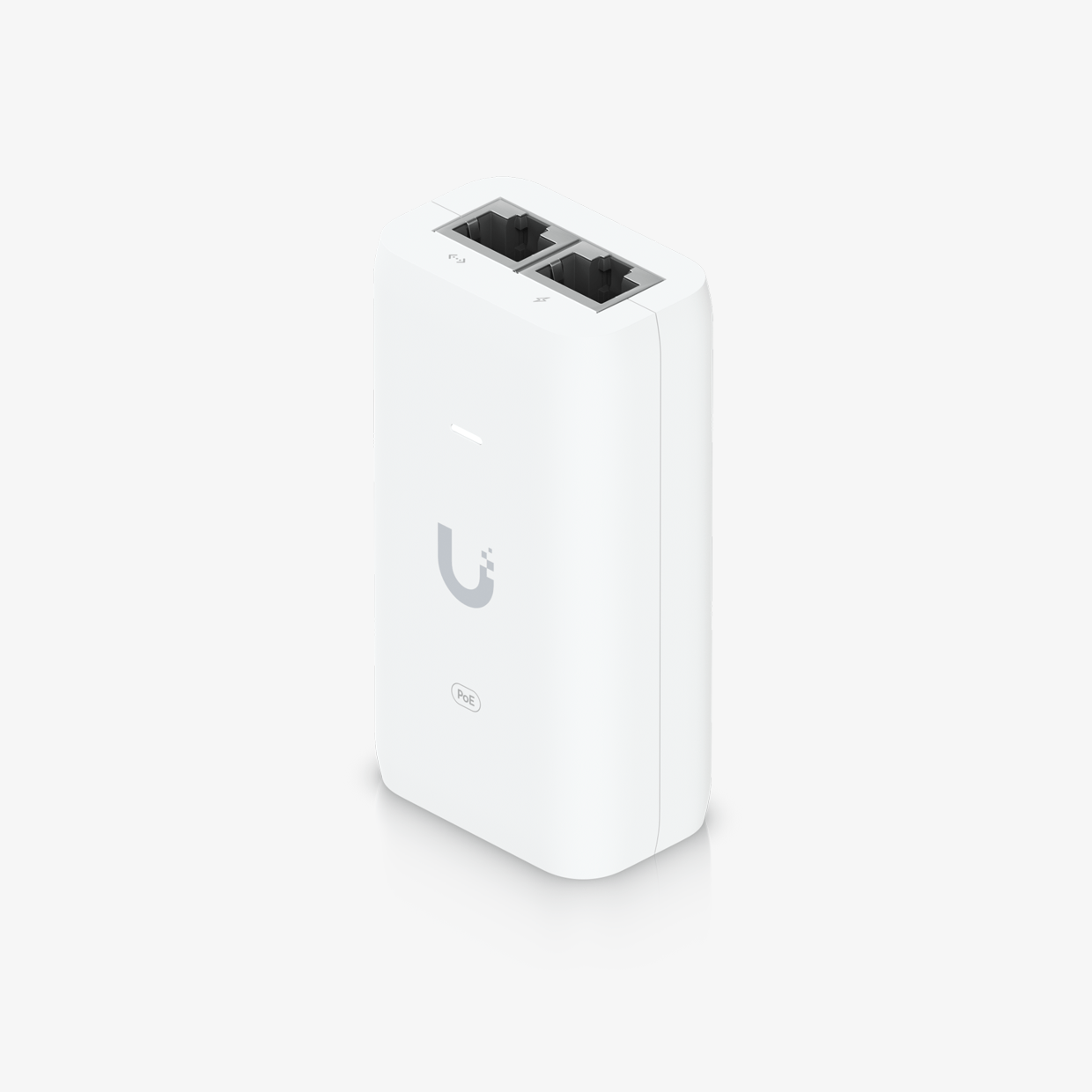

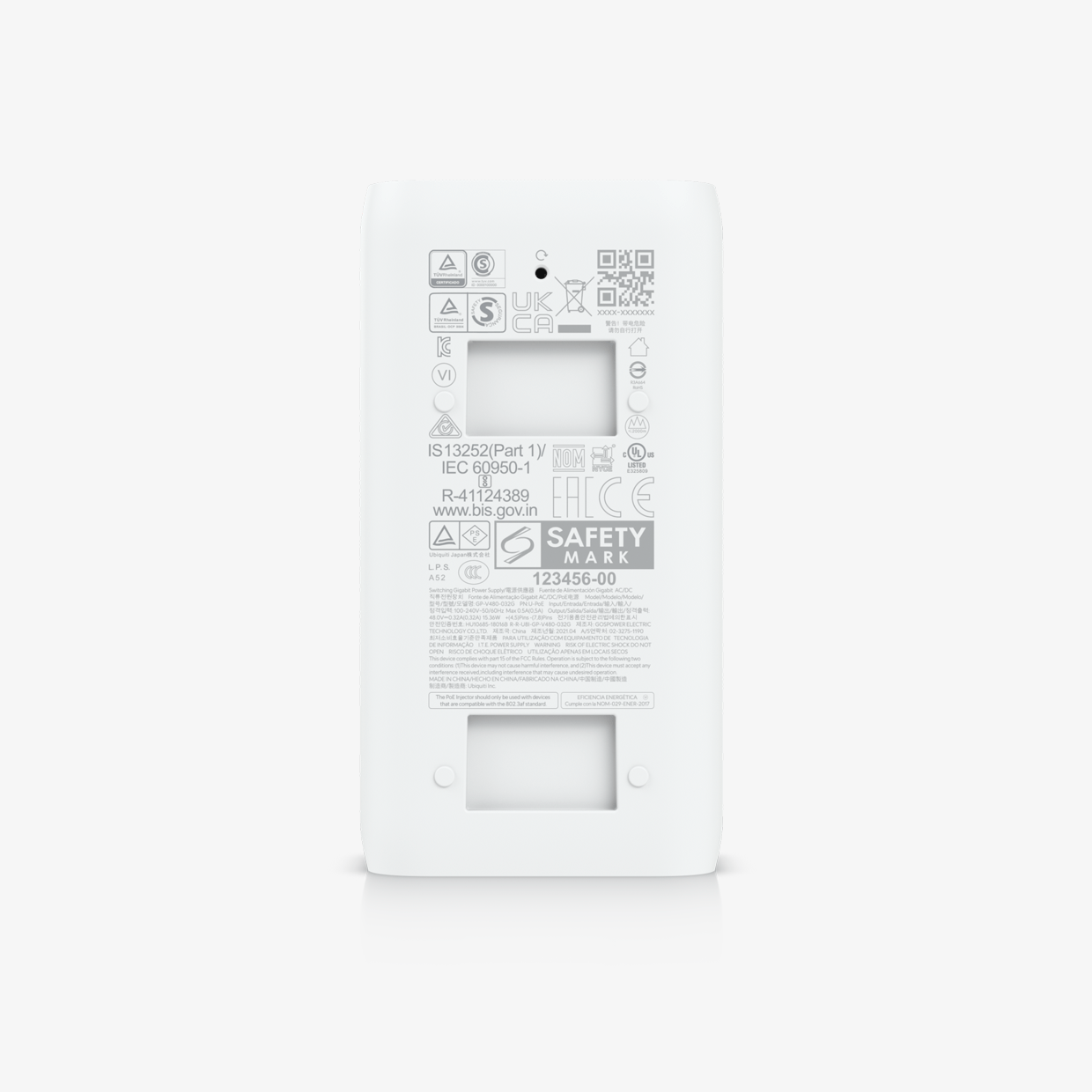

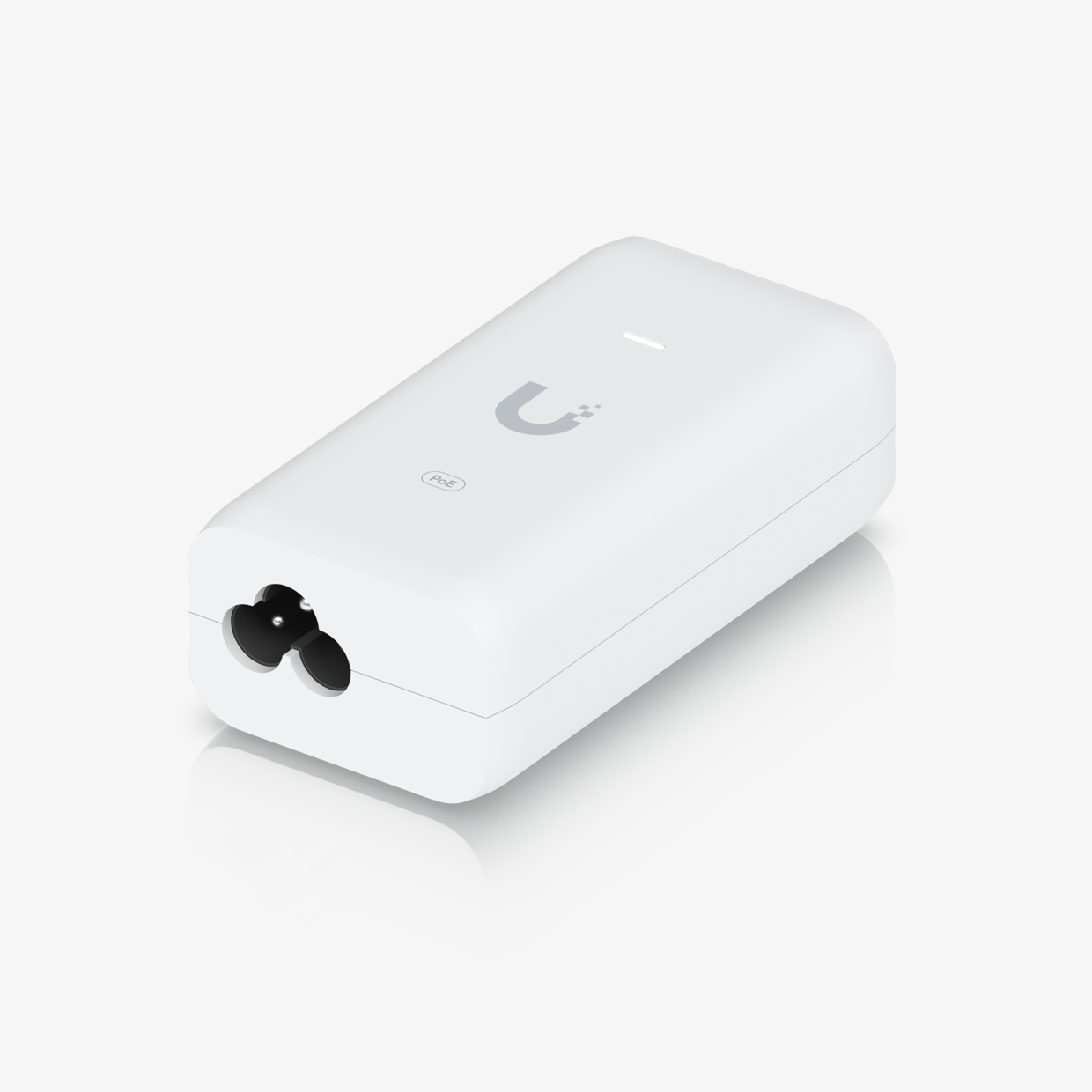

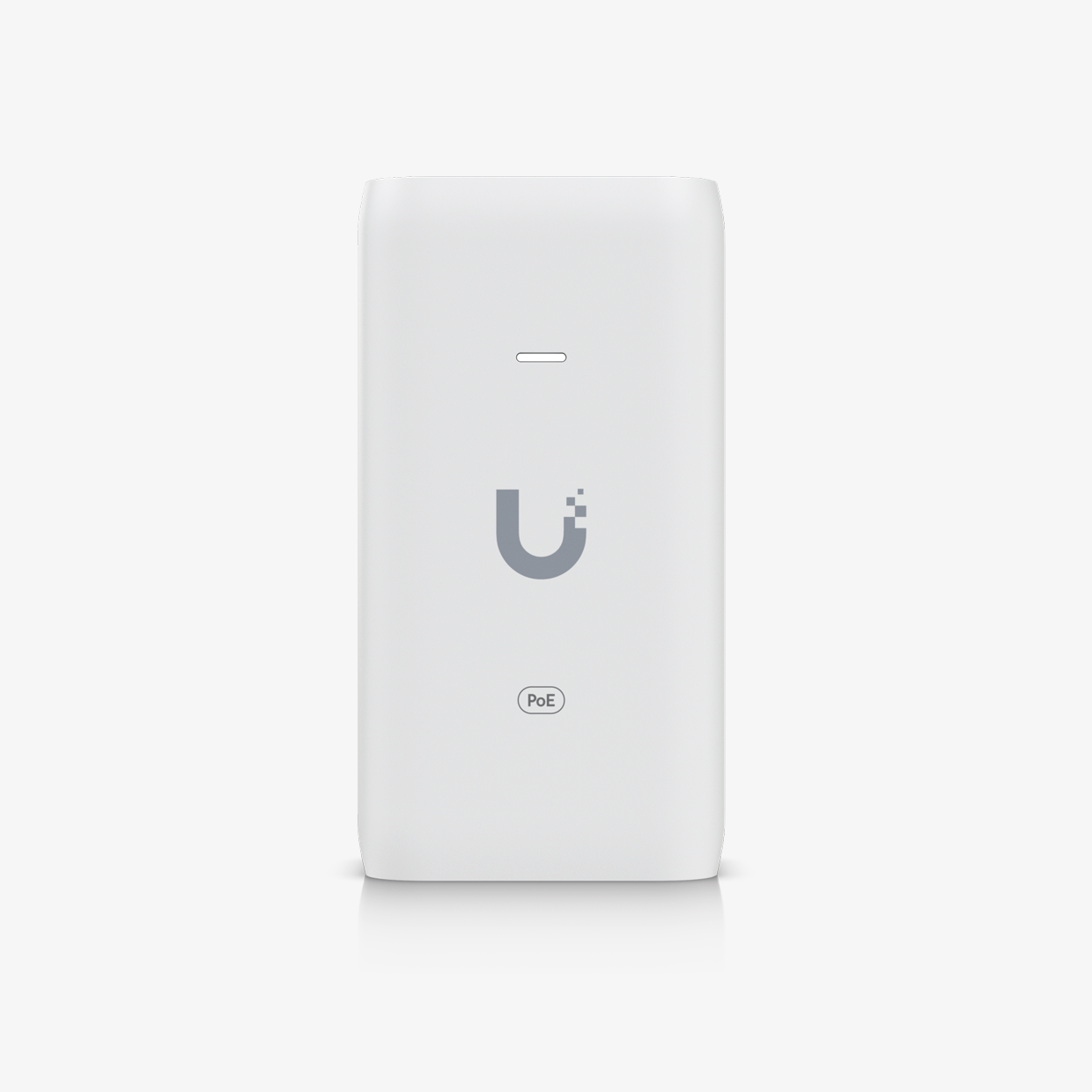

Ubiquiti U-PoE — 15 W Gigabit Power over Ethernet Adapter

The U-PoE (UniFi PoE Adapter 15 W) is a compact power injector for UniFi devices, delivering 48 V DC at 0.32 A over Ethernet (up to 15 W). It features a Gigabit-capable RJ45 port, built-in surge and overcurrent protection, and a grounded AC cable for enhanced safety. Ideal for powering UniFi access points or cameras where PoE switches aren’t available, this fanless and NDAA-compliant adapter ensures reliable operation in compact setups.

  • Data Sheet
  • User Manual
Request a Quote
10 people are viewing this product

Description

The U-PoE (UniFi PoE Adapter 15 W) offers a simple and efficient solution for powering UniFi access points, cameras, and other devices when you don’t have a PoE-enabled switch. This compact, plug-and-play adapter delivers 48 V DC (0.32 A, up to 15 W) via a single Gigabit RJ45 port—perfect for powering a single device without complex setup. Its design includes surge and overcurrent protection, grounded AC connection, and a shielded RJ45 socket for added reliability.

Weighing just 100 g and measuring a sleek 86 × 46 × 33 mm, the U-PoE adapter is discreet and unobtrusive. It’s NDAA-compliant, fits seamlessly into professional deployments, and helps you deploy UniFi devices anywhere without needing an entire PoE switch.

Application

UniFi device power supply, Small offices, Home Wi-Fi deployments, Temporary or portable installations

Key Features

  • Compact 15 W PoE adapter—ideal for powering UniFi APs or cameras

  • Gigabit RJ45 port for full-speed connectivity

  • Supports 48 V DC @ 0.32 A (up to 15 W)

  • Integrated surge and overcurrent protection with grounded AC connection

  • Plug-and-play operation—no configuration required

  • Lightweight and space-saving (100 g; 86 × 46 × 33 mm)

  • NDAA-compliant, suitable for professional use

  • Fanless design for silent, maintenance-free operation

Specifications

Specification Details
Brand Ubiquiti
Model / Product Code U-PoE (UniFi PoE Adapter 15 W)
Output Voltage 48 V DC @ 0.32 A (up to 15 W)
Ethernet Port 1 × Gigabit RJ45 (PoE output + data)
AC Input Voltage 100–240 V AC @ 50/60 Hz
Power Connector IEC-320 C6 AC connector
Dimensions 86 × 46 × 33 mm (3.4 × 1.8 × 1.3″)
Weight 100 g (3.5 oz)
Efficiency 84.25%+
Surge Protection Difference and common-mode
Clamping Protection 11 V Data, 60 V Power )
Max Surge Discharge 1500 A (8/20 μs) Power
Peak Pulse Current 36 A (10/1000 μs) Data
Response Time < 1 ns
Shunt Capacitance < 5 pF Data
Operating Temp. 0 to 40 °C (32 to 104 °F)
Storage Temp. –30 to 70 °C (–22 to 158 °F)
Operating Humidity 10% to 95% noncondensing
Certifications CE, FCC, IC, UL, CCC; NDAA-compliant
Warranty Limited manufacturer warranty (as per Ubiquiti policy)
Package Contents U-PoE adapter
