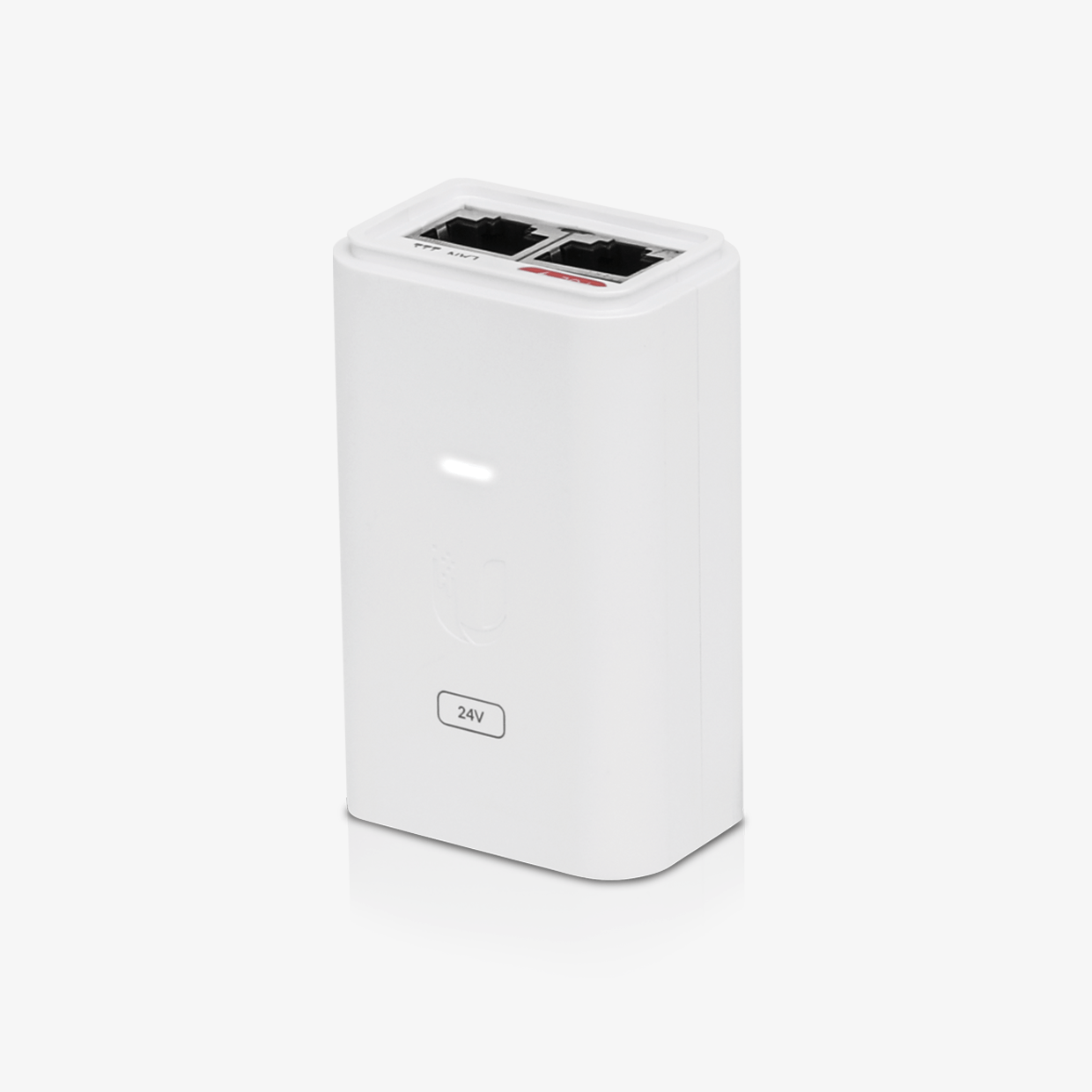

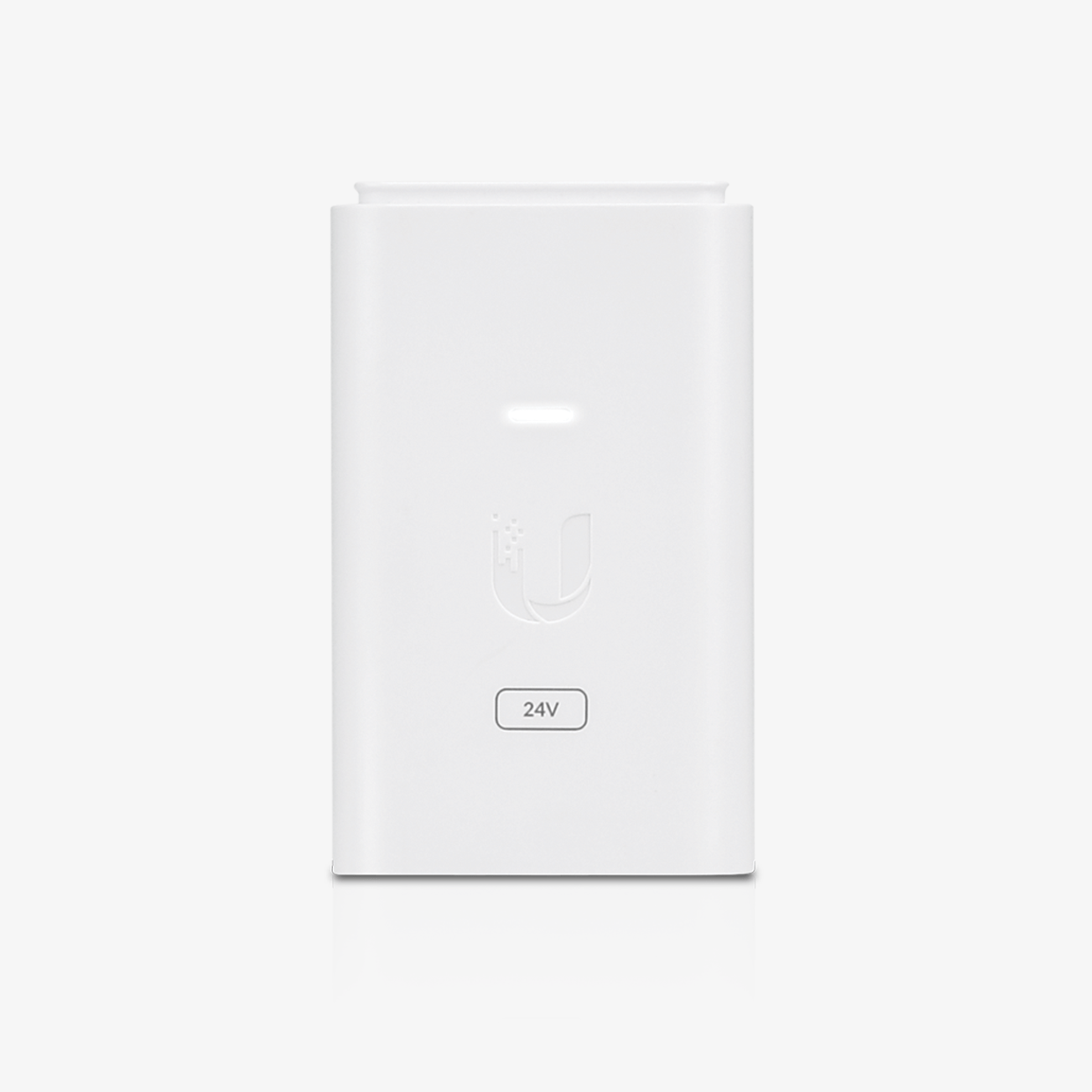

Ubiquiti PoE-24-7W-G-WH — 7.2 W 24 V Gigabit PoE Injector(White)

The Ubiquiti PoE-24-7W-G-WH is a compact 24 V, 0.3 A (7.2 W) low-power Gigabit PoE injector with robust surge, clamping, and ESD protection built into a grounded package. Featuring a Gigabit RJ45 port, reset capability, and a white housing, it’s perfect for delivering safe and efficient inline power to airGateway, UniFi, airMAX, and other 24 V-compatible devices.

  • User Manual
Request a Quote
9 people are viewing this product

Description

The Ubiquiti PoE-24-7W-G-WH Low-Power PoE Adapter is an ideal inline power solution for 24 V Ubiquiti devices when a PoE switch is unavailable. It supplies 24 V DC at 0.3 A (≈ 7.2 W) over Gigabit Ethernet and includes advanced protections—surge, clamping, and ESD—plus a grounded AC cable to safeguard network components in sensitive deployments.

Despite its small footprint, the PoE-24-7W-G-WH packs reliable functionality and compatibility, including remote reset capability and compact design for seamless integration. It’s NDAA compliant and is commonly used with airGateway, airMAX, UniFi APs and cameras, and other 24 V edge devices.

Application

airGateway power, Outdoor wireless devices, Edge network power injection, Small offices, ISP/WISP deployments

Key Features

✔ 24 V DC @ 0.3 A (~7.2 W) Gigabit PoE output
✔ Built-in surge, clamping, and ESD protection with grounded AC cable
✔ Reset capability and Gigabit LAN port for flexible use
✔ Compact, low-profile design in white housing
✔ NDAA-compliant and widely compatible with 24 V Ubiquiti gear
✔ Ideal for powering airGateway, UniFi APs, cameras, and airMAX devices

Specifications

Specification Details
Brand Ubiquiti
Model / Product Code PoE-24-7W-G-WH (Low-Power PoE Injector ~7.2 W)
Ethernet Port 1 × Gigabit RJ45 (PoE out + data), shielded socket
Output Voltage / Power 24 V DC @ 0.3 A (~7.2 W)
Remote Reset Yes
Rated Input Voltage 100–240 V AC @ 50/60 Hz
Input Current 0.3 A @ 120 V AC; 0.2 A @ 240 V AC
Dimensions 72 × 45 × 33 mm (2.8 × 1.8 × 1.3″)
Weight 72.1 g (2.5 oz)
Efficiency ≥ 80%
Output Ripple ≤ 1% Max
Switch Frequency ~65 kHz
Line / Load Regulation ≤ 3% / ≤ 5%
2-Pair Powering Pins 4,5 (+) and Pins 7,8 (–)
Storage Temp. –30 to 70 °C (–22 to 158 °F)
Operating Temp. 0 to 40 °C (32 to 104 °F)
Operating Humidity 35% to 95% non-condensing

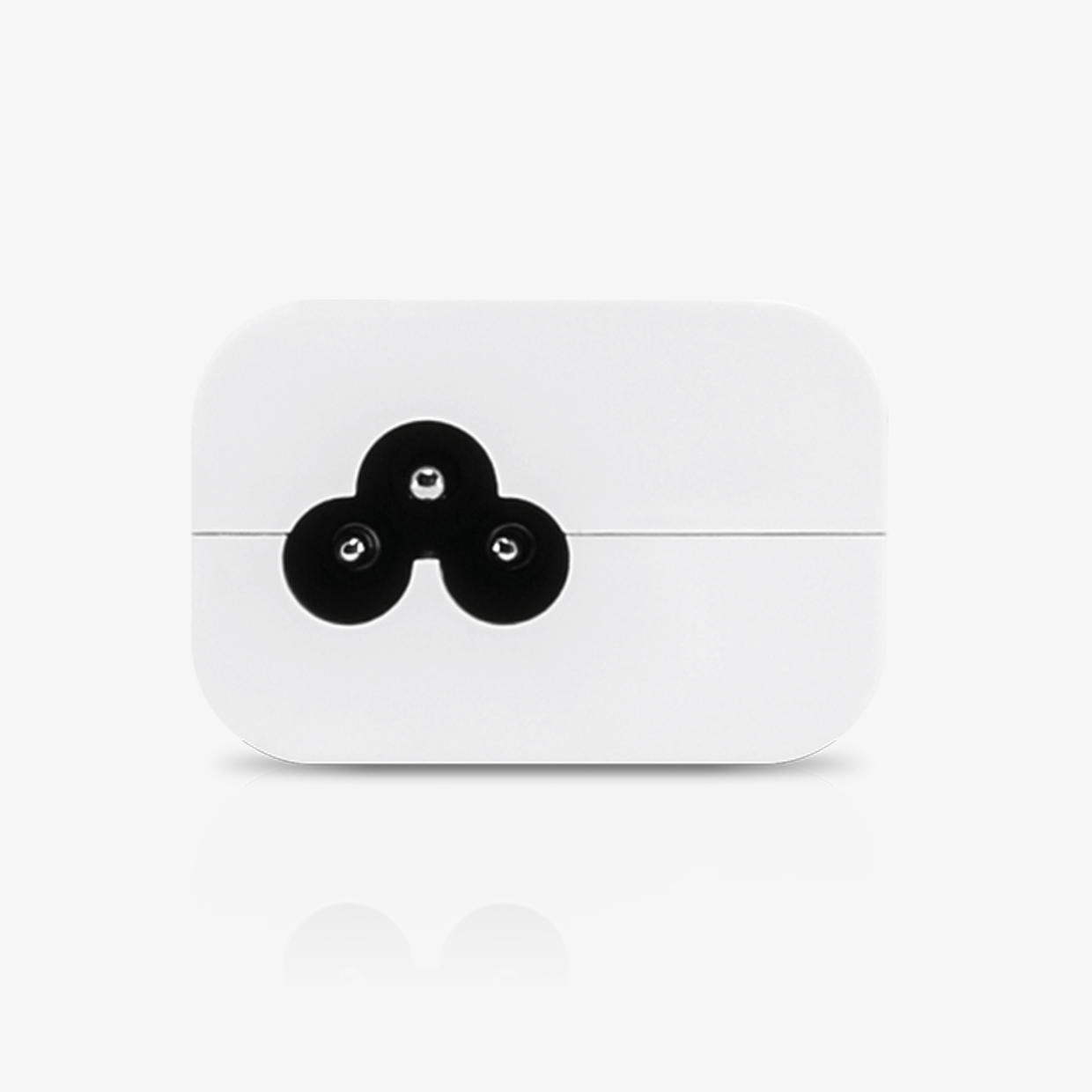

AC Connector IEC-320 C6 (grounded)
Surge Protection Difference & common mode; clamping 11 V data, 60 V power
Max Surge Discharge 1500 A (8/20 µs) power
Peak Pulse Current 36 A (10/1000 µs) data
Shunt Capacitance < 5 pF data
Response Time < 1 ns
Certifications CE, FCC, IC, UL; NDAA-compliant
Warranty Limited manufacturer warranty (per Ubiquiti policy)
Package Contents PoE injector unit, AC cable
