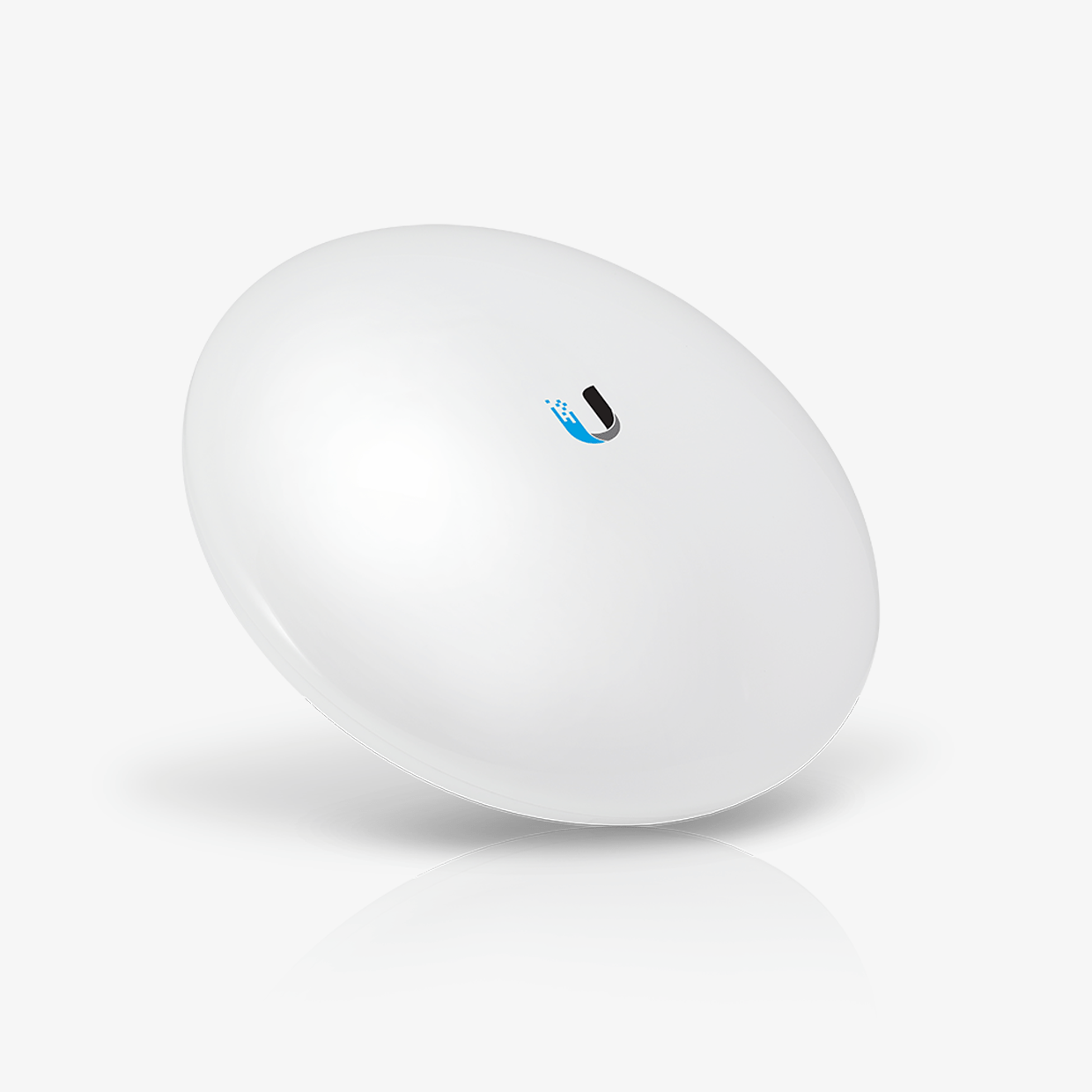

Nanobeam 5ac 2

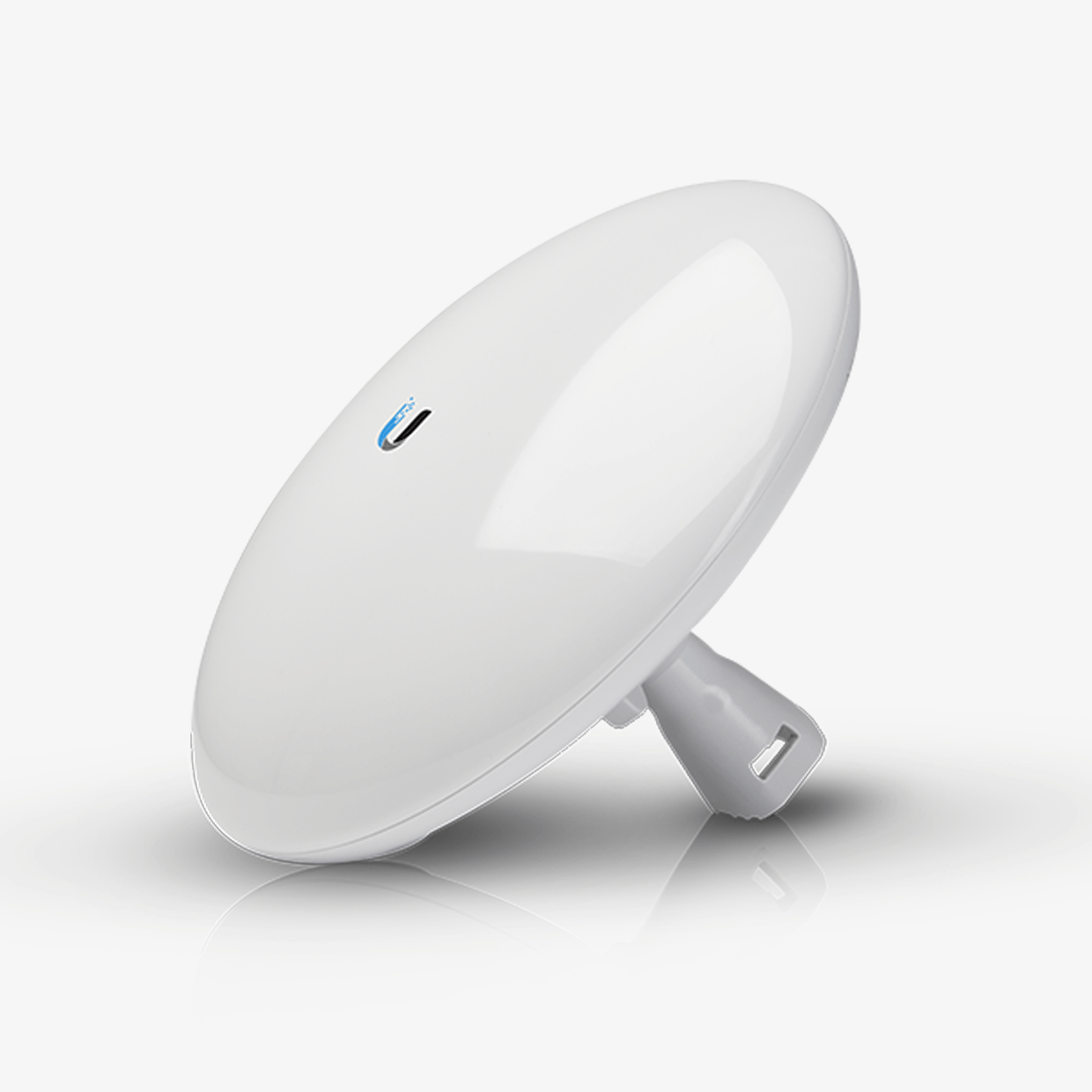

Nanobeam 5ac 3

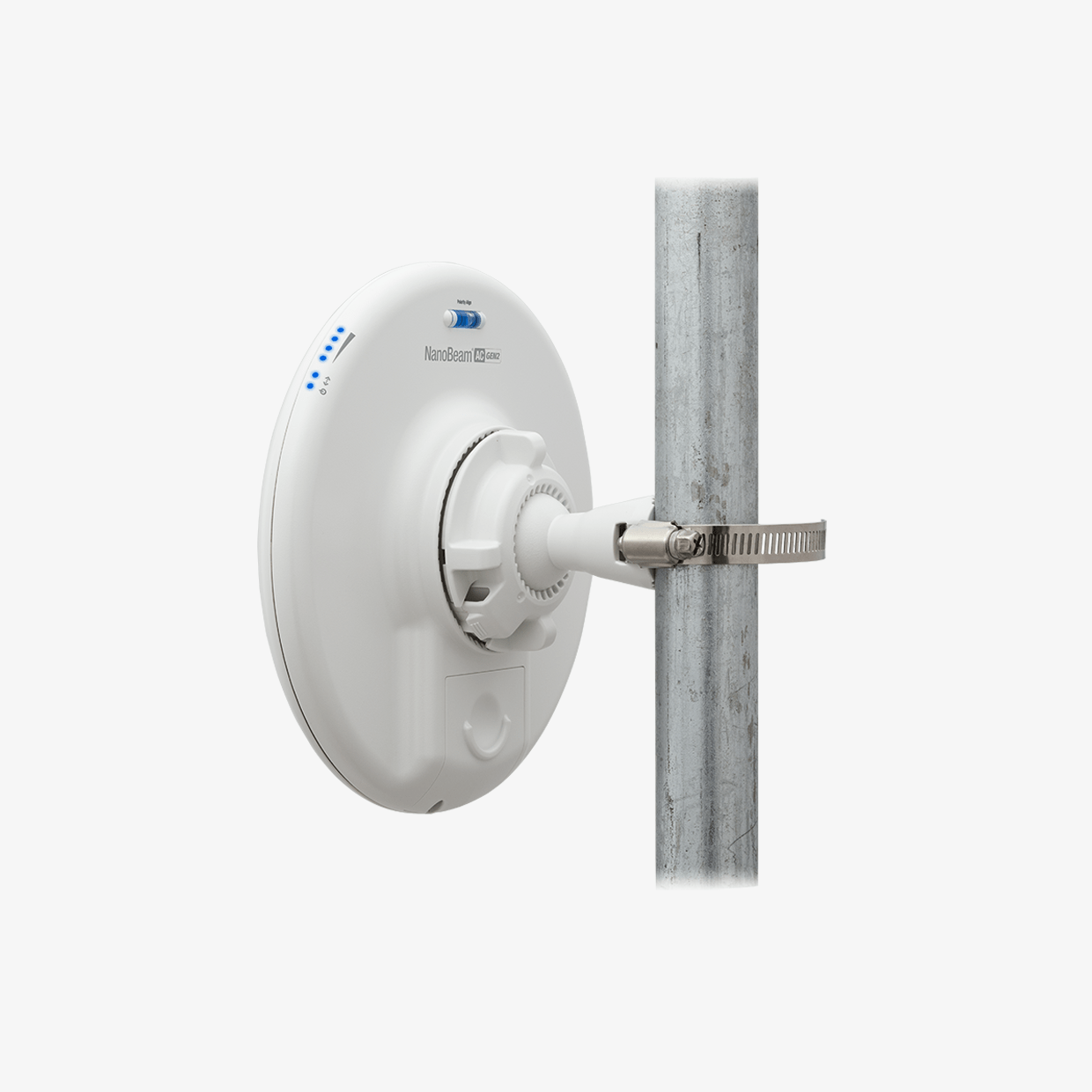

Nanobeam 5ac 4

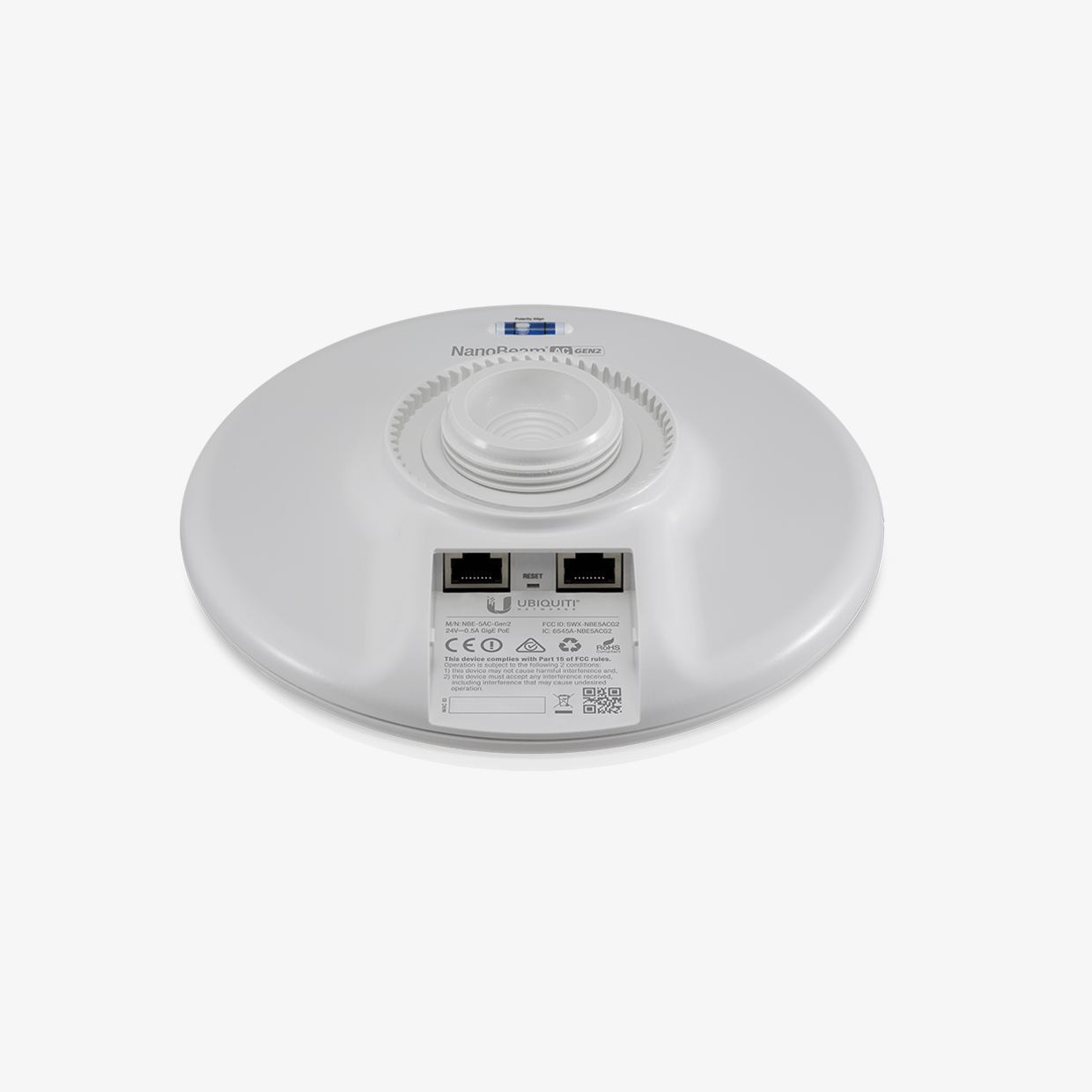

Nanobeam 5ac 10

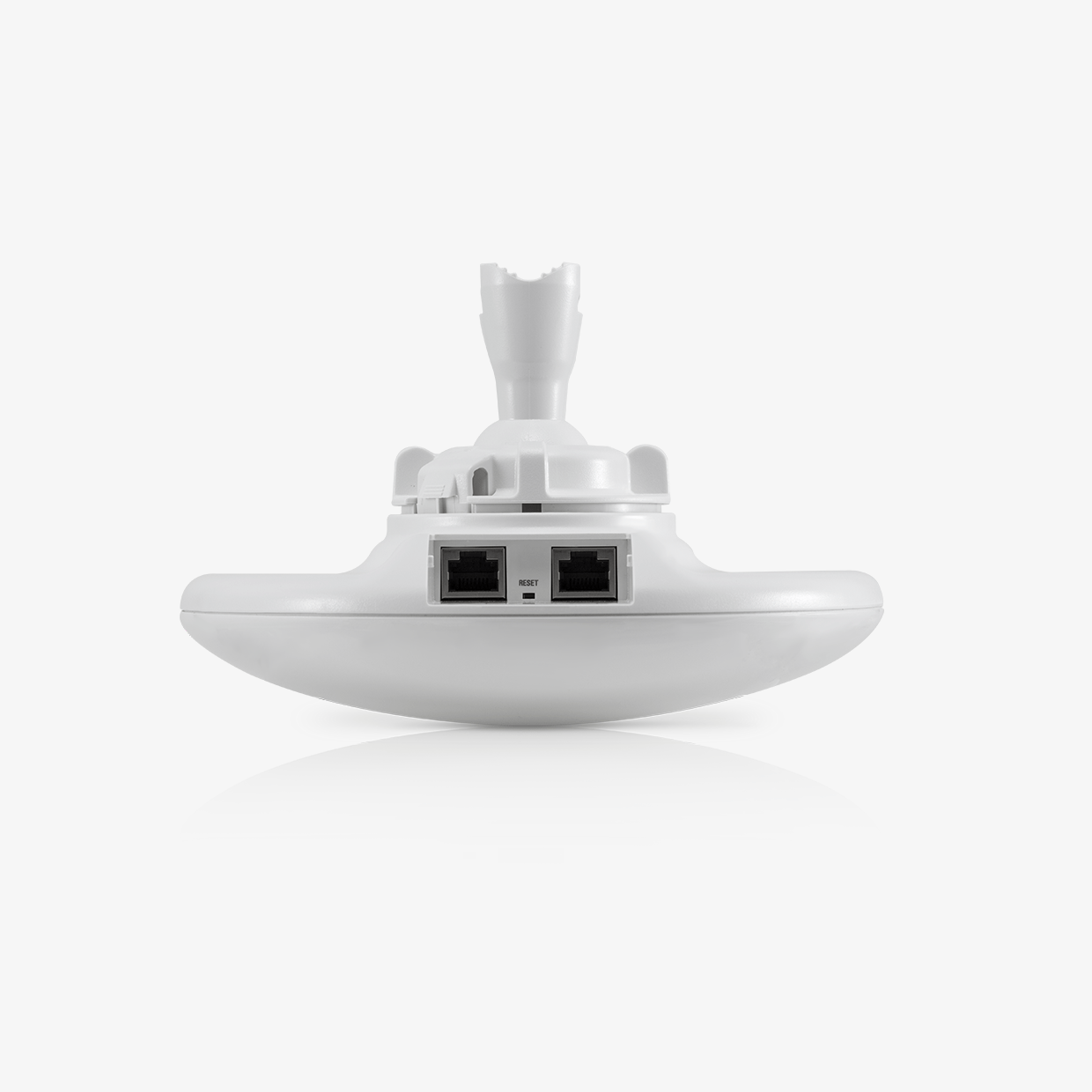

Nanobeam 5ac 9

Ubiquiti NanoBeam 5AC Gen 2 (NBE-5AC-Gen2) — 5GHz

The Ubiquiti NanoBeam 5AC Gen 2 is a compact, high-performance airMAX ac CPE offering exceptional long-range connectivity from a small form factor. Featuring a tight beamwidth for improved noise immunity, dual Gigabit Ethernet ports, and a dedicated Wi-Fi management radio for easy mobile setup, it delivers 450+ Mbps throughput while remaining unobtrusive and budget-friendly.

Request a Quote
10 people are viewing this product

Description

The NanoBeam 5AC Gen 2 is thoughtfully designed for outdoor CPE deployments that demand strong performance yet minimal visibility. By combining the antenna and radio into a single compact housing, it achieves a 19 dBi gain while maintaining a sleek profile that blends seamlessly into customer environments .

Equipped with airMAX ac, this CPE supports high-capacity links of 450+ Mbps real TCP/IP throughput, leveraging TDMA scheduling to reduce latency, scale efficiently, and improve interference rejection. A built-in Wi-Fi management radio enables rapid configuration using the UNMS™ mobile app or direct airOS 8 interface.

The unit comes with a pole mount kit (optional wall mount available), supports PoE passthrough, dual Gbps Ethernet connections, and features durable weatherproof construction—all packed into a lightweight (~530 g) design. Ruggedized to withstand wind, dust, and temperature extremes from –40 °C to 80 °C, it is ideal for demanding rural and WISP environments.

Application

WISP customer-premises CPE, Long-range PtP/PtMP links, Rural broadband access, Interference-heavy deployments

Key Features

✔️ Compact and efficient design with combined radio and antenna (19 dBi gain)
✔️ 450+ Mbps real-world TCP/IP throughput via airMAX ac and TDMA technology
✔️ Dual Gigabit Ethernet ports with PoE passthrough for connecting downstream devices
✔️ Dedicated Wi-Fi radio enabling quick UNMS™ mobile or airOS 8 setup
✔️ Tight beamwidth improves noise rejection in congested environments
✔️ Rugged outdoor build with wind survivability up to 200 km/h and operating range –40 to 80 °C
✔️ Lightweight (~530 g), pole-mount-ready design with optional wall mount accessory
✔️ Robust ESD protection and compliance with industrial environmental standards

Specifications

Specification Details
Brand Ubiquiti
Model / Product Code NanoBeam 5AC Gen 2 (NBE-5AC-Gen2)
Dimensions 189 × 189 × 125 mm (7.44 × 7.44 × 4.92 in) (with mount)
Weight ~530 g (1.17 lb) (with mount)
Gain 19 dBi
Networking Interface 2 × 10/100/1000 Ethernet ports (PoE passthrough) (dl.ubnt.com)
Power Method Passive PoE (4,5+; 7,8 return) via included 24 V, 0.5 A adapter
Max Power Consumption 8.5 W
Processor & Memory Atheros MIPS 74Kc @ 720 MHz; 128 MB DDR2, 8 MB flash
LED Indicators Power, Ethernet, (4) signal strength (software-adjustable thresholds)
Channel Sizes (PtP) 10/20/30/40/50/60/80 MHz
Channel Sizes (PtMP) 10/20/30/40 MHz
Max VSWR 1.5:1
Polarization Dual linear
Mounting Pole mount kit included; optional wall mount available
Wind Loading 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air/contact: ±24 kV
Operating Temperature –40 to 80 °C (–40 to 176 °F)
Operating Humidity 5–95% noncondensing
Environmental Tests Salt fog, vibration, temp shock, UV, wind-driven rain (IEC/MIL standards)
Operating Frequency Worldwide: 5150–5875 MHz; USA: U-NII bands (5150–5850 MHz)
Management Radio Wi-Fi: Worldwide 2412–2472 MHz; USA 2412–2462 MHz
Certifications CE, FCC, IC; RoHS compliant
