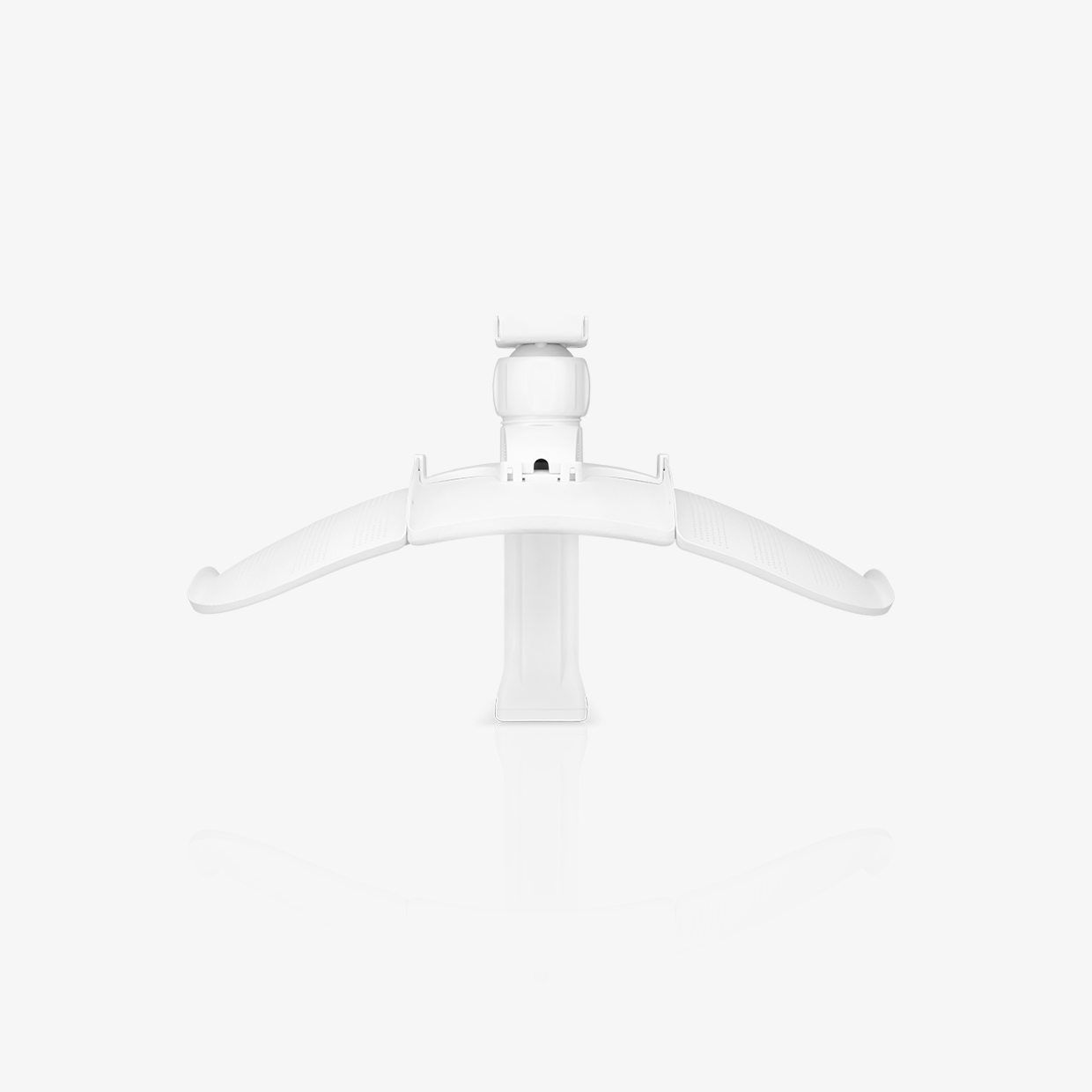

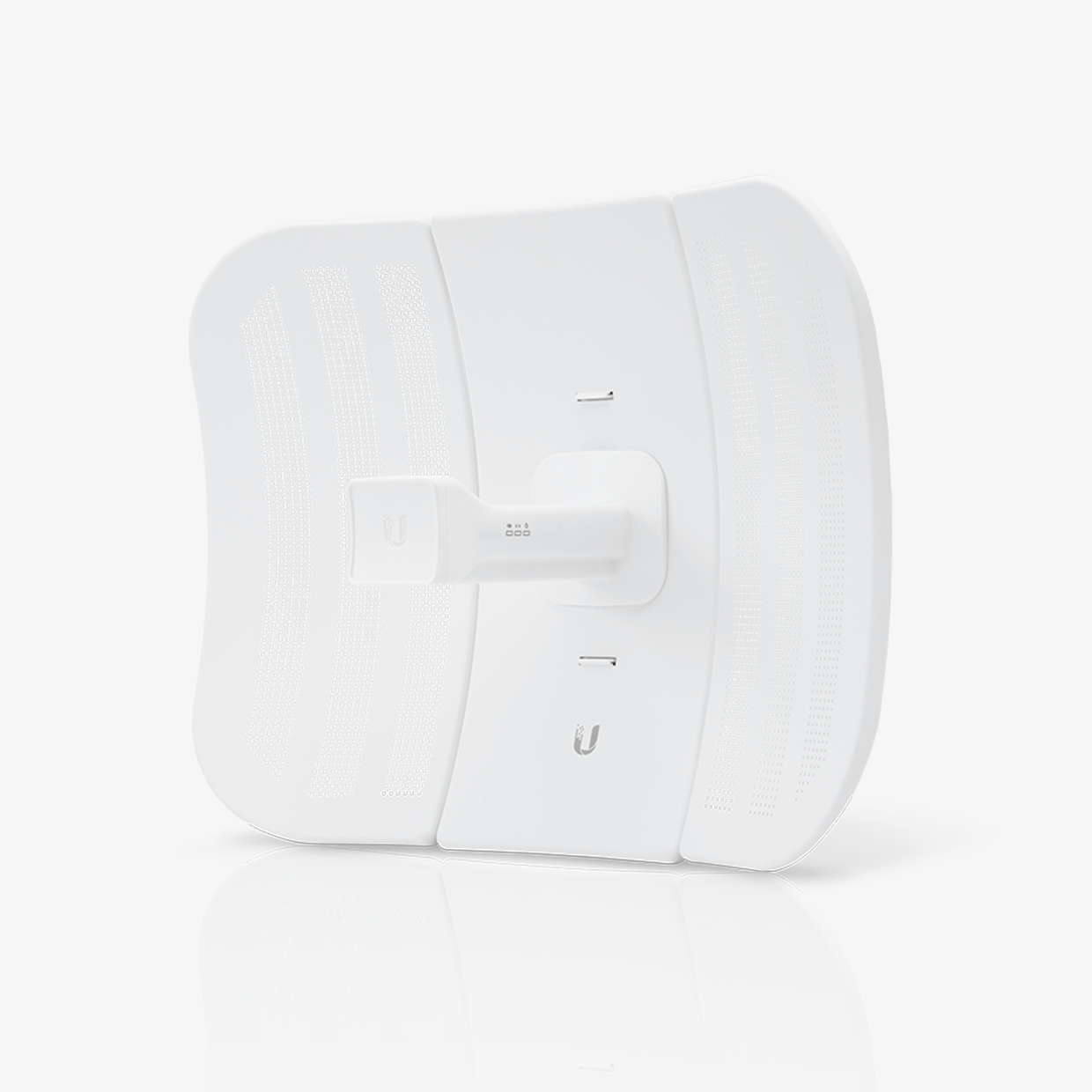

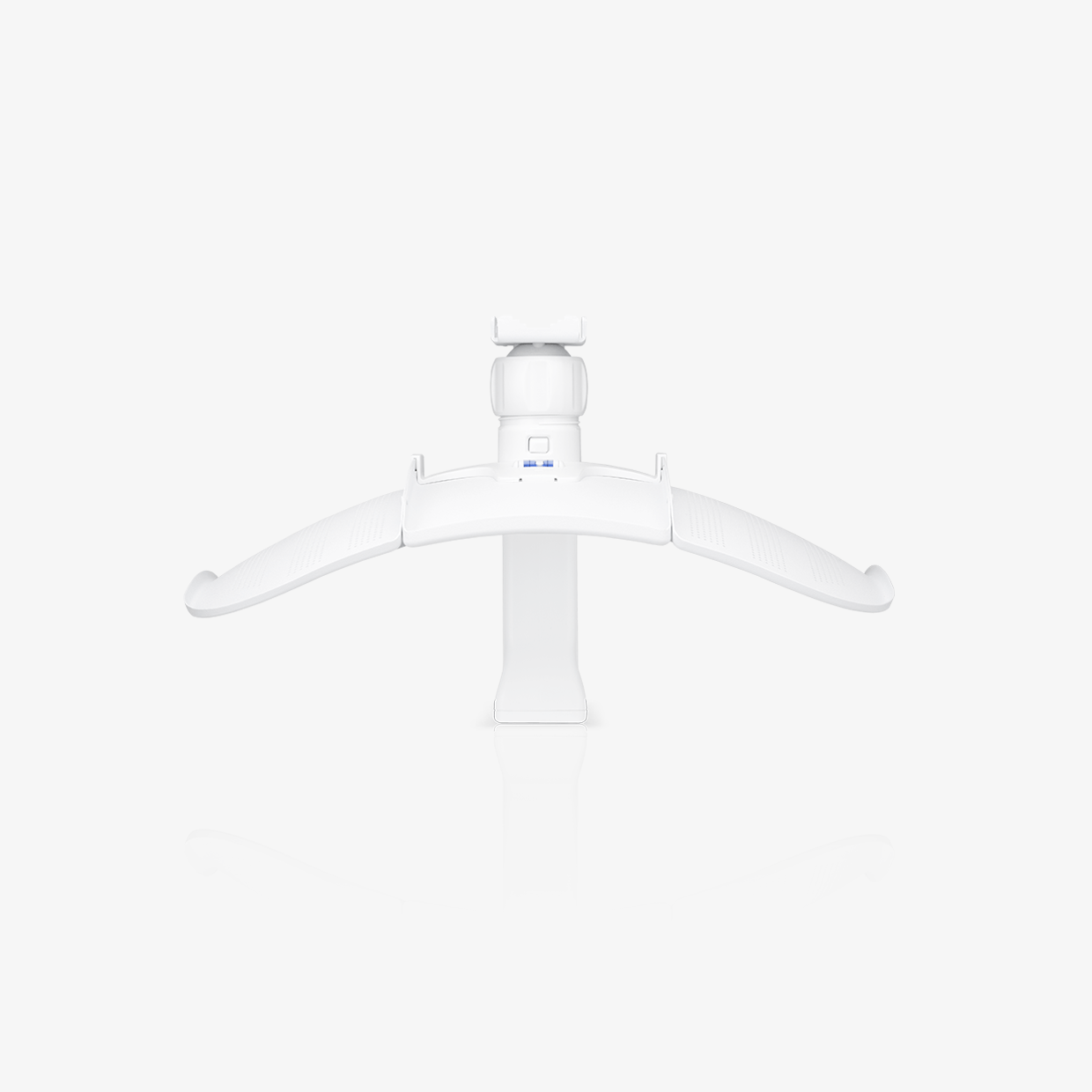

Ubiquiti LiteBeam M5 (LBE-M5-23) — 5GHz Outdoor Bridge

The Ubiquiti LiteBeam M5 (LBE-M5-23) is a compact, high-gain outdoor CPE designed for long-distance 5 GHz bridging. With its integrated 23 dBi directional antenna and InnerFeed™ technology, it achieves up to 100 Mbps real-world throughput over distances exceeding 30 km. Lightweight and easy to install with a snap-lock design and included pole mount, it’s a cost-effective solution for WISPs and remote bridging scenarios.

Request a Quote
8 people are viewing this product

Description

The Ubiquiti LiteBeam M5 (LBE-M5-23) is engineered for reliable, long-range wireless connections in outdoor environments. Its 23 dBi directional antenna integrated with the radio (via InnerFeed™ technology) minimizes signal loss and ensures strong performance across the 5150–5875 MHz band. The device supports Ubiquiti’s airMAX TDMA protocol, delivering efficient point-to-point or point-to-multipoint communication with enhanced scalability and reduced latency.

Installation is simplified with a snap-and-lock assembly and a ball-joint pole mount, allowing 3-axis alignment without tools. Despite its performance, the LiteBeam M5 remains lightweight (750 g) and compact (362 × 267 × 184 mm), making logistics and deployment hassle-free. Capable of delivering 100+ Mbps real-world throughput and covering distances beyond 30 km, it stands as an affordable and powerful option for bridging and CPE networks.

Application

Wireless bridging, WISP CPE, Long-distance point-to-point links, Outdoor broadband extension

Key Features

✔️ Integrated 23 dBi directional antenna (InnerFeed™)
✔️ AirMAX TDMA for high-efficiency, low-latency links
✔️ Lightweight and compact design (750 g)
✔️ Snap-lock assembly with 3-axis ball-joint pole mount
✔️ Real-world throughput exceeding 100 Mbps over 30+ km
✔️ Passive PoE powered (24 V adapter included)
✔️ Wide operating range (-40 °C to 70 °C), robust for outdoor deployment
✔️ Compliant with FCC, IC, and CE certifications

Specifications

Specification Details
Brand Ubiquiti
Model / Product Code LiteBeam M5 (LBE-M5-23)
Frequency Band 5 GHz (5150–5875 MHz worldwide; 5725–5850 MHz for USA)
Antenna Gain 23 dBi
Dimensions (No Mount) 362 × 267 × 184 mm (14.25 × 10.51 × 7.24 in)
Weight (No Mount) 750 g (24.11 oz)
Mounting Pole mount (kit included); 3-axis ball joint, tool-less installation
Networking Interface 1 × 10/100 MbE RJ45
Power Method Passive PoE (pairs 4,5+; 7,8 return), 24 V 0.2 A adapter included
Max Power Consumption 4 W
Processor / Memory Atheros MIPS 74Kc, 533 MHz; 64 MB memory
Operating Temp / Humidity –40 °C to 70 °C; 5–95% non-condensing
Certifications FCC, IC, CE; RoHS compliant; ETSI 300-019-1.4; EN 302 326 DN2; ESD/EMP ±24 kV
Real-world Performance >100 Mbps throughput, range up to 30+ km
Enclosure Material Outdoor UV-stabilized plastic
Wind Survivability 200 km/h (125 mph); wind load 176.86 N @ 200 km/h
Warranty Per vendor limited warranty (refer to official site)
