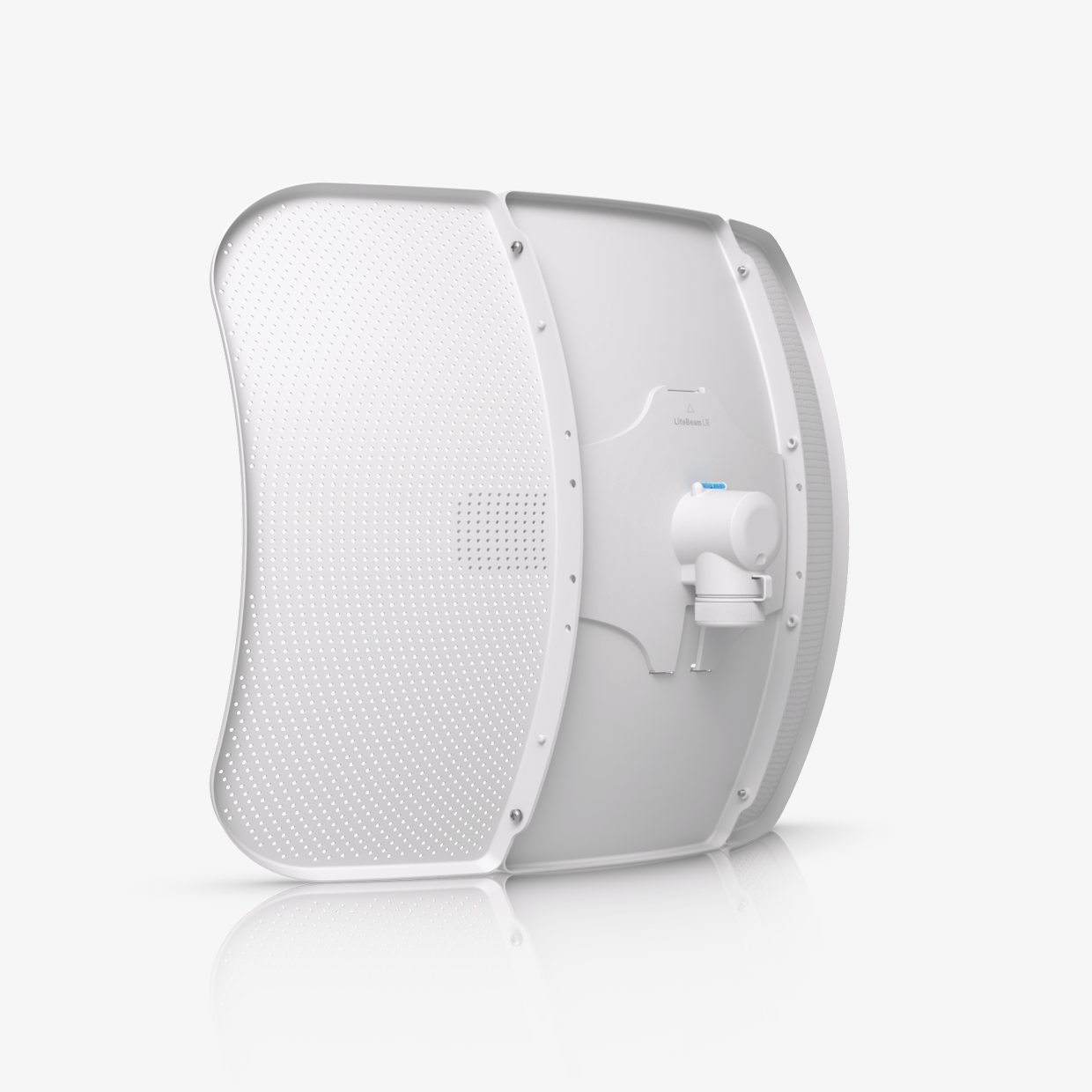

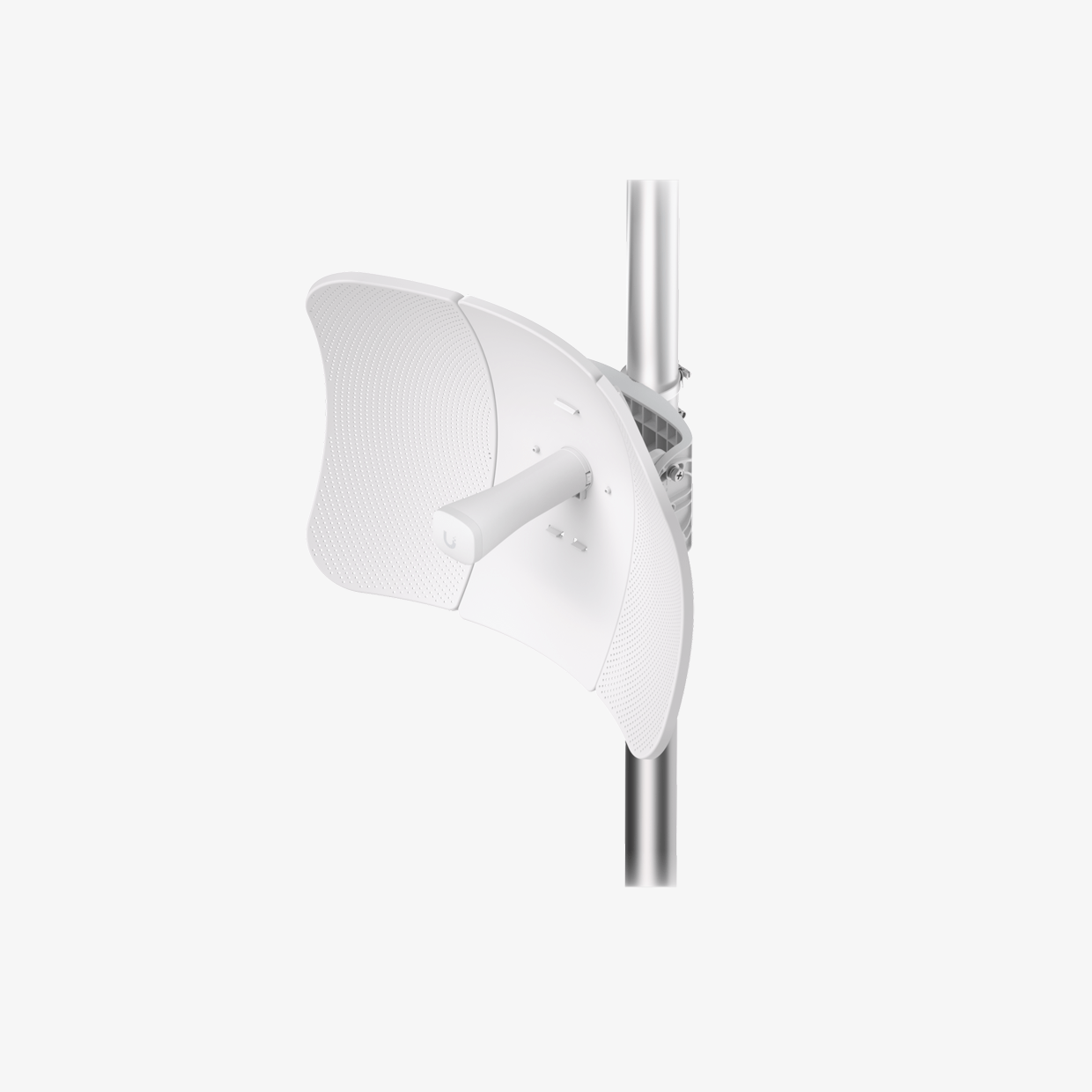

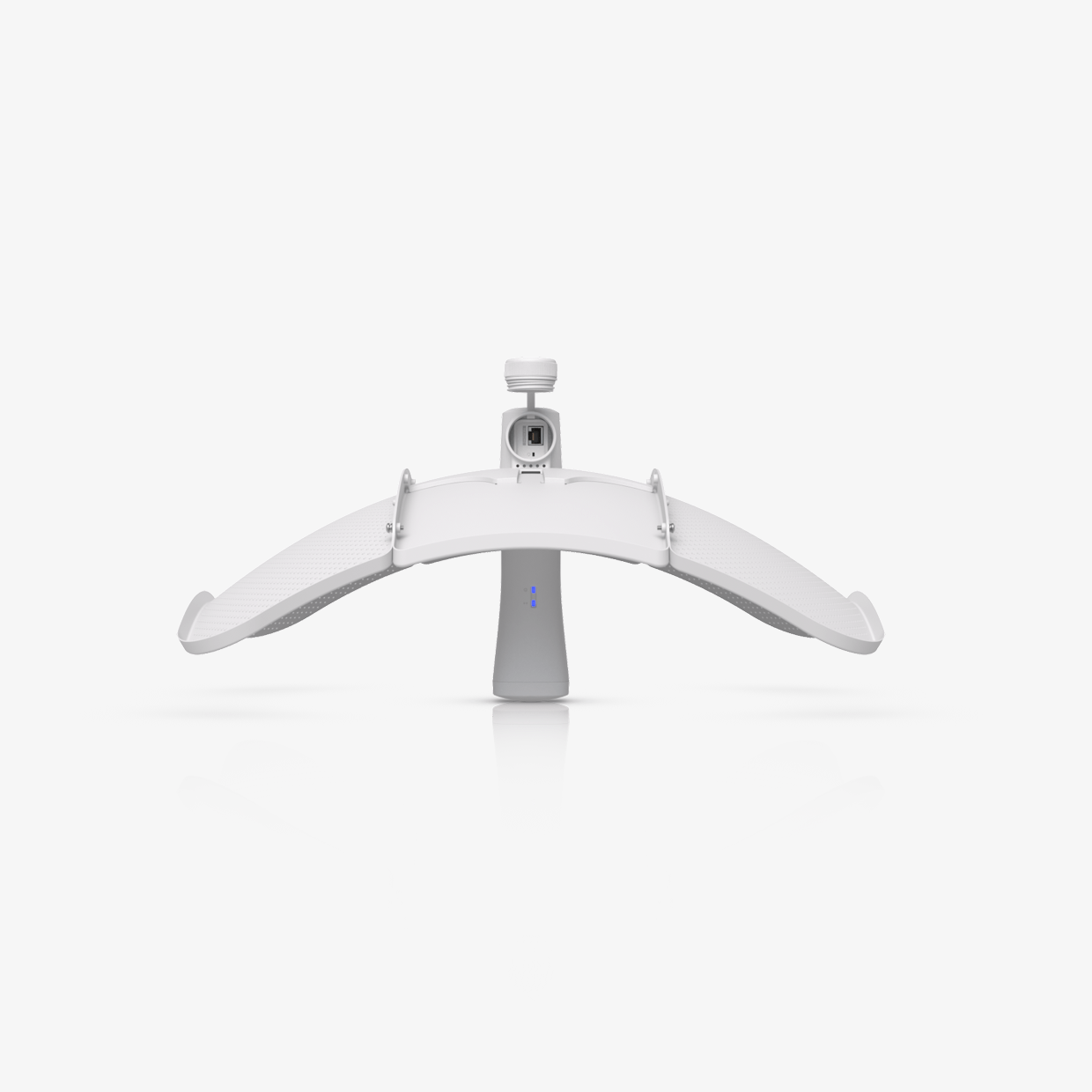

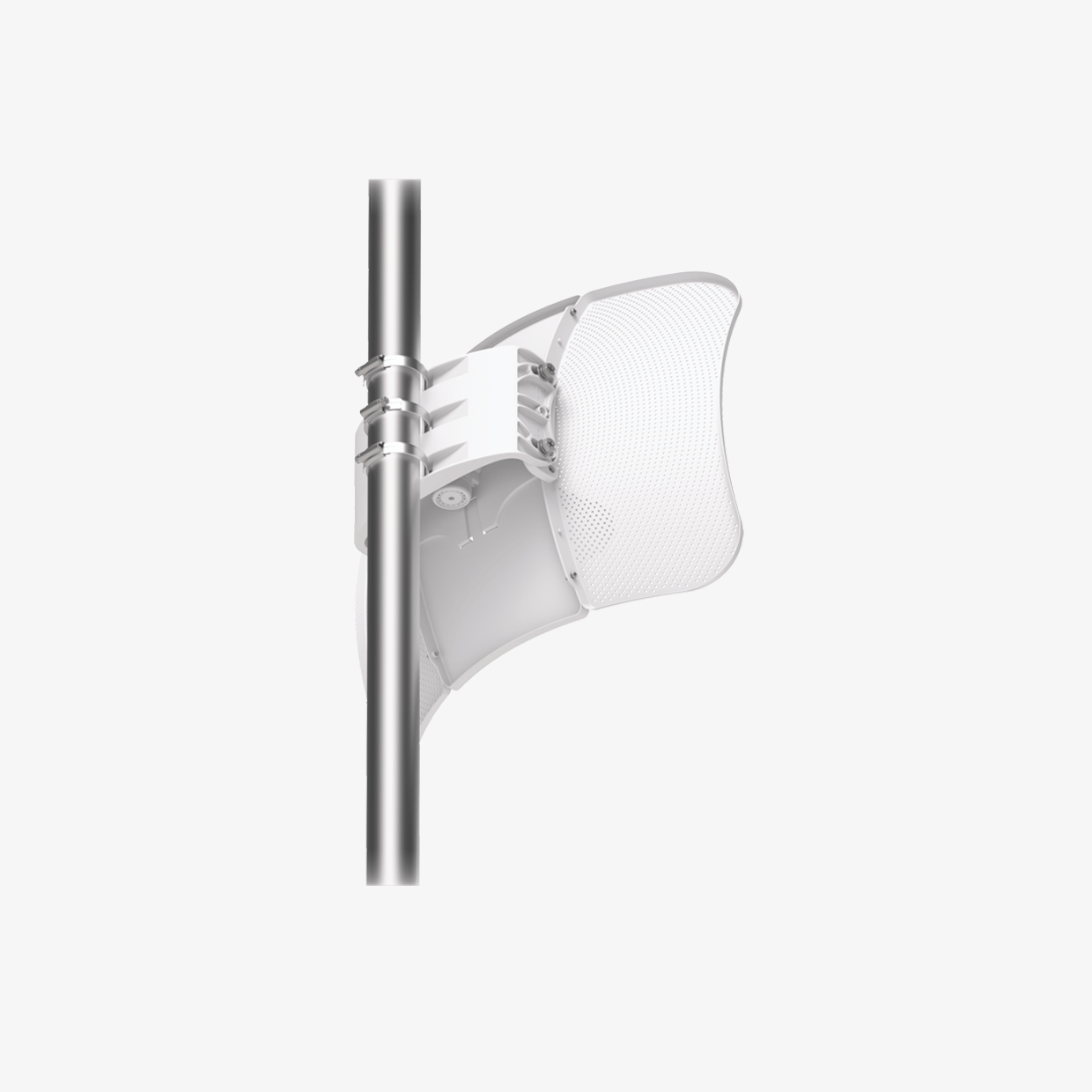

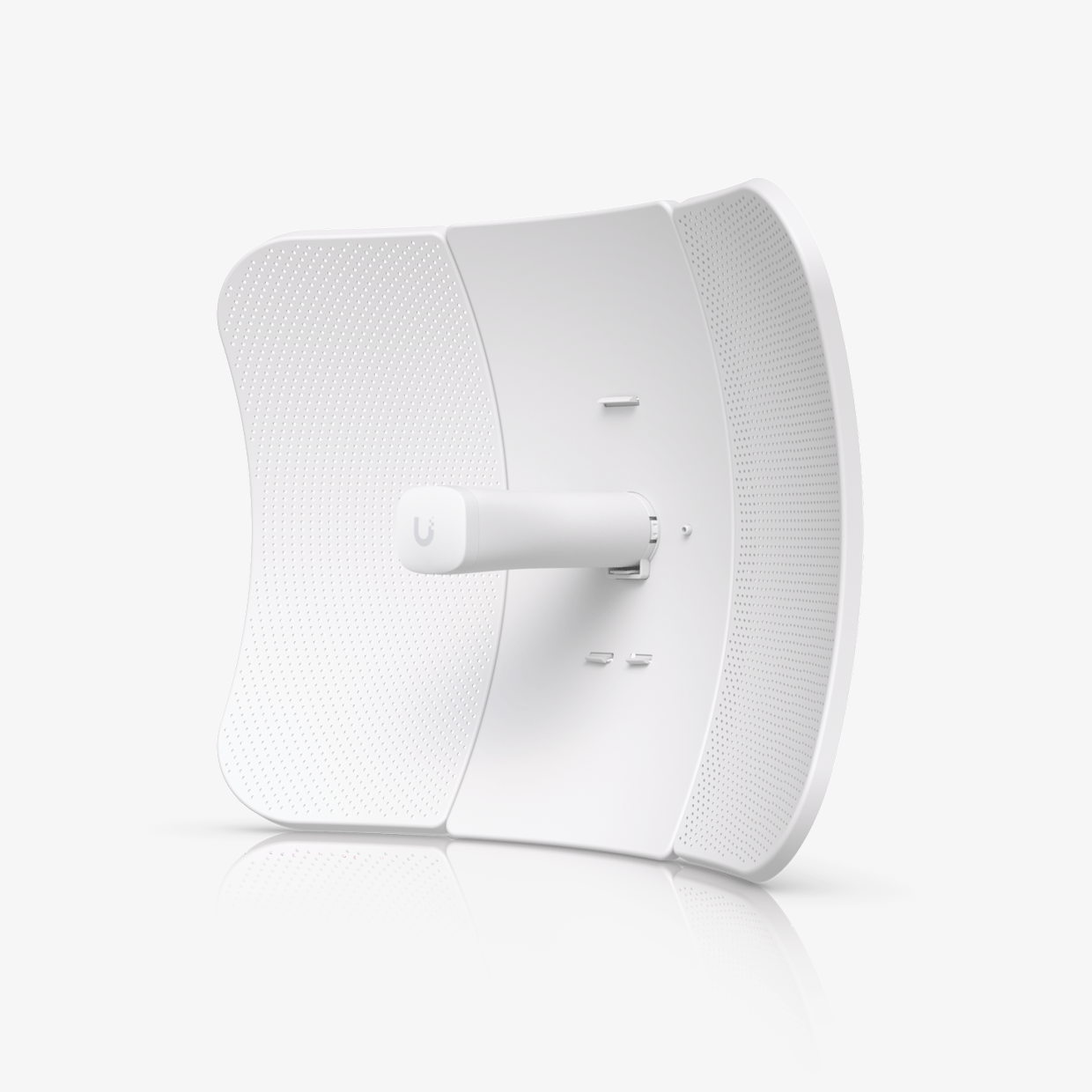

Ubiquiti LiteBeam 5AC Long-Range (LBE-5AC-LR)

The Ubiquiti LiteBeam 5AC LR (LBE-5AC-LR) is a high-gain, long-range CPE designed for outdoor point-to-point and point-to-multipoint links. Featuring a 26 dBi antenna, narrow beamwidth, and airMAX ac TDMA technology, it delivers strong performance in noisy environments. With tool-free assembly, passive PoE support, and a durable build tested for extreme weather, it’s an ideal solution for rural broadband, WISP deployments, and noise-resistant wireless links.

Request a Quote
9 people are viewing this product

Description

The LiteBeam 5AC Long-Range (LBE-5AC-LR) provides exceptional wireless connectivity in a lightweight, compact form factor designed for demanding outdoor deployments. With a powerful 26 dBi antenna, the LBE-5AC-LR achieves superior long-range links while maintaining a narrow beamwidth that enhances noise immunity, making it especially effective in interference-prone environments.

Powered by airMAX ac TDMA technology, the device delivers real TCP/IP throughput well above 450 Mbps, ensuring low latency and high performance for point-to-point (PtP) and point-to-multipoint (PtMP) topologies. Supported channel widths range from 10 to 80 MHz in PtP mode, and up to 40 MHz in PtMP, giving operators flexibility in spectrum planning.

The unit’s lightweight design (1.4 kg without mount, 1.7 kg with mount) makes installation simple, and the included pole-mounting kit provides secure positioning. Built for harsh outdoor environments, the LBE-5AC-LR withstands winds up to 200 km/h, includes ±24 kV ESD/EMP protection, and operates between –40 and +70 °C. Powered via an included 24 V passive PoE adapter, it consumes just 7 W, providing efficient and reliable operation.

With its dedicated Wi-Fi management radio, setup and monitoring are fast and easy using the UNMS™ mobile app or airOS 8 interface. Certified to CE, FCC, and IC standards, the LiteBeam 5AC LR is an excellent choice for WISPs, rural ISPs, and enterprises requiring cost-effective, high-performance long-distance wireless links.

Application

Long-range PtP backhaul, PtMP WISP deployments, Rural broadband connectivity, Noise-resistant outdoor links

Key Features

✔️ High-gain 26 dBi antenna for long-range wireless connectivity
✔️ airMAX ac TDMA technology delivering 450+ Mbps throughput
✔️ Tight beamwidth for superior noise rejection in interference-heavy areas
✔️ Lightweight build (1.4 kg) with pole-mount kit included for easy installation
✔️ Durable outdoor enclosure, wind survivability up to 200 km/h
✔️ Efficient 7 W consumption via included 24 V passive PoE adapter
✔️ Built-in Wi-Fi management radio for quick UNMS™ mobile provisioning
✔️ Fully tested for UV, salt fog, vibration, shock, and rain per IEC/MIL standards

Specifications

Specification Details
Brand Ubiquiti
Model / Product Code LBE-5AC-LR
Dimensions 512 × 385.8 × 258.3 mm (20.2 × 15.2 × 10.2 in)
Weight 1.4 kg (3 lb) without mount; 1.7 kg (3.8 lb) with mount
Enclosure Material Aluminum reflector / Plastic (PC)
Mounting Pole-mount kit included
Wind Loading 550 N @ 200 km/h (123.6 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Networking Interface (1) Gigabit RJ45 Ethernet port
Power Method Passive PoE (Pairs 4,5+; 7,8 return)
Power Supply 24 V, 0.3 A Gigabit PoE adapter (included)
Supported Voltage Range 20–27 V DC
Max Power Consumption 7 W
Gain 26 dBi
Channel Sizes (PtP) 10/20/30/40/50/60/80 MHz
Channel Sizes (PtMP) 10/20/30/40 MHz
Operating Frequency (Worldwide) 5150–5875 MHz
Operating Frequency (USA) U-NII-1: 5150–5250 MHz • U-NII-2A: 5250–5350 MHz • U-NII-2C: 5470–5725 MHz • U-NII-3: 5725–5850 MHz
Management Radio Wi-Fi: 2412–2472 MHz (Worldwide), 2412–2462 MHz (US/CA)
LED Indicators Power, Ethernet
ESD/EMP Protection ±24 kV contact/air
Operating Temp. –40 to 70 °C (–40 to 158 °F)
Operating Humidity 5–95% non-condensing
Environmental Tests Salt fog, UV, vibration, temp shock, rain (IEC/MIL-STD standards)
Certifications CE, FCC, IC • NDAA compliant
