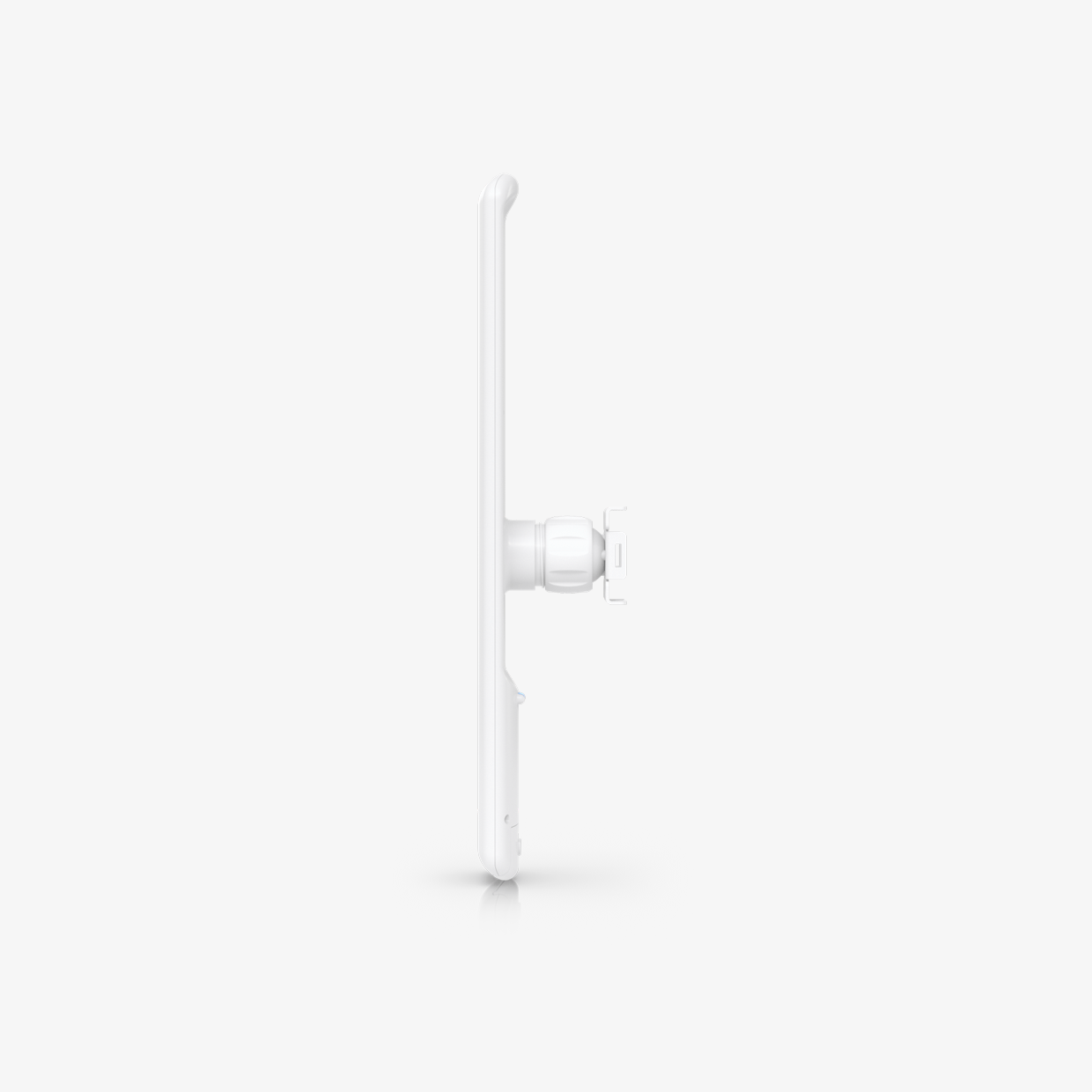

Lap 120 3
Lap 120 7

Ubiquiti LiteAP AC (LAP-120) — 5GHz Sector AP

The Ubiquiti LiteAP AC (LAP-120) is a lightweight, cost-effective outdoor 5 GHz access point delivering high-performance airMAX AC connectivity in a slim sector form factor. Featuring a 16 dBi integrated antenna, Gigabit Ethernet, and passive PoE support, it achieves up to 450+ Mbps real throughput. Its tool-free, ball-joint mount makes deployment simple and fast—ideal for WISP base stations and long-distance PtP/PtMP links.

Get a Quote
6 people are viewing this product

Description

The Ubiquiti LiteAP AC (LAP-120) is engineered for reliable 5 GHz broadband connectivity in outdoor environments, offering a blend of streamlined design, long-range performance, and affordable pricing. It combines a built-in 16 dBi directional antenna with airMAX AC TDMA technology to deliver more than 450 Mbps real TCP/IP throughput over long distances, reducing latency and boosting scalability in wireless broadband networks.

Installation is fast and tool-free—featuring a ball-joint mount for full three-axis adjustment with only a single wrench required for pole mounting. The integrated 2×2 MIMO design supports both PtP and PtMP airMAX AC modes and includes real-time RF diagnostics, airView® spectrum analysis, and intuitive management via airOS® 8.

Certified for extreme conditions, the LAP-120 offers wind survivability up to 200 km/h, robust ESD and vibration protection, and extended operating temperature range, making it a reliable solution for WISPs and outdoor bridging deployments.

Application

WISP base stations, outdoor PtP or PtMP links, long-range bridging, sector access for CPEs.

Key Features

✔ 5 GHz airMAX AC access point with integrated 16 dBi antenna
✔ Lightweight, low-profile design with over 450 Mbps real throughput
✔ Tool-free ball-joint mount for quick 3-axis alignment
✔ Gigabit Ethernet port and passive PoE support
✔ airOS 8 with airMAX AC, airView spectrum analyzer, and diagnostics
✔ Robust build: supports wind speeds up to 200 km/h, ESD protection, wide temperature range

Specifications

SpecificationDetails
BrandUbiquiti
Model / Product CodeLiteAP AC (LAP-120)
Frequency Band5 GHz (5150–5875 MHz worldwide; up to 5850 MHz in USA)
Antenna Gain16 dBi
2×2 MIMOYes, integrated antenna array
Dimensions (No mount)452.3 × 78.7 × 54.4 mm (17.8 × 3.1 × 2.14 in)
Weight420 g (14.8 oz)
MountingPole mount kit included; ball-joint tool-free adjust
Networking Interface1 × Gigabit Ethernet (RJ45)
Power MethodPassive PoE, 24 V 0.5 A injector included; supports 20–27 V DC
Power Consumption7–8 W
Processor / MemoryAtheros MIPS 74Kc 533 MHz; 64 MB RAM
Operating Temperature–40 to 70 °C (–40 to 158 °F)
Operating Humidity5–95% non-condensing
Wind Survivability200 km/h (125 mph); loading 77 N@200 km/h
ESD / Vibration Protection±24 kV; conforms to ETSI300-019-1.4
CertificationsCE, FCC, IC, NDAA Compliant
Max Throughput450+ Mbps real TCP/IP
Package ContentsLiteAP AC unit, pole mount kit, Gigabit PoE injector
Protocol / ManagementairMAX AC TDMA, airOS 8, airView spectrum, UNMS support
