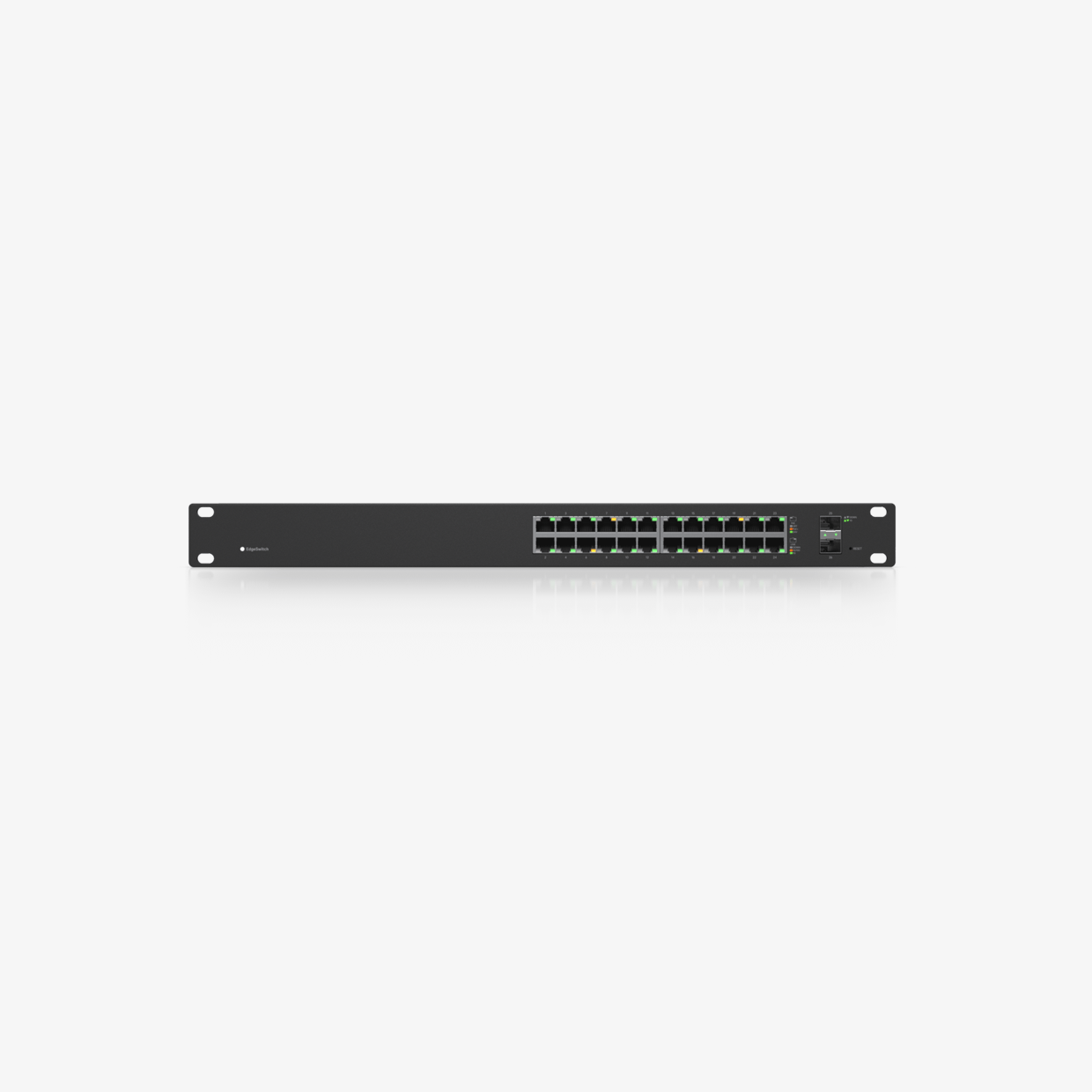

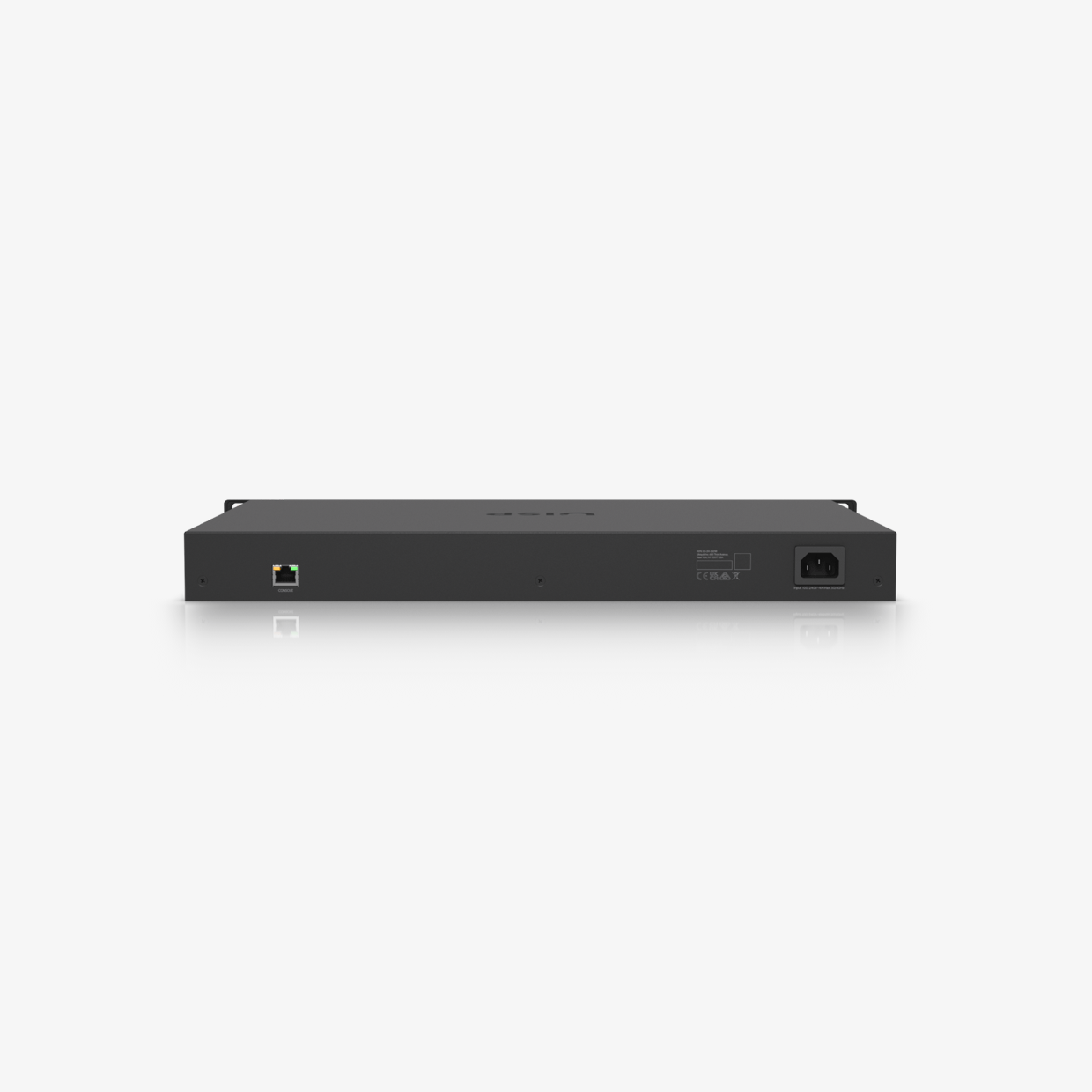

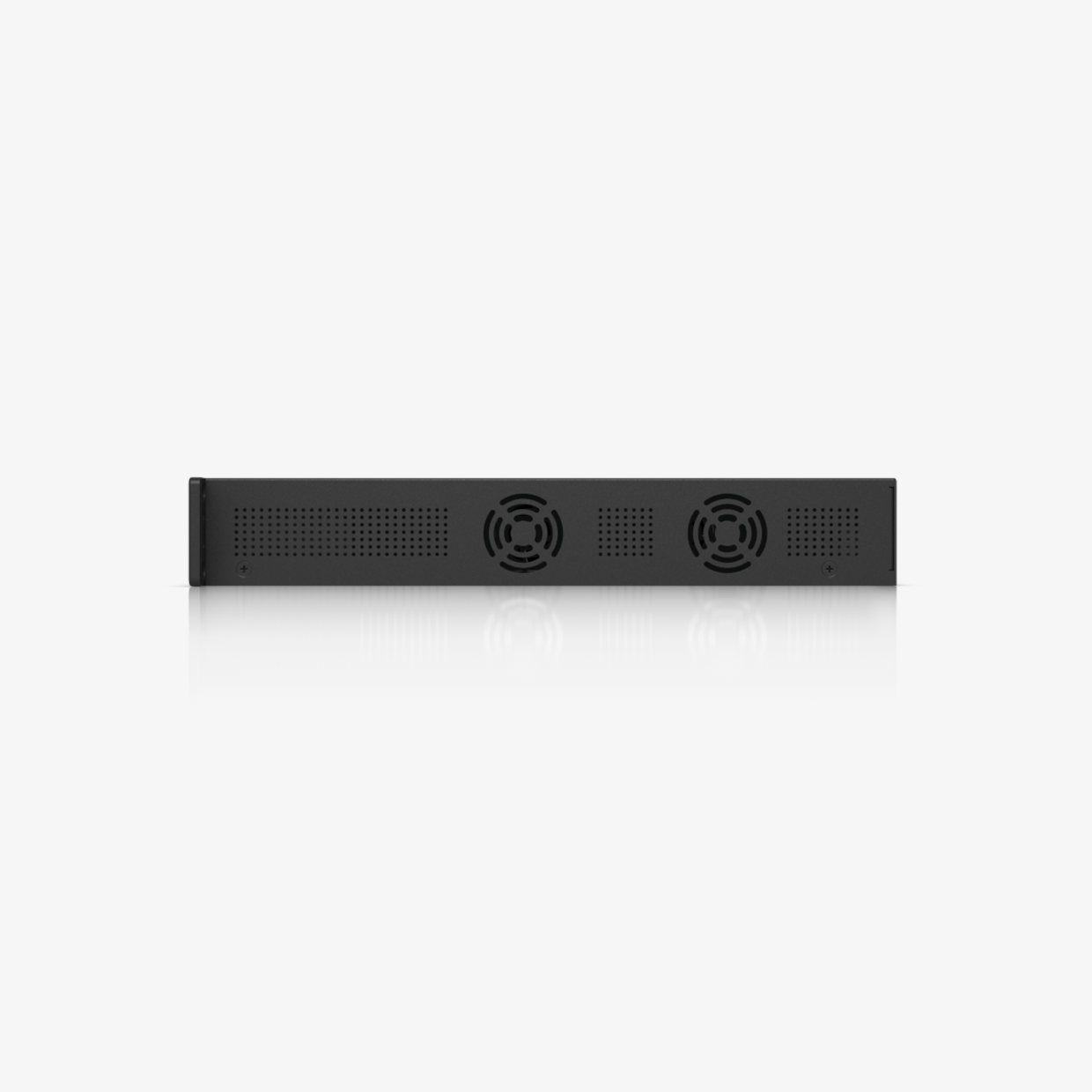

Ubiquiti EdgeSwitch ES-24-250W – 24Port PoE+ Managed Switch

The Ubiquiti EdgeSwitch ES-24-250W is a fully managed Layer 2/3 gigabit switch featuring 24 auto-sensing PoE+ ports (IEEE 802.3af/at or 24 V passive), plus 2 SFP uplinks. With a robust 250 W PoE budget, 52 Gbps switching capacity, and rack-mountable 1U design, it’s built for powering medium-scale deployments such as surveillance arrays, wireless APs, and high-density IoT networks.

Request a Quote
  • Buy at Lazada
  • Layer 1 Buy at Shopee
11 people are viewing this product

Description

The EdgeSwitch ES-24-250W delivers enterprise-grade performance in a compact rack-mountable form factor. Equipped with 24 gigabit RJ45 ports—each capable of auto-detecting PoE+ (34.2 W max) or 24 V passive PoE (17 W)—and two 1 Gb SFP ports for upstream connections, it combines power and flexibility.

Under the hood, this switch offers a 52 Gbps switching capacity, 26 Gbps non-blocking throughput, and a forwarding rate of 38.69 Mpps—ensuring full line-rate performance across all ports.

Advanced Layer 2 and Layer 3 features include VLAN, STP/RSTP, LACP, multicast/IGMP snooping, ACLs, static routing, DHCP snooping, LLDP, and more—accessible via its intuitive GUI or powerful CLI.

Built for resilience, the switch includes ±24 kV ESD/EMP protection, ETSI-qualified shock and vibration tolerance, and operates seamlessly from –5 °C to 40 °C.

Applications

  • Power and manage mid-size deployments: surveillance systems, Wi-Fi AP clusters, VoIP setups

  • Enterprise edge or aggregation layer

  • Environments needing mixed PoE+ and passive PoE support

  • Rugged indoor installations with reliable upgraded Layer 3 capabilities

Key Features

  • 24 × auto-sensing gigabit ports (PoE+ and 24 V passive) plus 2 × 1 Gbps SFP uplinks

  • 250 W PoE budget, with per-port flexibility (34.2 W PoE+ / 17 W passive)

  • 52 Gbps switching capacity, 26 Gbps throughput, 38.69 Mpps forwarding

  • Full Layer 2/3 feature set: VLANs, LACP, STP, ACLs, static routing, DHCP snooping, LLDP

  • Dual management: GUI and CLI (console, in-band)

  • Rugged design: ESD protection, ETSI shock/vibration grade, 1U rack-mountable chassis

  • Operates from –5 °C to 40 °C; NDAA-compliant with CE, FCC, IC certification

Specifications

Specification Details
Brand Ubiquiti EdgeMAX
Model / Product Code EdgeSwitch ES-24-250W
Ports 24 × GbE RJ45 (PoE+ / 24 V passive), 2 × 1 Gb SFP
Switching Capacity 52 Gbps
Non-Blocking Throughput 26 Gbps
Forwarding Rate 38.69 Mpps
Total PoE Budget 250 W
Max PoE per Port PoE+: 34.2 W; Passive: 17 W
PoE Voltage Range PoE+: 50–57 V; Passive: 20–27 V
Power Supply Internal AC/DC, universal input (100–240 V AC)
Management Interfaces Serial console, Ethernet GUI/CLI (In-band)
Layer 2/3 Features VLAN, STP/RSTP, LACP, IGMP snooping, ACLs, Static Routing, DHCP snooping, LLDP
Dimensions (HxWxD) 43.7 × 485 × 285.4 mm (1.7 × 19.1 × 11.2″)
Weight 4.7 kg (10.4 lb)
Rackmount Yes, 1U (brackets included)
Protection & Compliance ESD: ±24 kV; ETSI shock/vibration; CE, FCC, IC; NDAA compliant
Operating Temp / Humidity –5 to 40 °C; 5–95% non-condensing
