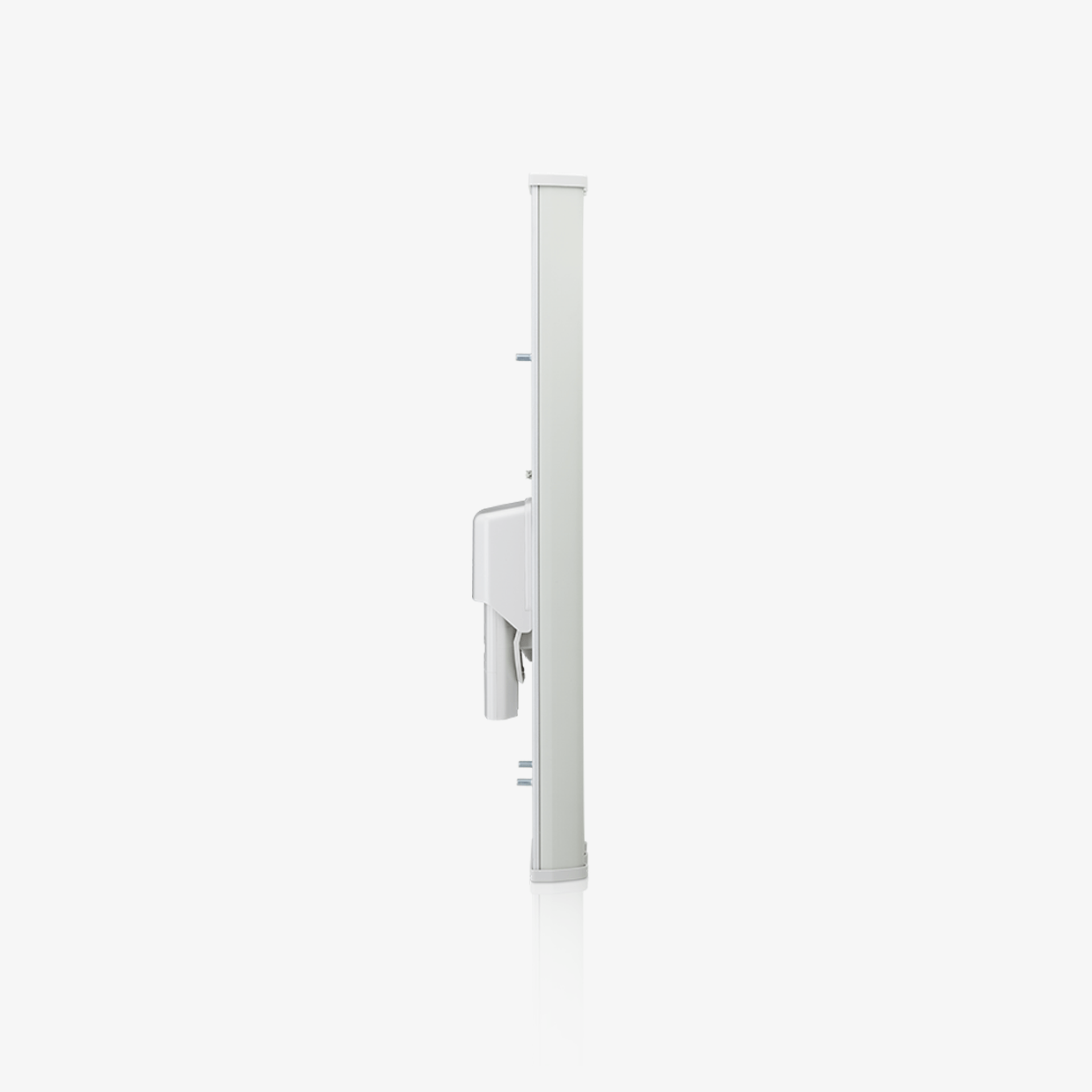

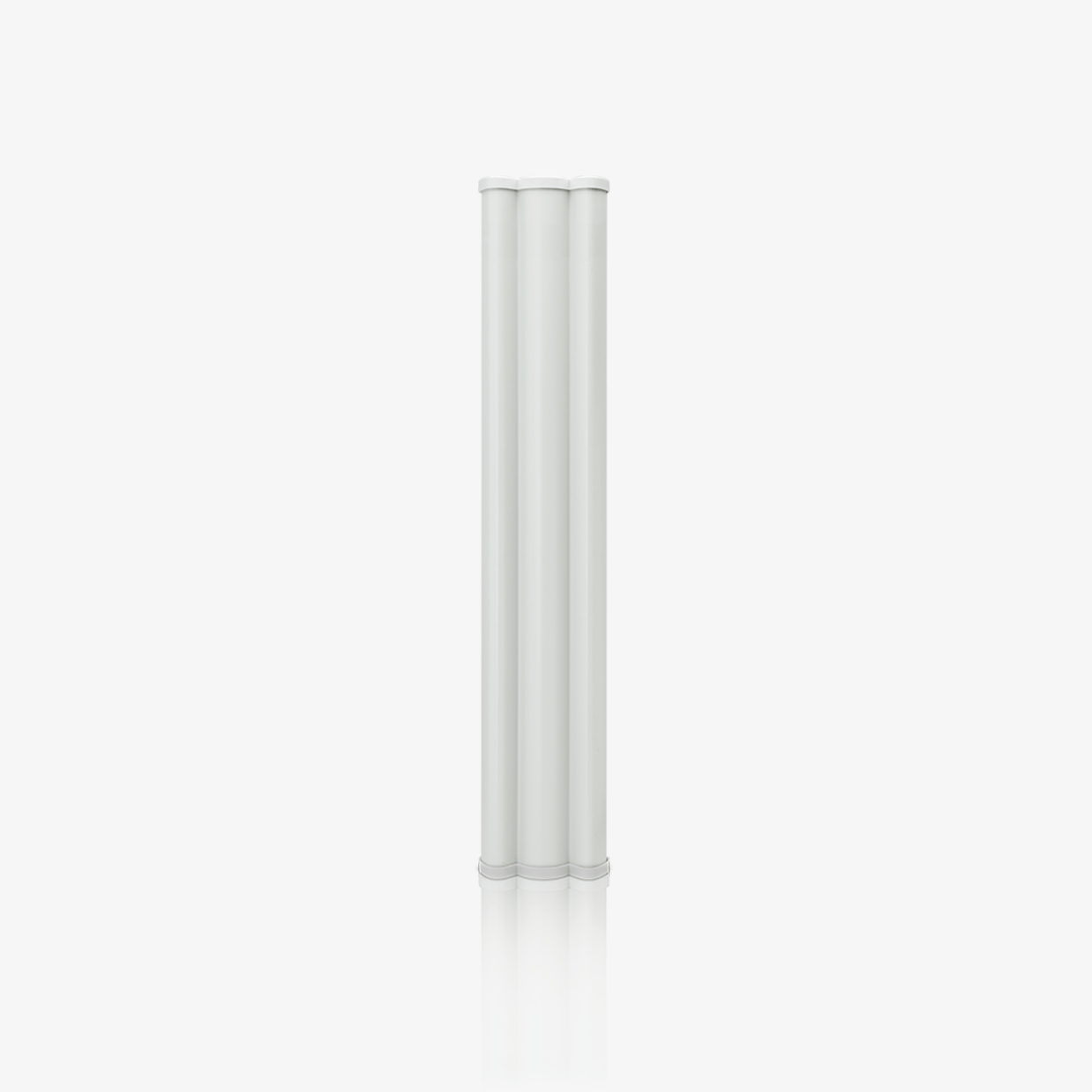

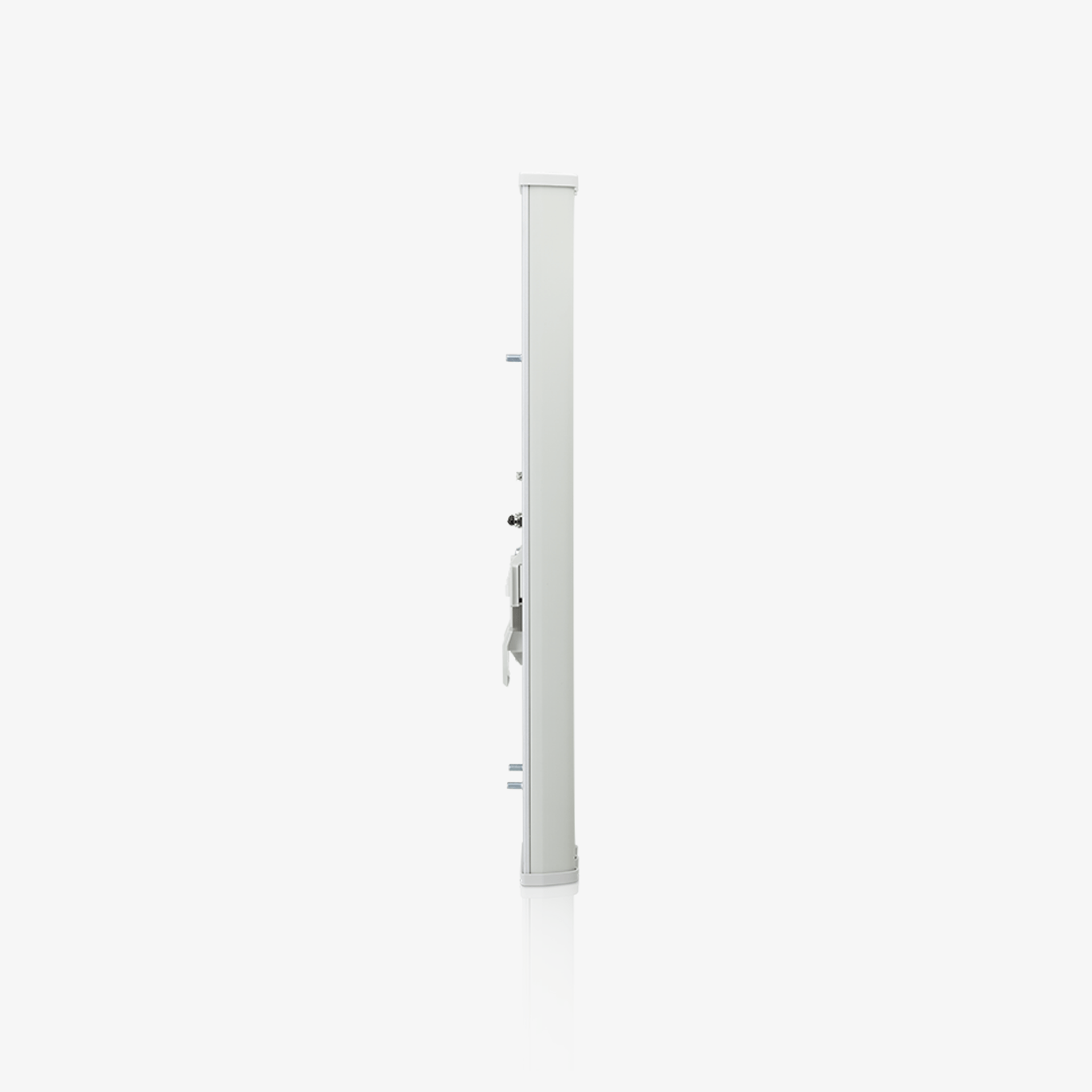

Ubiquiti AM-5G19-120 —Sector Antenna (120°)

The Ubiquiti AM-5G19-120 is a robust 19 dBi airMAX ac sector antenna built for immersive 5 GHz PtMP (Point-to-Multipoint) coverage. With a broad 120° beamwidth, dual-linear polarization, and rugged design, it delivers reliable long-range performance and integrates seamlessly with Rocket radios for turnkey WISP installations.

Request a Quote
10 people are viewing this product

Description

The Ubiquiti AM-5G19-120 is purpose-built for high-capacity outdoor broadband networks, pairing a 120° sector coverage with 19 dBi gain to optimally distribute wireless signals across large areas. Its dual-linear polarization and ≥ 28 dB cross-polar isolation enhance signal clarity and reduce interference in dense deployments.

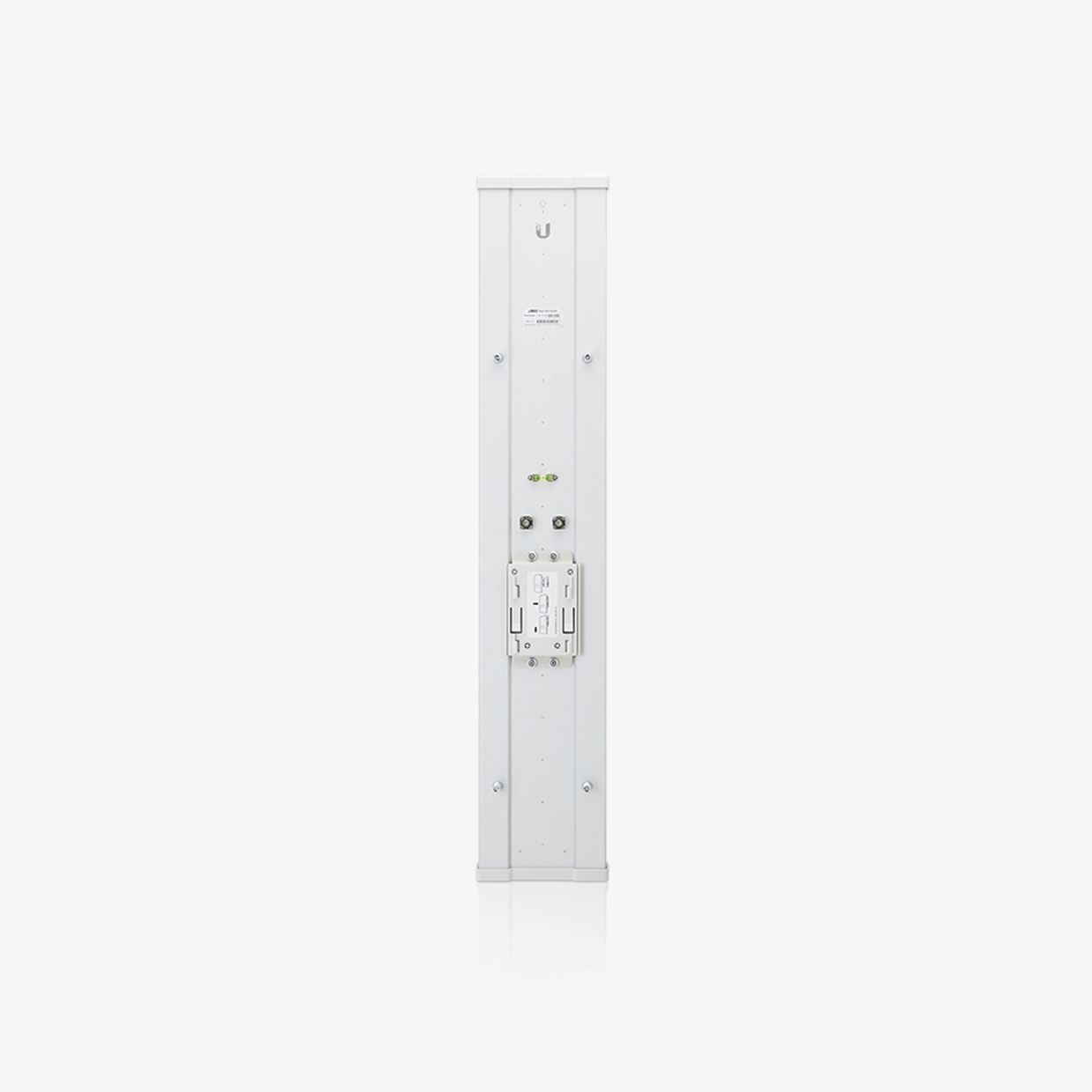

Engineered for easy installation, the antenna features a built-in RocketM mount, weatherproof jumpers, and pole mounting hardware. Its durable structure withstands wind speeds up to 200 km/h (125 mph) and meets ETSI EN 302 326 DN2 standards, making it a trusted choice for rural and enterprise PtMP links.

Applications

Wireless broadband, WISP deployments, rural connectivity, point-to-multipoint network sectors.

Key Features

  • 19 dBi gain and 120° coverage for wide-area PtMP deployments

  • Dual-linear polarization with high cross-pol isolation (≥ 28 dB)

  • Built-in Rocket mount, RF jumpers, and universal pole hardware included

  • Rugged, weatherproof design—survives up to 200 km/h wind

  • ETSI EN 302 326 DN2 certified; NDAA compliant

Specifications

Specification Details
Brand Ubiquiti airMAX ac
Model / Product Code AM-5G19-120
Frequency Range 5.15 – 5.85 GHz
Gain 18.6 – 19.1 dBi
HPOL Beamwidth 123° (6 dB)
VPOL Beamwidth 123° (6 dB)
Electrical Beamwidth 4°
Electrical Downtilt 2°
Max VSWR 1.5:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 137.9 N @200 km/h (31 lbf @125 mph)
Polarization Dual-linear
Cross-Pol Isolation ≥ 28 dB
Dimensions 700 × 135 × 73 mm (27.6 × 5.3 × 2.9″)
Weight (with mount) 5.9 kg (13 lb)
Mounting Universal pole mount, Rocket bracket, RF jumpers included
Certifications EN 302 326 DN2; NDAA compliant
