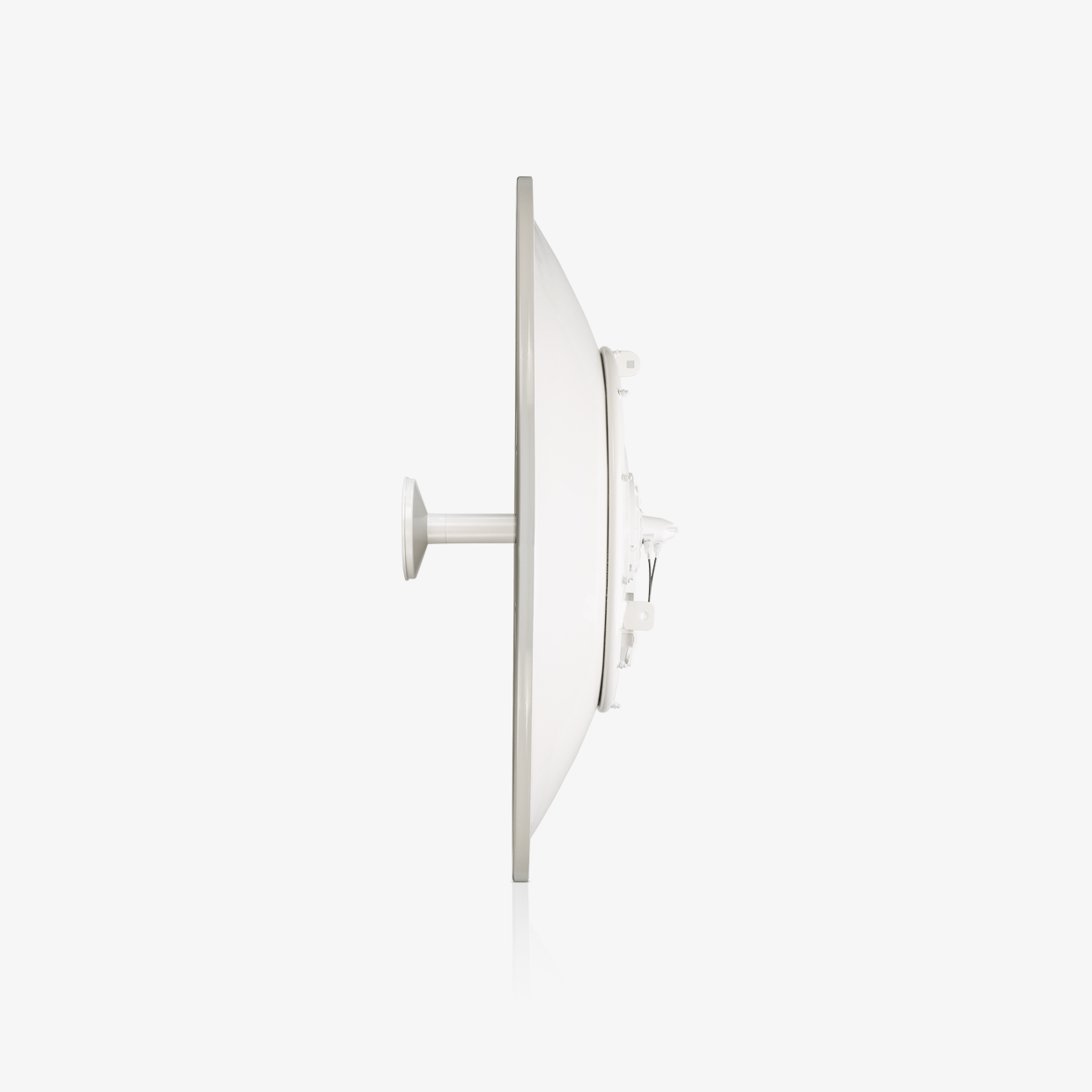

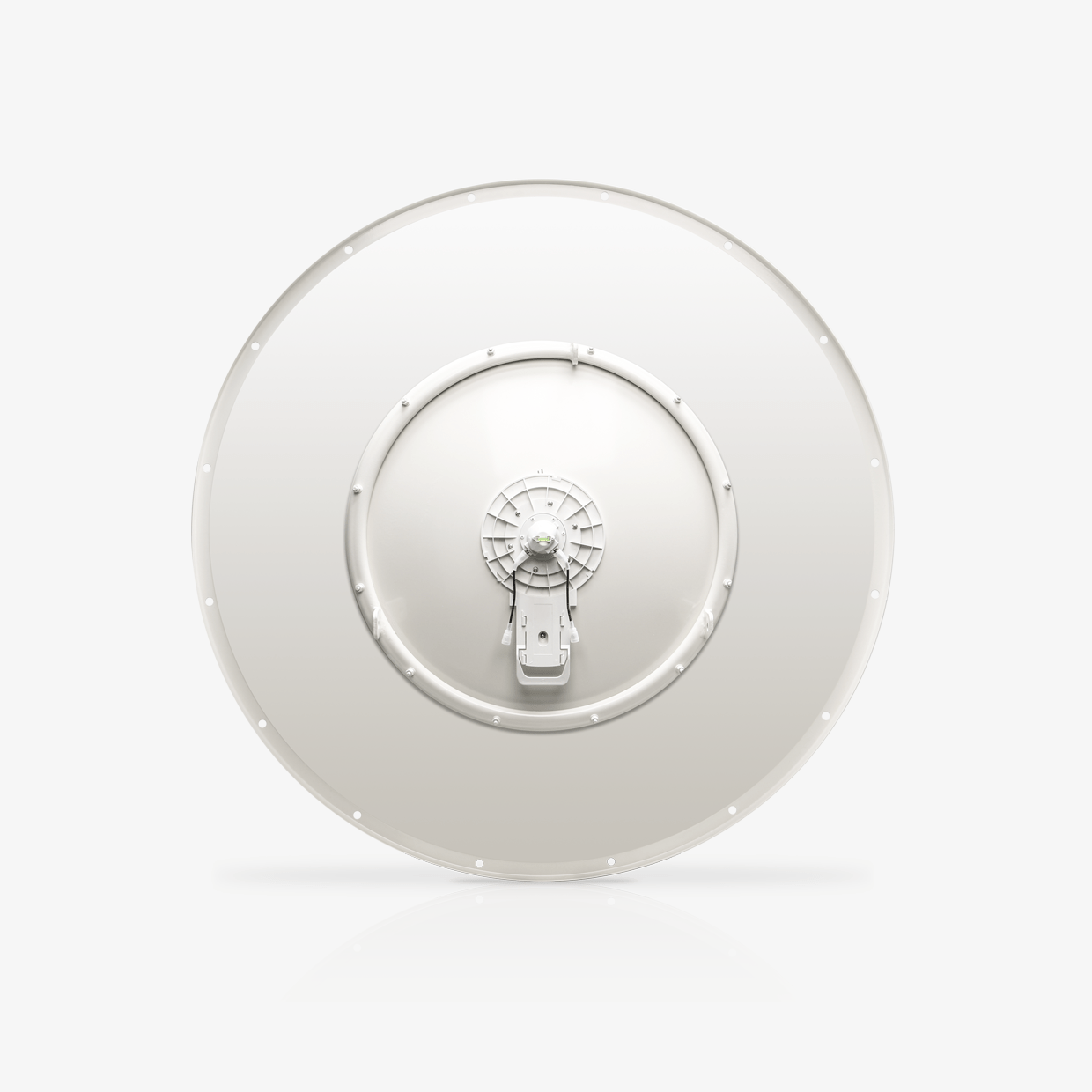

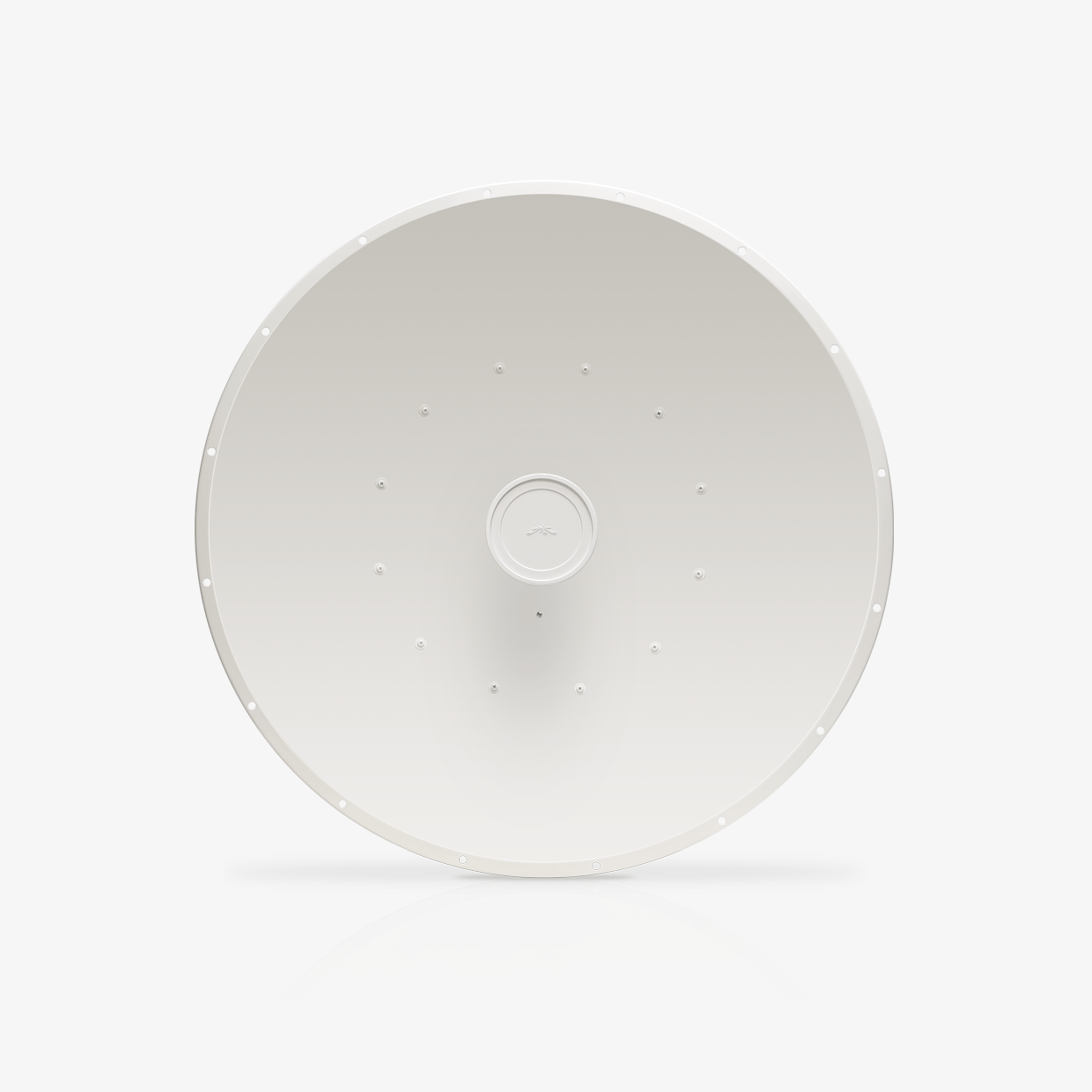

Ubiquiti airFiber AF-5G34-S45 — 34dBi Slant-45 Parabolic Dish

The Ubiquiti AF-5G34-S45 is a high-gain, 34 dBi 2×2 Slant-45 parabolic dish antenna optimized for 5 GHz airFiber X radios. Featuring robust construction, integrated radio mount, and weather-ready hardware, it’s built for long-range, high-capacity PtP backhaul deployments.

Request a Quote
5 people are viewing this product

Description

Built for carrier-class, point-to-point (PtP) links, the Ubiquiti AF-5G34-S45 delivers outstanding performance with its large 1050 mm reflector and 34 dBi gain, offering extremely focused coverage via narrow beamwidth. Its dual-linear Slant-45 polarization simplifies alignment and maximizes throughput.

The antenna includes a built-in airFiber X radio mount, weatherproof feed, and all necessary pole mount hardware for swift, reliable deployment. Ruggedized to survive wind speeds up to 200 km/h (125 mph), it meets ETSI EN 302 326 DN2 standards and is NDAA-compliant—ideal for robust backhaul infrastructure.

Application

Outdoor PtP links, Rural and enterprise backhaul infrastructure, Long-range ISP/WISP backbone connections.

Key Features

  • High 34 dBi gain with narrow beamwidth for focused long-range links

  • Dual-linear Slant-45 polarization for enhanced SNR and alignment flexibility

  • Integrated airFiber X radio mount and weatherproof feed for plug-and-play setup

  • Rugged design withstands winds up to 200 km/h (125 mph)

  • Meets ETSI EN 302 326 DN2 and is NDAA compliant

  • Universal pole mount and weatherproof RF connectors included

Specifications

Specification Details
Brand Ubiquiti airFiber X
Model / Product Code AF-5G34-S45
Frequency Range 4.9 – 5.8 GHz (airFiber X)
Gain 34 dBi
Beamwidth (3 dB) Horizontal/Vertical: 3°
Polarization Dual-Linear Slant-45
Max VSWR 1.4:1
F/B Ratio 42 dB)
Wind Survivability 200 km/h (125 mph)
Wind Loading 1,779 N @ 200 km/h (400 lb)
Dimensions Ø 1050 × 421 mm (41.34″ × 16.57″)
Weight (with mount) 13.5 kg (29.76 lb)
Mounting Universal pole mount, airFiber radio bracket, weatherproof RF jumpers included
Certifications ETSI EN 302 326 DN2; NDAA compliant
Warranty Limited manufacturer warranty (per Ubiquiti policy)
