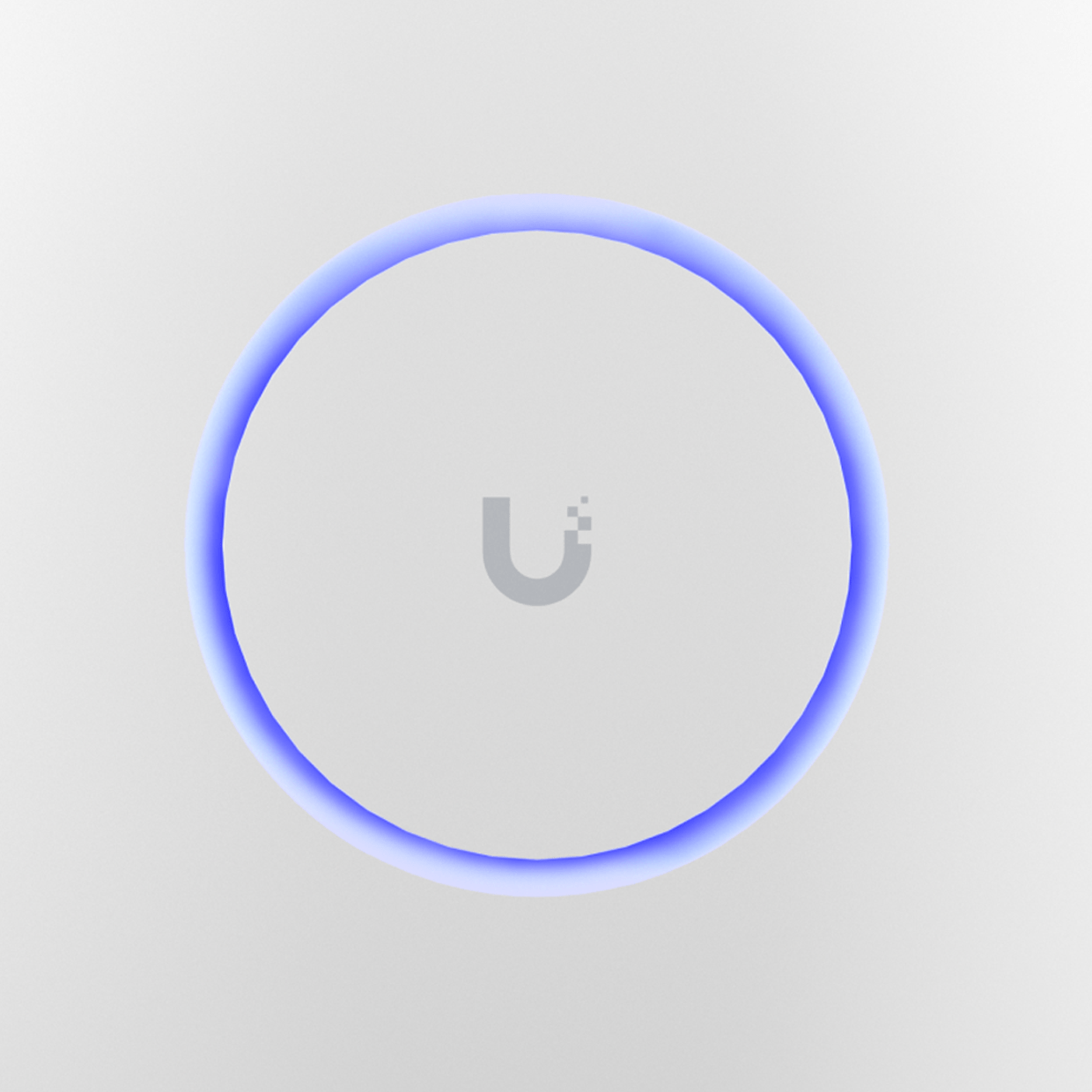

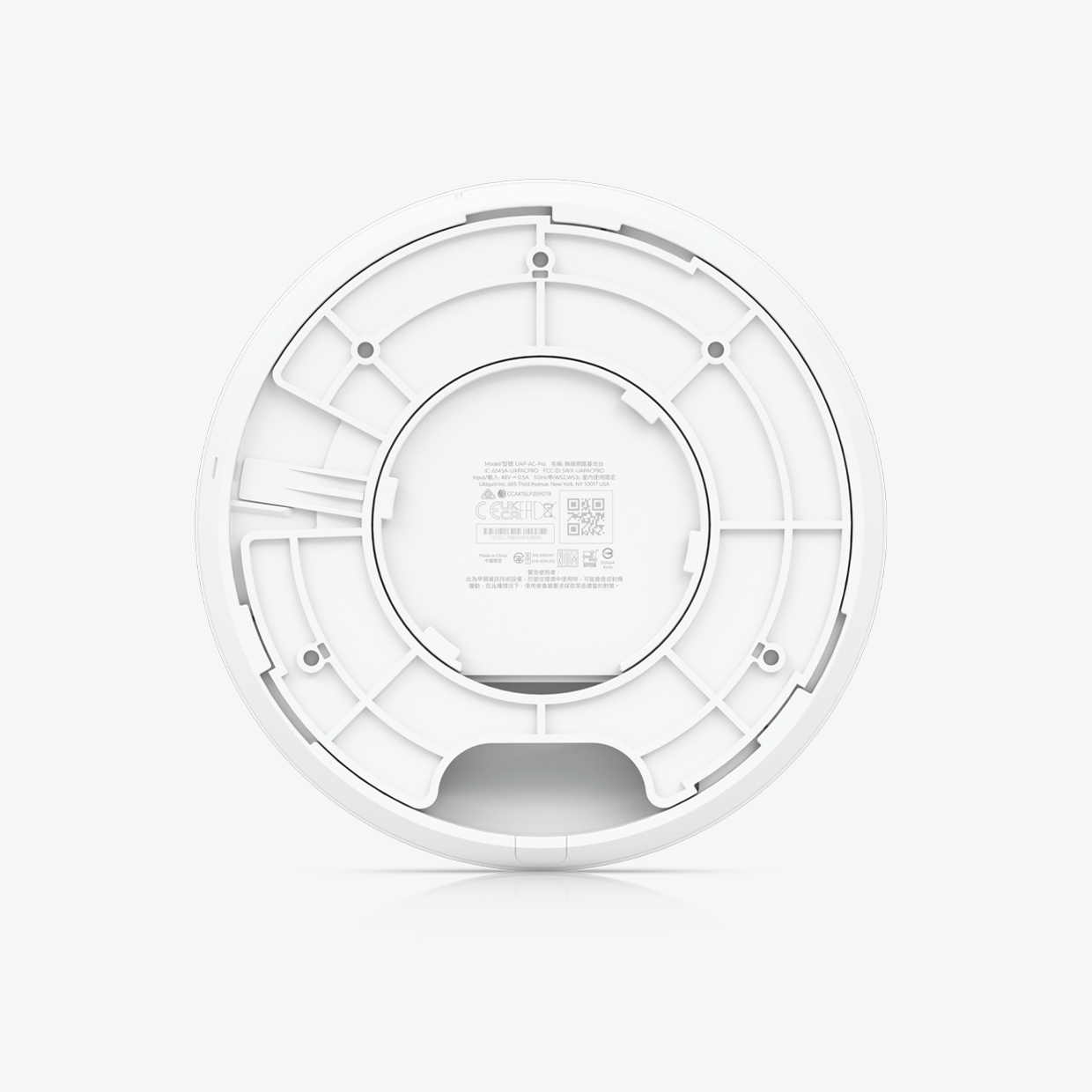

UAP-AC-PRO — Dual-Band Ceiling/Wall AP

The Ubiquiti UniFi UAP-AC-PRO is a high-performance, dual-band (2.4 GHz + 5 GHz) access point optimized for indoor and sheltered outdoor use. Delivering combined speeds of up to 1.75 Gbps via 3×3 MU-MIMO technology, it supports PoE and features a weather-resistant design. Seamlessly managed with the UniFi Controller, it’s ideal for scalable deployments in enterprises, hospitality venues, and multi-building campuses.

  • Data Sheet
Get a Quote
11 people are viewing this product

Description

Designed for demanding environments, the UniFi UAP-AC-PRO offers simultaneous dual-band Wi-Fi with robust 3×3 MU-MIMO capability. The 5 GHz band delivers data rates up to 1.3 Gbps, while the 2.4 GHz band provides up to 450 Mbps, combining for a total throughput of approximately 1.75

Its durable, weatherproof outer shell makes it suitable for both indoor and covered outdoor installations. The device supports both 802.3af and 802.3at PoE and can withstand a wide power input range (44–57 V DC), simplifying deployments with PoE switches.

Aesthetically pleasing and easy to manage, the UAP-AC-PRO integrates with UniFi’s centralized Controller software, offering features like band steering, fast roaming (802.11r/k/v), captive portals, hotspot authentication, and device isolation. It’s an ideal solution for offices, schools, hotels, and complexes that demand both performance and ease of network management.

Application

Enterprise Wi-Fi deployments, AP-dense environments (e.g., offices, retail, education), Indoor/outdoor coverage, Seamless roaming networks, Managed hotspot installations

Specifications

SpecificationDetails
BrandUbiquiti (UniFi)
Model / Product CodeUAP-AC-PRO
Form FactorCeiling or wall-mount AP
Wi-Fi Standards802.11a/b/g/n/ac (Wi-Fi 5)
Wireless ConfigurationDual-band 3×3 MU-MIMO
Max Data Rate (5 GHz)1.3 Gbps (BW80)
Max Data Rate (2.4 GHz)450 Mbps (BW40)
Combined Throughput~1.75 Gbps
Antenna Gain3 dBi on both bands
Transmit Power (Max)22 dBm
Ethernet Ports2 × Gigabit RJ45
PoE Compatibility802.3af and 802.3at (44–57 V DC)
Max Power Consumption9 W
Coverage Area~140 m² (1,500 ft²)
Max Clients250+
Physical DimensionsØ196.7 × 35 mm (Ø7.7″ × 1.4″)
Weight~350 g without mount
ManagementUniFi Network Controller
Weatherproof RatingIndoor/outdoor (IP55 level implied)
CertificationsCE, FCC, IC, Anatel, NDAA
Operating Temp Range–10 °C to +70 °C
Included AccessoriesPoE adapter (single pack), mounting kit (wall & ceiling)
Warranty / SupportStandard one-year; UI Care upgrade available
