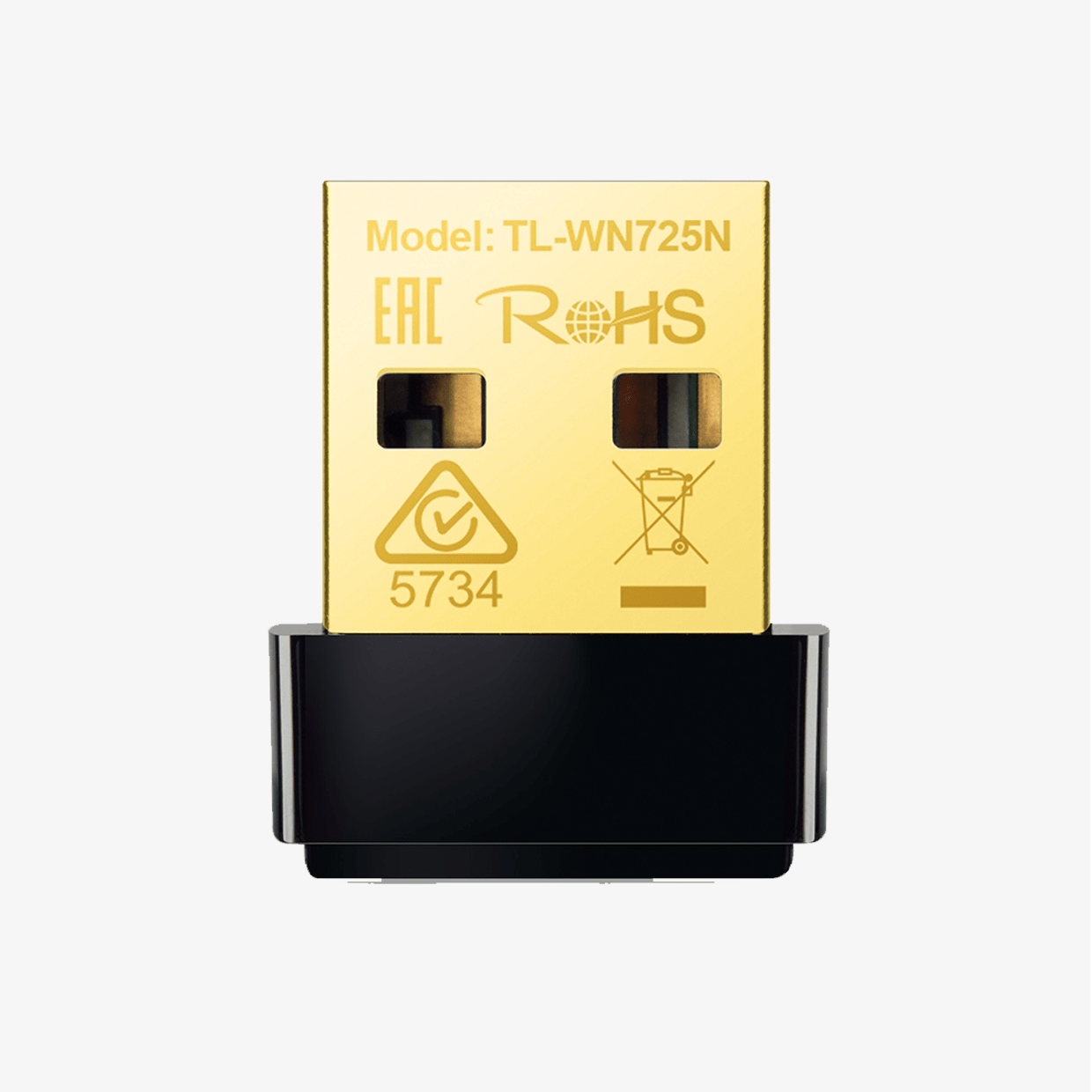

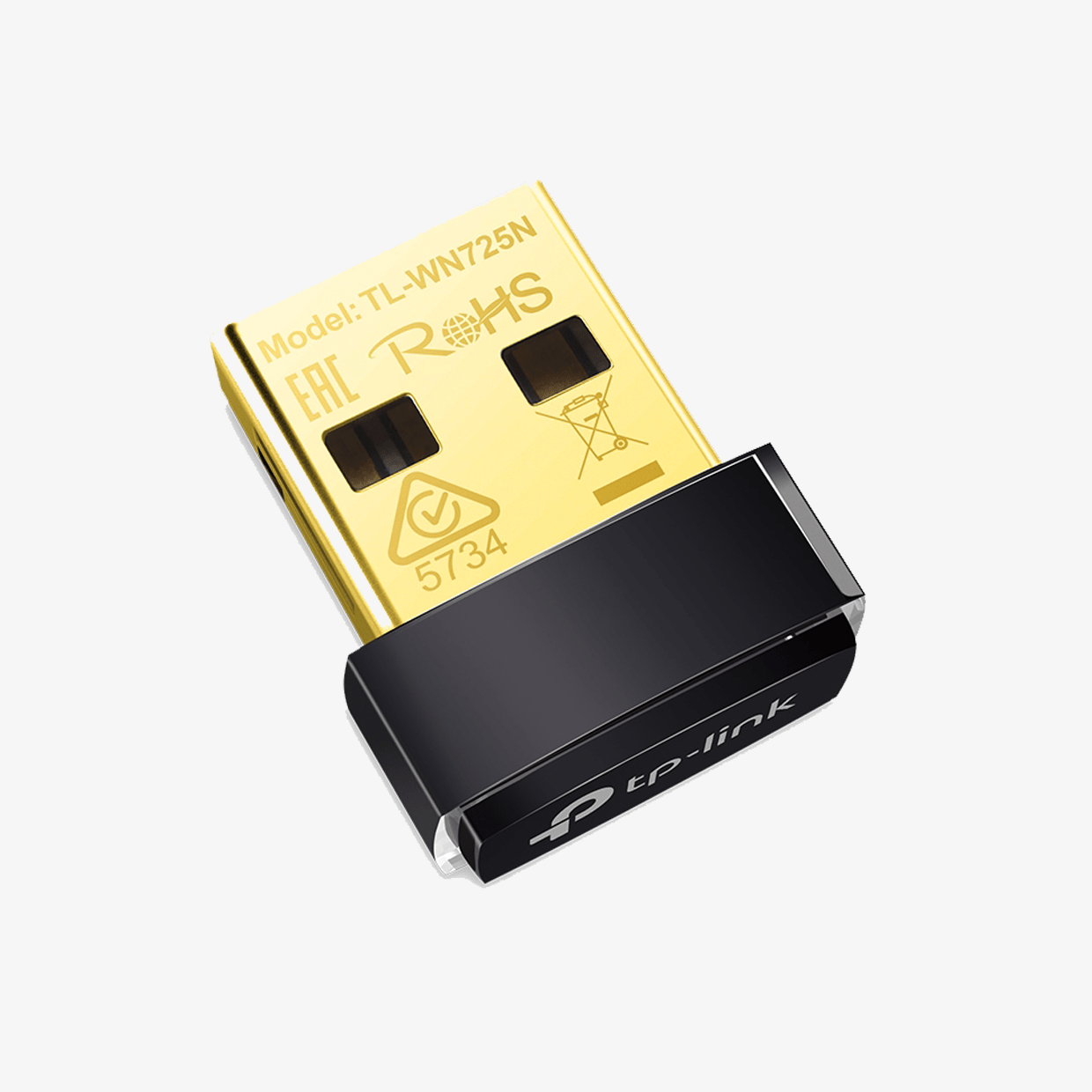

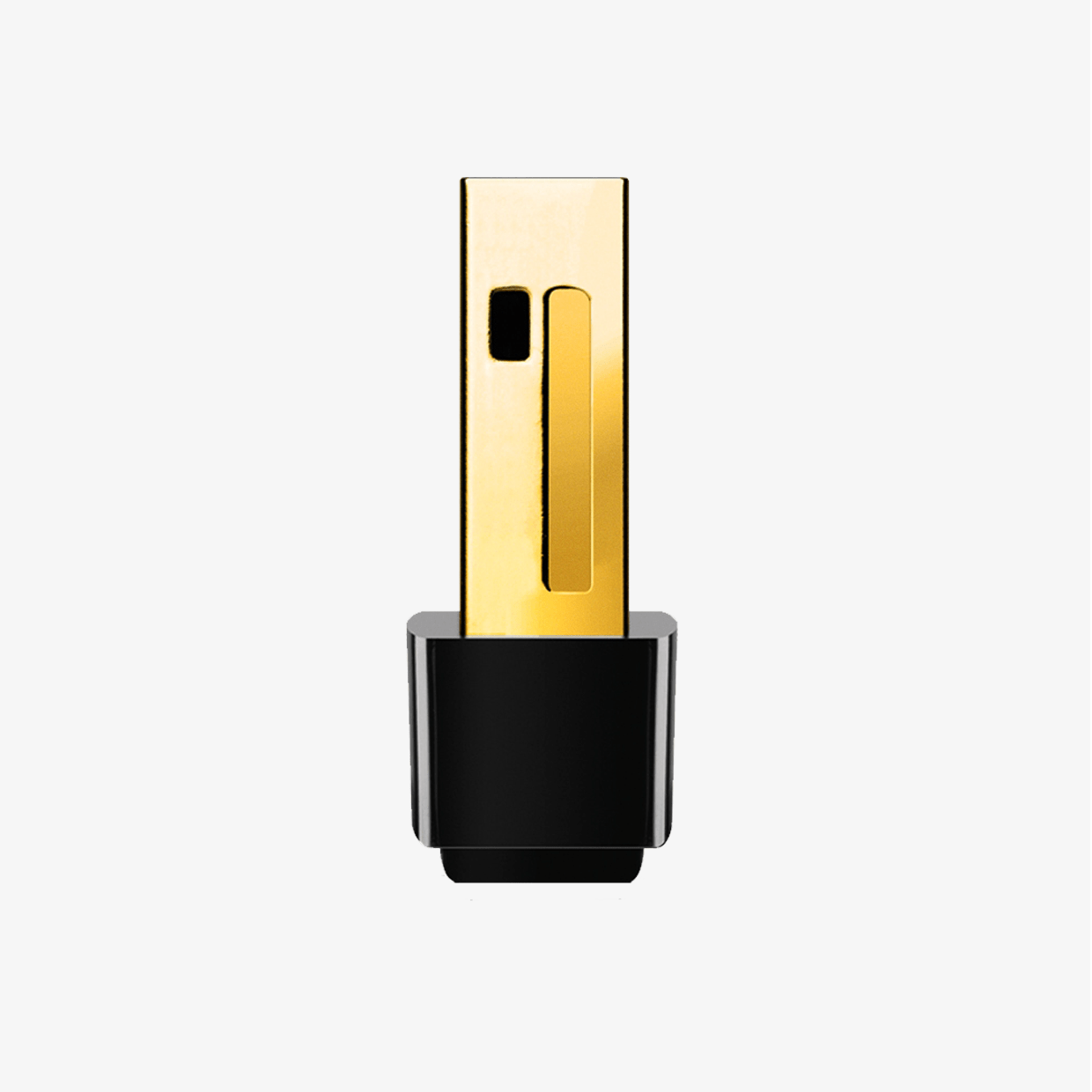

TP-Link TL-WN725N — 150 Mbps Nano USB Wi-Fi Adapter

The TP-Link TL-WN725N is a nano-sized 150 Mbps Wireless-N USB adapter for desktops and laptops, giving you fast and reliable Wi-Fi connectivity without having to replace internal cards. Plug-and-play with USB 2.0, it supports IEEE 802.11b/g/n on the 2.4 GHz band, and features WPA/WPA2 security. With its miniature design, internal antenna, and low power consumption, it’s an excellent choice for simple wireless upgrades.

Description

The TP-Link TL-WN725N is a tiny, high-utility USB wireless adapter that turns any compatible computer into a wireless-ready device with speeds up to 150 Mbps. Using the USB 2.0 interface, it supports IEEE 802.11b/g/n standards on the 2.4 GHz frequency, making it compatible with virtually all home and SOHO wireless networks. Its compact “nano” form factor means once it’s plugged in, you can leave it — it won’t block adjacent ports or be obtrusive.

Wireless security is robust: WEP (64/128), WPA / WPA2, WPA-PSK / WPA2-PSK, TKIP/AES, and IEEE 802.1X are supported. The adapter works in both Infrastructure and Ad-Hoc modes and includes SoftAP support for creating a hotspot. Driver support covers Windows (XP through Windows 10+), Mac OS, and Linux.

Physically, it’s practically invisible: about 18.6 × 15 × 7.1 mm, weighs ~ 2.1 grams, with an internal antenna. Power draw is minimal. Operational range and speeds will depend on your router, signal strength, and environmental factors. It’s CE/FCC/IC/RoHS certified.


Application

Home computing, Desktop PCs / Notebooks without built-in Wi-Fi, IoT / embedded systems, Wireless upgrades, Travel use


Key Features

✔️ Up to 150 Mbps wireless speed on 2.4 GHz (802.11n) — great for standard internet browsing, video, streaming.
✔️ Ultra-compact nano-USB form — internal antenna; leaves USB ports usable.
✔️ Supports 802.11b/g/n wireless standards; backward compatible.
✔️ Secure connections via WEP / WPA / WPA2, TKIP / AES, plus support for IEEE 802.1X.
✔️ Works in Ad-Hoc & Infrastructure modes; includes SoftAP functionality for sharing connection.
✔️ Compatible with Windows, Mac OS, Linux; includes utility/driver CD & multilingual support.
✔️ Low weight (≈ 2.1 g), small dimensions (~ 18.6×15×7.1 mm), minimal power & heat.

Specifications

SpecificationDetails
ModelTL-WN725N
InterfaceUSB 2.0
Wireless StandardsIEEE 802.11b / IEEE 802.11g / IEEE 802.11n (2.4 GHz)
Frequency2.400-2.4835 GHz
Maximum Data RateUp to 150 Mbps (dynamic)
Transmission Power< 20 dBm
Reception Sensitivity130M: -68 dBm @ 10% PER / 108M: same / 54M: -68 dBm / 11M: -85 dBm etc.
Wireless ModesInfrastructure & Ad-Hoc; SoftAP supported
SecurityWEP (64/128), WPA / WPA2, WPA-PSK / WPA2-PSK with TKIP/AES; 802.1X
AntennaInternal antenna
LED IndicatorStatus LED
Dimensions~ 18.6 × 15 × 7.1 mm
Weight~ 2.1 grams (0.07 ounces)
CertificationsCE, FCC, IC, RoHS
Operating Temperature0 °C to 40 °C
Storage Temperature-40 °C to 70 °C
Operating Humidity10%-90% RH non-condensing
Storage Humidity5%-90% RH non-condensing
Package ContentsTL-WN725N adapter; resource CD; Quick Installation Guide
WarrantyNot specified by vendor in specs seen
