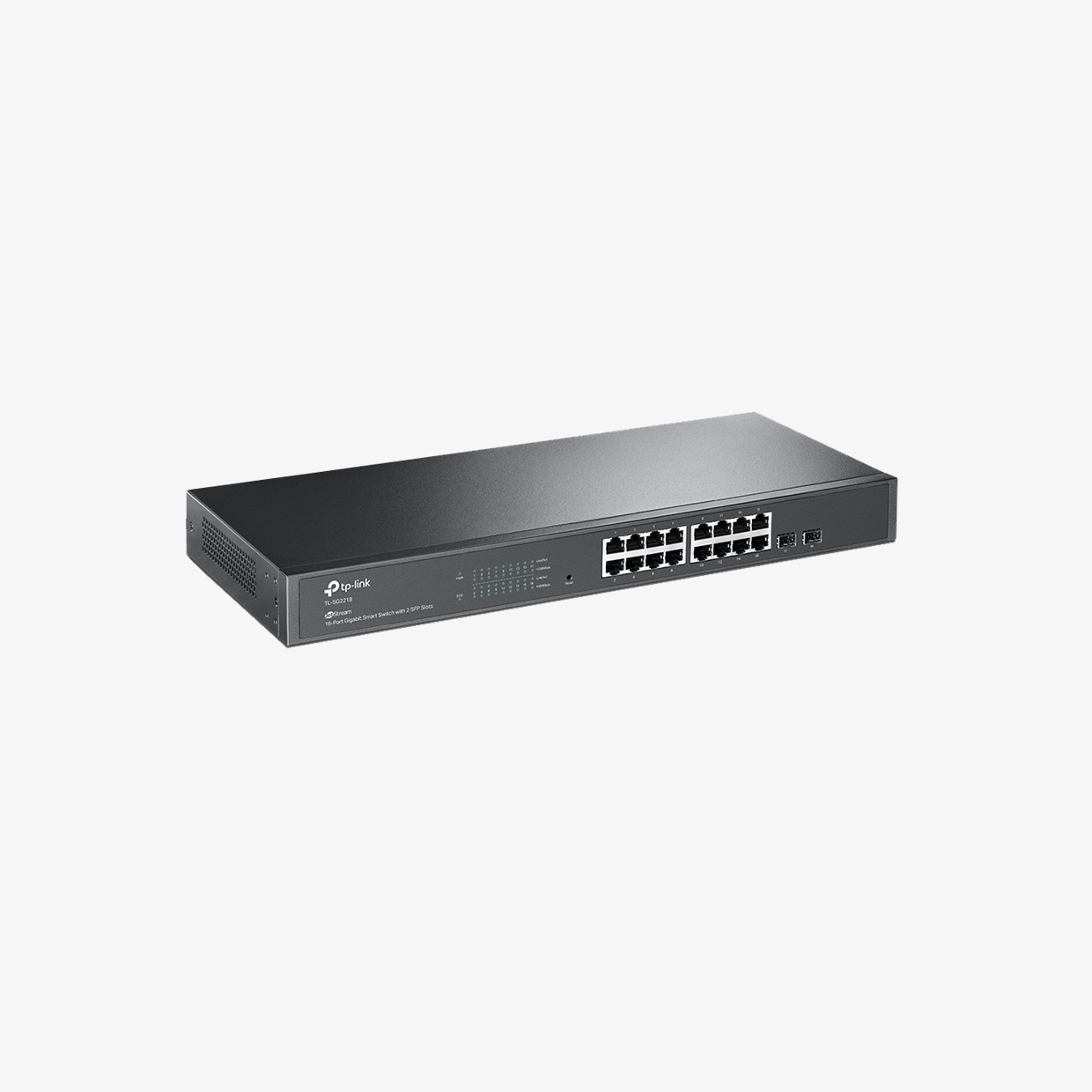

TP-Link TL-SG2218 — 16-Port Gigabit Smart Switch

The TP-Link TL-SG2218 is a high-performance 16-Port Gigabit Smart Switch with 2 SFP uplink slots, designed for SMBs and enterprise edge networks. Supporting centralized Omada SDN cloud management, it integrates seamlessly with larger deployments. Equipped with VLAN, QoS, IGMP snooping, static routing, and advanced security tools, it provides flexible traffic control and protection. With a 36 Gbps switching capacity, fanless silent design, and robust rackmountable chassis, the TL-SG2218 delivers reliable, energy-efficient operation in professional environments.

  • Data Sheet
  • User Manual
Request a Quote
9 people are viewing this product

Description

The TP-Link TL-SG2218 JetStream 16-Port Gigabit Smart Switch offers advanced management, security, and scalability for modern business networks. Featuring 16 Gigabit Ethernet ports and 2 dedicated Gigabit SFP slots, it provides flexible uplink options for fiber or aggregation. With a switching capacity of 36 Gbps and forwarding rate of 26.8 Mpps, it ensures stable, high-throughput connectivity across office or enterprise environments.

As part of the Omada SDN platform, the TL-SG2218 supports centralized cloud management with Zero-Touch Provisioning (ZTP), traffic optimization, and remote access via the Omada App. It can also operate in standalone mode with an intuitive web GUI, CLI, SNMP, or RMON for monitoring and control.

Software features include VLAN segmentation, QoS prioritization, IGMP snooping, static routing, port mirroring, and loop prevention, enabling administrators to optimize performance and simplify troubleshooting. Security is reinforced with 802.1X authentication, IP-MAC-Port binding, ACLs, DoS defense, and DHCP snooping.

Built for professional deployments, the switch is housed in a compact 1U rackmount steel chassis with fanless cooling for quiet operation. Energy-efficient design lowers power usage without sacrificing performance, while a 5-year manufacturer warranty ensures long-term reliability. The TL-SG2218 is ideal for small and medium businesses seeking enterprise-grade control and dependable switching in a scalable solution.

Application

Enterprise networks, Small offices, SMB networks, ISP edge aggregation

Key Features

✅ 16 Gigabit RJ-45 ports with Auto-Negotiation and Auto-MDI/MDIX
✅ 2 dedicated Gigabit SFP uplink slots for fiber connectivity
✅ 36 Gbps switching capacity and 26.8 Mpps forwarding rate
✅ Omada SDN support: centralized cloud management and ZTP
✅ Advanced software: VLAN, QoS, IGMP snooping, static routing
✅ Enterprise security: 802.1X, ACL, DoS defense, DHCP snooping
✅ Fanless 1U rackmount steel housing for silent, durable operation
✅ Dual image firmware for network resilience and upgrade safety

Specifications

Specification Detail
Model TL-SG2218
Product Type 16-Port Gigabit Smart Switch with 2 SFP slots
Standards & Protocols IEEE 802.3i, 802.3u, 802.3ab, 802.3x
Interface 16 × 10/100/1000 Mbps RJ-45, Auto-Negotiation/Auto-MDI/MDIX2 × Gigabit SFP slots
Switching Capacity 36 Gbps
Forwarding Rate 26.8 Mpps
MAC Address Table 8K entries
Jumbo Frame 9 KB
Packet Buffer Memory Not specified by vendor
Fan Quantity Fanless
Power Supply 100–240 V AC, 50/60 Hz
Max. Power Consumption 12.3 W (220V/50Hz)
Max. Heat Dissipation 41.97 BTU/h
Dimensions (W × D × H) 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)
Mounting Rack-mountable (1U)
QoS 802.1p/DSCP, 8 queues, Bandwidth Control, Storm Control
VLAN Supports 4K VLAN IDs; up to 512 VLANs simultaneously
L2/L3 Features IGMP Snooping, Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, Static Routing
Security IP-MAC-Port Binding, ACL, DoS Defense, DHCP Snooping, 802.1X & RADIUS Authentication
Management Omada SDN, Web GUI, CLI (Telnet/SSH), SNMP, RMON, Dual Image
Transmission Method Store-and-Forward
Certifications FCC, CE, RoHS
Package Contents TL-SG2218, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
Environment Operating Temp: 0–50 °CStorage Temp: –40–70 °COperating Humidity: 10–90% non-condensingStorage Humidity: 5–90% non-condensing
Warranty 5 Years (varies by region)
