Description

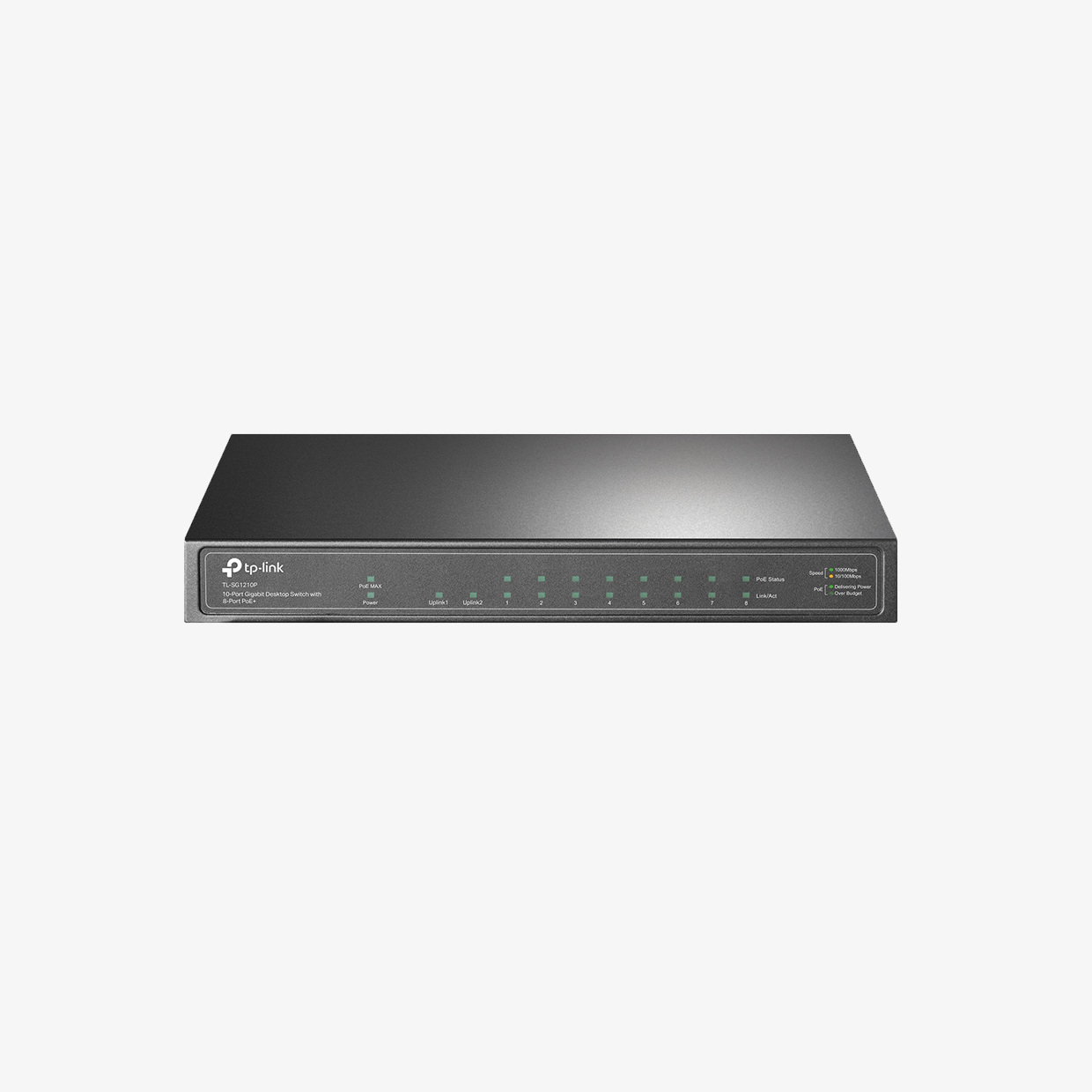

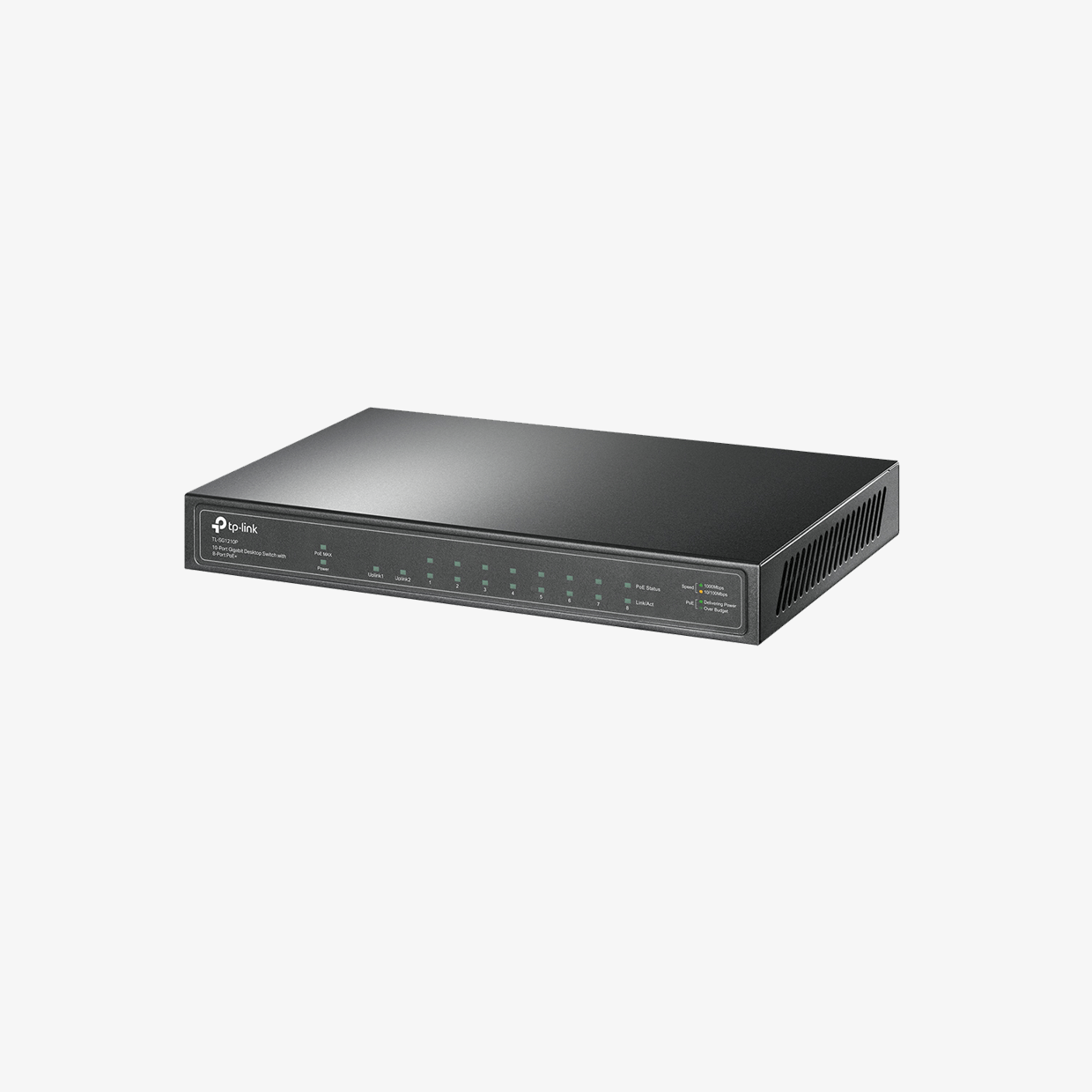

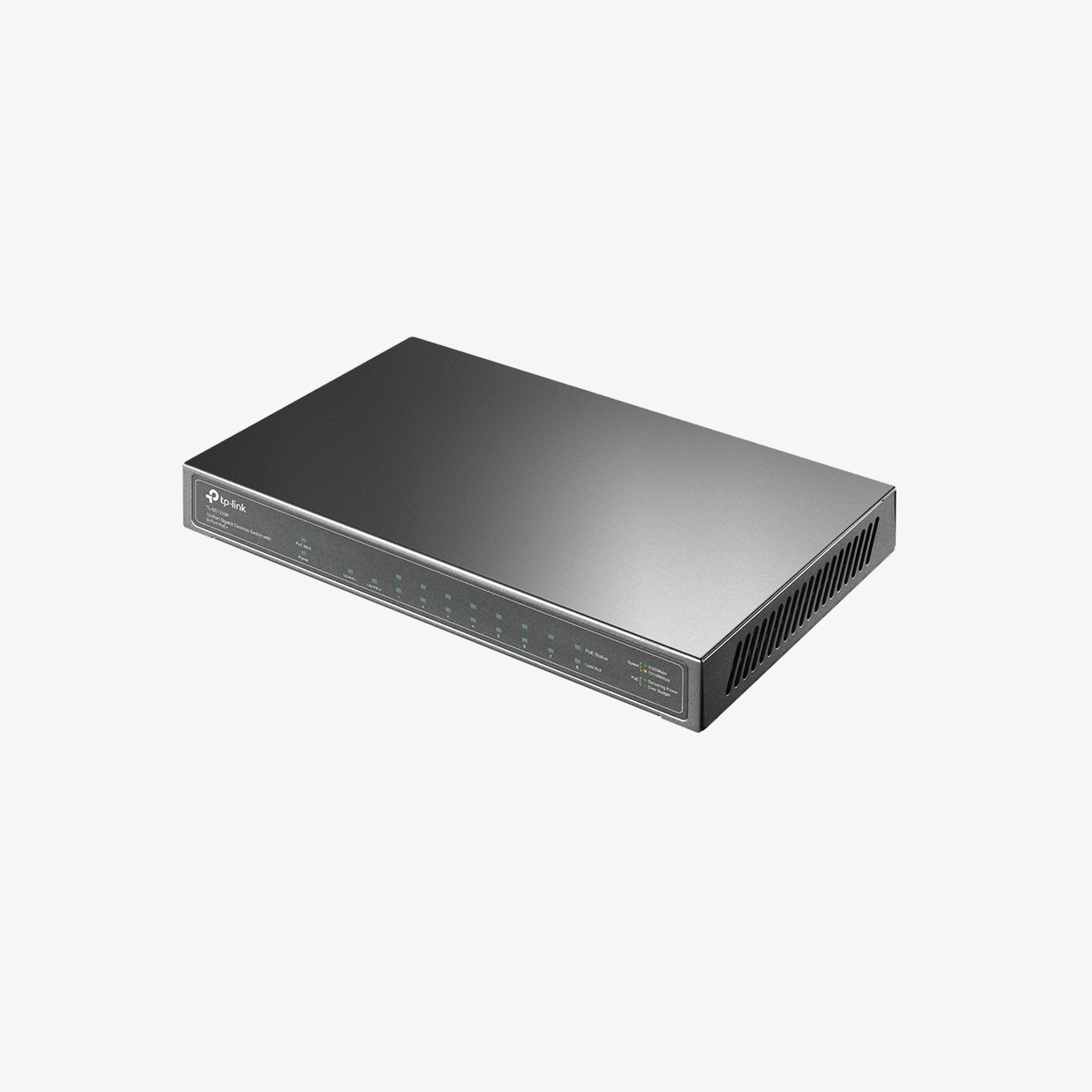

The TP-Link TL-SG1210P combines data and power delivery over Ethernet to simplify and clean up networking installations. With 8 PoE+ capable RJ-45 ports (ports 1-8), it supports up to 30 W per port under the IEEE 802.3at/af standard—with a total PoE budget of 63 W. This switch also includes 1 non-PoE RJ-45 port and 1 Gigabit SFP slot for fiber uplinks, expanding your networking flexibility.
Performance is solid with a 20 Gbps switching capacity, ~14.88 Mpps forwarding rate, and a 4K MAC address table. Built-in QoS (802.1p / DSCP), IGMP snooping, and flow control ensure that latency-sensitive traffic like video and voice gets priority, while jumbo frames (16 KB) improve throughput for large data transfers.
On the physical side, the TL-SG1210P is designed for quiet environments—it’s fanless, has a metal desktop/wall-mountable chassis, and comes with external power adapter support. It features also enhanced modes like Extend Mode (ports 1-4 allow power & data transmission up to 250 m), Priority Mode (ports 1-2 get guaranteed service), Isolation Mode (to separate traffic between ports) and PoE Auto Recovery for rebooting unresponsive powered devices without manual intervention.
It’s perfect for network setups in small offices, retail shops, surveillance systems, or places where multiple PoE devices need to be deployed, but without needing full managed switch overhead. A great balance of power, simplicity, and functionality.
Application
Small office / SOHO, Retail shops, IP Surveillance systems, Wireless access point deployments, Voice over IP (VoIP), Home office networks, Branch offices
Key Features
✅ 8 PoE+ ports with up to 30 W per port for powering devices like APs, cameras, and phones
✅ Total PoE budget of 63 W to support multiple powered devices simultaneously
✅ 10-port design with 1 non-PoE RJ-45 port and 1 Gigabit SFP uplink slot
✅ Queue management and traffic prioritization via QoS (802.1p / DSCP)
✅ IGMP Snooping and flow control for optimized streaming and minimal packet loss
✅ Extend Mode (ports 1-4) supports up to 250 m for power/data transmission
✅ Priority Mode to ensure critical ports (1-2) have guaranteed performance
✅ Isolation Mode for port traffic separation for enhanced security
✅ PoE Auto Recovery to reboot unresponsive powered devices automatically
✅ Fanless, metal casing design for quiet and durable operation
