Description

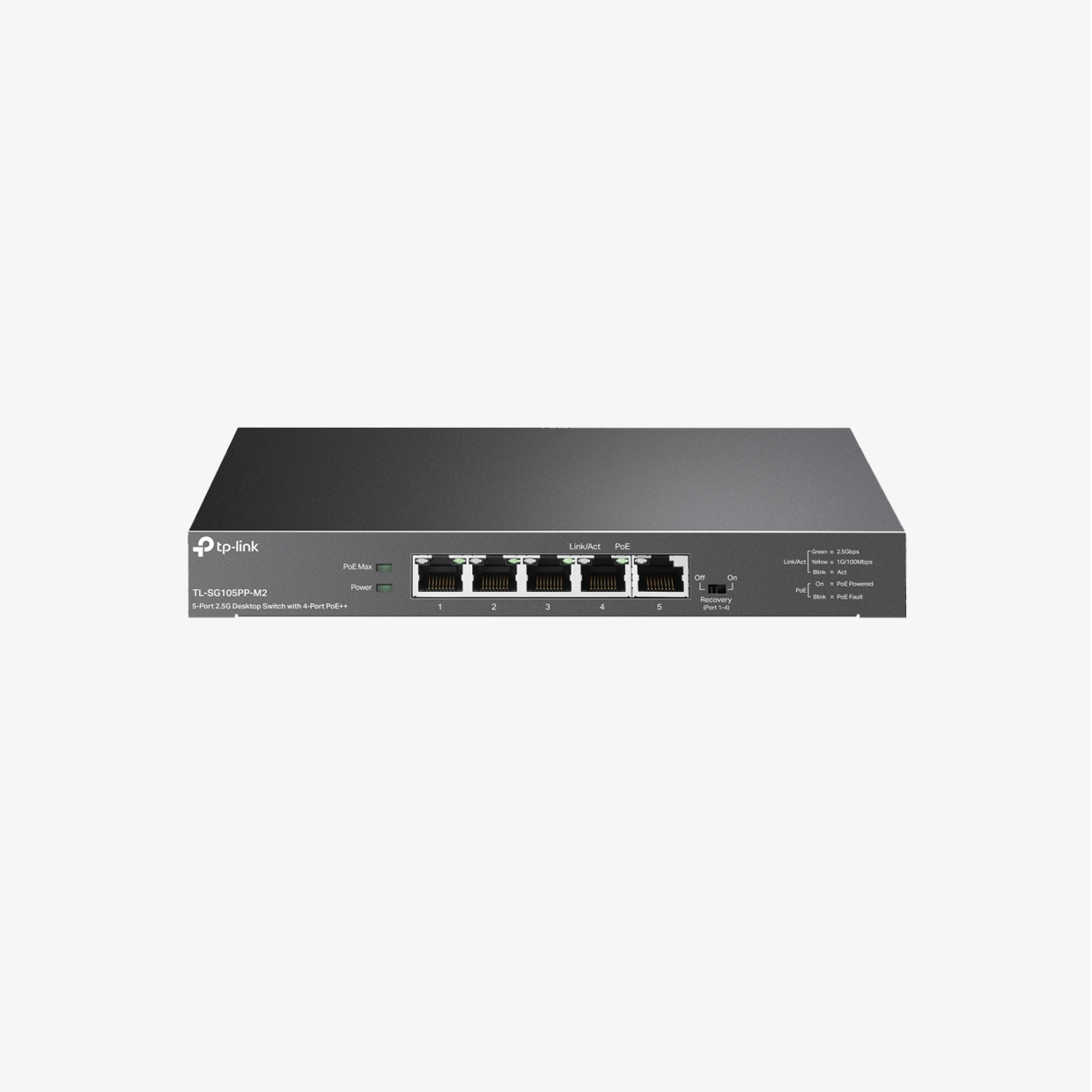

The TP-Link TL-SG105PP-M2 is a high-performance unmanaged desktop switch that combines Multi-Gigabit connectivity with robust PoE++ support. All five RJ45 ports support 10/100/1000/2500 Mbps auto-negotiation for flexible speed matching, while four of them deliver PoE++ (IEEE 802.3af/at/bt Type 3) for powering high-draw devices such as Wi-Fi 6/7 access points, PTZ cameras, or VoIP phones without separate power lines.
With a total PoE power budget of 123 W and up to 60 W per port, it ensures reliable operation even in dense deployments. Features like PoE Auto Recovery automatically reboot unresponsive PoE-powered devices, reducing downtime. Its 25 Gbps switching capacity and 18.6 Mpps forwarding rate ensure smooth performance for heavy traffic loads.
The TL-SG105PP-M2 also includes IEEE 802.3x flow control, QoS (802.1p/DSCP) for latency-sensitive applications, and IGMP snooping for better multicast efficiency. A fanless metal housing keeps it durable and silent, with options for desktop or wall mounting. This plug-and-play switch is a perfect choice for small offices, surveillance systems, or smart home networks needing both speed and high-power PoE.
Application
Small offices, Enterprise networks, Surveillance setups, Wi-Fi access points, IP phones
Key Features
✔️ 5 × RJ45 ports with 10/100/1000/2.5G auto-negotiation
✔️ 4 × PoE++ ports with up to 60 W each, total 123 W PoE budget
✔️ PoE Auto Recovery for automatic reboot of unresponsive PDs
✔️ 25 Gbps switching capacity with 18.6 Mpps forwarding rate
✔️ QoS (802.1p/DSCP) and IGMP snooping for optimized performance
✔️ Fanless metal housing for silent, durable operation
✔️ Compact desktop or wall-mountable design

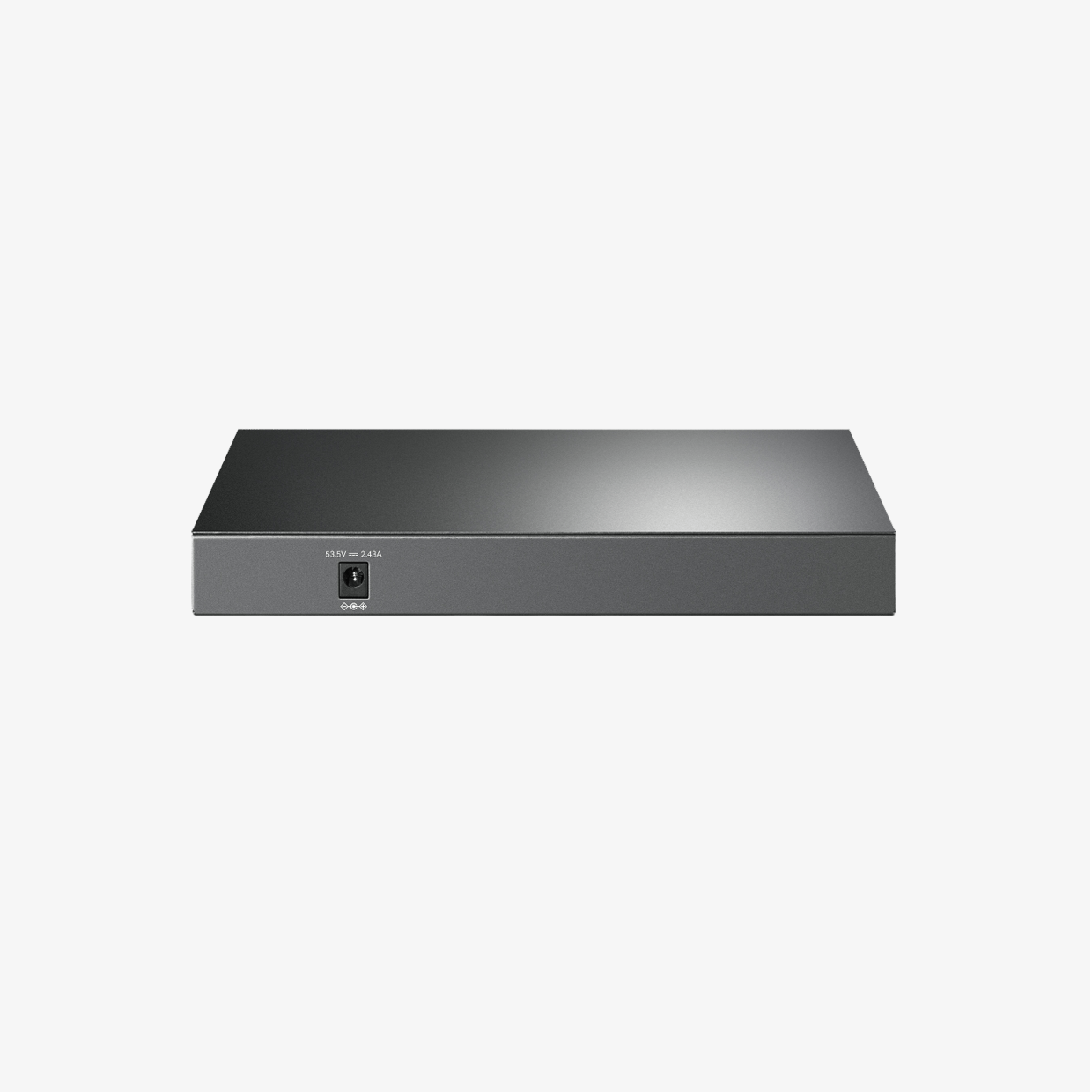

✔️ Plug-and-play setup with external power adapter
