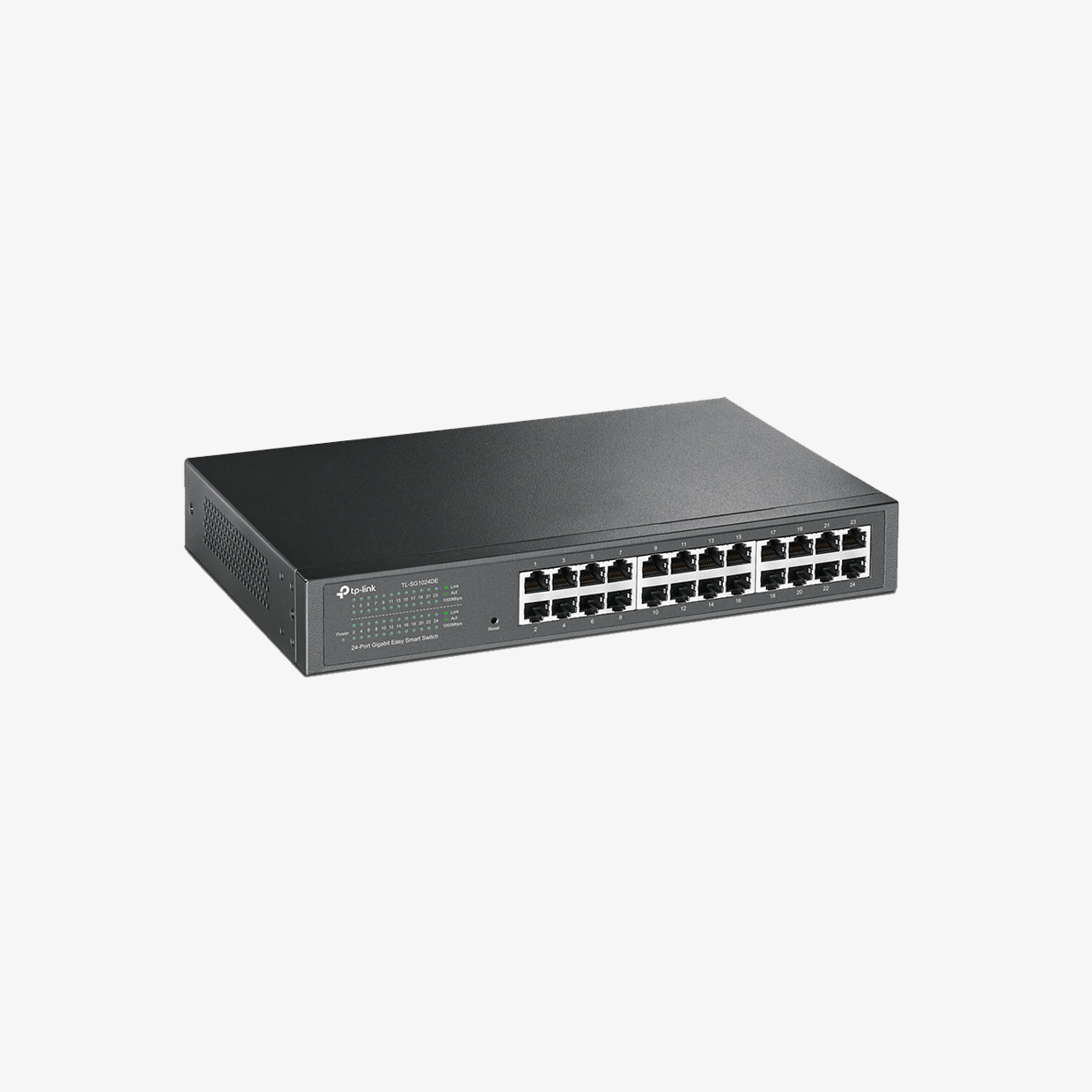

TP-Link TL-SG1024DE — 24-Port Gigabit Easy Smart Switch

The TP-Link TL-SG1024DE is a 24-Port Gigabit Easy Smart Switch tailored for small to medium-sized business networks stepping up from unmanaged setups. It delivers 24 auto-negotiating Gigabit RJ-45 ports, energy-efficient design, and key management features like VLANs, QoS, IGMP snooping, and link aggregation. With port mirroring, loop prevention, and cable diagnostics, network troubleshooting becomes easier. It’s housed in a fanless, rack-mountable steel chassis—quiet, power-smart, and reliable.

  • Data Sheet
  • User Manual
Request a Quote
7 people are viewing this product

Description

The TP-Link TL-SG1024DE offers a reliable, high-performance upgrade path for networks transitioning from unmanaged switches. It includes 24 Gigabit Ethernet ports with auto-negotiation and Auto-MDI/MDIX, ensuring seamless connectivity. It features Easy Smart management via web GUI and utility, offering VLAN segmentation (port-based, MTU, and 802.1Q tagging), QoS by port/802.1p/DSCP, static link aggregation, IGMP snooping (v1/2/3), loop prevention, cable diagnostics, and port mirroring—all tools to enhance traffic control and reliability.

With a 48 Gbps switching capacity and 35.7 Mpps forwarding rate, the TL-SG1024DE handles demanding workloads with ease. Energy-saving features such as power-down of idle ports and cable-length based power adjustment reduce consumption significantly, while its fanless design and compact 1U rackmount steel housing ensure silent, durable operation ideal for office or production environments.

Application

Small offices, Enterprise networks, ISPs, Home Wi-Fi

Key Features

  • ✅ 24 × 10/100/1000 Mbps RJ-45 ports with auto-negotiation and Auto-MDI/MDIX

  • ✅ Easy Smart management via web UI + configuration utility

  • ✅ VLAN: Port-based, MTU VLAN, and 802.1Q tagging (supports up to 32 VLANs)

  • ✅ QoS: Port-based, 802.1p/DSCP priority, 4 queues, rate limit, storm control

  • ✅ L2 features: IGMP snooping (v1/v2/v3), static link aggregation, port mirroring, cable diagnostics, loop prevention

  • ✅ Energy-efficiency: Idle-port power down, cable-length power adjustment

  • ✅ High performance: 48 Gbps switching capacity, 35.7 Mpps forwarding rate

  • ✅ Fanless steel chassis, 1U rack-mountable, quiet operation

  • ✅ Certifications: FCC, CE, RoHS

Specifications

Specification Detail
Model TL-SG1024DE
Product Type 24-Port Gigabit Easy Smart Switch
Standards & Protocols IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
Ports / Interface 24 × 10/100/1000 Mbps RJ-45; Auto-Negotiation, Auto-MDI/MDIX
Network Media 10BASE-T (UTP Cat3–5, STP ≤100m), 100BASE-TX, 1000BASE-T (UTP Cat5–6, STP ≤100m)
Fan Fanless
Physical Security Lock No
Power Supply 100–240 VAC, 50/60 Hz
Max Power Consumption 14.19 W (220V/50Hz)
Max Heat Dissipation 48.39 BTU/h
Dimensions 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
Mounting Rack-mountable (1U)
Switching Capacity 48 Gbps
Packet Forwarding Rate 35.7 Mpps
MAC Address Table 8K entries
Packet Buffer Memory 512 KB
Jumbo Frame 10 KB
QoS Port / 802.1p / DSCP priority; 4 queues; Rate Limit, Storm Control
L2 Features IGMP Snooping v1/v2/v3, Static Link Aggregation, Port Mirroring, Cable Diagnostic, Loop Prevention
VLAN Up to 32 VLANs out of 4096; MTU / Port / Tag VLAN
Transmission Method Store-and-Forward
Certification FCC, CE, RoHS
Package Contents Switch, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
System Requirements Microsoft® Windows® for Easy Smart Utility
Environment Operating: 0-40 °C / 32-104 °F; Storage: –40-70 °C / –40-158 °F; Operating Humidity: 10-90 % non-condensing; Storage Humidity: 5-90 % non-condensing
Warranty Not specified by vendor on official spec page (check distributor)
