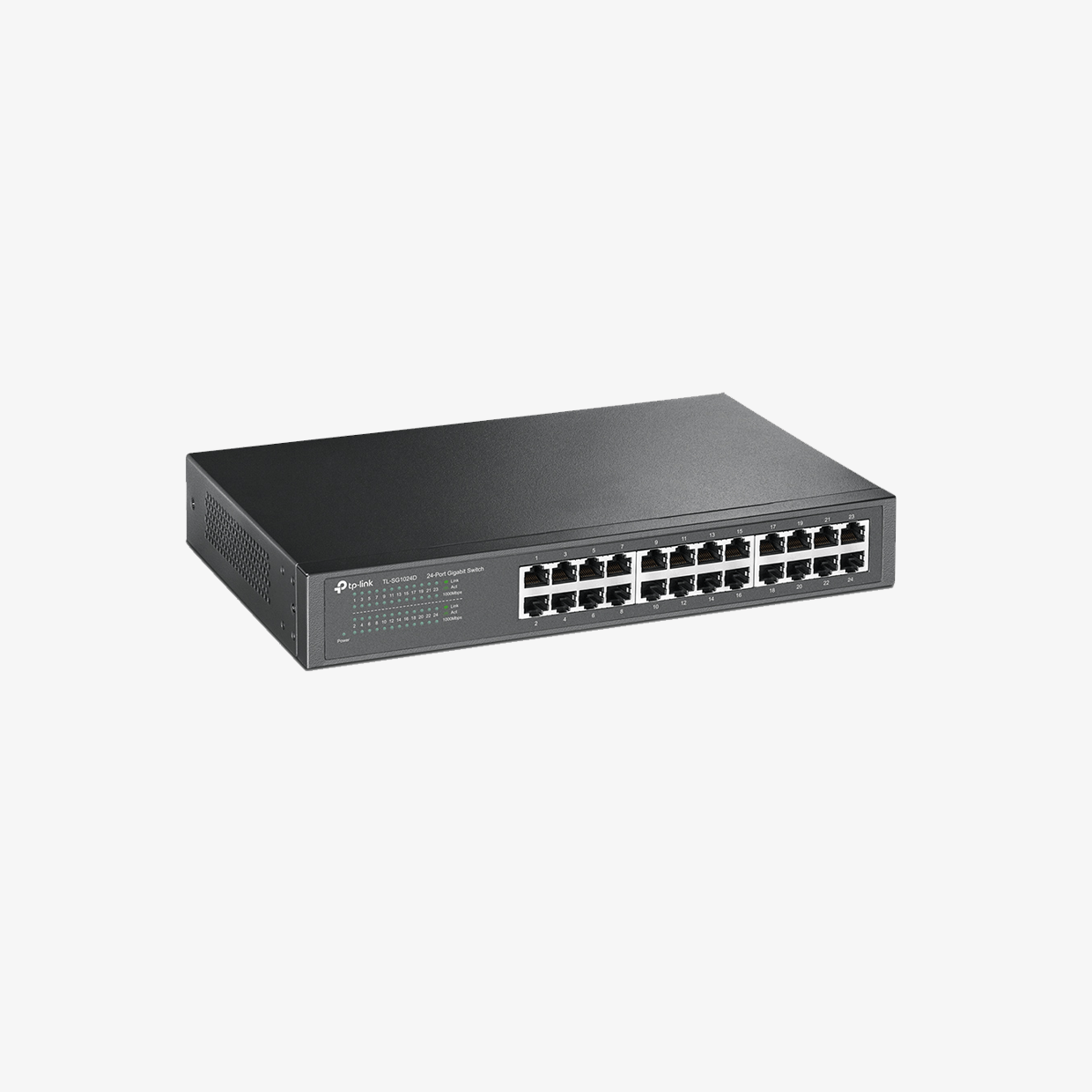

TP-Link TL-SG1024D — 24-Port Gigabit Unmanaged Switch

The TP-Link TL-SG1024D is a 24-Port Gigabit Unmanaged Switch designed for offices, creative teams, and growing networks that require reliable high-speed connectivity. With 24 auto-negotiating RJ-45 ports, it delivers a non-blocking 48 Gbps switching capacity and 35.7 Mpps forwarding rate. Advanced features like loop prevention and isolation mode ensure stable and secure performance. Housed in a fanless, rack-mountable steel chassis, the TL-SG1024D offers quiet operation, energy efficiency, and effortless plug-and-play deployment.

Description

The TP-Link TL-SG1024D 24-Port Gigabit Rackmount/ Desktop Switch provides a simple yet powerful solution for expanding your wired network. Designed for small to medium-sized businesses, it features 24 Gigabit Ethernet ports with Auto-Negotiation and Auto-MDI/MDIX, eliminating crossover cable concerns. With a 48 Gbps switching fabric and 35.7 Mpps forwarding rate, it ensures seamless data handling for file transfers, multimedia streaming, and bandwidth-heavy applications.

This switch supports jumbo frames up to 10 KB, increasing efficiency for large data packets, and comes with an 8K MAC address table for flexible scalability. Energy-efficient technologies help reduce power usage by powering down idle ports and adjusting consumption based on cable length. Security and performance are further enhanced with loop prevention on all ports and an isolation mode (ports 1–22) to limit broadcast traffic.

The TL-SG1024D’s rack-mountable steel housing and fanless design ensure durability and quiet operation, making it ideal for office environments, creative studios, or SMB deployments. With eco-friendly packaging, reliable operation, and true plug-and-play convenience, this switch delivers high-capacity performance with minimal effort.


Application

Small offices, Enterprise networks, ISPs, Home Wi-Fi


Key Features

✅ 24 Gigabit RJ-45 ports with Auto-Negotiation and Auto-MDI/MDIX
✅ Switching capacity of 48 Gbps with 35.7 Mpps forwarding rate
✅ Jumbo frame support up to 10 KB
✅ Loop prevention on all ports, isolation mode on ports 1–22
✅ Fanless rack-mountable steel chassis for quiet, durable operation
✅ Energy-efficient design lowers power usage automatically
✅ 8K MAC address entries for scalable business networks
✅ Plug-and-play setup, no configuration required

Specifications

SpecificationDetail
ModelTL-SG1024D
Product Type24-Port Gigabit Unmanaged Switch
Standards & ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface24 × 10/100/1000 Mbps RJ-45 ports, Auto-Negotiation / Auto-MDI/MDIX
Network Media10BASE-T: UTP Cat.3/4/5 (≤100m)100BASE-TX: UTP Cat.5/5e (≤100m)1000BASE-T: UTP Cat.5/5e/6 or above (≤100m)
Fan QuantityFanless
Physical Security LockNo
Power Supply100–240 V AC, 50/60 Hz
Max. Power Consumption13.1–13.62 W (220V/50Hz)
Max. Heat Dissipation46.44 BTU/h
Dimensions (W × D × H)294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in)
MountingRack-mountable / Desktop
Switching Capacity48 Gbps
Packet Forwarding Rate35.7 Mpps
MAC Address Table8K entries
Jumbo Frame10 KB
Advanced FeaturesIsolation mode (Ports 1–22), Loop prevention (Ports 1–24)
Transmission MethodStore-and-Forward
Green TechnologyPower-saving by link status & cable length, eco packaging
CertificationFCC, CE, RoHS
Package ContentsTL-SG1024D, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
EnvironmentOperating Temp: 0–40 °CStorage Temp: –40–70 °COperating Humidity: 10–90% non-condensingStorage Humidity: 5–90% non-condensing
WarrantyNot specified by vendor
