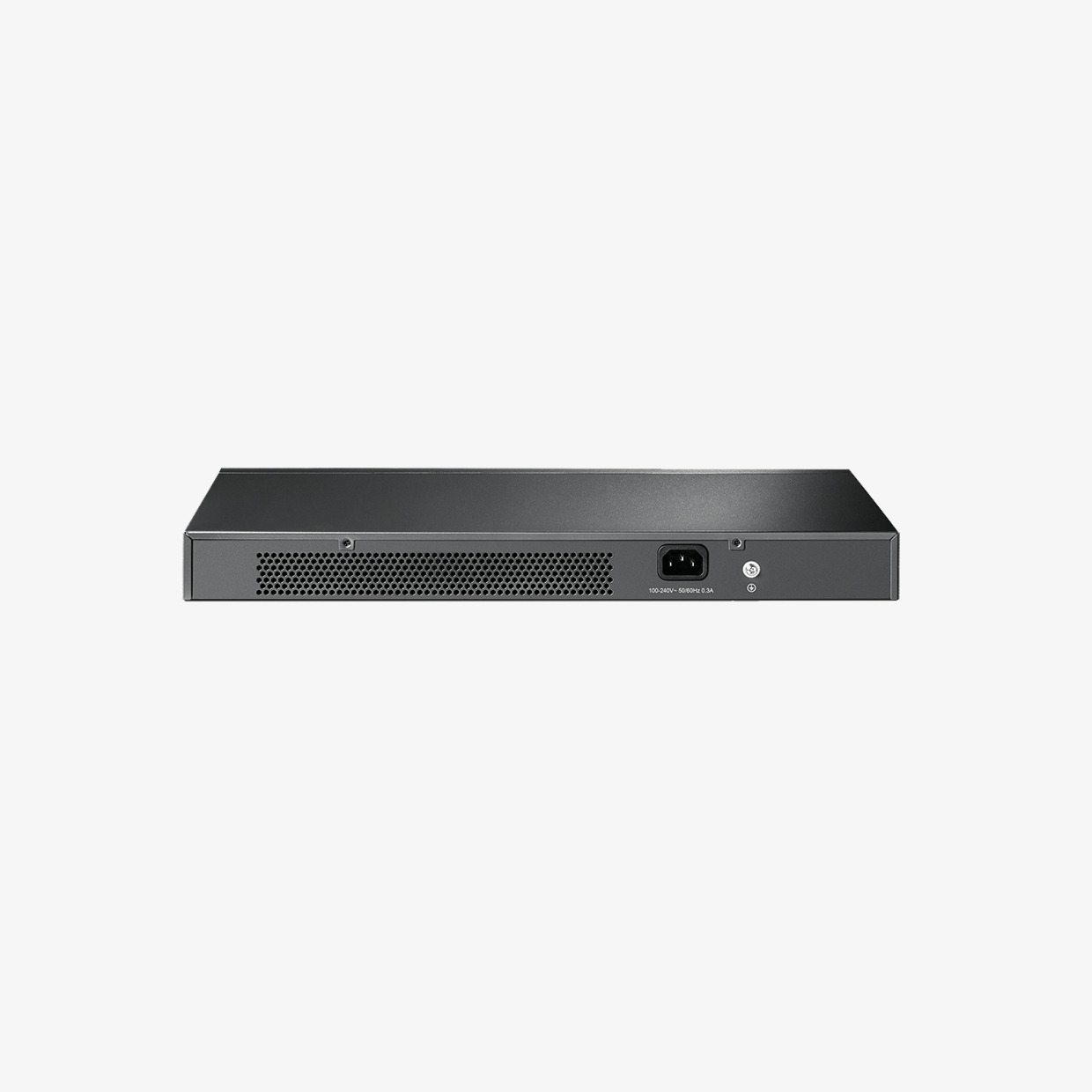

TP-Link TL-SG1016 — 16-Port Gigabit Unmanaged Switch

The TP-Link TL-SG1016 is a reliable 16-Port Gigabit Rackmount Switch, perfect for small to medium businesses that need high-speed connectivity without complex configuration. Featuring 16 auto-negotiating Gigabit ports, it delivers seamless network expansion with a switching capacity of 32 Gbps and forwarding rate up to 23.8 Mpps. Energy-efficient technology reduces power usage automatically, while its fanless steel housing ensures quiet, durable performance. With rack-mount capability, eco-friendly design, and robust performance, the TL-SG1016 is a smart and cost-effective choice for professional networks.

11 people are viewing this product

Description

The TP-Link TL-SG1016 16-Port Gigabit Rackmount Unmanaged Switch is designed for organizations looking for dependable, high-performance networking without the need for advanced management. Offering 16 Gigabit Ethernet ports with auto-negotiation and auto-MDI/MDIX, it simplifies connectivity while delivering blazing-fast data transfer across your network. With a total switching capacity of 32 Gbps and forwarding rate up to 23.8 million packets per second, it ensures smooth performance for bandwidth-intensive tasks like file sharing, VoIP, and video streaming.

Built with energy-efficient technologies, the TL-SG1016 intelligently reduces power consumption by detecting link status and cable length, making it an environmentally friendly choice. Its steel rack-mountable chassis provides durability and professional integration into network setups, while the fanless design ensures quiet operation ideal for offices, labs, or classrooms.

Supporting jumbo frames up to 10 KB, an 8K MAC address table, and IEEE 802.3 standards, this switch guarantees compatibility and performance. With plug-and-play simplicity, no configuration is required—simply power it on, connect your devices, and enjoy reliable Gigabit speeds. Combining efficiency, durability, and eco-conscious design, the TL-SG1016 is a cost-effective solution for expanding or upgrading business networks.


Application

Small offices, Enterprise networks, ISPs, Home Wi-Fi


Key Features

✅ 16 Gigabit RJ-45 ports with auto-negotiation and auto-MDI/MDIX
✅ Switching capacity of 32 Gbps with 23.8 Mpps forwarding rate
✅ Energy-efficient technology reduces power consumption
✅ Jumbo frame support up to 10 KB for improved throughput
✅ Fanless steel rack-mount housing for quiet and durable operation
✅ IEEE 802.3 standards compliance for full compatibility
✅ Plug-and-play with no configuration required
✅ Eco-friendly design with recyclable packaging

Specifications

Specification Detail
Model TL-SG1016
Product Type 16-Port Gigabit Rackmount Unmanaged Switch
Ports 16 × 10/100/1000 Mbps RJ-45, Auto-Negotiation/Auto-MDI/MDIX
Switching Capacity 32 Gbps
Forwarding Rate 23.8 Mpps
MAC Address Table 8K entries
Jumbo Frame 10 KB
Power Supply 100–240 V AC, 50/60 Hz
Power Consumption Max 9.26 W (V1) / Max 10.68 W (other versions)
Dimensions 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)
Case Steel, rack-mountable, fanless
Operating Temperature 0–40 °C
Storage Temperature -40–70 °C
Operating Humidity 10–90% non-condensing
Certifications FCC, CE, RoHS
Warranty Not specified by vendor
