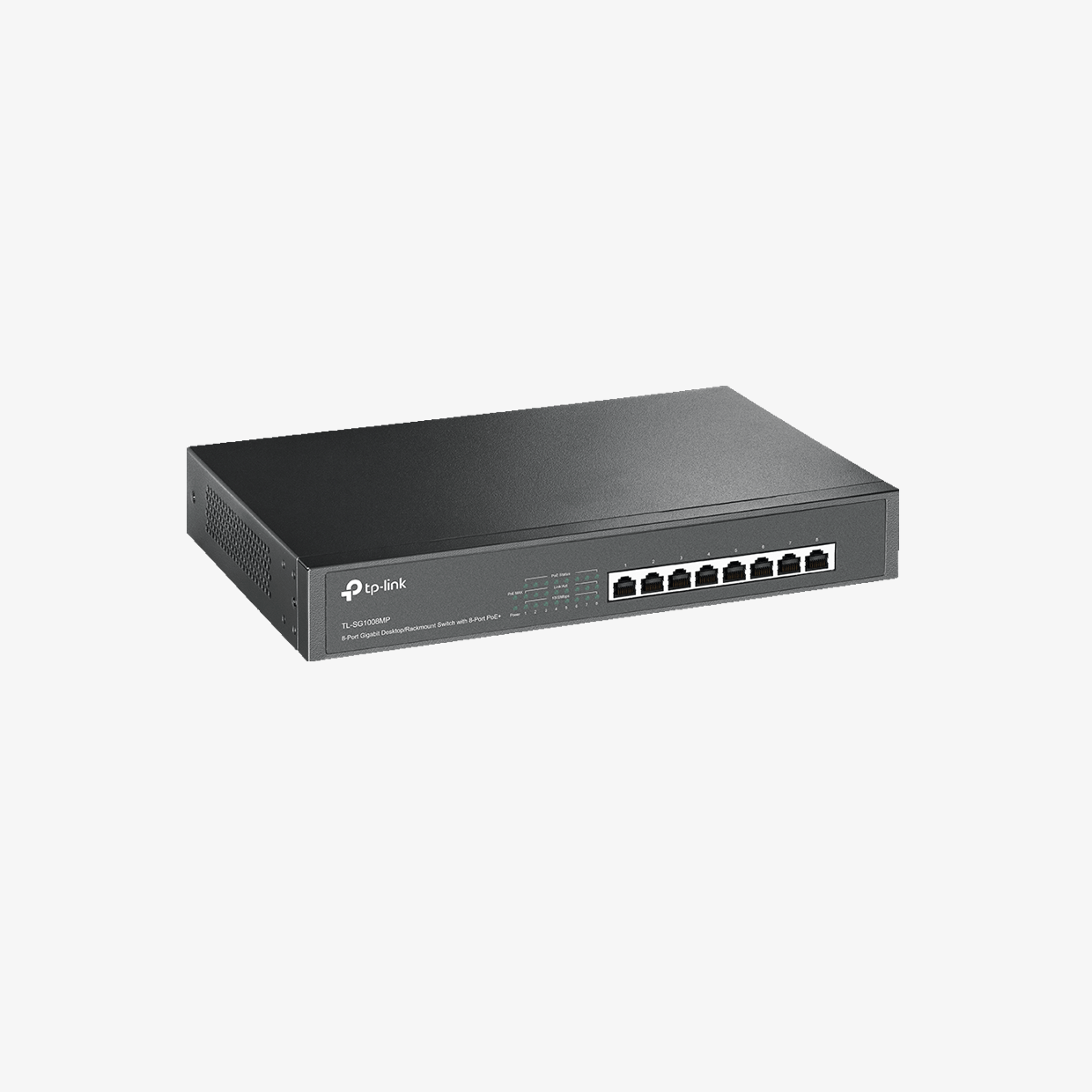

TP-Link TL-SG1008MP — 8-Port Gigabit PoE+ Switch

The TP-Link TL-SG1008MP is an 8-Port Gigabit PoE+ switch with all eight ports supporting IEEE 802.3at/af standards. Each port delivers up to 30 W, with a total 153 W PoE power budget, making it ideal for IP cameras, wireless access points, and VoIP phones. Featuring extend mode (up to 250 m on ports 1–2), PoE Auto Recovery, and silent fanless operation, the TL-SG1008MP ensures reliable connectivity and simplified deployments. Its rackmount/desktop design makes it versatile for business and surveillance networks.

Description

The TP-Link TL-SG1008MP is a compact yet powerful Gigabit PoE+ switch tailored for environments that need both high-speed connectivity and Power over Ethernet. All eight RJ-45 ports are PoE+ compliant (802.3af/at), each providing up to 30 W, with a total 153 W PoE budget. This allows the switch to power multiple high-demand devices such as IP surveillance cameras, wireless APs, or VoIP phones without requiring additional power cabling.

Its Extend Mode on ports 1–2 enables data and power transmission up to 250 meters—perfect for security camera installations. PoE Auto Recovery ensures that powered devices can be automatically rebooted if they become unresponsive, reducing downtime. With a switching capacity of 16 Gbps and 11.9 Mpps forwarding rate, the switch easily handles intensive traffic loads.

The TL-SG1008MP is plug-and-play, requiring no configuration, and offers additional reliability through features like power prioritization when demand exceeds the budget. Its fanless design ensures quiet operation, and the durable steel housing supports both desktop and rackmount installation. Energy-efficient technology reduces consumption while maintaining robust performance, making it an excellent choice for offices, surveillance systems, and small business networks.

Application

Surveillance networks, Wireless access point deployments, VoIP systems, Small offices, SMB networks


Key Features

✅ 8 Gigabit RJ-45 PoE+ ports (802.3af/at compliant)
✅ Up to 30 W per port, total 153 W PoE budget
✅ Extend Mode up to 250 m on Ports 1–2 for long-distance PoE deployment
✅ PoE Auto Recovery to reboot unresponsive PDs automatically
✅ Switching capacity of 16 Gbps with 11.9 Mpps forwarding rate
✅ Fanless metal chassis for silent and reliable operation
✅ Desktop or rackmount installation options
✅ Plug-and-play deployment with no configuration required

Specifications

SpecificationDetail
ModelTL-SG1008MP
Product Type8-Port Gigabit PoE+ Unmanaged Switch
Standards & ProtocolsIEEE 802.3af/at, IEEE 802.3, 802.3u, 802.3ab, 802.3x
Interface8 × Gigabit RJ-45 (10/100/1000 Mbps), Auto-Negotiation / Auto-MDI/MDIX
PoE Budget153 W total, up to 30 W per port
Extend ModeSupported on Ports 1–2 (up to 250 m)
Switching Capacity16 Gbps
Forwarding Rate11.9 Mpps
MAC Address Table4K entries
Packet Buffer Memory1.5 Mbit
Jumbo Frame16 KB
Power Supply100–240 V AC, 50/60 Hz
Max. Power Consumption8.57 W (no PD connected); 173.65 W (with full load)
Fan QuantityFanless
Dimensions (W × D × H)294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in)
MountingDesktop / Rackmount
Advanced FeaturesPoE Auto Recovery, Port Priority, Store-and-Forward
CertificationFCC, CE, RoHS
Package ContentsTL-SG1008MP, Power Cord, Rackmount Kit, Rubber Feet, Installation Guide
EnvironmentOperating: 0–45 °C; Storage: –40–70 °COperating Humidity: 10–90% non-condensing
WarrantyNot specified by vendor
