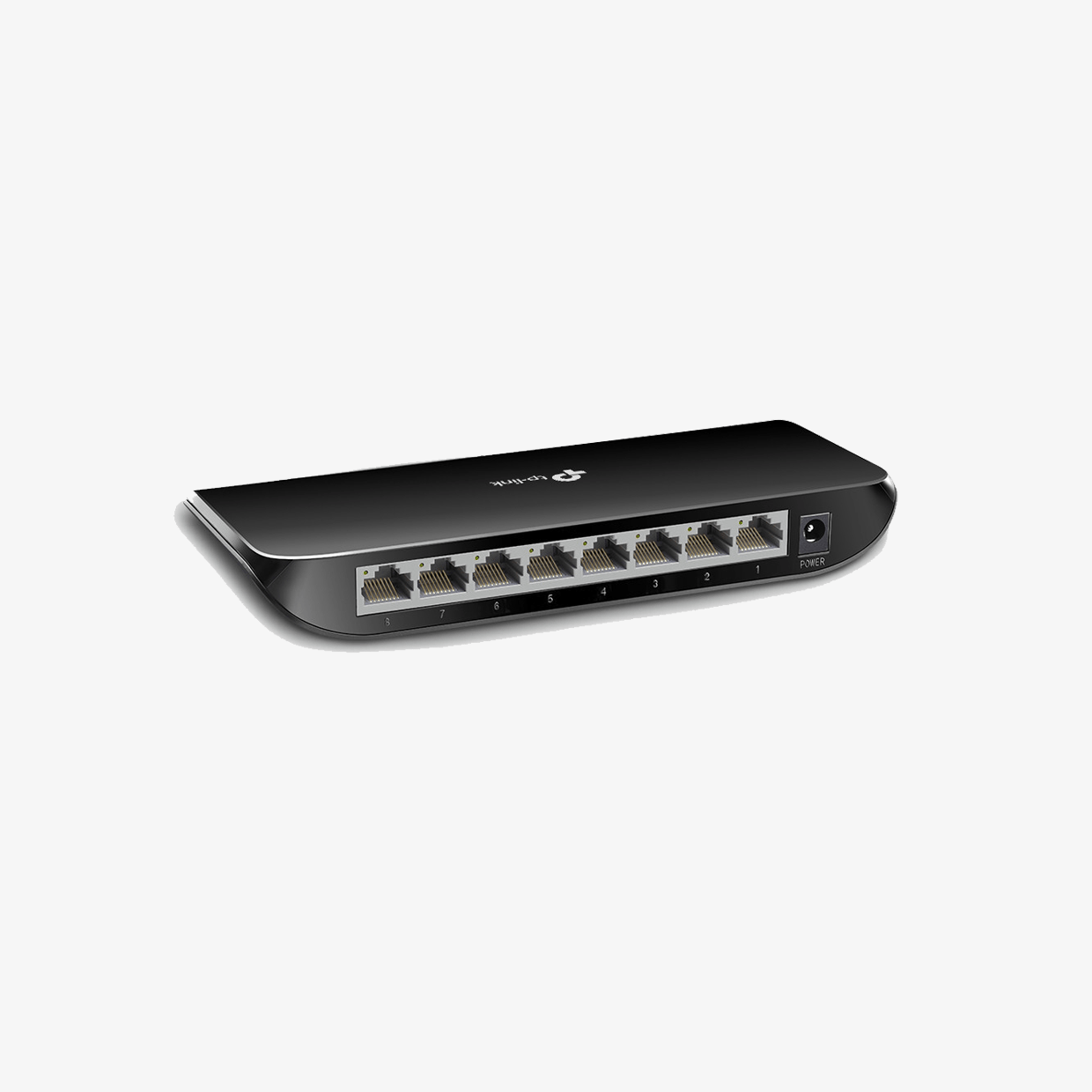

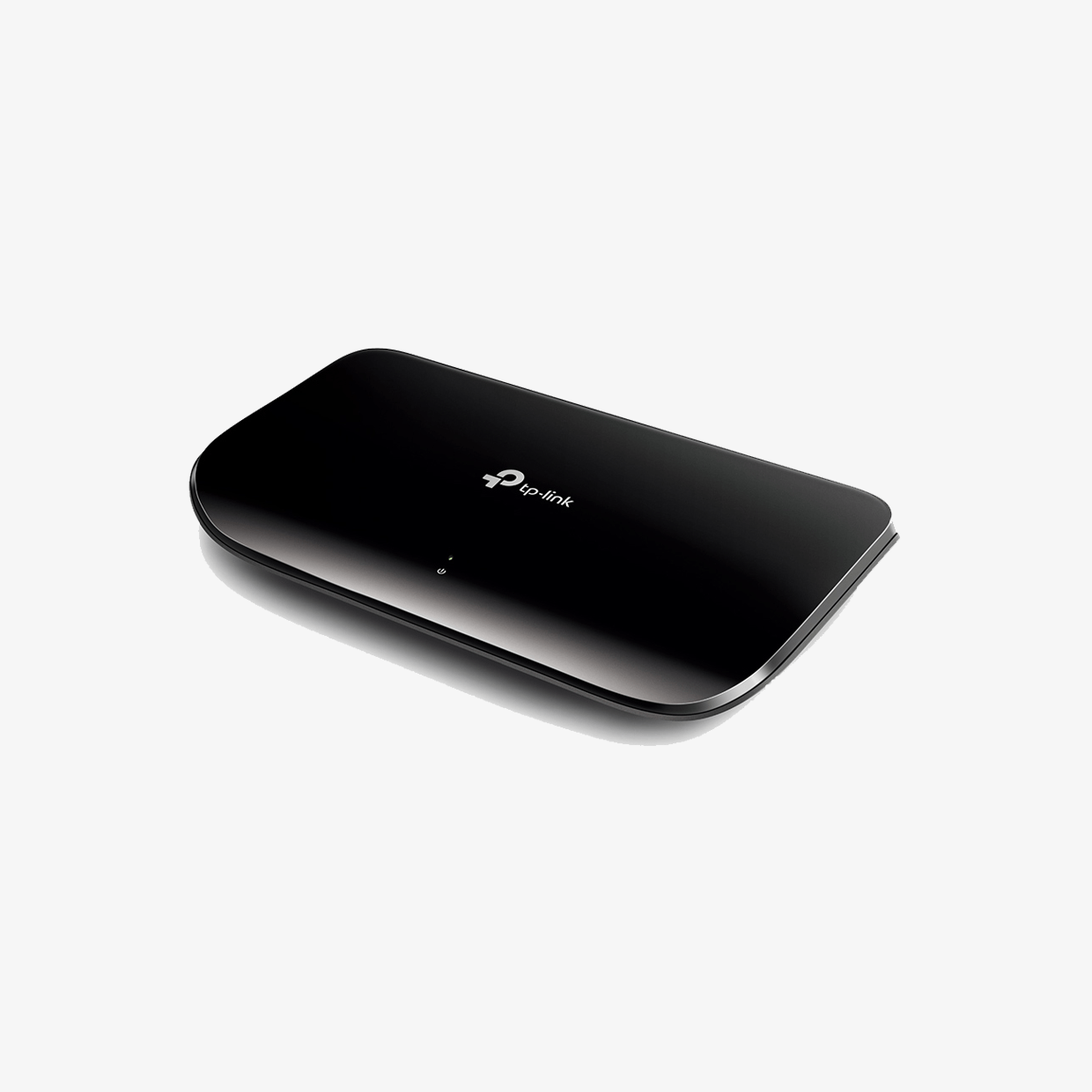

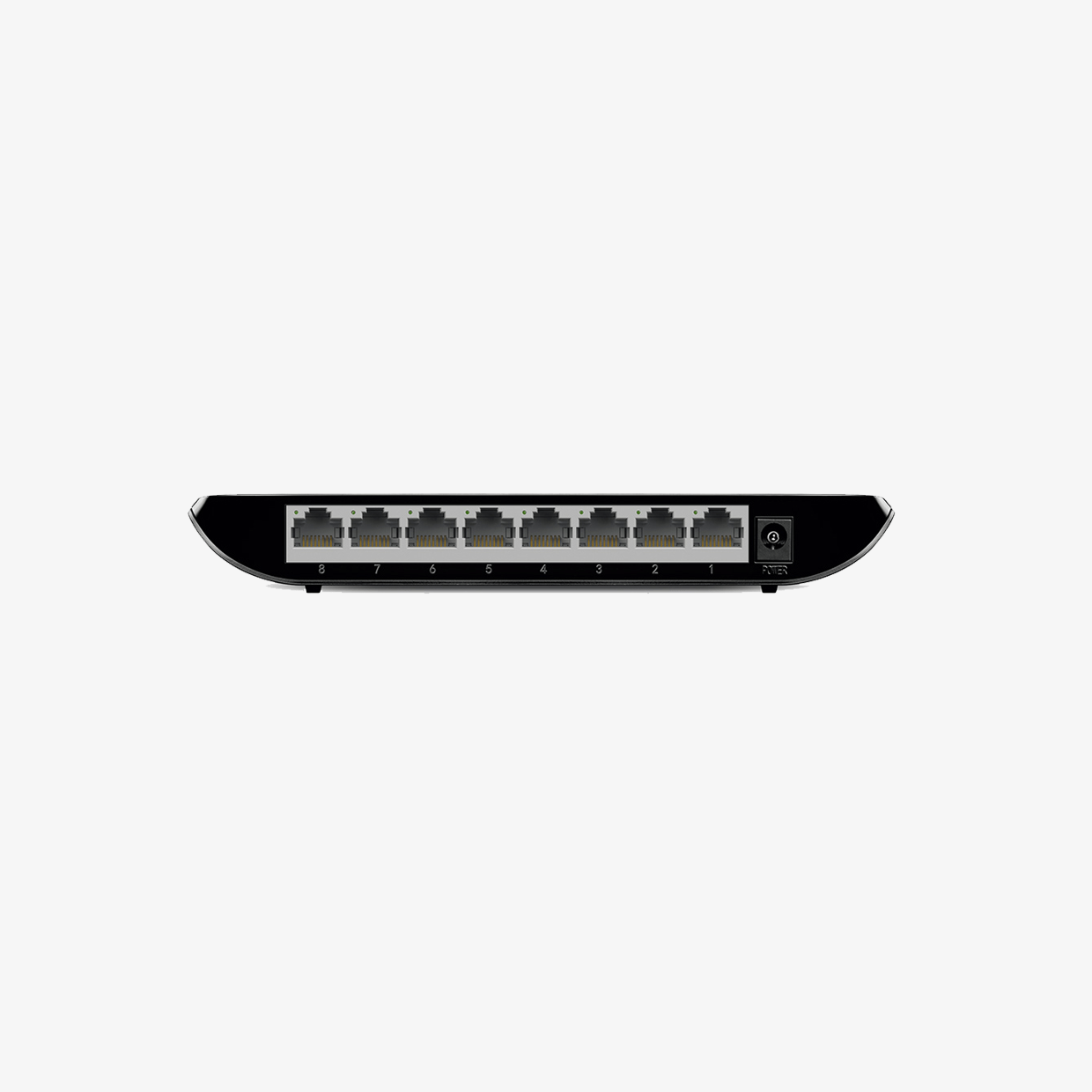

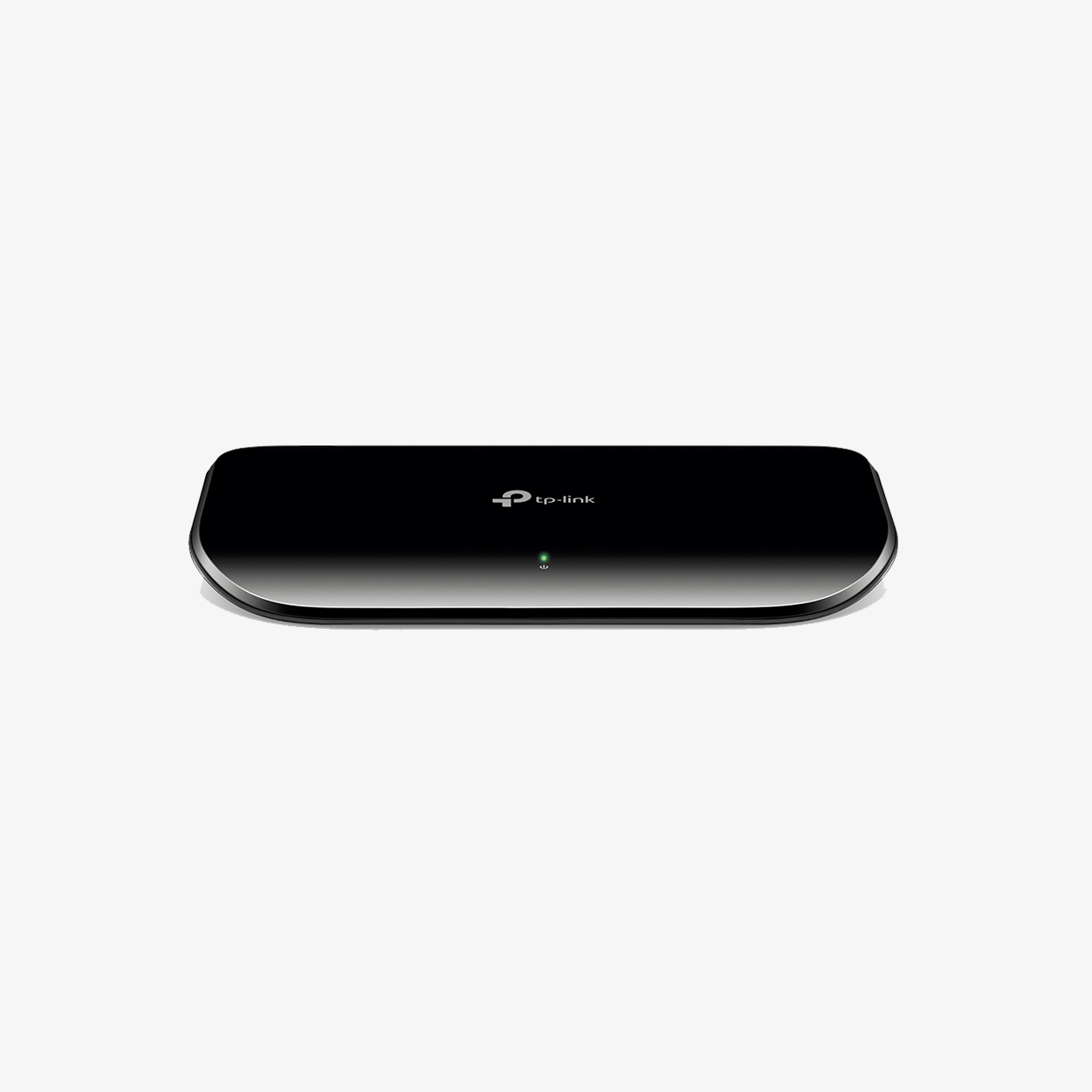

TP-Link TL-SG1008D — 8-Port Gigabit Desktop Switch

The TP-Link TL-SG1008D is an 8-Port Gigabit Desktop Switch designed for home users, small offices, and SOHO setups. It features 8 auto-negotiating Gigabit RJ-45 ports with a 16 Gbps switching capacity, jumbo frame support, and a 4K MAC address table for smooth, high-speed data transfers. With its plug-and-play design, fanless operation, and energy-efficient Green Ethernet technology, the TL-SG1008D offers reliable, quiet performance in a compact plastic housing—an affordable way to upgrade any wired network to Gigabit speeds.

Description

The TP-Link TL-SG1008D is a cost-effective unmanaged switch that delivers fast Gigabit connectivity across 8 RJ-45 ports. With support for auto-negotiation and auto-MDI/MDIX, it simplifies installation by automatically detecting cable types and speeds. Delivering a 16 Gbps switching capacity and supporting jumbo frames up to 15 KB, the TL-SG1008D ensures efficient data handling and seamless large file transfers.

This switch is built for reliable, energy-conscious networking. TP-Link Green Technology dynamically reduces power consumption by detecting idle ports and adjusting output based on cable length—offering power savings of up to 80% without compromising performance. Its fanless design provides silent operation, making it ideal for desktops, home offices, or small business environments.

Compact and lightweight, the TL-SG1008D features a plastic enclosure that supports both desktop placement and wall mounting. With its robust performance, silent operation, and energy efficiency, it’s a practical choice for upgrading networks to Gigabit speeds in homes, workgroups, or SOHO installations.


Application

Home networking, SOHO setups, Small offices, Multimedia streaming, Desktop or wall-mounted installations


Key Features

✅ 8× Gigabit RJ-45 ports with auto-negotiation and auto-MDI/MDIX
✅ 16 Gbps switching capacity for reliable Gigabit performance
✅ Jumbo frame support up to 15 KB for smoother large transfers
✅ Fanless design ensures silent operation
✅ Compact plastic housing, desktop or wall-mountable
✅ TP-Link Green Technology saves up to 80% energy
✅ Plug-and-play setup, no configuration required
✅ 4K MAC address table for efficient traffic handling

Specifications

SpecificationDetail
Standards & ProtocolsIEEE 802.3i, 802.3u, 802.3ab, IEEE 802.3x
Interface8 × 10/100/1000 Mbps RJ-45 ports (Auto-Negotiation, Auto-MDI/MDIX)
Switching Capacity16 Gbps
MAC Address Table4K entries
Jumbo Frame Size15 KB
Power SupplyExternal adapter, 5 VDC / 0.6 A
Power ConsumptionMax 4.63 W (220 V/50 Hz)
Dimensions (W×D×H)180 × 90 × 25.5 mm
Operating Temperature0°C to 40°C (32°F–104°F)
Storage Temperature−40°C to 70°C
Operating Humidity10% – 90% non-condensing
CertificationsFCC, CE, RoHS
Package ContentsTL-SG1008D Switch, Power adapter, Installation guide
WarrantyNot specified by vendor
