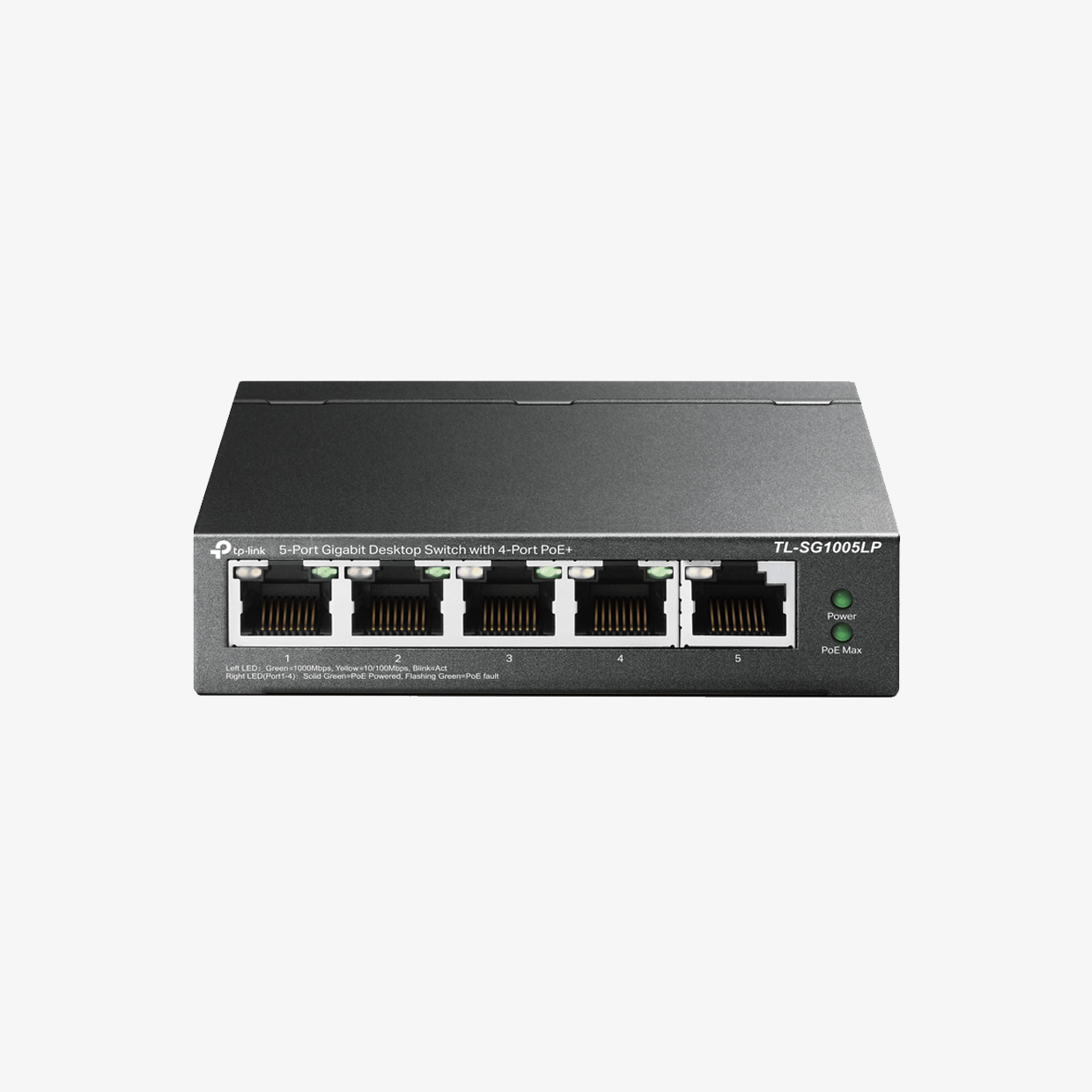

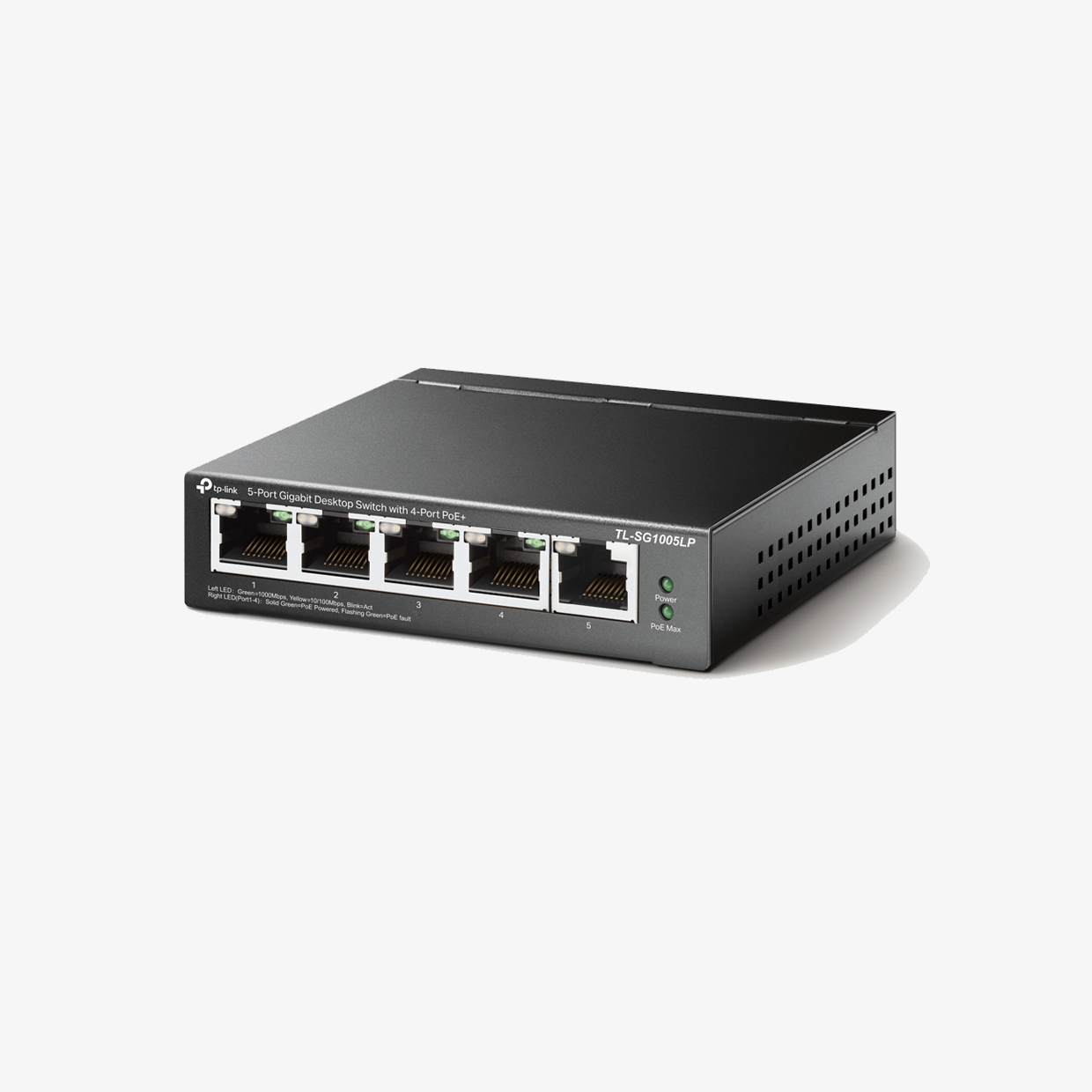

TP-Link TL-SG1005LP — 5-Port Gigabit PoE+ Switch

The TP-Link TL-SG1005LP is a 5-Port Gigabit Desktop PoE+ Switch, ideal for small offices, SOHO setups, and surveillance networks. It provides 4× PoE+ ports with a total 40 W PoE budget, delivering up to 30 W per port for IP cameras, access points, or VoIP phones. With 10 Gbps switching capacity, auto-negotiation, jumbo frame support, and a fanless metal design, this compact switch ensures reliable connectivity, efficient power distribution, and quiet operation—making it a smart, space-saving choice for powering and expanding networks.

Description

The TP-Link TL-SG1005LP is a compact unmanaged Gigabit switch designed to combine high-speed data connectivity with seamless Power over Ethernet (PoE+) support. Featuring five 10/100/1000 Mbps RJ-45 ports, it enables flexible network expansion in small businesses, home offices, or surveillance systems. Four of the ports support IEEE 802.3af/at PoE+, supplying up to 30 W per port with a total 40 W power budget, making it an efficient solution for powering IP cameras, wireless access points, and VoIP phones without additional power adapters.

Delivering a 10 Gbps switching capacity and 7.44 Mpps forwarding rate, the TL-SG1005LP ensures smooth traffic management and low-latency communication. It also supports jumbo frames up to 16 KB, enhancing large data transfers and video streams. A 2K MAC address table provides efficient traffic handling in busy environments.

Built with green technology, the switch optimizes power consumption based on link status and cable length. Its sturdy metal housing and fanless design ensure durability and silent operation, ideal for both desktop and wall-mounted installations. With plug-and-play functionality, no configuration is required—making the TL-SG1005LP an easy-to-use, cost-effective solution for modern PoE-powered networks.


Application

Home networking, Small offices, SOHO setups, Surveillance networks, VoIP systems, Wireless AP deployments


Key Features

✅ 5× Gigabit RJ-45 ports with auto-negotiation and auto-MDI/MDIX
✅ 4× PoE+ ports with up to 30 W per port (40 W total budget)
✅ 10 Gbps switching capacity and 7.44 Mpps forwarding rate
✅ Jumbo frame support up to 16 KB for smoother transfers
✅ Compact, durable metal housing with fanless design
✅ Plug-and-play with no software configuration required
✅ Energy-efficient operation with TP-Link Green Technology
✅ Ideal for powering IP cameras, VoIP phones, and Wi-Fi APs

Specifications

SpecificationDetail
Standards & ProtocolsIEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x, 802.1p
Interface5 × 10/100/1000 Mbps RJ-45 ports (Auto-Negotiation, Auto-MDI/MDIX)
PoE PortsPorts 1–4 support PoE+
PoE Power Per PortUp to 30 W
Total PoE Budget40 W
Switching Capacity10 Gbps
Packet Forwarding Rate7.44 Mpps
MAC Address Table2K entries
Jumbo Frame Size16 KB
External Power Supply53.5 VDC / 0.81 A adapter
Power ConsumptionMax 44.1 W (220 V/50 Hz) with PoE load
Dimensions (W×D×H)99.8 × 98 × 25 mm
Operating Temperature0°C to 40°C (32°F–104°F)
Storage Temperature−40°C to 70°C
Operating Humidity10% – 90% non-condensing
CertificationsFCC, CE, RoHS
Package ContentsTL-SG1005LP Switch, Power adapter, Installation guide, Rubber feet
WarrantyNot specified by vendor
