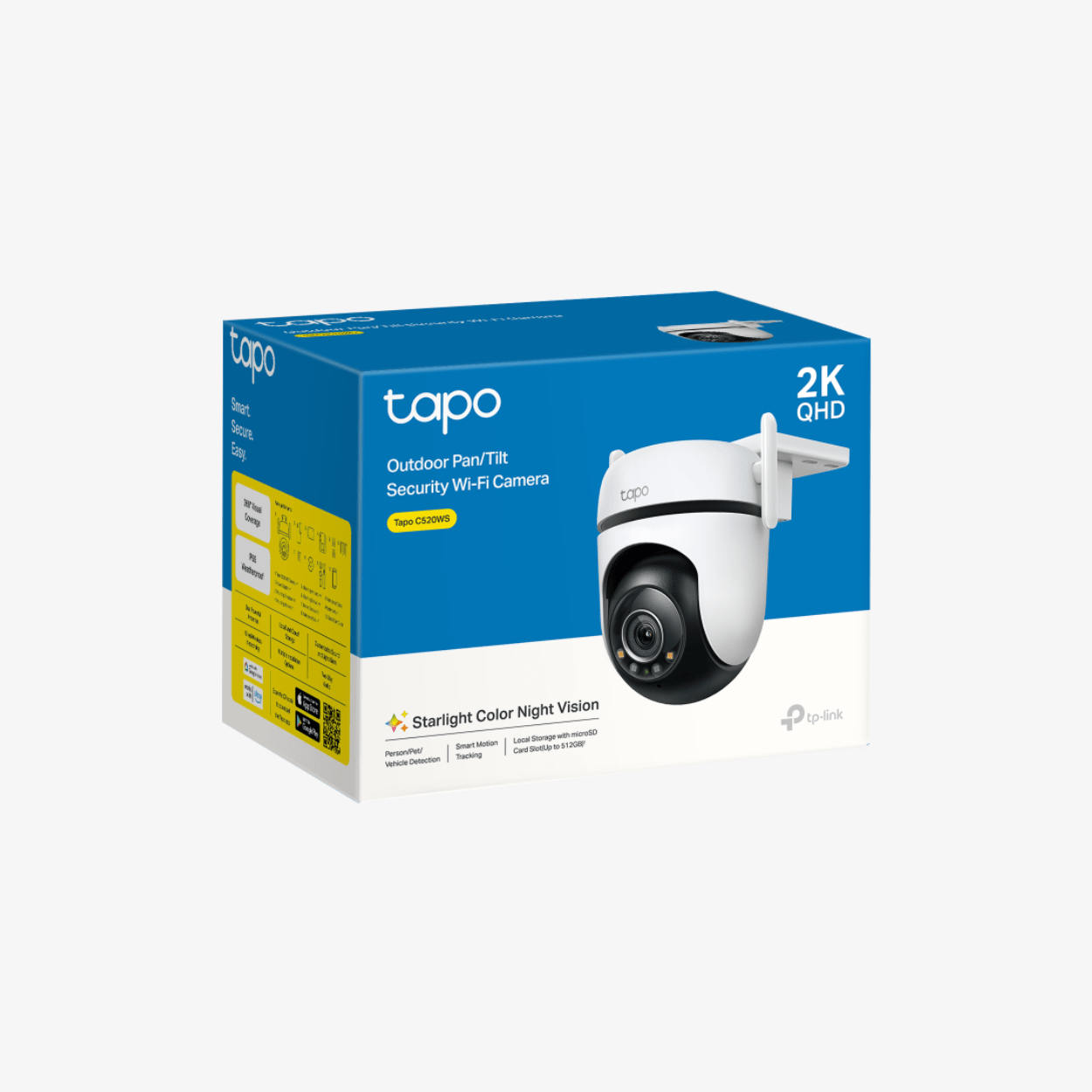

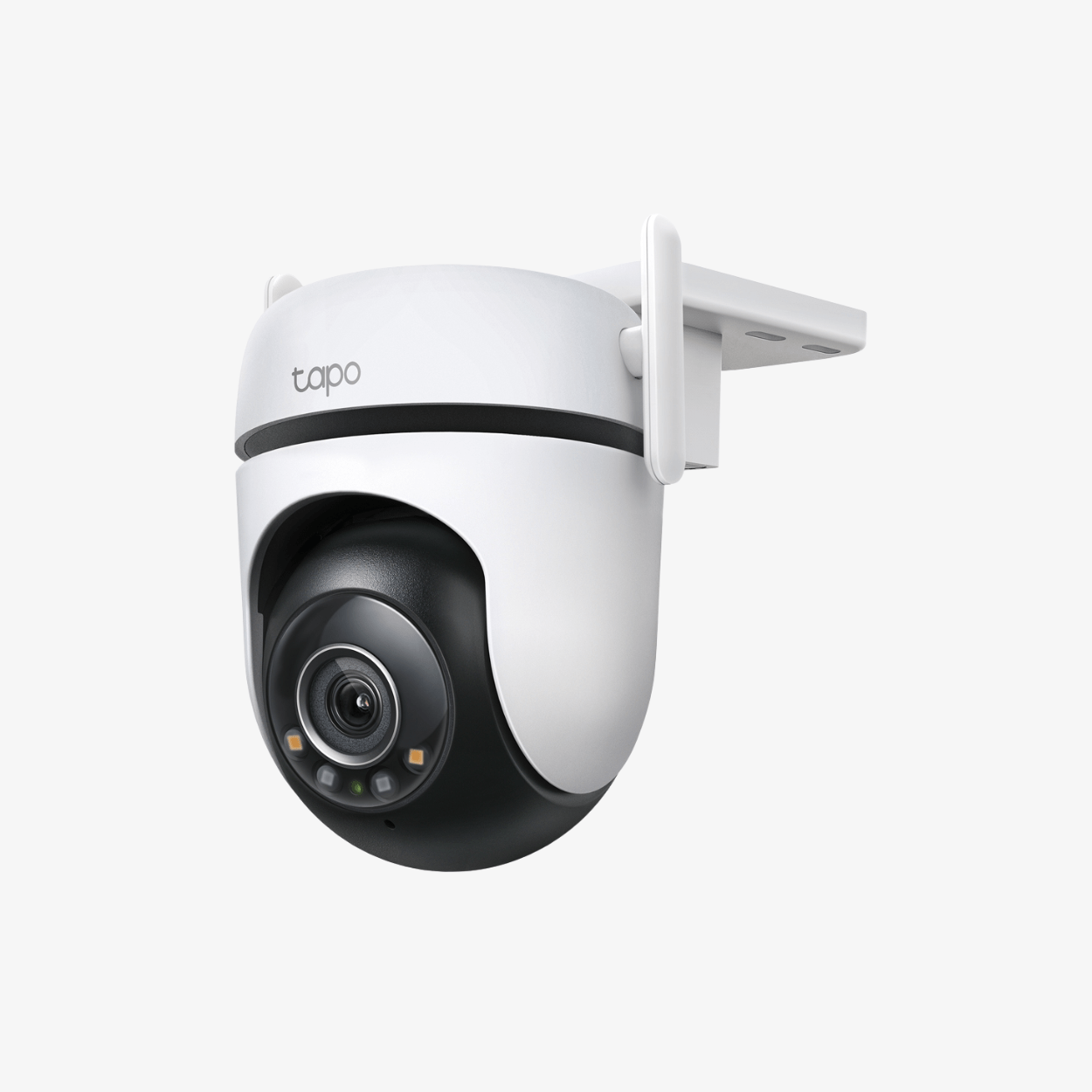

TP-Link Tapo C520WS — 2K QHD Outdoor Wi-Fi Security Camera

The TP-Link Tapo C520WS is a durable outdoor pan/tilt Wi-Fi camera built for home and SMB security. With 2K QHD (4MP) resolution and a Starlight sensor, it captures bright, full-color video day and night. Its 360° horizontal and 130° vertical range ensures full-area coverage, with motion tracking and patrol modes to follow activity. Dual spotlights, AI detection, and sound/light alarms enhance deterrence. Supporting local storage up to 512 GB and cloud backup, this IP66-rated camera is a reliable, smart choice for outdoor surveillance.

Description

The TP-Link Tapo C520WS is a high-performance outdoor pan/tilt Wi-Fi camera designed to deliver 24/7 security with exceptional detail and intelligent monitoring. Equipped with a 4MP 1/3″ Starlight CMOS sensor and an f/1.6 large-aperture lens, the C520WS records video in 2K QHD (2560 × 1440) resolution. Even in near-dark conditions, its Starlight sensor and integrated dual spotlights enable full-color night vision, while infrared LEDs provide clarity up to 30 m (98 ft).

Offering 360° pan and 130° tilt coverage, it eliminates blind spots and features smart motion tracking and patrol modes to follow activity or continuously scan preset zones. Advanced AI detection recognizes people, pets, and vehicles, while tamper and line-crossing detection improve security. For deterrence, the C520WS is equipped with a 93 dB siren and light alarm.

Storage options include a microSD card slot supporting up to 512 GB or Tapo Care cloud storage. Connectivity is flexible with dual antennas for extended 2.4 GHz Wi-Fi range and an Ethernet port for wired connections. The IP66-rated housing ensures reliability in rain, dust, and extreme temperatures (-30 °C to 60 °C). Two-way audio, ONVIF/RTSP compatibility, and Alexa/Google Assistant support make it an excellent choice for residential and small business outdoor surveillance.


Applications

Outdoor Security, Perimeter Surveillance, Driveway & Gate Monitoring, Yard/Porch Protection, SMB Premises Security


Key Features

✅ 2K QHD (2560 × 1440) video resolution with Starlight sensor
✅ 360° horizontal & 130° vertical pan/tilt with motion tracking
✅ Full-color night vision via dual spotlights and IR LEDs up to 30 m
✅ AI detection for people, pets, and vehicles; tamper and line-crossing alerts
✅ Sound & light alarm with 93 dB siren for deterrence
✅ microSD card storage up to 512 GB; optional Tapo Care cloud backup
✅ Dual antennas for stronger 2.4 GHz Wi-Fi plus Ethernet connectivity
✅ IP66 weatherproof housing for all-weather outdoor use
✅ Two-way audio with built-in mic & speaker
✅ Works with Amazon Alexa, Google Assistant, ONVIF, and RTSP

Specifications

SpecificationDetail
Product TypeOutdoor Pan/Tilt Security Wi-Fi Camera
ModelTP-Link Tapo C520WS
Image Sensor1/3″ Progressive Scan CMOS, Starlight
Lens3.18 mm, f/1.6 aperture
Field of View112° diagonal / 95° horizontal / 53° vertical
Pan / Tilt RangePan: 360° (mechanical 340°) Tilt: 130° (mechanical 90°)
Maximum Resolution4MP (2560 × 1440, 2K QHD)
Frame RateUp to 30 fps
Night VisionIR LEDs (850 nm), up to 30 m (98 ft)
Color Night VisionYes, via dual spotlights and Starlight sensor
Zoom12× digital
Video CompressionH.264
AudioTwo-way audio (mic & speaker), noise cancellation
AlarmSound & light alarm, ~93 dB siren
Detection FeaturesMotion Tracking, AI Detection (Person/Pet/Vehicle), Tamper, Line-Crossing
StoragemicroSD card up to 512 GB; optional Tapo Care cloud
Networking2.4 GHz Wi-Fi (IEEE 802.11 b/g/n), 1× 10/100 Mbps Ethernet
Antennas2 external antennas (up to ~150 m / 492 ft coverage in open area)
Security ProtocolsWPA/WPA2-PSK, 128-bit AES, SSL/TLS, RTSP, ONVIF
Weather RatingIP66 (dustproof and waterproof)
Operating Temperature-30 °C to 60 °C
Operating Humidity10–90% RH, non-condensing
Power Supply9 V DC, 0.85 A (adapter included)
Dimensions123.8 × 123 × 90 mm
CertificationsCE, FCC, RoHS
Warranty1 Year
