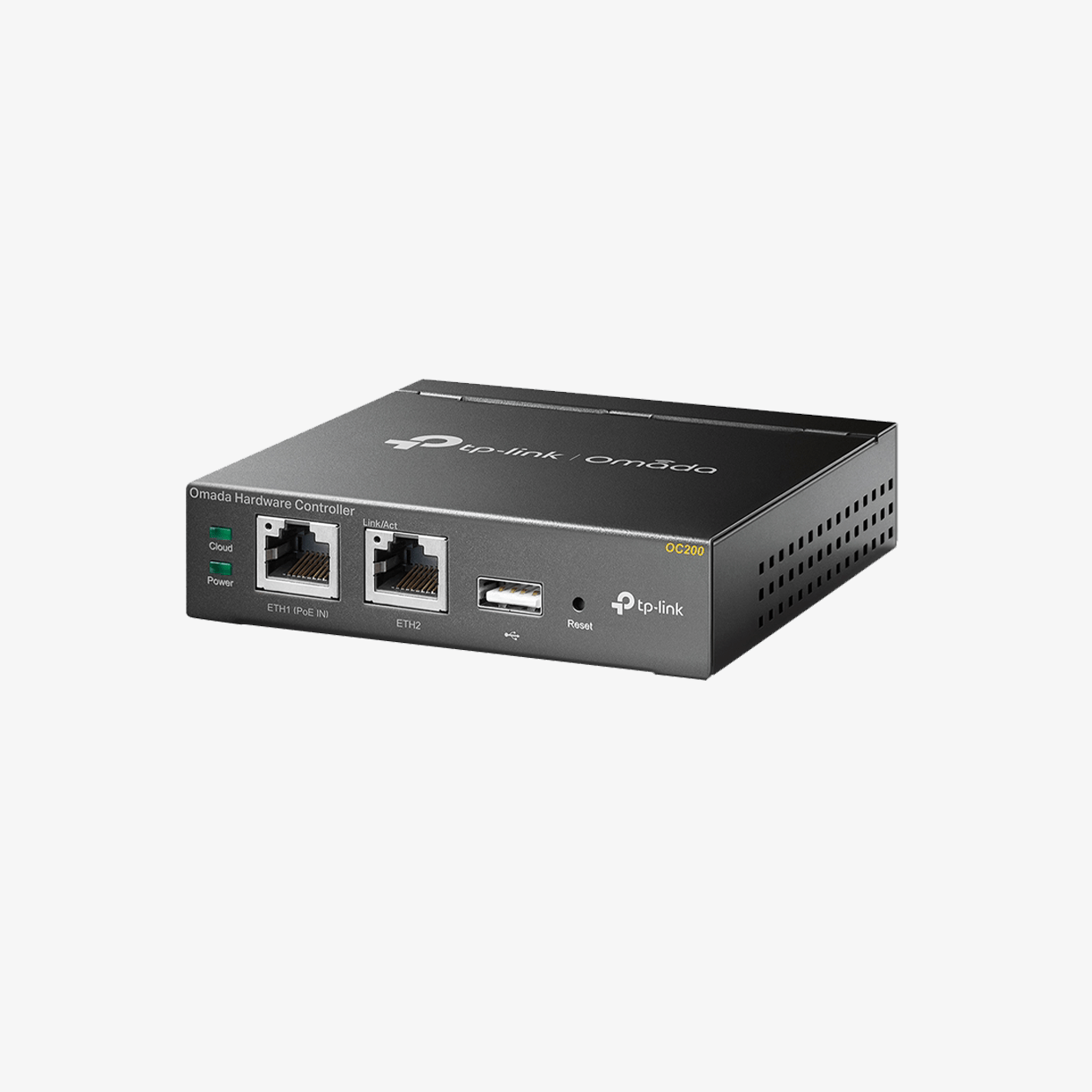

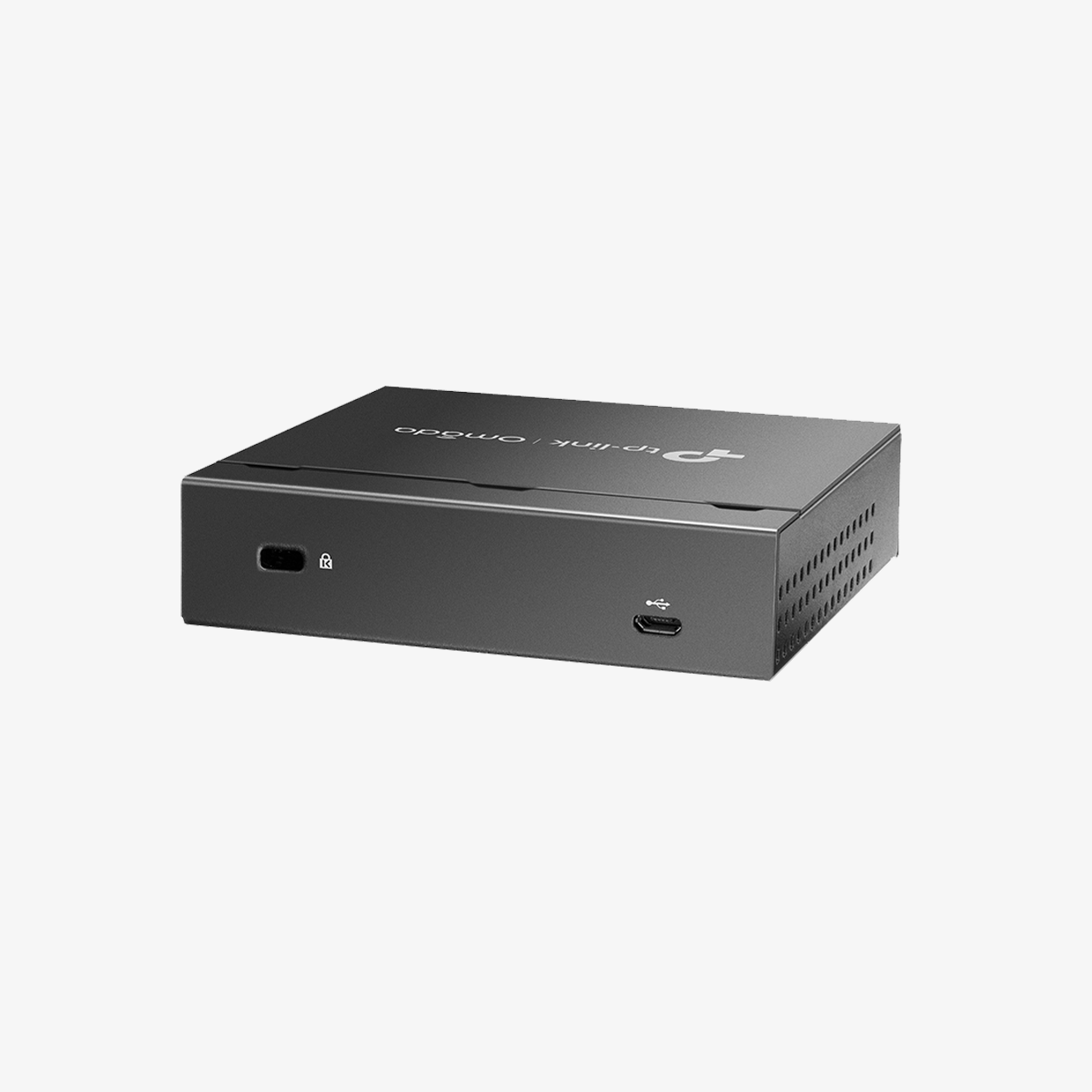

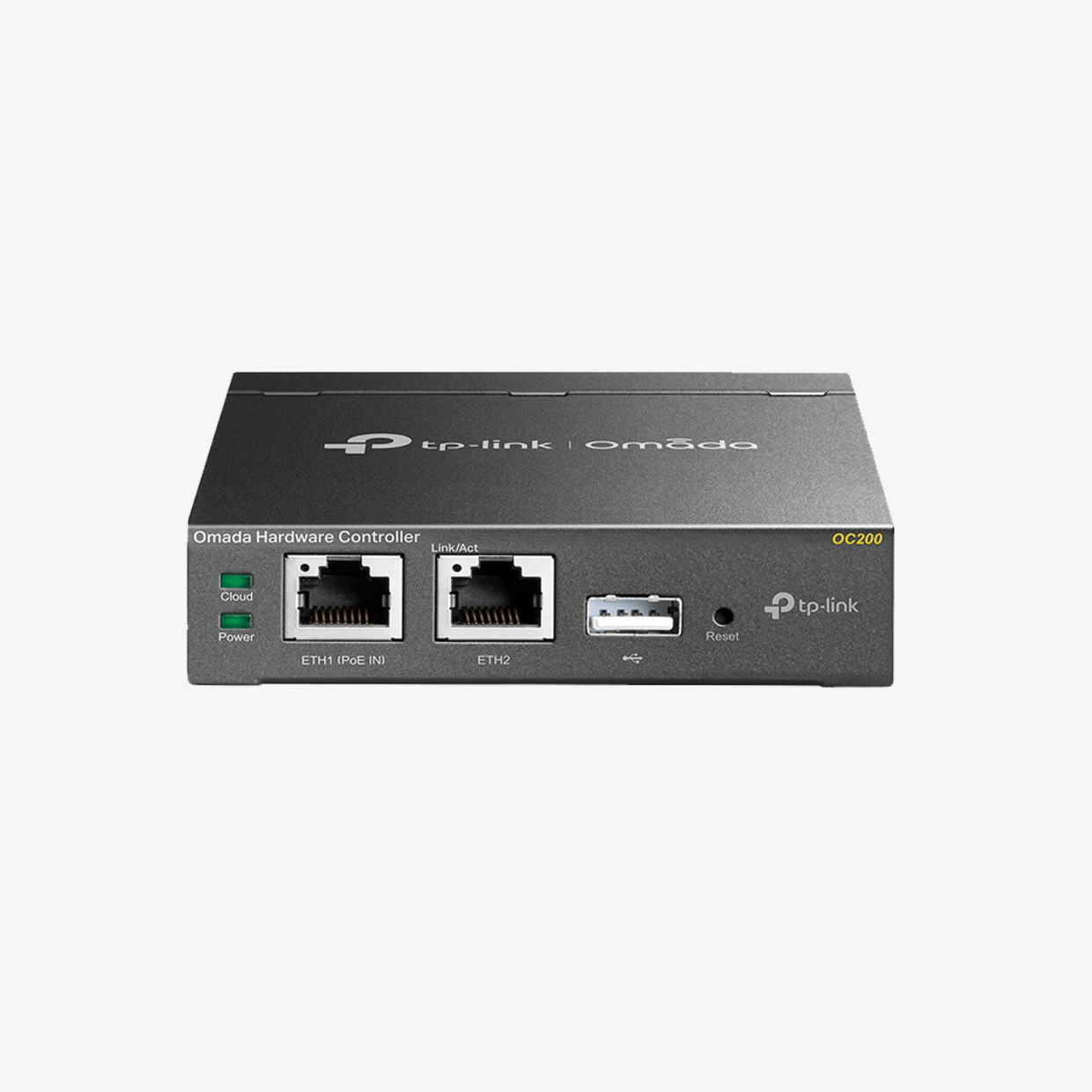

TP-Link OC200 — Omada Controller Hardware

The TP-Link OC200 is a compact Omada hardware controller designed for small-to-medium networks. It centrally manages up to 100 Omada access points, 20 switches, and 10 routers, offering both cloud access (free) and on-premises control via the Omada app or Web UI. With dual Fast Ethernet ports, PoE-powered or Micro-USB power options, USB backup, and a durable metal build, it’s ideal for businesses needing reliable SDN management without servers.

Request a Quote
8 people are viewing this product

Description

The TP-Link OC200 is a professional grade, hardware-based controller for Omada SDN that simplifies network management in business, hospitality, retail, and education environments. It’s built to manage up to 100 Omada devices (APs, switches, routers) with features like real-time dashboard, network topology view, batch firmware updates, captive portal, and detailed reports—all without needing to run your own PC- or server-based controller.

Hardware highlights include a dual-core 1.2 GHz processor, 1 GB DDR3 RAM, 4 GB eMMC storage, and small form factor (≈ 100×98×25 mm). Power options are flexible: it can be powered via PoE (802.3af/at) or via a Micro-USB 5 V, 1 A adaptor. Auto-backup of configuration via USB 2.0 ensures reliable recovery paths.

On the software side, OC200 supports multi-site management, multi-tenant role/site/device access privileges, voucher/SMS/Radius/Facebook login options for guest portals, L3 device management, VLAN/ACL policies, scheduling, bandwidth control, and more. It supports both cloud-based access so you can manage remotely, and local UI for on-premises control.

Application

Small-to-medium business networks, Offices, Retail / Hospitality venues, Branch offices, Remote site WiFi deployments, Guest network setups, Environments needing centralized management without a full server.

Key Features

✔️ Supports up to 100 Omada access points, 20 switches, 10 routers
✔️ Free cloud access + on-premises management (no license fees)
✔️ Hardware design: durable metal casing, USB 2.0 backup port, dual 10/100 Mbps Ethernet ports
✔️ Flexible power: support for PoE-in (802.3af/at) or Micro-USB power
✔️ Multi-site & multi-tenant management; role-based privileges; dashboards and topology view for network monitoring
✔️ Captive portal and guest network functionality with voucher/SMS/Radius etc.
✔️ Auto backup, batch firmware updates, reboot scheduling, environmental durability (wide temperature/humidity)

Specifications

Specification Details
Processor Dual-Core A53 @ 1.2 GHz
Memory / Storage 1 GB DDR3 RAM • 4 GB eMMC • 1 MB Nor Flash
Ports 2 × 10/100 Mbps Ethernet (RJ-45) • 1 × USB 2.0 (for config backup) • 1 × Micro-USB port (power)
Power Supply PoE-in (802.3af/at) or Micro-USB 5 V / minimum 1 A
Power Consumption ≈ 11.3 W (when PoE powered with USB device) • ≈ 4.3 W (powered via Micro-USB with no USB device)
Dimensions (W×D×H) ~ 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)
Operating / Storage Conditions Operating Temp: 0-40 °C • Storage Temp: -40-70 °C • Humidity: Operating 10-90%, Storage 5-90% non-condensing
Management Scale Up to 100 EAPs / 20 switches / 10 routers
Multi-Site / Multi-Tenant Yes; role/site/device privileges; site limits up to 100 sites; user accounts (cloud + local) supported
Features Batch config, firmware updates, dashboard, topology, auto backup, captive portal, guest networks, VLAN, ACL, logs, notifications etc.
Certifications CE, FCC, RoHS
