Description

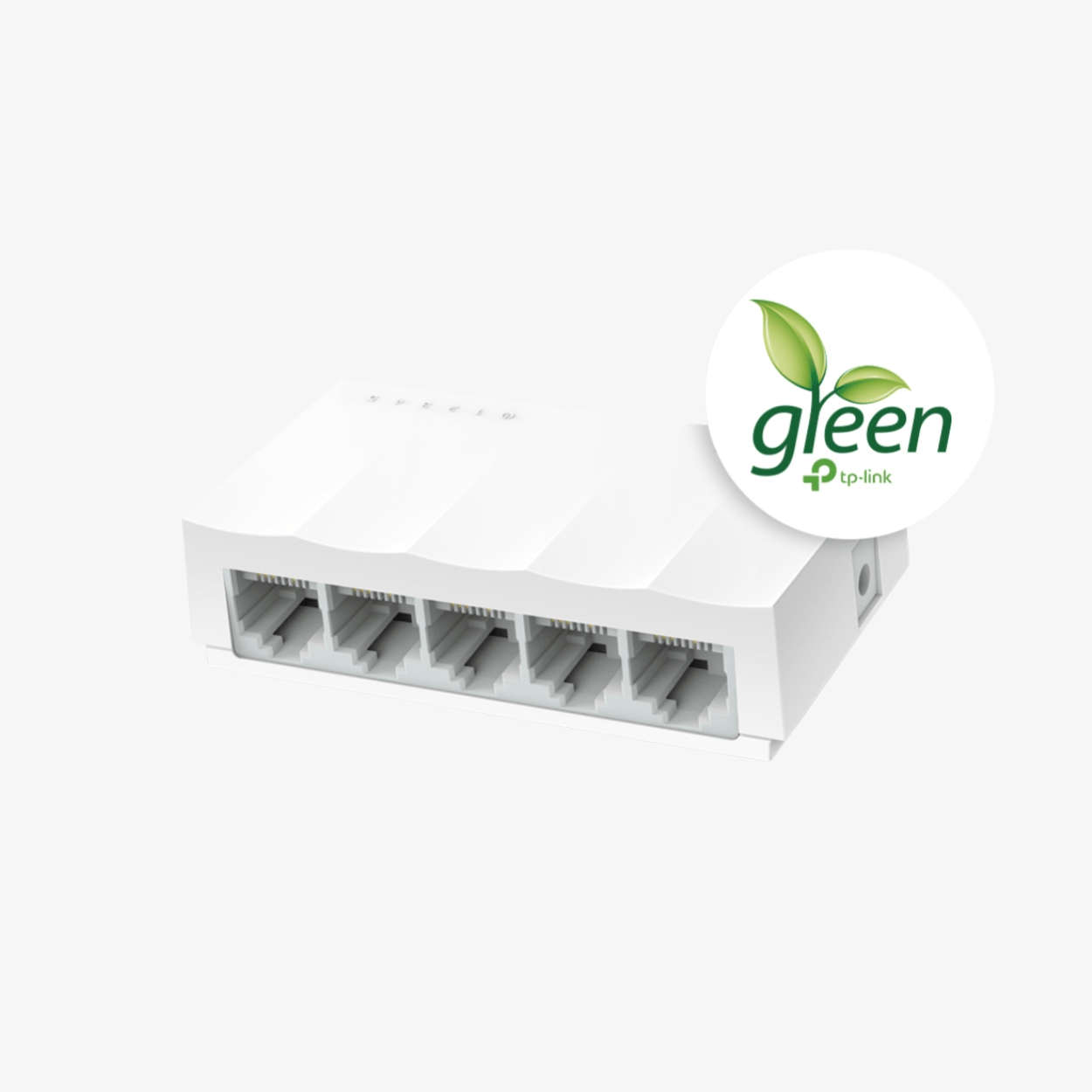

The TP-Link LS1005 from the LiteWave series delivers a straightforward way to expand wired network connections. Supporting 5 RJ-45 ports with 10/100 Mbps speeds, the LS1005 ensures all your essential devices—PCs, printers, IP cameras, game consoles—can connect via Ethernet with automatic detection of cable types (Auto-MDI/MDIX) and speed.
With Green Ethernet technology, the switch adjusts energy usage based on link status and cable length, helping reduce power consumption. It uses IEEE 802.3X flow control and back pressure to maintain network performance under load.
Built with a fanless design and housed in a desktop plastic case, the LS1005 runs quietly, making it suitable for quiet environments. Its external power adapter (5 V DC, 0.6 A) ensures power delivery without internal heat sources.
Use cases include expanding Ethernet ports in living rooms, small offices, or for surveillance devices; offering wired stability to devices that benefit from cable rather than Wi-Fi.
Application
Home Wi-Fi, Small offices, Surveillance systems, Dorms, Network expansion
Key Features

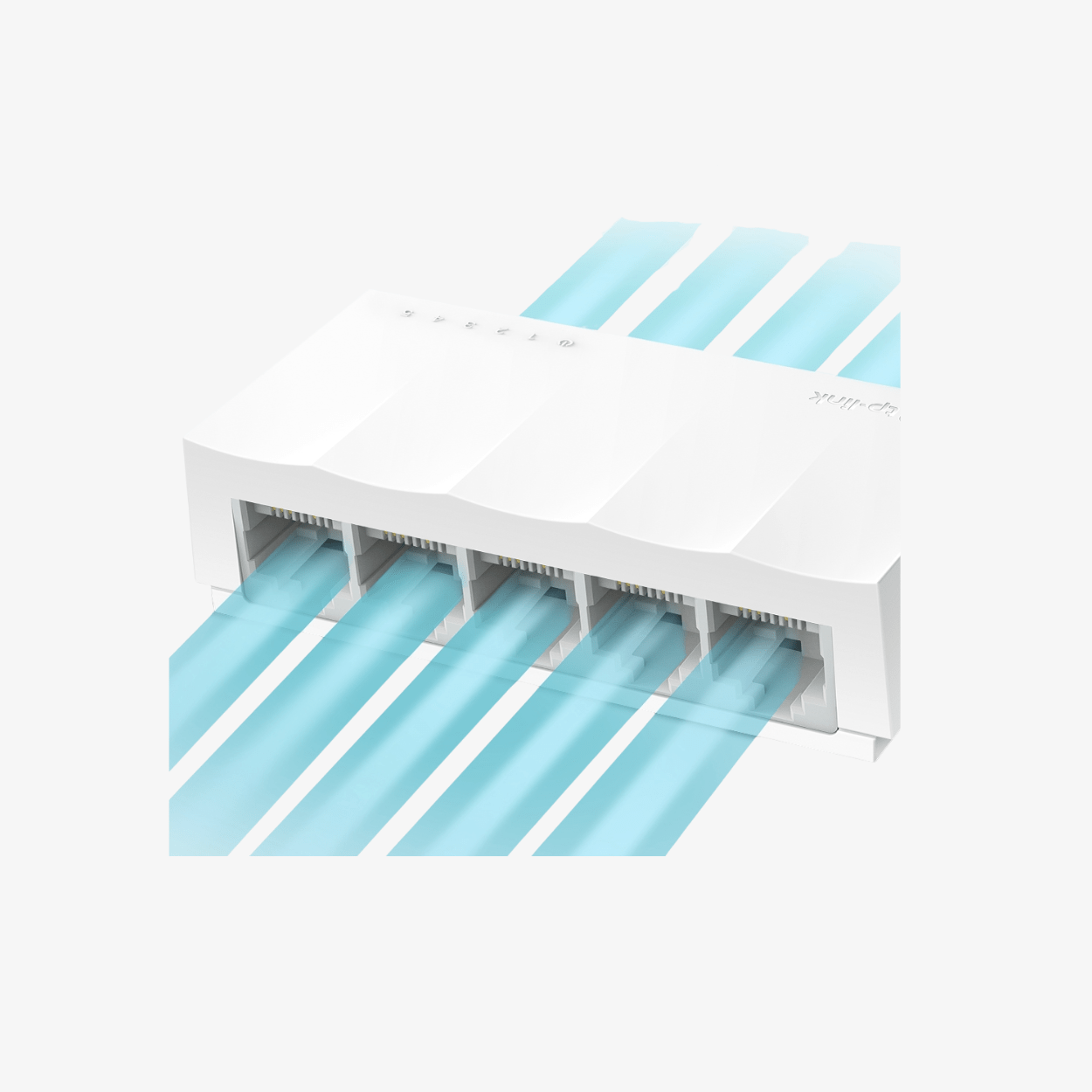

✔️ 5 × 10/100 Mbps RJ-45 ports with Auto-Negotiation & Auto-MDI/MDIX
✔️ Unmanaged, plug-and-play design — no configuration required
✔️ Green Ethernet technology for lower power draw based on link & cable conditions
✔️ IEEE 802.3X flow control & back pressure to handle data collisions and maintain performance

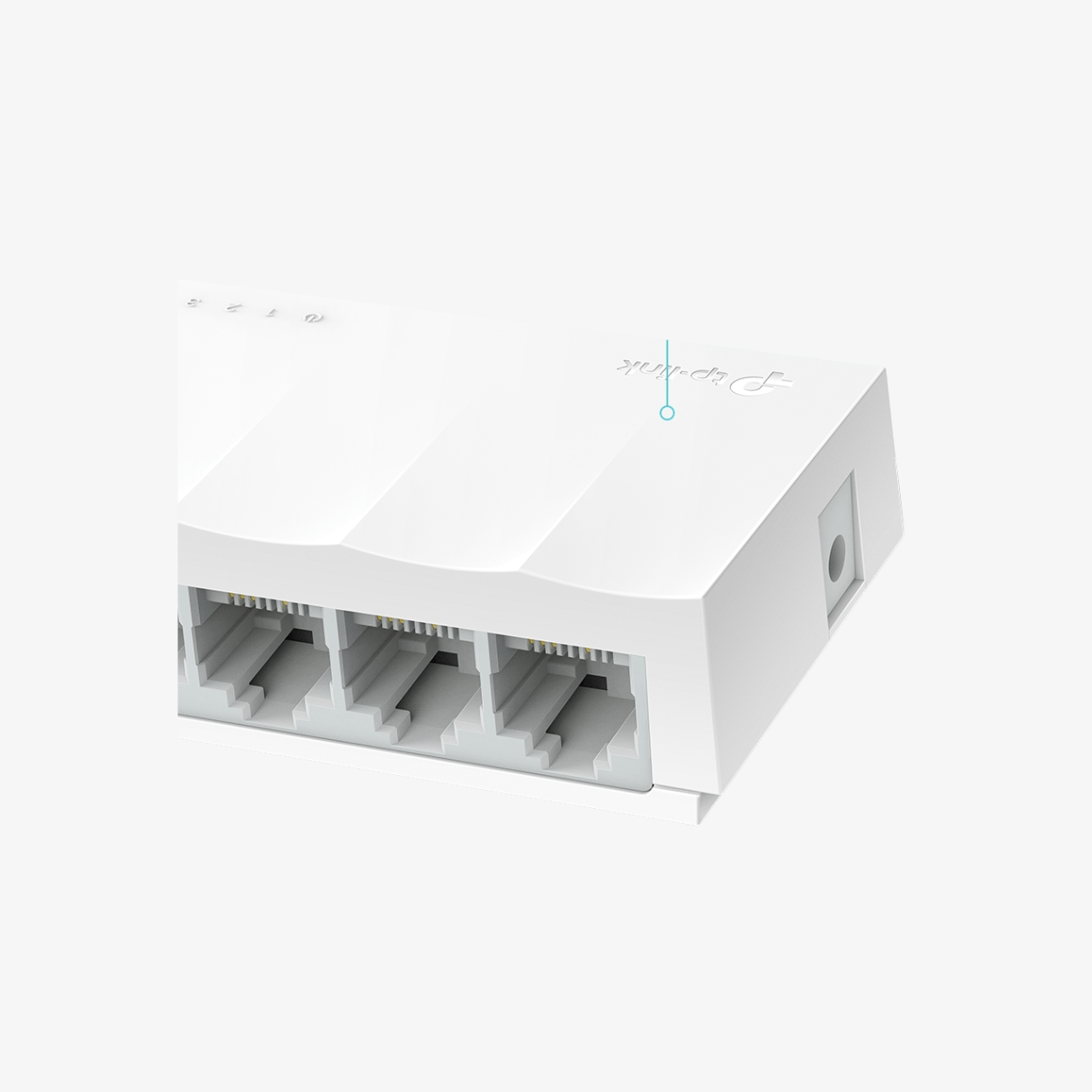

✔️ Fanless, silent operation & plastic desktop casing for low noise and simplicity
✔️ Compact footprint, external 5 V / 0.6 A power adapter
