Description

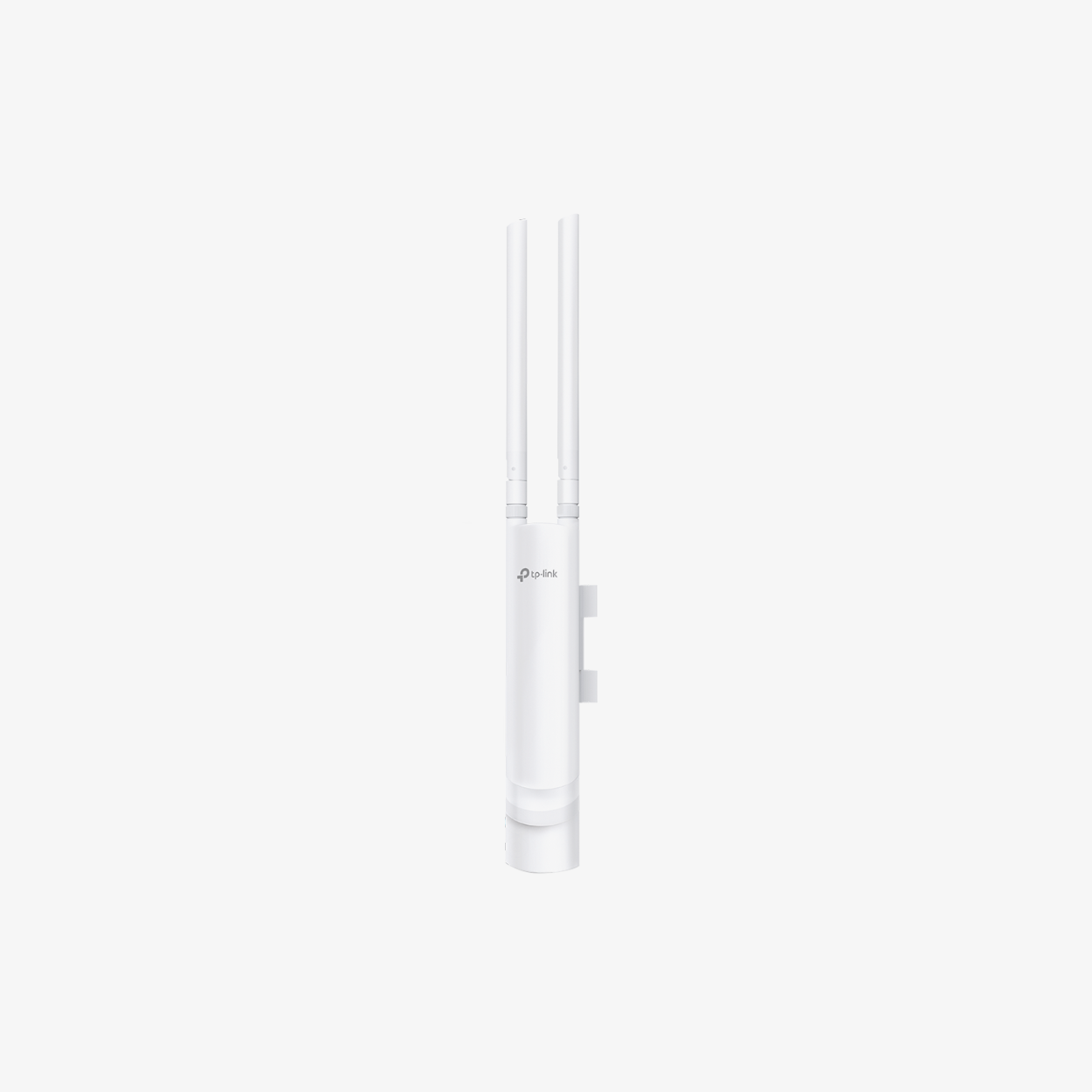

The TP-Link EAP225-Outdoor brings enterprise-class Wi-Fi outdoors, combining weatherproof durability with advanced wireless features. Supporting dual-band 802.11ac Wave 2, it provides 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, with MU-MIMO and Beamforming to handle multiple simultaneous connections efficiently. This makes it suitable for crowded outdoor areas such as campuses, resorts, or public parks.
The EAP225-Outdoor features external detachable omni antennas (3 dBi for 2.4 GHz, 4 dBi for 5 GHz) to enhance coverage, with line-of-sight ranges up to 200+ meters on 2.4 GHz and 300+ meters on 5 GHz under ideal conditions. Powered by 802.3af PoE or 24V Passive PoE (adapter included), installation is flexible for poles, walls, or building exteriors. Its IP65 weatherproof housing ensures reliable operation in rain, dust, and extreme temperatures (−30 °C to 70 °C).
Managed through the Omada SDN platform, the EAP225-Outdoor supports cloud-based control, multiple SSIDs, VLAN mapping, captive portal authentication, seamless roaming, QoS, and load balancing. Designed to scale with growing networks, it integrates easily into existing infrastructures and delivers stable, high-performance outdoor Wi-Fi where it’s needed most.
Application
Outdoor enterprise Wi-Fi, Resorts & hotels, Parks & campuses, Public hotspots, Long-range outdoor wireless, Mesh deployments
Key Features
✅ Dual-band AC1200 Wi-Fi: 300 Mbps @2.4 GHz + 867 Mbps @5 GHz
✅ MU-MIMO, Beamforming, Band Steering & Airtime Fairness for better client handling

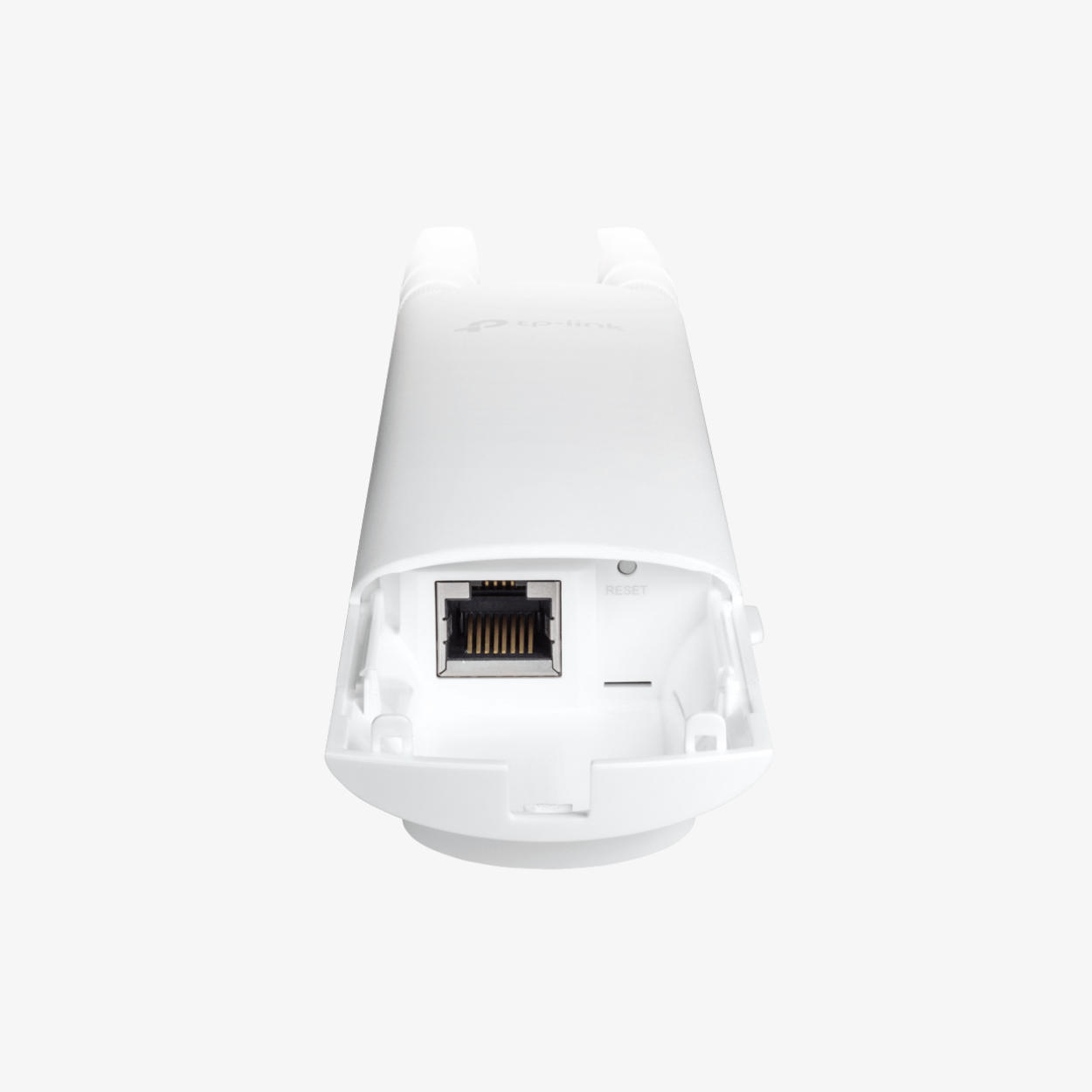

✅ Gigabit Ethernet with both 802.3af PoE and 24V Passive PoE support
✅ IP65-rated weatherproof housing with lightning and ESD protection
✅ Detachable external antennas: 3 dBi (2.4 GHz), 4 dBi (5 GHz)
✅ Long-range outdoor coverage: ~200 m (2.4 GHz), ~300 m (5 GHz) line-of-sight
✅ Supports 220+ concurrent clients for high-density environments
✅ Omada SDN integration: cloud, software, or hardware controller management
