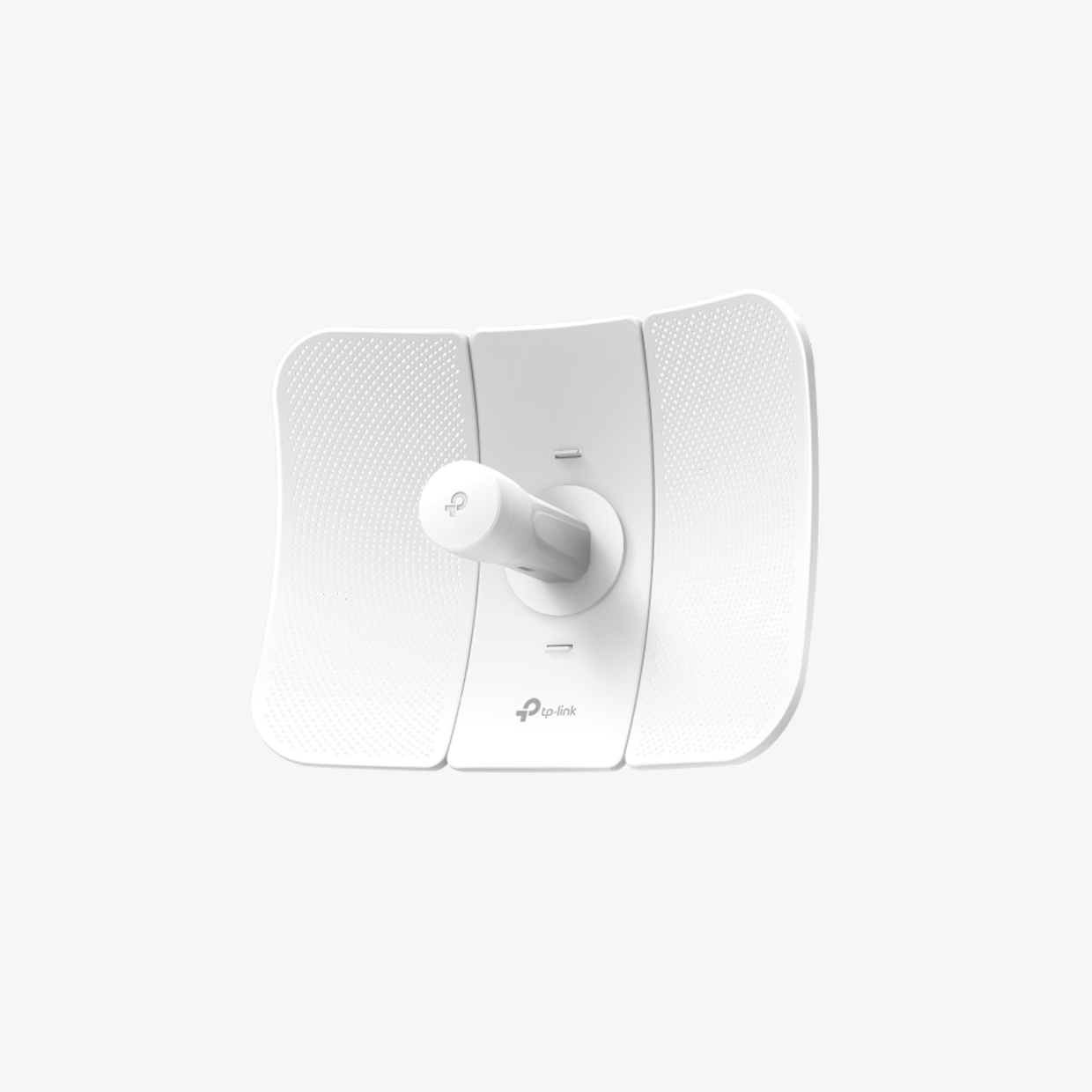

TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE

TP-Link CPE605 is designed for ISPs and WISPs seeking reliable outdoor connectivity. Featuring a high-gain 23dBi directional antenna, it delivers stable long-distance wireless performance with up to 150Mbps over 5GHz. Equipped with a weatherproof enclosure and a professional antenna design, it ensures durability in challenging environments. Centralized management through Pharos Control makes network maintenance simple. A smart investment for extending coverage in rural areas, point-to-point links, or enterprise outdoor deployments.

11 people are viewing this product

Description

The TP-Link CPE605 is a powerful and cost-effective outdoor CPE, ideal for WISPs, ISPs, and enterprise outdoor wireless networks. Built with a high-gain 23dBi directional antenna, it provides excellent signal quality and stable performance for long-range point-to-point (PtP) and point-to-multipoint (PtMP) connections. Operating on the 5GHz band, it supports up to 150Mbps data throughput, ensuring reliable connectivity for wireless broadband deployment.

Designed for durability, the CPE605 features a professional-grade weatherproof enclosure that withstands harsh outdoor conditions such as wind, rain, and extreme temperatures. The innovative snap-lock mounting system makes installation quick and flexible, while its integrated surge protection ensures dependable operation in outdoor environments.

Network administrators benefit from centralized management through Pharos Control, TP-Link’s dedicated software for monitoring and managing multiple CPE devices. This makes large-scale deployments easier to configure, monitor, and optimize.

Whether used for extending broadband coverage in rural communities, supporting surveillance networks, or connecting enterprise sites, the CPE605 is a reliable, high-performance solution.


Application

Wireless broadband, WISP deployments, Rural connectivity, PTP links


Key Features

✔️ 5GHz band with up to 150Mbps wireless throughput
✔️ High-gain 23dBi directional antenna for long-distance coverage
✔️ Robust weatherproof enclosure for reliable outdoor use
✔️ Flexible, easy installation with snap-lock mounting system
✔️ Centralized management with Pharos Control software
✔️ Built-in surge protection for stable outdoor operation
✔️ Supports point-to-point and point-to-multipoint applications

Specifications

Specification Details
Product Model CPE605
Wireless Standards IEEE 802.11a/n
Frequency 5GHz
Signal Rate Up to 150Mbps
Antenna Type Built-in 23dBi High-Gain Directional
Beamwidth 7° (H-Plane) / 10° (E-Plane)
Wireless Functions Bridge, Router, AP, AP Router, WISP, Client, AP Client Router
Transmission Power Up to 23dBm / adjustable
Interfaces 1 × 10/100Mbps Ethernet (Passive PoE supported)
Power Supply Passive PoE (24V, 0.6A adapter included)
Weatherproof Enclosure Yes (Outdoor rated)
Management Pharos Control, Web UI
Mounting Pole mounting with snap-lock system
Dimensions 224 × 79 × 60 mm
Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +70°C
Operating Humidity 10%–90% non-condensing
Storage Humidity 5%–90% non-condensing
Warranty Not specified by vendor
