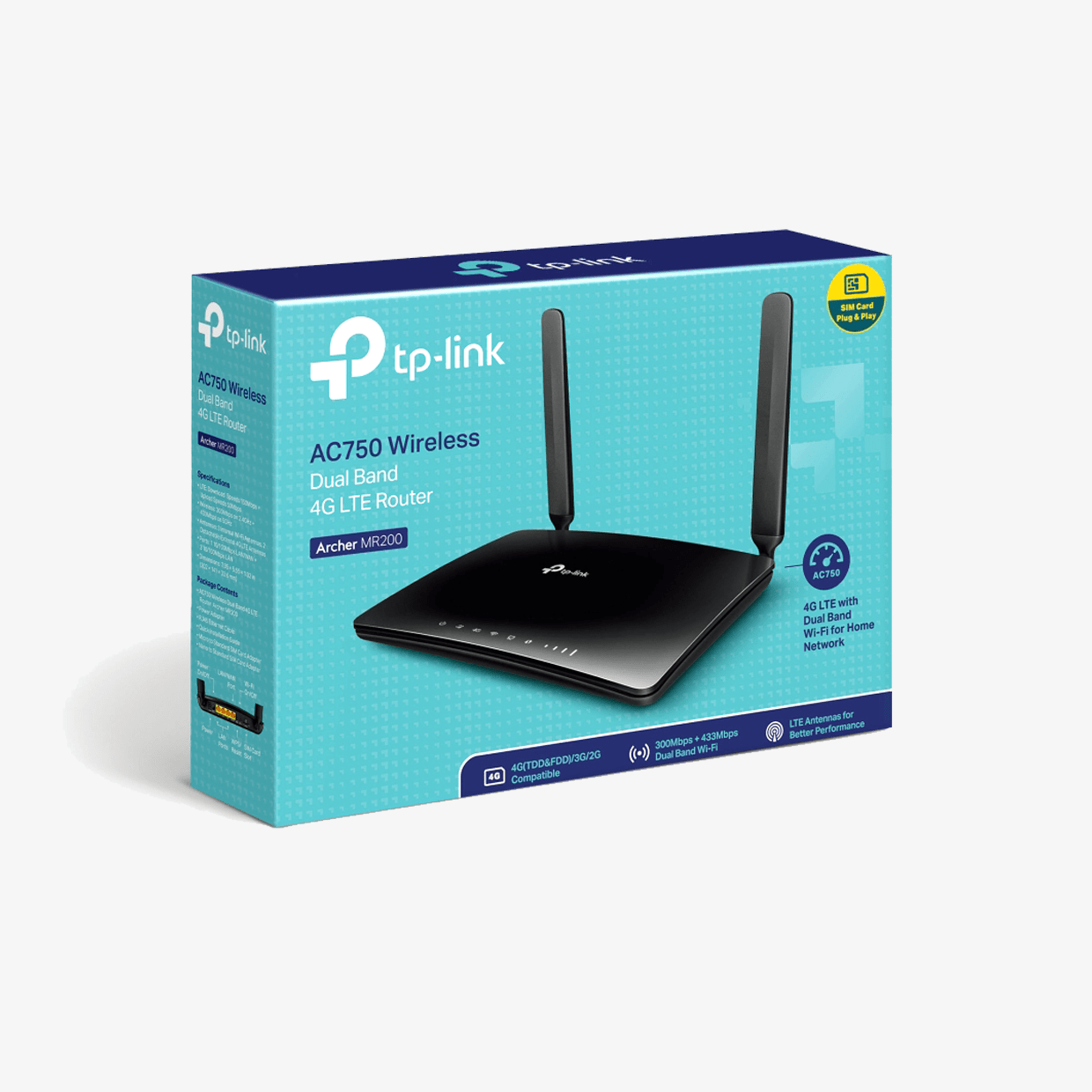

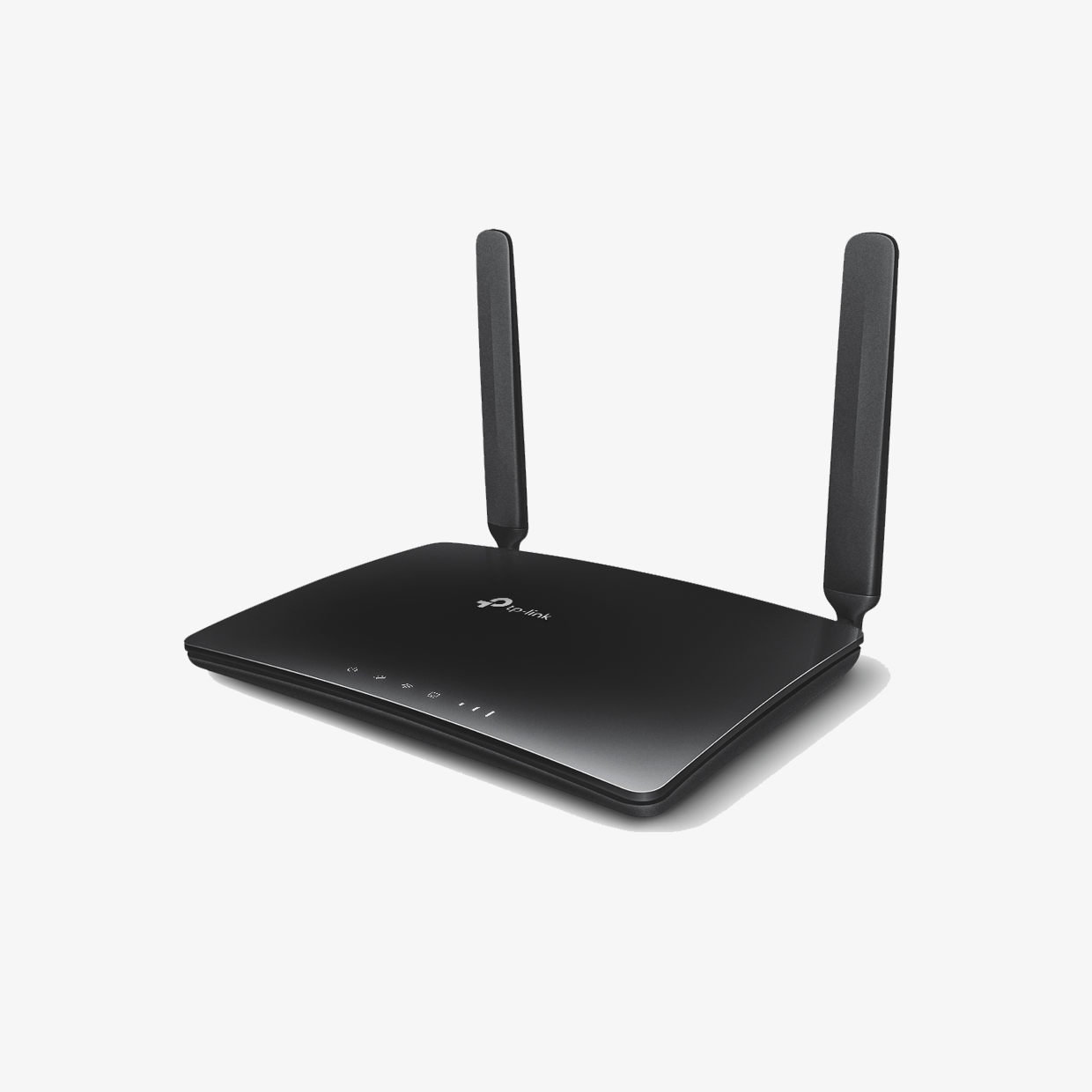

TP-Link Archer MR200 — AC750 Dual-Band 4G LTE Router

The TP-Link Archer MR200 is an AC750 dual-band 4G LTE router designed for users who need internet in places without fixed broadband—homes in rural areas, vacation rentals, mobile setups. It provides up to 433 Mbps on 5 GHz + 300 Mbps on 2.4 GHz WiFi while sourcing the internet via built-in LTE, and supports fallback to wired WAN when available. With SIM card slot, multiple LAN ports, external LTE antennas, and QoS & guest network features, the MR200 delivers flexible, stable, and secure connectivity under changing network conditions.

  • Data Sheet
Request a Quote
9 people are viewing this product

Description

The TP-Link Archer MR200 is built for mobility and connectivity in fringe and remote environments by combining 4G LTE and WiFi AC technology. It includes an integrated LTE modem (4G/3G/2G) with support for major global LTE bands (e.g. FDD-LTE B1/B3/B7/B8/B20, TDD-LTE B38/B40/B41) to ensure compatibility with many mobile carriers.

On the WiFi side, it delivers AC750 dual-band wireless performance with maximum data rates of up to 433 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. This enables streaming, video conferencing, light gaming and connecting multiple smart devices while on LTE.

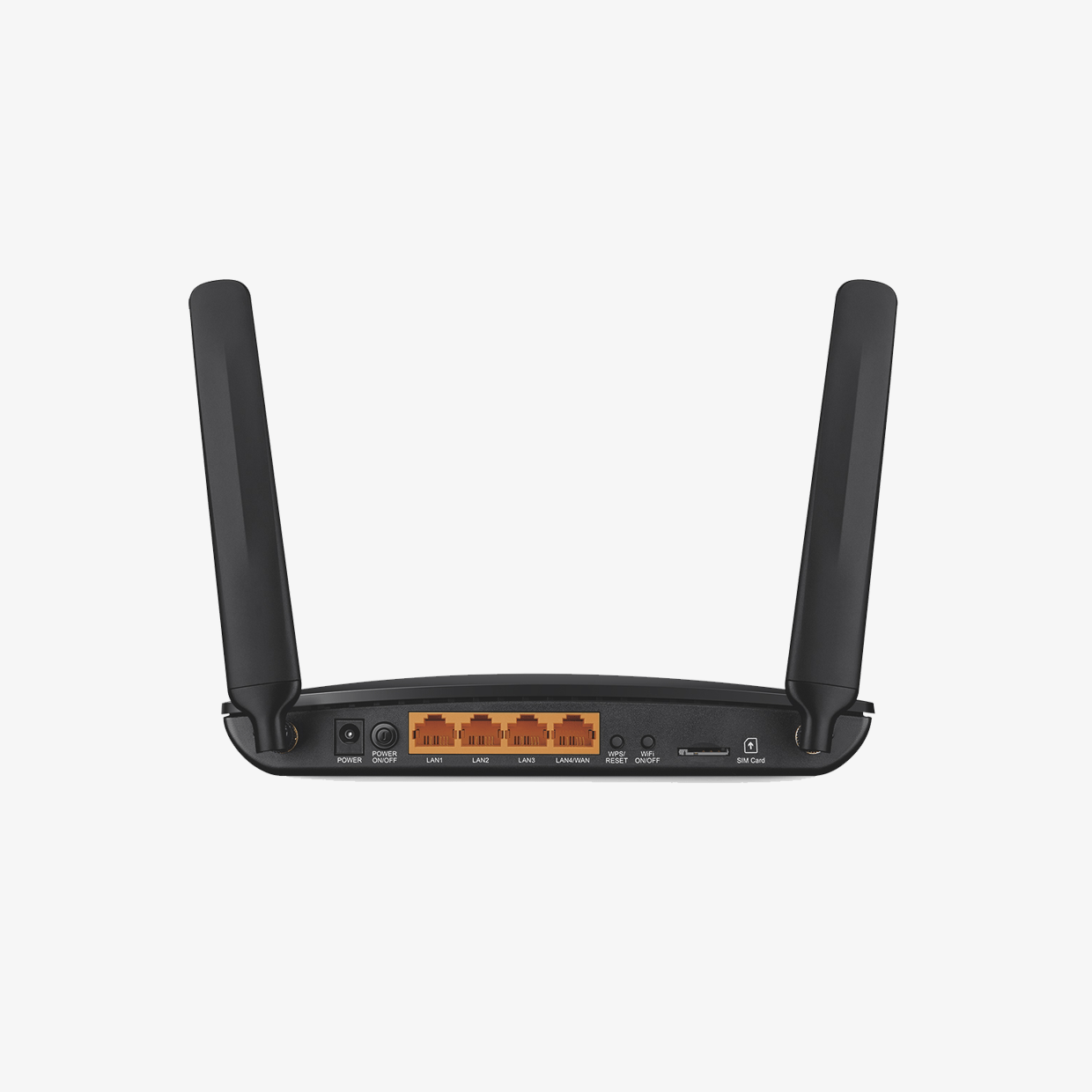

Hardware includes 3 × 10/100 Mbps LAN ports and 1 × LAN/WAN port (switchable), a micro SIM card slot, two external LTE antennas for improved signal reception, plus power, WPS/reset, and wireless on/off buttons. It runs from a 12V/1A power adapter.

For software, the MR200 offers features like WAN failover (so if the primary network goes down, LTE can be the fallback), QoS (prioritize devices/apps), guest networks, parental control, IPv6, VPN passthrough, UPnP, port forwarding, etc. It supports management via TP-Link’s web UI or Tether app.

With its combination of flexibility, external antenna support, and dual-band WiFi, the Archer MR200 is ideal for users who need reliable internet via LTE, plus good wireless coverage in places where wired connectivity is weak or unavailable.

Application

Remote homes / rural connectivity, Vacation homes / cabins, Temporary sites / pop-ups, Backup internet for homes/offices, Mobile households, RVs / mobile living setups

Key Features

✔️ Dual-band AC750 WiFi: up to 433 Mbps on 5 GHz + 300 Mbps on 2.4 GHz
✔️ Built-in 4G LTE support (multiple bands) with external LTE antennas for improved reception
✔️ LAN/WAN port for wired backup or alternate ISP connection; 3 LAN ports for wired devices
✔️ WAN failover from wired to LTE for uninterrupted service
✔️ Guest network, parental controls, QoS & access control features for flexibility & security
✔️ IPv6 support, UPnP, port forwarding, firewall (SPI, DoS protection) etc.
✔️ External detachable LTE antennas to boost signal strength in low coverage areas

Specifications

Specification Details
Wireless Standards IEEE 802.11ac / a / n (5 GHz); IEEE 802.11n / b / g (2.4 GHz)
Frequency Bands 2.4 GHz & 5 GHz
Max Wireless Data Rate 5 GHz: up to 433 Mbps 2.4 GHz: up to 300 Mbps Combined ≈ 750 Mbps class
Cellular LTE Speed LTE Cat-4: up to 150 Mbps download / ~50 Mbps upload (typical)
ETH Ports 3 × 10/100 Mbps LAN ports 1 × 10/100 Mbps LAN/WAN (switchable)
SIM Slot Micro-SIM slot for 4G LTE network
Antenna 2 external LTE antennas + external WiFi antennas or fixed WiFi antenna config depending on region
Buttons / Controls WPS / Reset button; WiFi On/Off button; Power On/Off button in some regional variants
Power Supply 12 V DC, 1 A adapter
Dimensions ~ 202 × 141 × 33.6 mm
Operating Temp / Humidity 0 °C to 40 °C; 10% to 90% non-condensing
Security / Encryption WEP, WPA/WPA2; WPA-PSK / WPA2-PSK; IP & MAC binding; firewall (SPI, DoS)
Warranty Not clearly specified in the public specification sheets; region dependent.
