TP-Link Archer C24 — AC750 Dual-Band WiFi Router

The TP-Link Archer C24 is an AC750 dual-band router designed for small homes, apartments, or secondary internet access points. It provides up to 433 Mbps on 5 GHz + 300 Mbps on 2.4 GHz performance, great for streaming HD video, light gaming, and multiple smart devices. With four fixed external antennas, guest networks, parental controls, and support for Router / Access Point / Range Extender modes, it offers flexibility. Its compact design, WPA3 security, and IPv6 support make it a solid, budget-friendly upgrade to older single-band routers.

5 people are viewing this product

Description

The TP-Link Archer C24 (AC750) is a budget dual-band router ideal for users needing decent Wi-Fi performance without the premium features of high-end routers. On the 5 GHz band, it supports up to 433 Mbps (802.11ac), while on the 2.4 GHz band it goes up to 300 Mbps (802.11n). These combined speeds are sufficient for smooth HD streaming, web surfing, and everyday connectivity across multiple devices.

It features four fixed external antennas to help spread the signal more evenly around typical homes and apartments, plus multiple operating modes: Router, Access Point, or Range Extender ‒ giving users flexibility depending on their setup.

On the security side, the Archer C24 supports WPA3 (depending on firmware version), guest networks, parental controls, IPv6 support, and standard network protections like MAC/IP binding and SPI firewall.

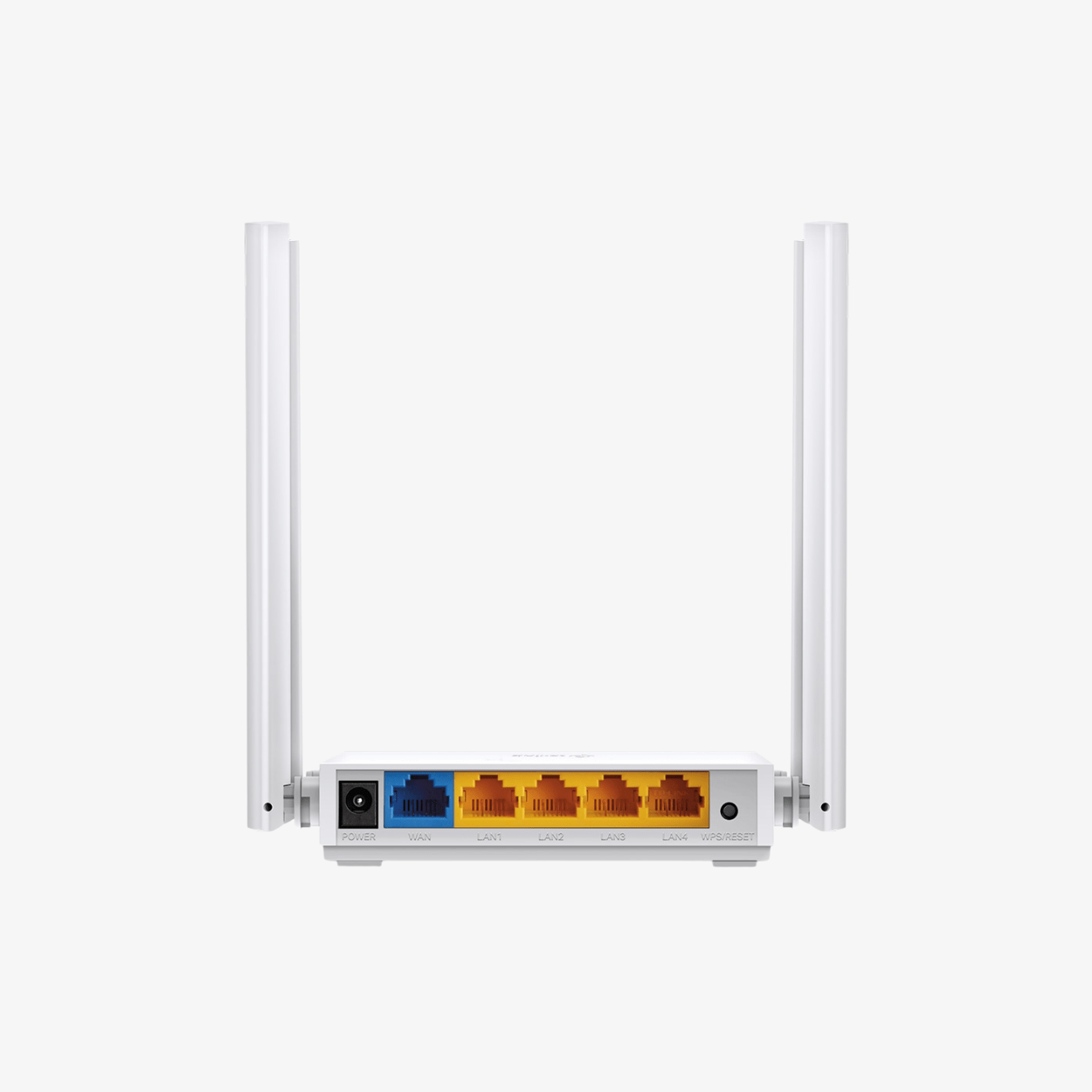

Physically, it’s compact (≈ 115 × 106.7 × 24.3 mm), powered by a 9 V ⎓ 0.6 A adapter, and includes 4 LAN ports + 1 WAN port (all 10/100 Mbps) ‒ suitable for modest internet plans.


Application

Home Wi-Fi, Apartments / 2-bedroom houses, Guest & Secondary Networks, Streaming & Video Chat, Lightweight Gaming, Smart Home Device Networks, Budget-friendly Upgrade


Key Features

✔️ Dual-Band AC750 Wi-Fi: 433 Mbps @ 5 GHz + 300 Mbps @ 2.4 GHz
✔️ Four external fixed antennas for better signal reach in small-to-medium homes
✔️ Flexible operating modes: Router, Access Point, Range Extender
✔️ Modern security: Guest networks, WPA3 support (where applicable), IPv6 compatibility
✔️ Compact, space-saving design; wall-mount or desk placement viable options
✔️ Hardware basic but sufficient: 4 × 10/100 Mbps LAN, 1 × 10/100 WAN port

Specifications

Specification Details
Wireless Standards IEEE 802.11ac / n / a (5 GHz), IEEE 802.11n / b / g (2.4 GHz)
Frequency Bands 2.4 GHz & 5 GHz
Signal Rate 5 GHz: up to 433 Mbps; 2.4 GHz: up to 300 Mbps
Antennas 4 × fixed external antennas
Ports 1 × 10/100 Mbps WAN; 4 × 10/100 Mbps LAN
Buttons / Switches WPS / Reset button
Power Supply 9 V ⎓ 0.6 A
Operating Temperature 0-40 °C
Storage Temperature -40-60 °C
Operating Humidity 10%-90% non-condensing
Hardware CPU / Memory Single-core (≈580 MHz) MediaTek MT7628DBN; RAM ≈16 MB (model-dependent)
Security & Encryption WPA / WPA2; possibly WPA3 depending on firmware; SPI firewall, IP/MAC binding, guest network support
Warranty Not clearly specified in the publicly available documents for all regions
