Description

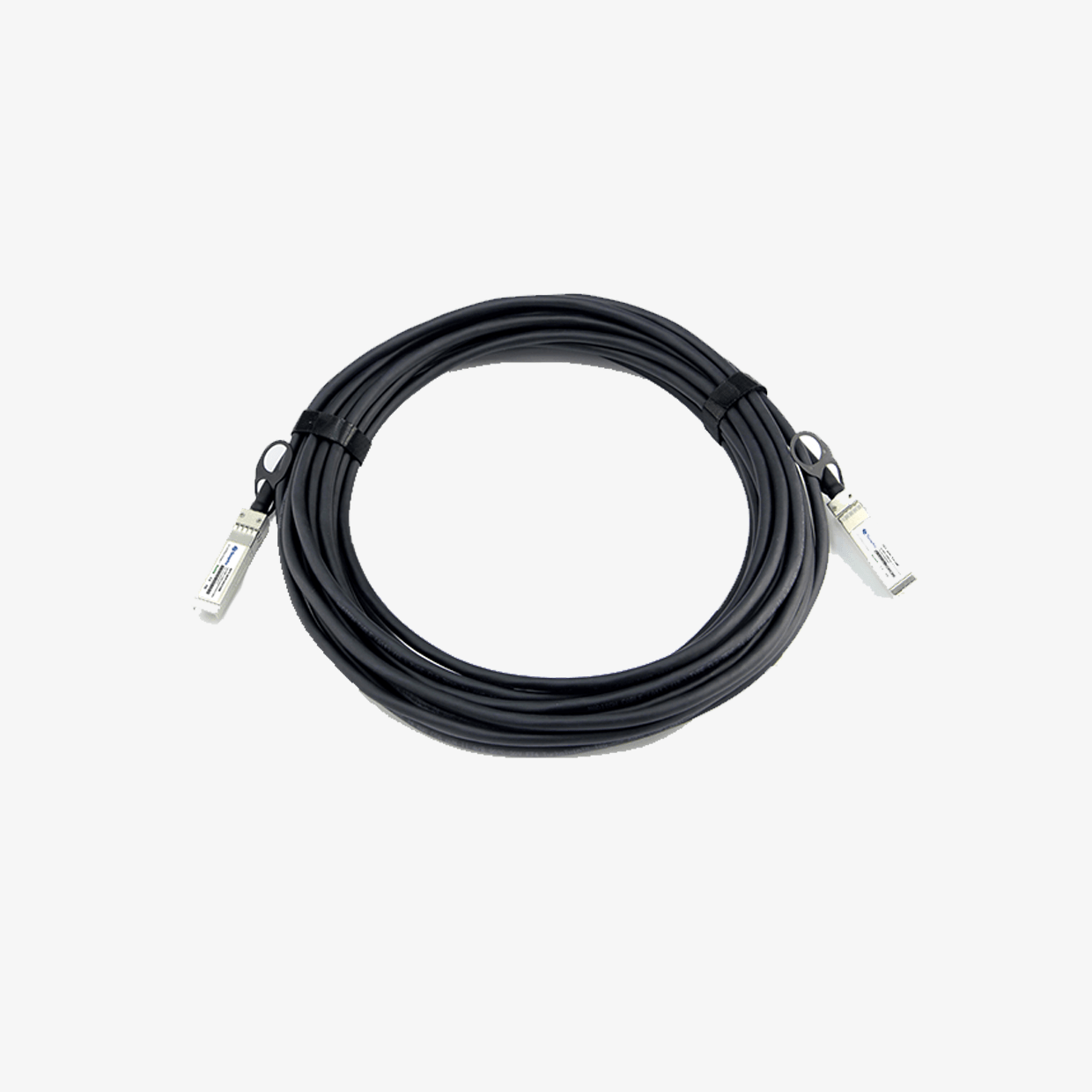

The Sopto SPH-SFP28+Cx DAC is a high-speed 25 Gbps passive Direct Attach Copper (DAC) cable, enabling direct connections between SFP28 interfaces without the need for optical transceivers. Engineered to meet modern data center and enterprise demands, it reduces deployment cost and complexity while delivering uncompromised throughput.
Featuring hot-pluggable SFP28 connectors, this cable ensures quick installation and seamless integration into server, switch, or storage environments. Its passive copper design eliminates active components, offering extremely low power consumption and higher reliability. The SPH-SFP28+C complies with SFF-8431/8432 standards, ensuring interoperability across major networking equipment vendors.
Available in multiple lengths (typically 1 m, 3 m, and 5 m with AWG26 or AWG30 conductor options), the series is ideal for intra-rack and inter-rack links. Common applications include switch-to-server interconnects, cluster computing, storage networks, and ISP backbone aggregation.
By combining high bandwidth, low latency, and robust build quality, the Sopto SPH-SFP28+C provides a future-ready, cost-effective connectivity option for high-density deployments.
Application
Data centers, Enterprise networks, ISP backbone, Storage interconnects, HPC clusters
Key Features
-
✅ 25 Gbps full-duplex passive copper link
-
✅ SFP28 to SFP28 hot-pluggable connectors
-
✅ Plug-and-play with near-zero power consumption
-
✅ Compliant with SFF-8431/8432 standards
-
✅ Available in 1 m, 3 m, and 5 m variants
-
✅ Conductor options AWG26 / AWG30 (variant dependent)
-
✅ PVC jacket for durability and flexibility
-
✅ Ideal for data center racks and high-density networks
