Description

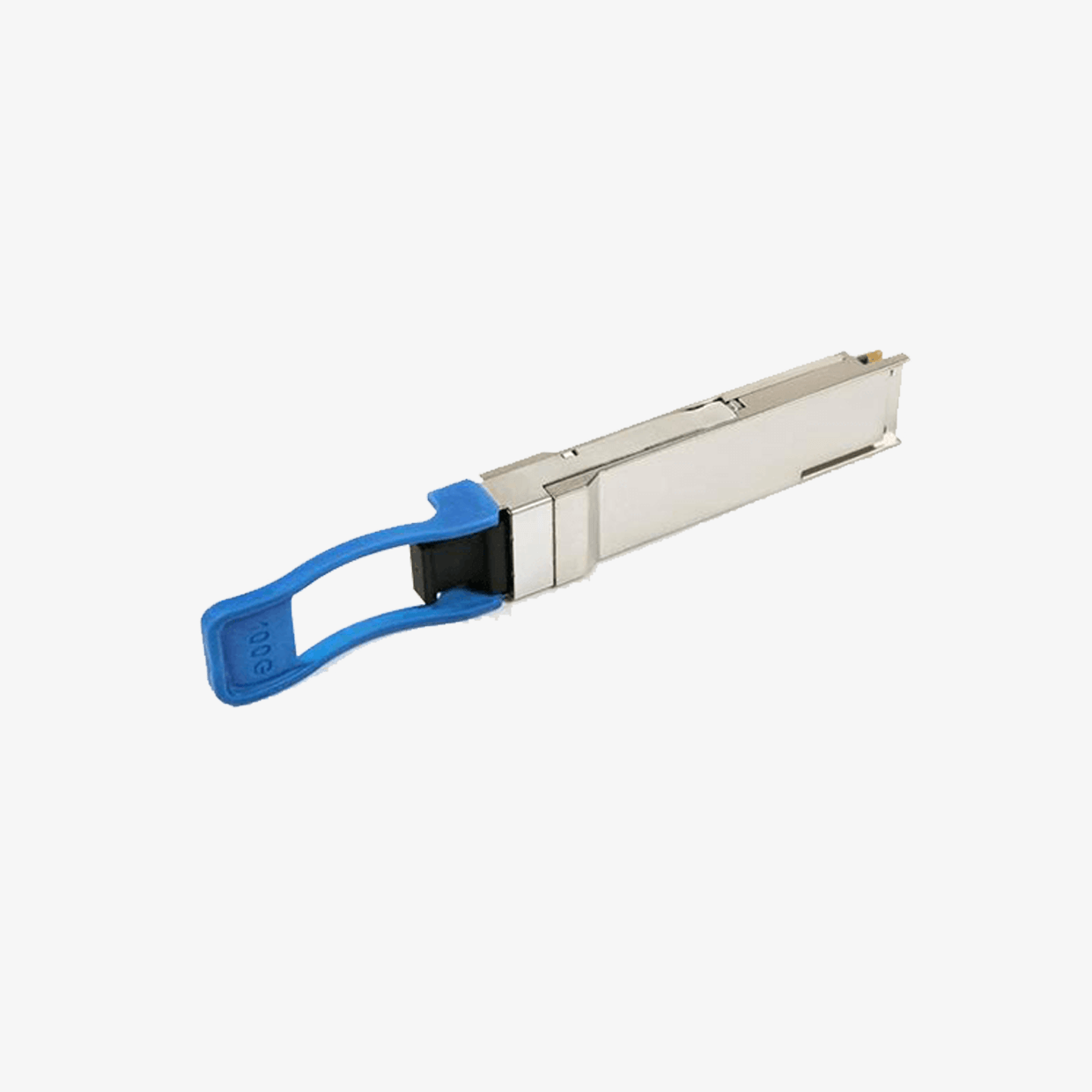

The Sopto SPT-QSFP28-LR4 is a high-speed 100Gbps optical transceiver designed for long-reach 100G Ethernet transmission up to 10 km over single-mode fiber (SMF). Utilizing four LAN-WDM channels (1295–1310 nm), each carrying 25Gbps, the module multiplexes them into a single 100Gbps data stream for efficient long-distance backbone connectivity.
Compliant with IEEE 802.3ba 100GBASE-LR4, QSFP28 MSA, and SFF-8636, this module ensures interoperability with a wide range of network equipment. The duplex LC interface simplifies fiber management, while the hot-pluggable form factor supports quick installation and maintenance.
Featuring digital diagnostics monitoring (DDM) and low power consumption (<3.5 W), the SPT-QSFP28-LR4 delivers stable, energy-efficient performance for high-density environments such as data centers, cloud platforms, metro Ethernet, and enterprise backbones requiring long-haul 100G connectivity.
Application
Data centers, Cloud computing, Metro Ethernet, ISP backbone networks, Enterprise core links
Key Features
-
✅ 100Gbps QSFP28 optical transceiver
-
✅ Supports up to 10 km over single-mode fiber
-
✅ Operates at 1310 nm LAN-WDM
-
✅ Duplex LC connector, hot-pluggable design
-
✅ IEEE 802.3ba 100GBASE-LR4 compliant
-
✅ QSFP28 MSA and SFF-8636 compliant
-
✅ Digital diagnostics monitoring (DDM)
-
✅ Low power consumption (<3.5 W typical)
