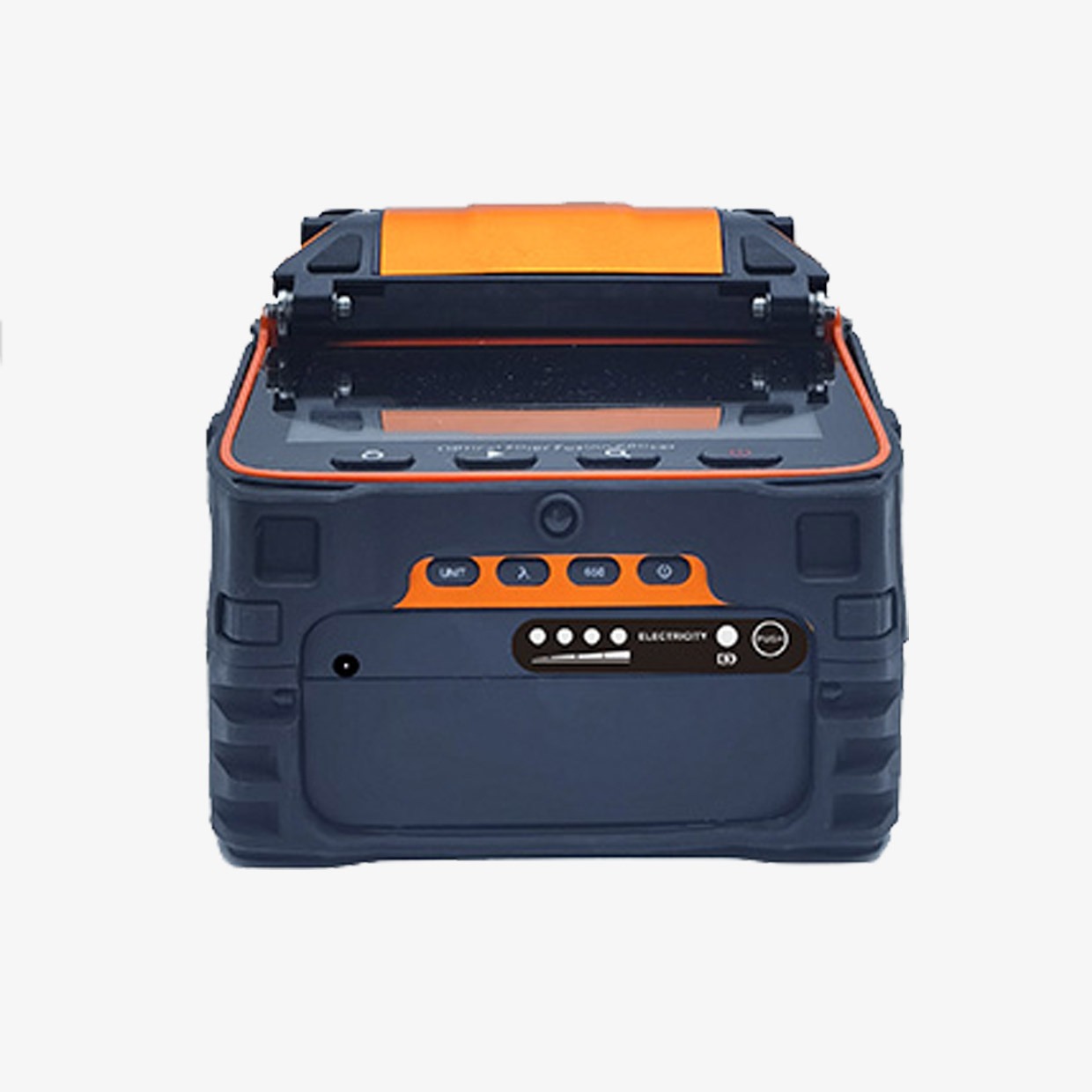

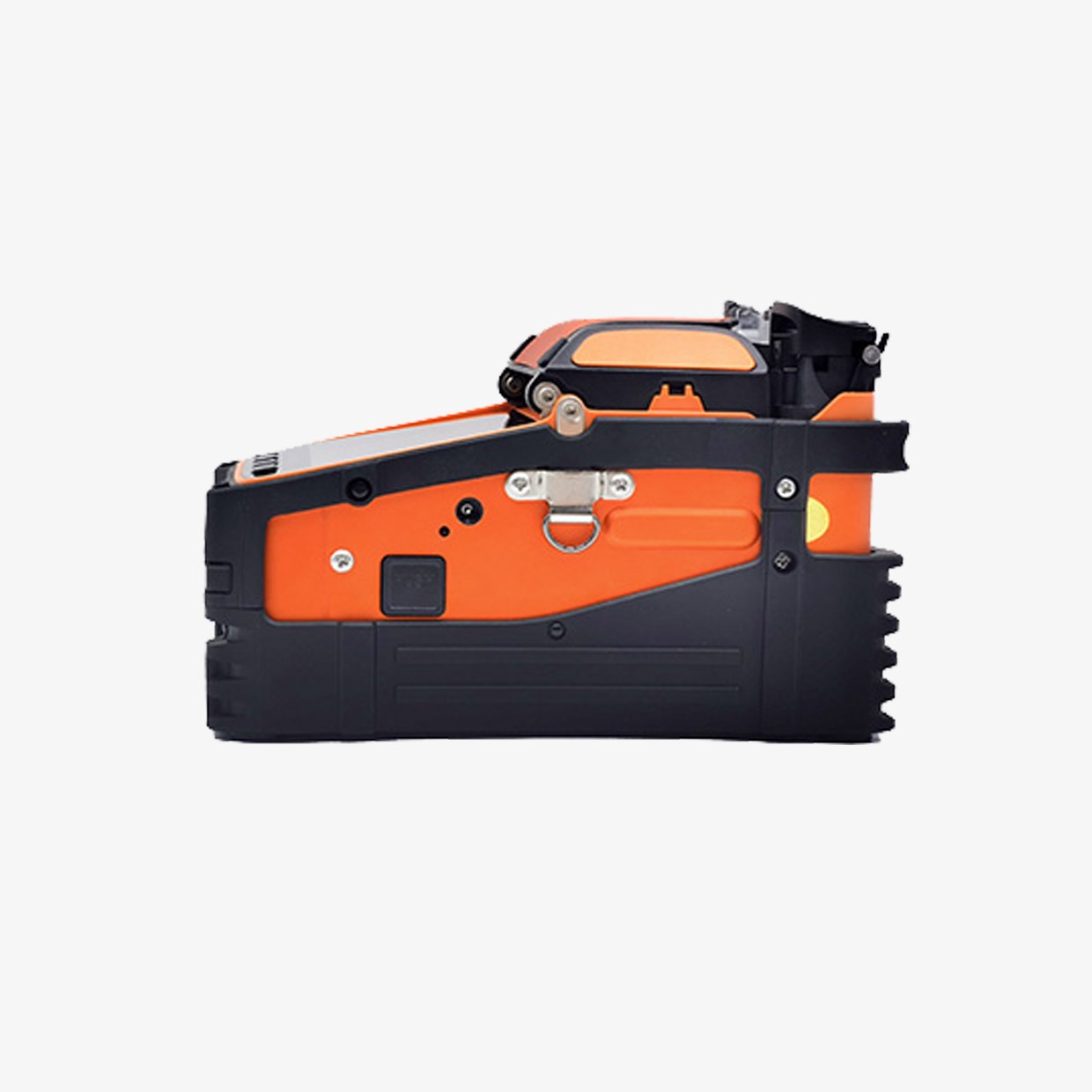

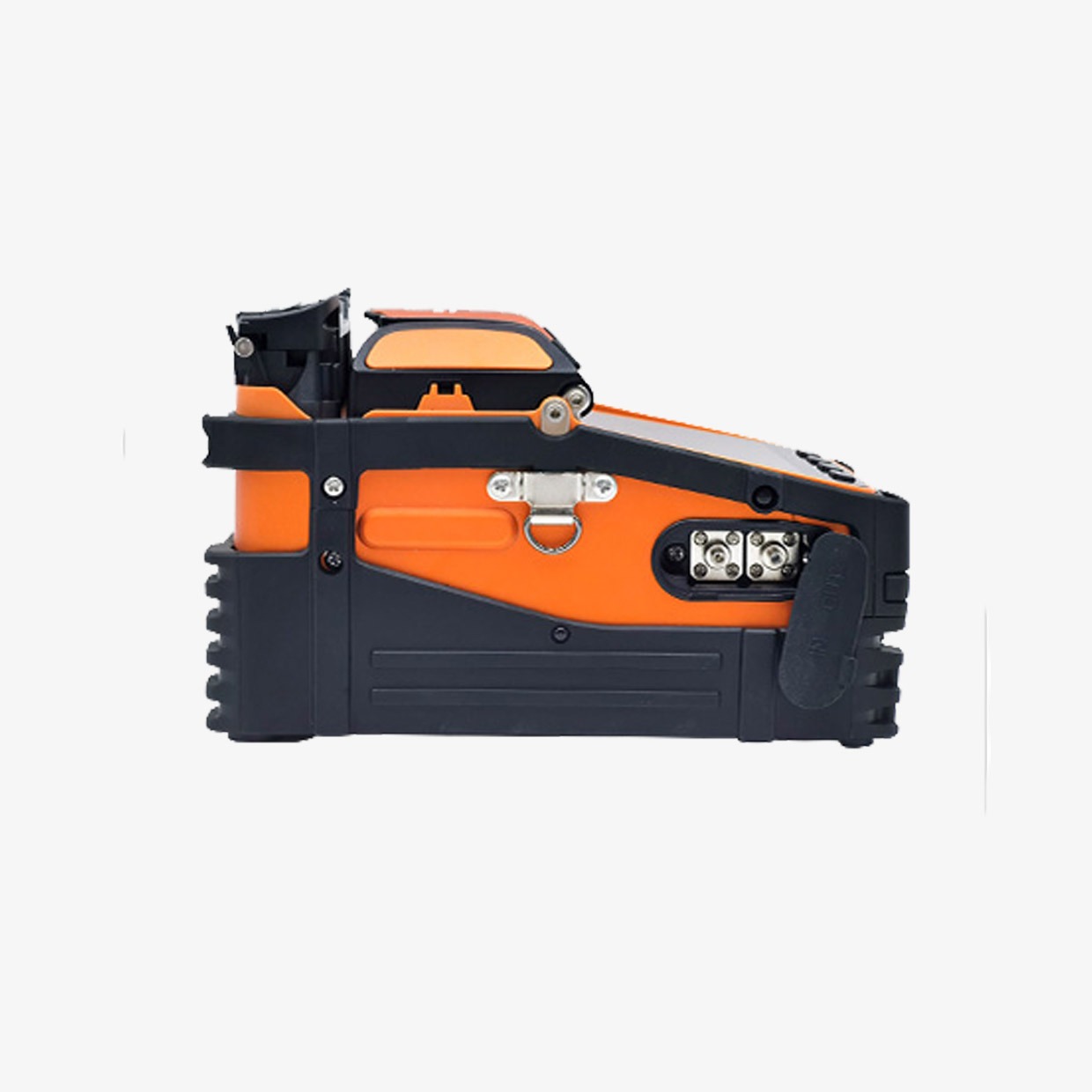

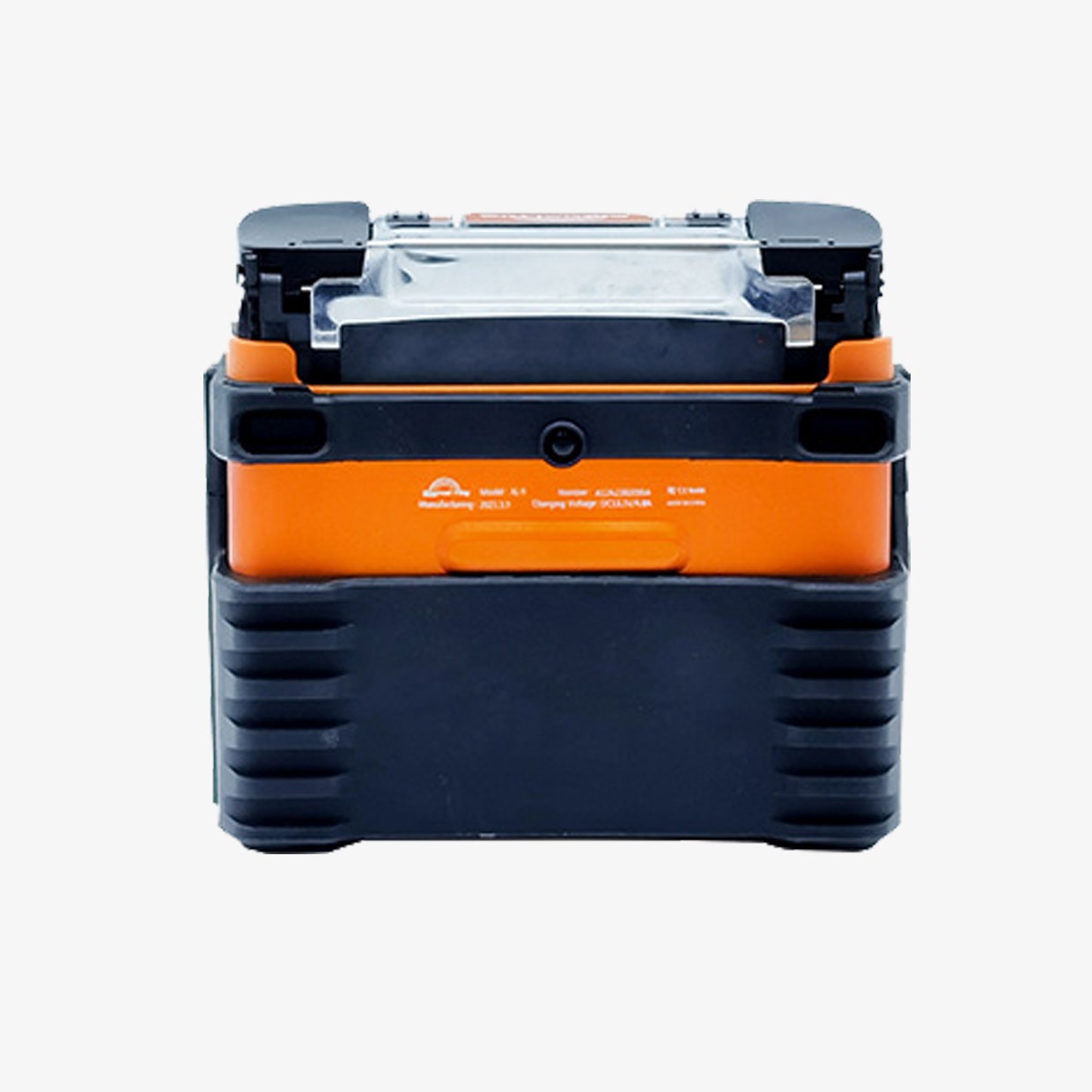

Signal Fire AI-9 — AI Core/Cladding Alignment Fusion Splicer (5 s Splice Time, Bluetooth 4.2, GPS)

Description

The Signal Fire AI-9 Fusion Splicer is an intelligent, high-precision core and cladding alignment fiber splicer engineered for FTTH and backbone fiber deployments. Equipped with six motors and an AI-driven core alignment system, it delivers 5-second splicing and 15-second heat shrink cycles with outstanding consistency and low splice loss.

This splicer supports a wide range of fibers — single-mode (G.652), bend-insensitive (G.657), multi-mode, bare fiber, drop cable, and jumper fiber — using its three-in-one universal fiber holder. A large 7800 mAh lithium battery powers up to 260 splice-and-heat cycles per charge, with < 3.5 hours recharge time.

The 5-inch color TFT display, 320× magnification, Bluetooth 4.2, and Signal Fire mobile APP provide remote management, welding history, data export, and software updates. Built for field durability, the AI-9 is shockproof, waterproof, and dustproof, with integrated 15 mW VFL and optical power meter for full fiber testing capability.

With cloud data sync, GPS, and multi-equipment management, the Signal Fire AI-9 sets a benchmark in precision splicing and smart maintenance for ISPs, contractors, and network professionals.

Application

FTTH / FTTx / FTTB installations, backbone fiber projects, data centers, ISP maintenance, and field splicing operations

Key Features

✔️ AI-based core/cladding alignment with six motors
✔️ Fast 5 s splicing, 15 s heating, and 1 s boot time
✔️ Three-in-one fiber holder (no change needed)
✔️ Supports SM, MM, DS, NZDS, and drop cables
✔️ Bluetooth 4.2, GPS, and mobile APP integration
✔️ 7800 mAh battery — 260 continuous splice cycles
✔️ Built-in 15 mW Visual Fault Locator & Power Meter
✔️ Rugged, waterproof, dustproof, and fall-proof design

Specifications

Specification	Details
Brand	Signal Fire
Model / Product Code	AI-9
Fiber Alignment	Core / cladding
Motor Count	6 motors
Splicing Time	5 s
Heating Time	15 s (adjustable)
Fiber Type	SM (G.652), BIF (G.657), MM, DS, NZDS, drop, jumper, tail, bare
Cladding Diameter	80 – 150 µm
Typical Splice Loss	SM: 0.02 dB / MM: 0.01 dB / DS / NZDS: 0.04 dB
Alignment Mode	Automatic focusing core alignment
Splicing Mode	Automatic / Semi-automatic
Fiber Holder	3-in-1 fixture (no change required)
Battery	7800 mAh lithium (≤ 3.5 h charge, ~260 cycles)
Magnification	320× (X / Y single)
Fiber Diameter	Coating 80–150 µm / Coating 250–1000 µm
Cutting Length	8–16 mm (250 µm) / 16 mm (250–1000 µm)
Heat-shrink Tube Lengths	25 mm / 40 mm / 50 mm / 60 mm
Tensile Test	Standard 2 N
Display	5″ TFT color display
Boot Time	1 s
Data Storage	1000 records local + cloud backup
Wireless Communication	Bluetooth 4.2 (2.4 GHz, 60 m range)
Software Upgrade	Via Signal Fire mobile APP (Bluetooth sync)
Management Function	Remote monitoring via APP – tracks welds, loss, time, usage
Return Loss	> 60 dB
Protection	Waterproof, dustproof, shockproof
Power Supply	AC 100–240 V 50/60 Hz / DC 13.5 V 4.8 A
Operating Environment	–15 °C to +50 °C; < 95 % RH (non-condensing); altitude ≤ 5000 m
Wind Resistance	≤ 15 m/s
Visual Fault Locator	15 mW, 2 Hz flash / constant beam
Optical Power Meter	850 – 1650 nm (–50 to +26 dBm; ± 0.3 dB accuracy)
Dimensions	120 × 130 × 154 mm
Weight	2.1 kg (with battery)
Certifications	CE, RoHS
Warranty	1-Year Limited Hardware Warranty
Package Contents	AI-9 Splicer Kit, Cleaver, Stripper, Power Cord, Battery, Carry Case
