Description

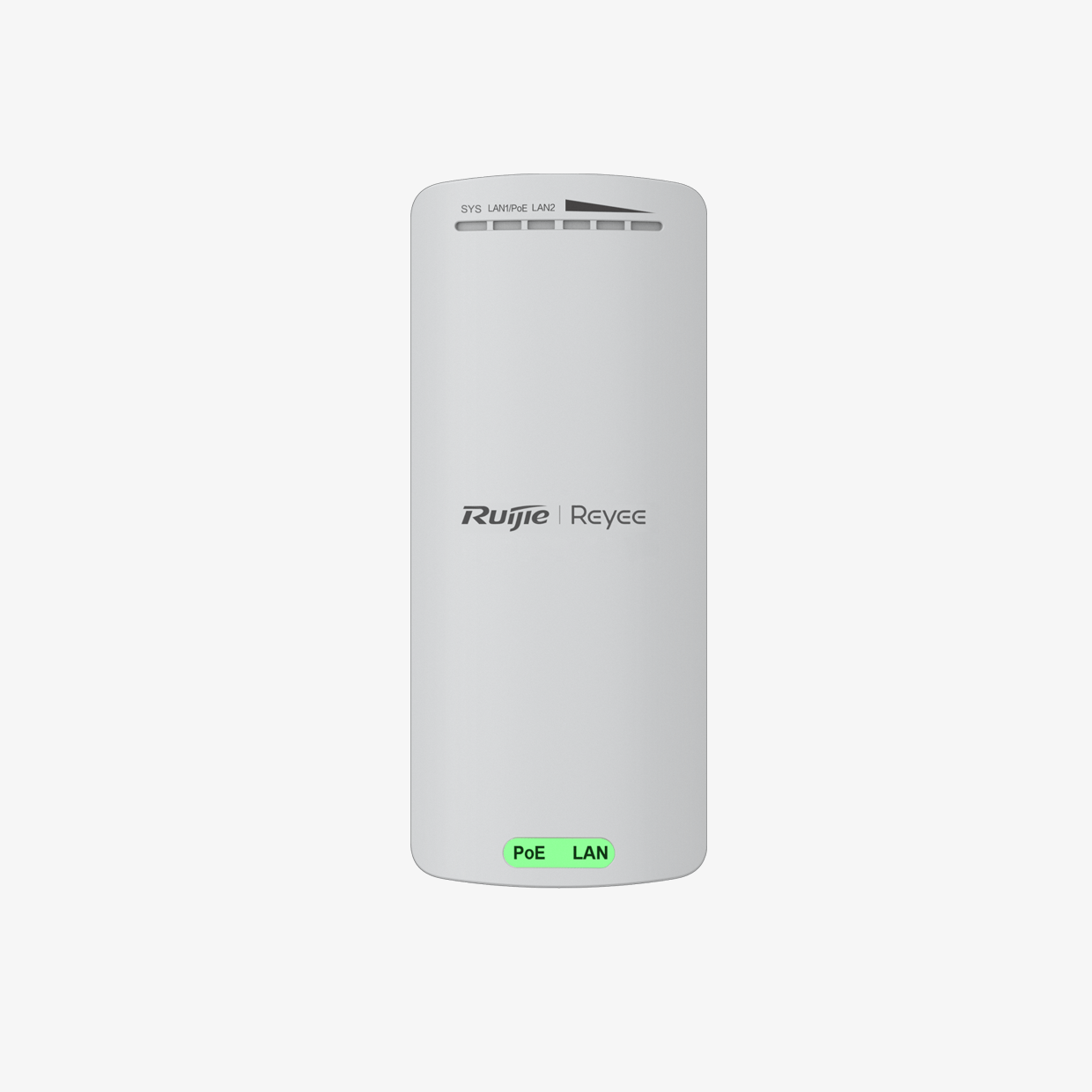

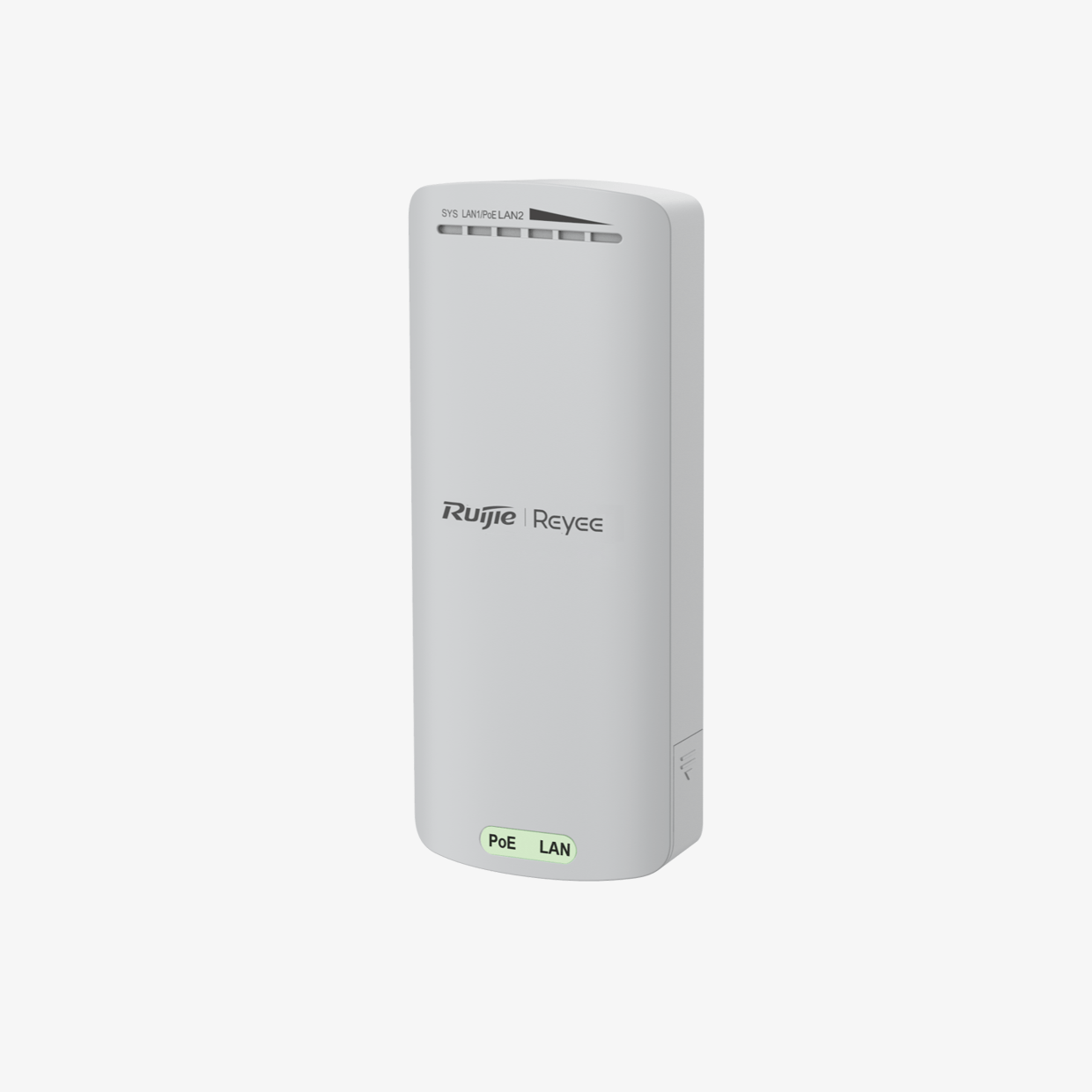

The RG-EST100-E is a purpose-built wireless bridge in the Reyee EST series, optimized for CCTV backhaul, elevator shafts, campus short links, and building-to-building connectivity. Operating in the 2.4 GHz band (802.11b/g/n), it delivers dual-stream (2×2 MIMO) performance, up to 300 Mbps over ideal conditions, and stable real-world throughput for ranges up to 500 m.

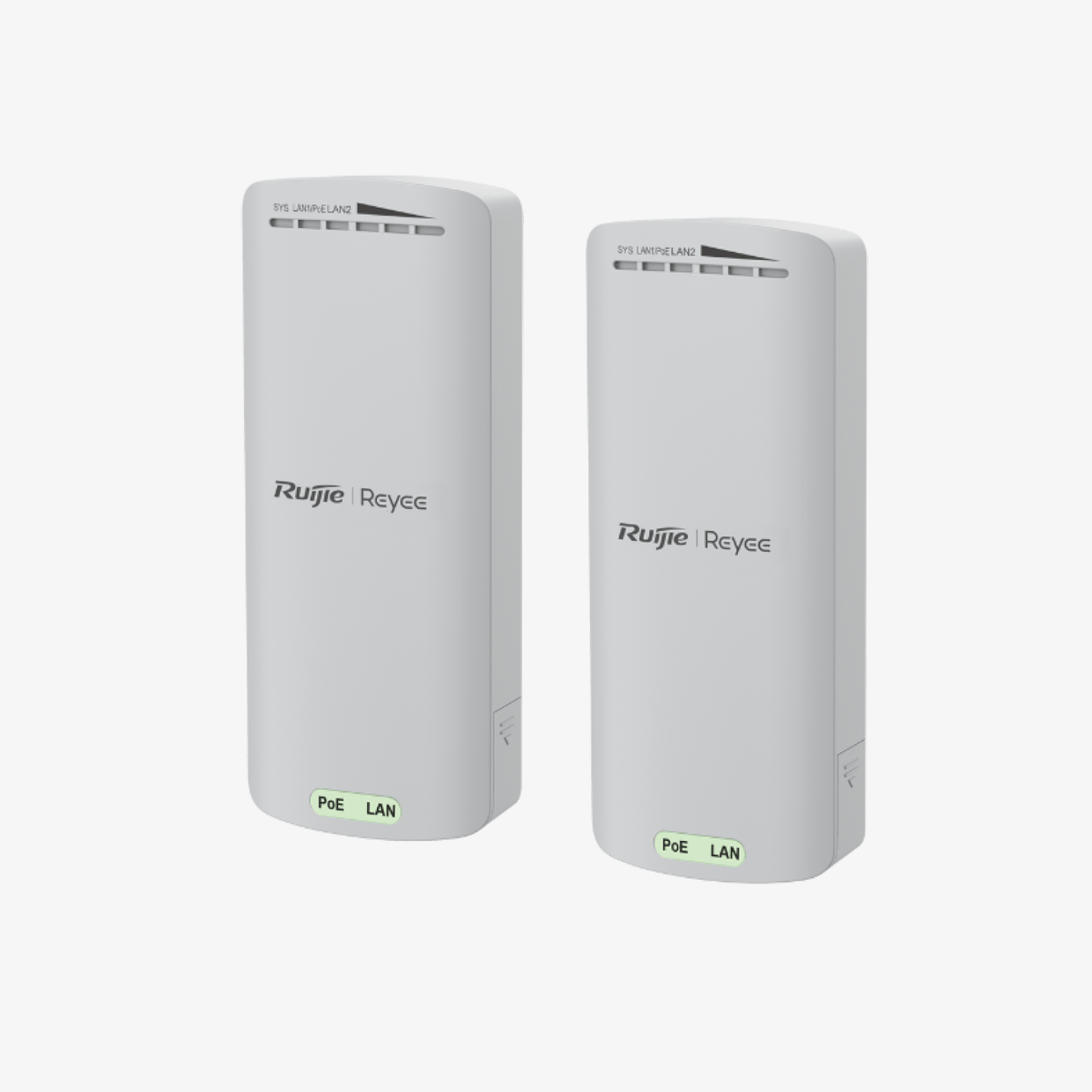

It comes pre-paired in many deployments—meaning no complex alignment required at setup. It supports remote monitoring and statistics via Ruijie Cloud for visual insight into link status, throughput trends, and signal metrics.

Designed for harsh outdoor conditions, the RG-EST100-E carries an IP55 enclosure rating, operational temperature span from –30 °C to +60 °C, and supports ±6 kV common-mode lightning / surge protection.

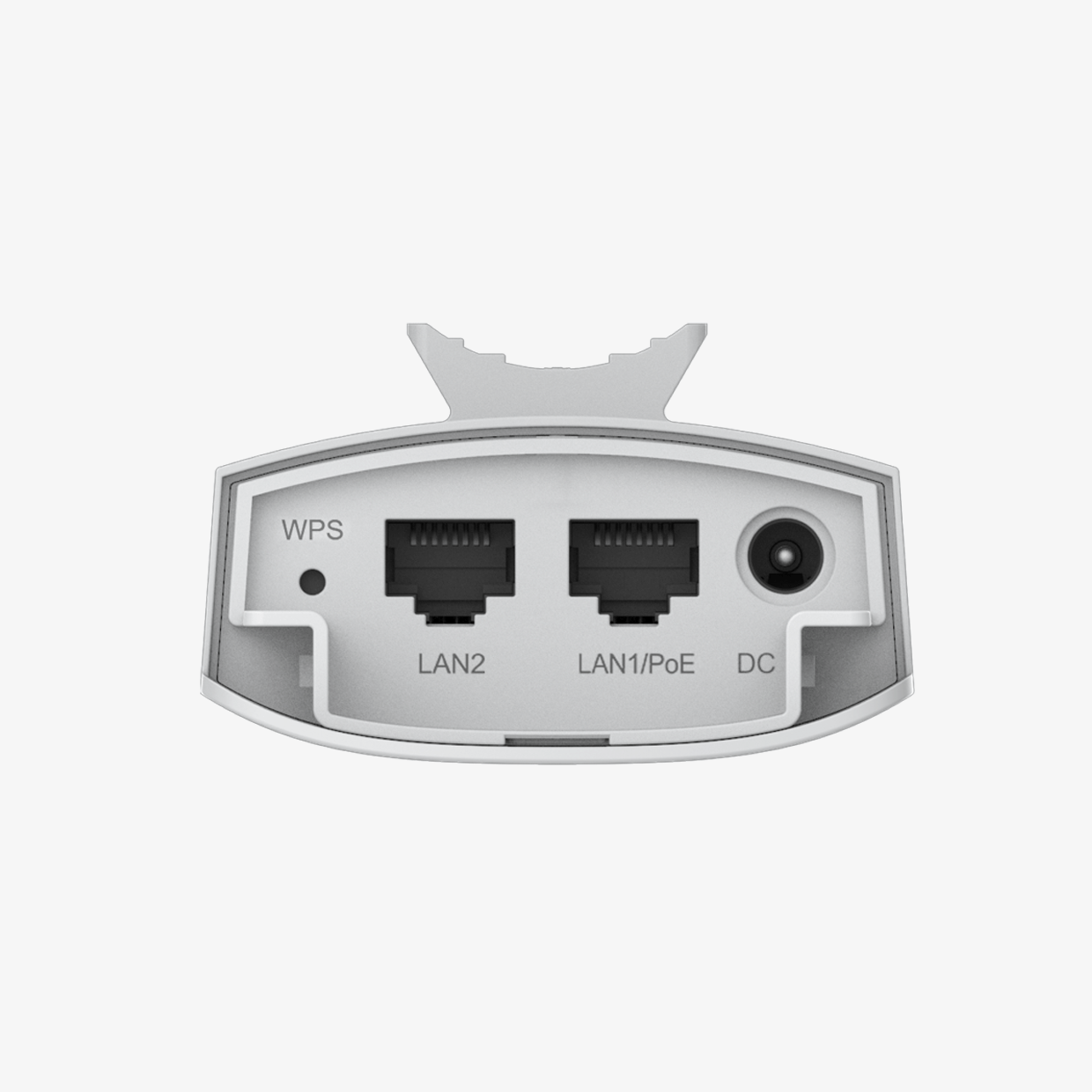

It offers two 10/100Base-T Ethernet ports, with LAN1 also supporting 12 V passive PoE input to simplify power wiring.

This bridge is ideal for short-range wireless backhaul tasks: linking remote camera stations, connecting buildings in tight campus layouts, or bridging network gaps where fiber or cables are impractical. Its robust design and ease-of-deploy nature make it a compelling choice for CCTV integrators and network installers.

Application

CCTV backhaul, Point-to-point short links (≤ 500 m), Elevator / shaft connectivity, Campus building links, Surveillance bridges, Small network extensions

Key Features

✔️ 2.4 GHz dual-stream radio (802.11n)
✔️ Up to 300 Mbps expected real throughput
✔️ Bridging support up to 500 meters
✔️ Dual Ethernet ports (10/100 Mbps), with LAN1 supporting Passive PoE
✔️ IP55 weatherproof design, –30 °C to +60 °C operational range
✔️ ±6 kV surge / lightning protection
✔️ Pre-paired factory configuration for simple setup
✔️ Ruijie Cloud monitoring support
✔️ Compact, robust for outdoor installation
