Description

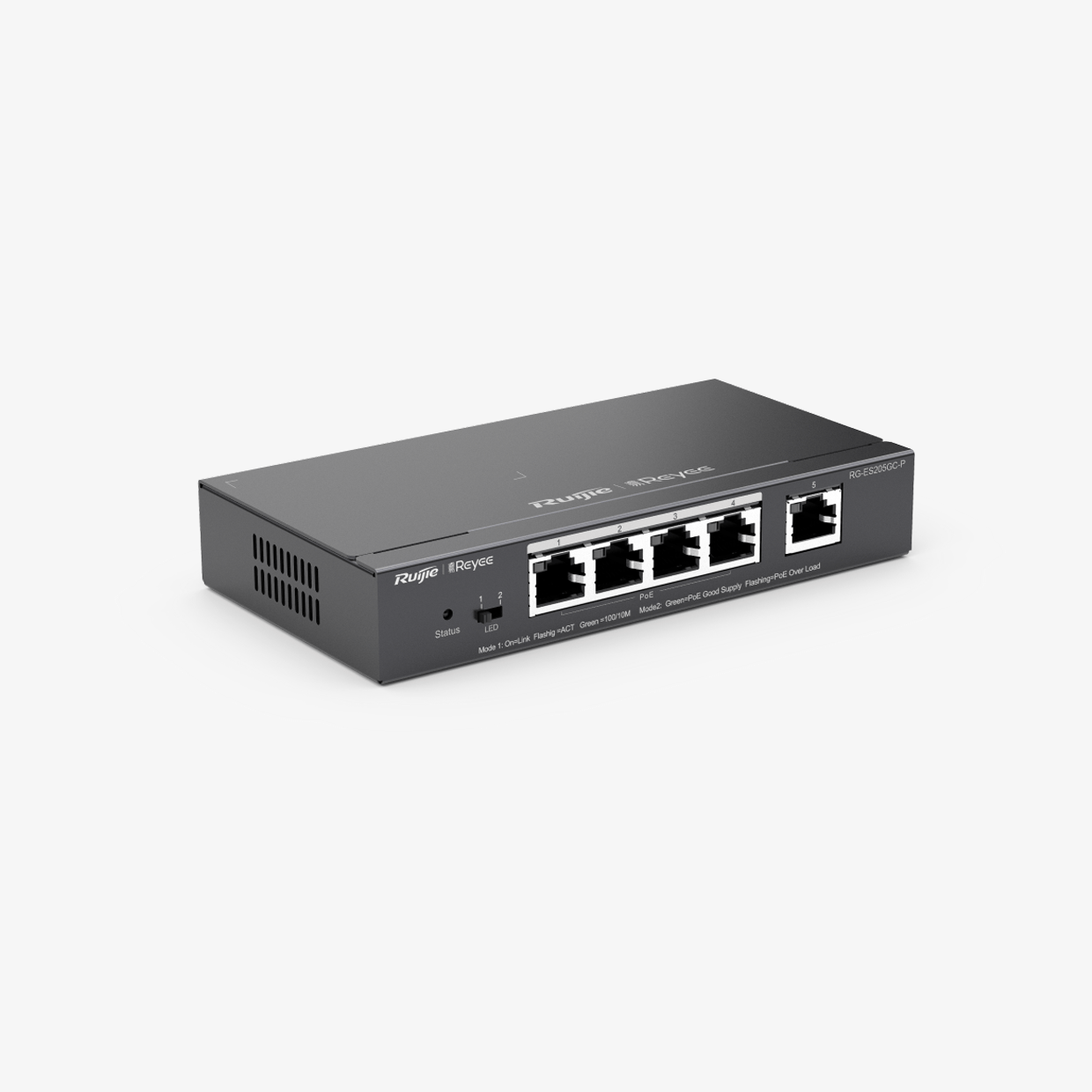

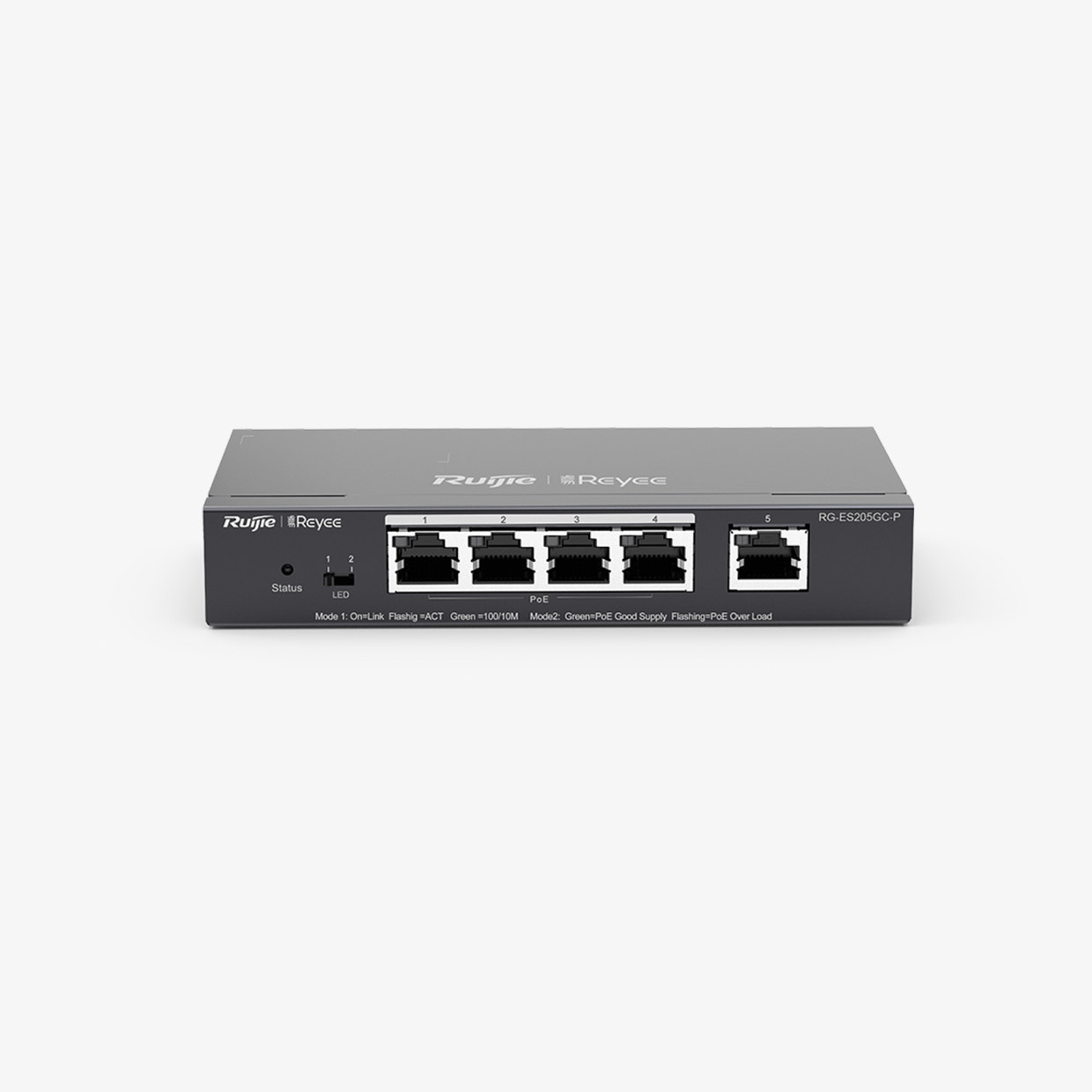

The Ruijie Reyee RG-ES205GC-P is a compact 5-port Gigabit smart cloud-managed PoE switch engineered for small-scale but high-performance networks. Designed for CCTV surveillance, home offices, and small businesses, this model combines Gigabit connectivity with intelligent PoE+ power delivery in a single cost-effective solution.
Equipped with 5 Gigabit Ethernet ports, 4 of which support IEEE 802.3af/at PoE+ with a total budget of 54 W, the RG-ES205GC-P simplifies deployments by powering IP cameras, wireless access points, or VoIP phones directly over Ethernet. This reduces cabling complexity and eliminates the need for extra power adapters. With a switching capacity of 10 Gbps and a forwarding rate of 7.44 Mpps, it delivers smooth data transmission for high-demand applications.
The switch includes support for VLAN segmentation, MAC address learning, and loop prevention, ensuring both performance and stability. Its fanless design provides silent operation, while 4 kV port surge protection enhances long-term durability. Cloud-based management via the Ruijie Cloud platform allows easy configuration, remote monitoring, and troubleshooting from anywhere.
With CE certification, an MTBF of over 200,000 hours, and a 3-year warranty, the RG-ES205GC-P is a dependable solution for professional networking environments such as retail shops, schools, barangay surveillance systems, and small ISPs.
Application
Small offices, Enterprise networks, ISPs, CCTV deployments, Home Wi-Fi, Barangay surveillance networks, Local ISPs/WISPs, Internet cafés, Schools and LGUs, Rural CCTV installations
Key Features
✔️ 5 × Gigabit Ethernet ports, including 4 × PoE+ ports
✔️ 54 W total PoE budget with IEEE 802.3af/at support
✔️ 10 Gbps switching capacity and 7.44 Mpps forwarding rate
✔️ Supports VLAN, MAC learning, and loop prevention

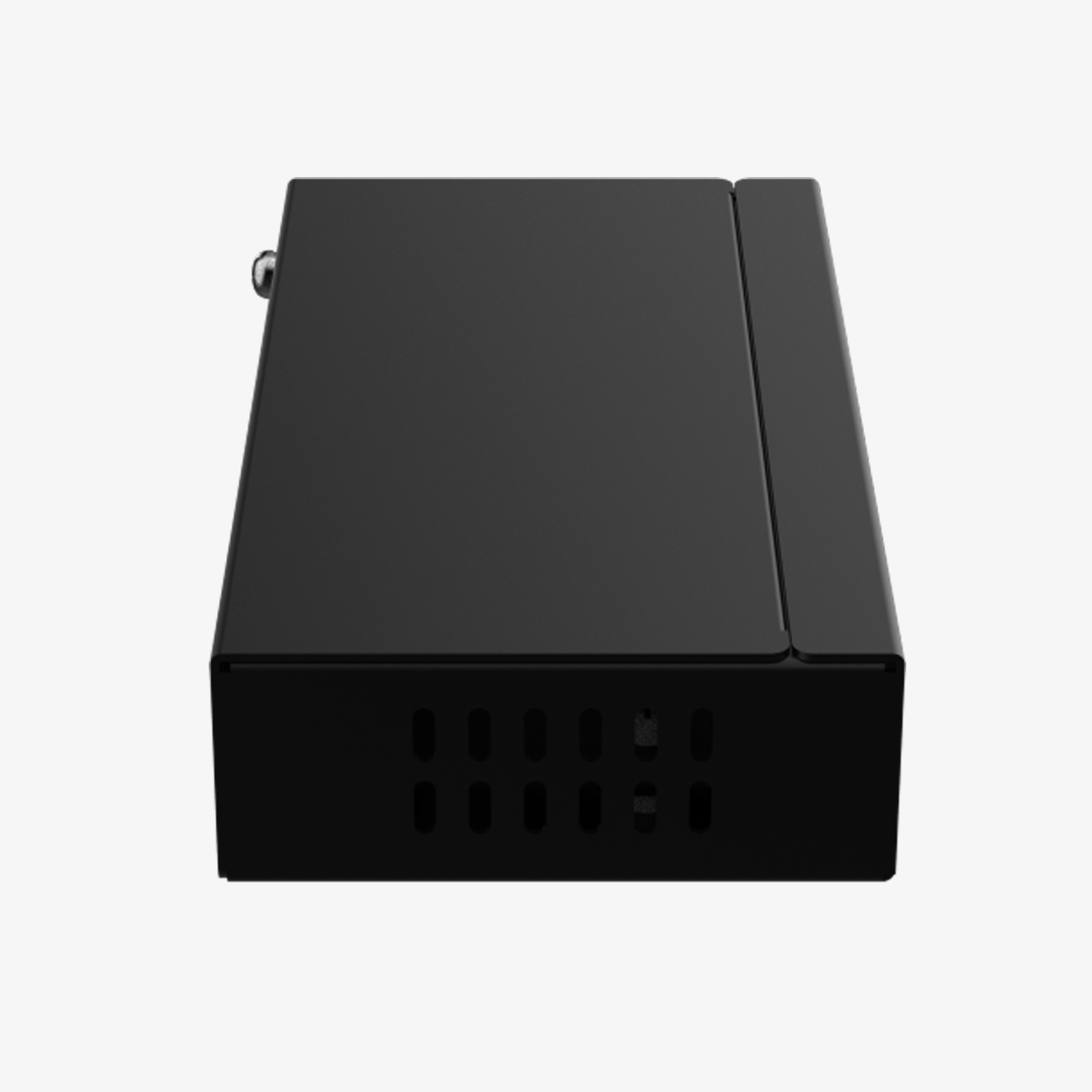

✔️ Fanless design ensures silent operation
✔️ 4 kV port surge protection for enhanced reliability
✔️ Cloud management via Ruijie Cloud platform and app
✔️ Backed by CE certification and 3-year warranty
