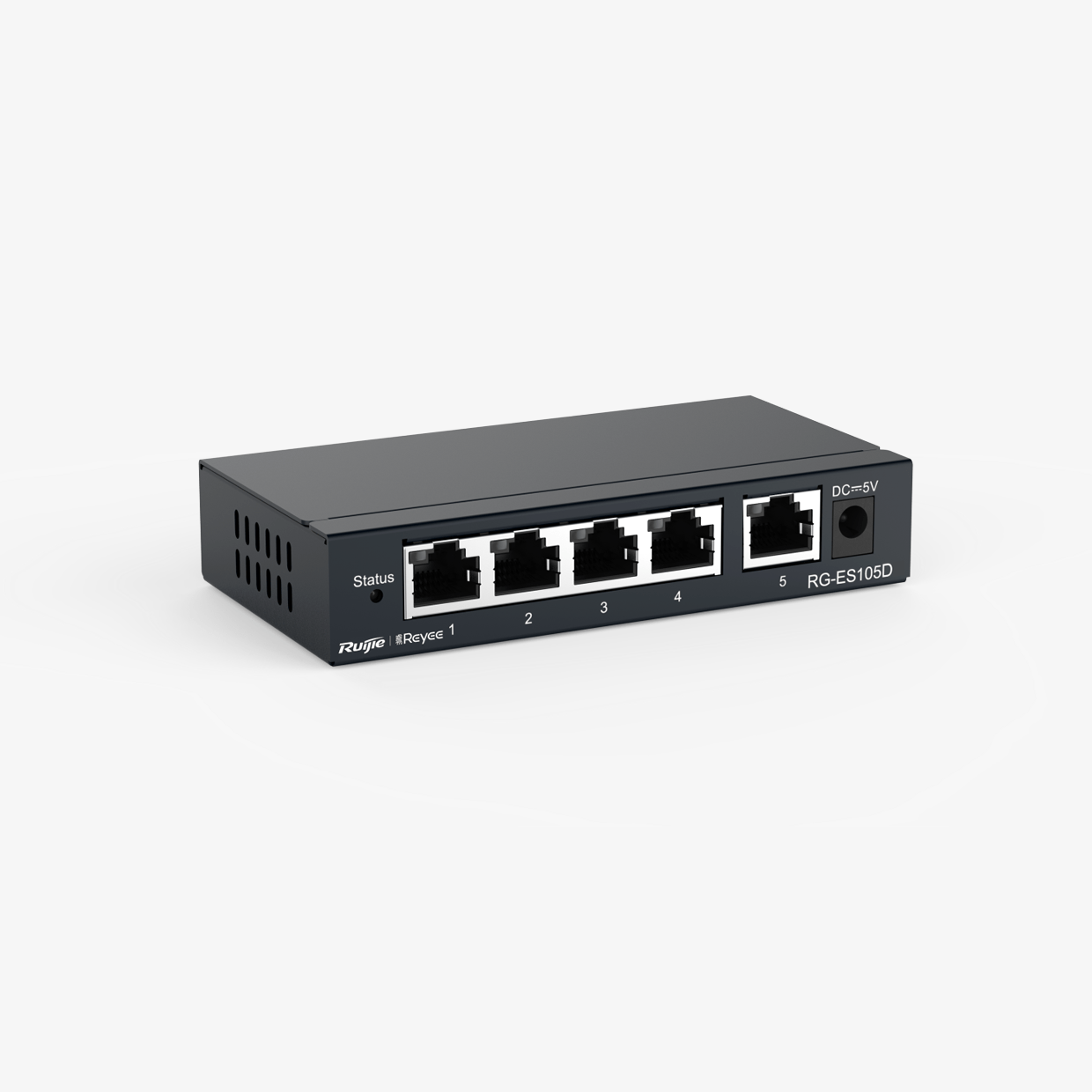

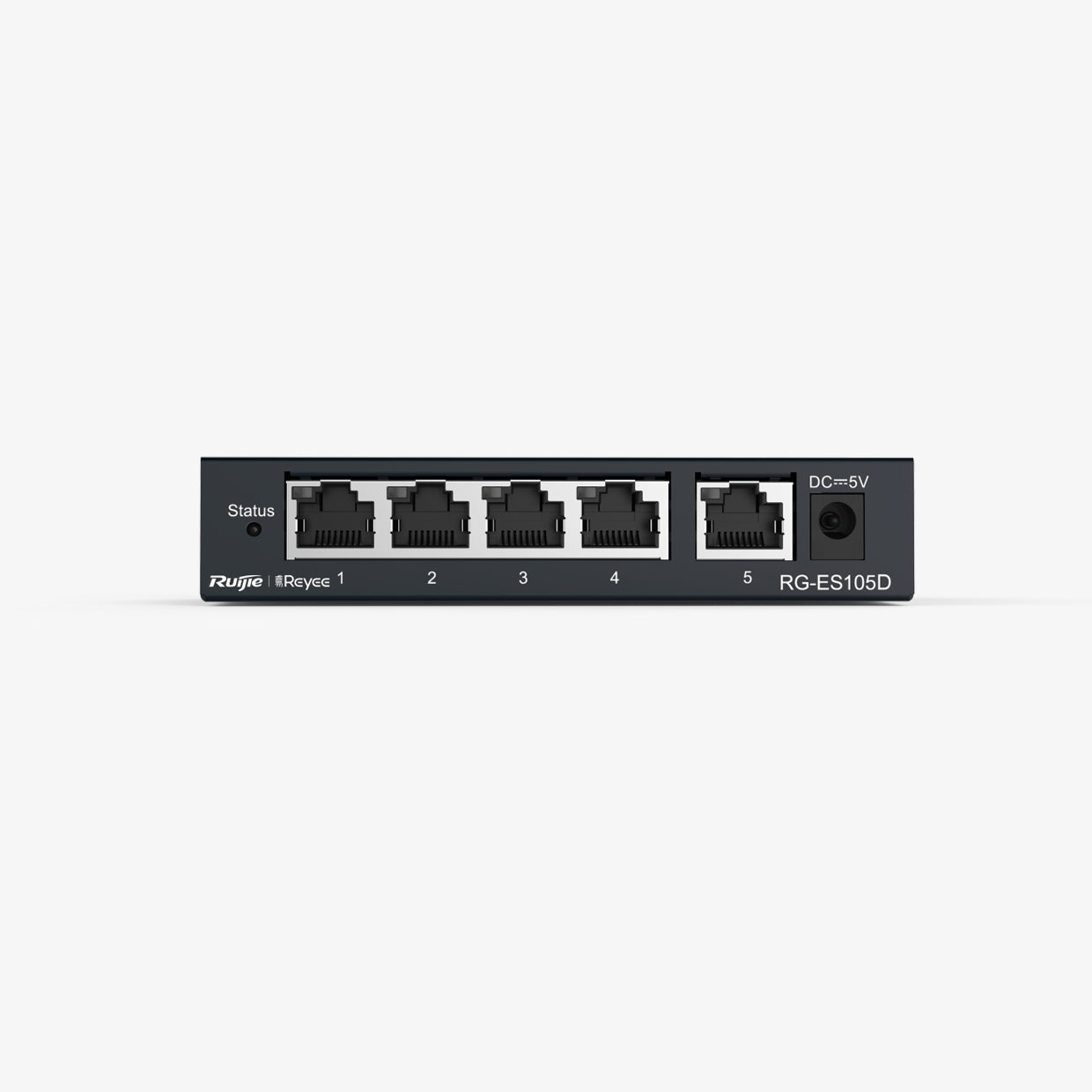

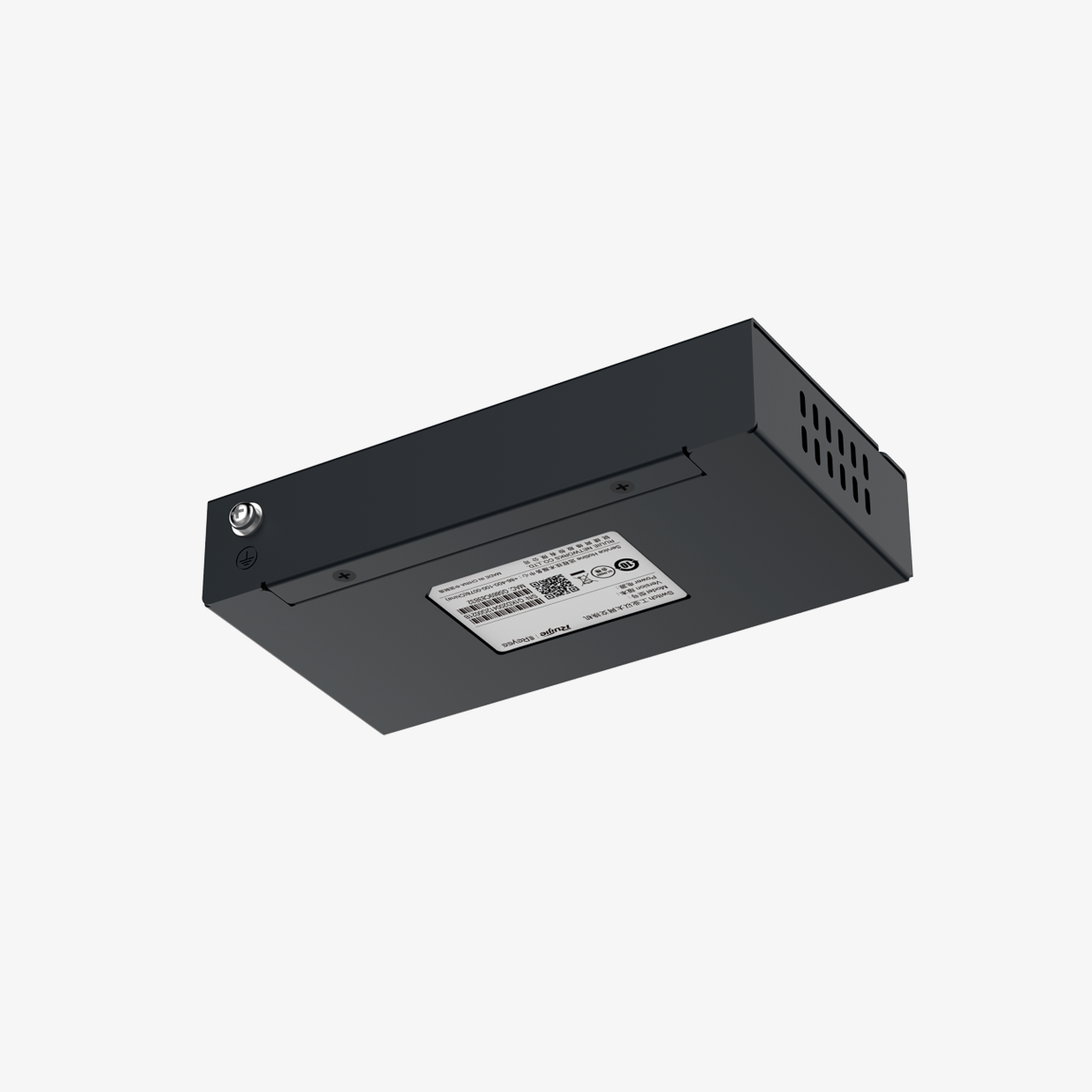

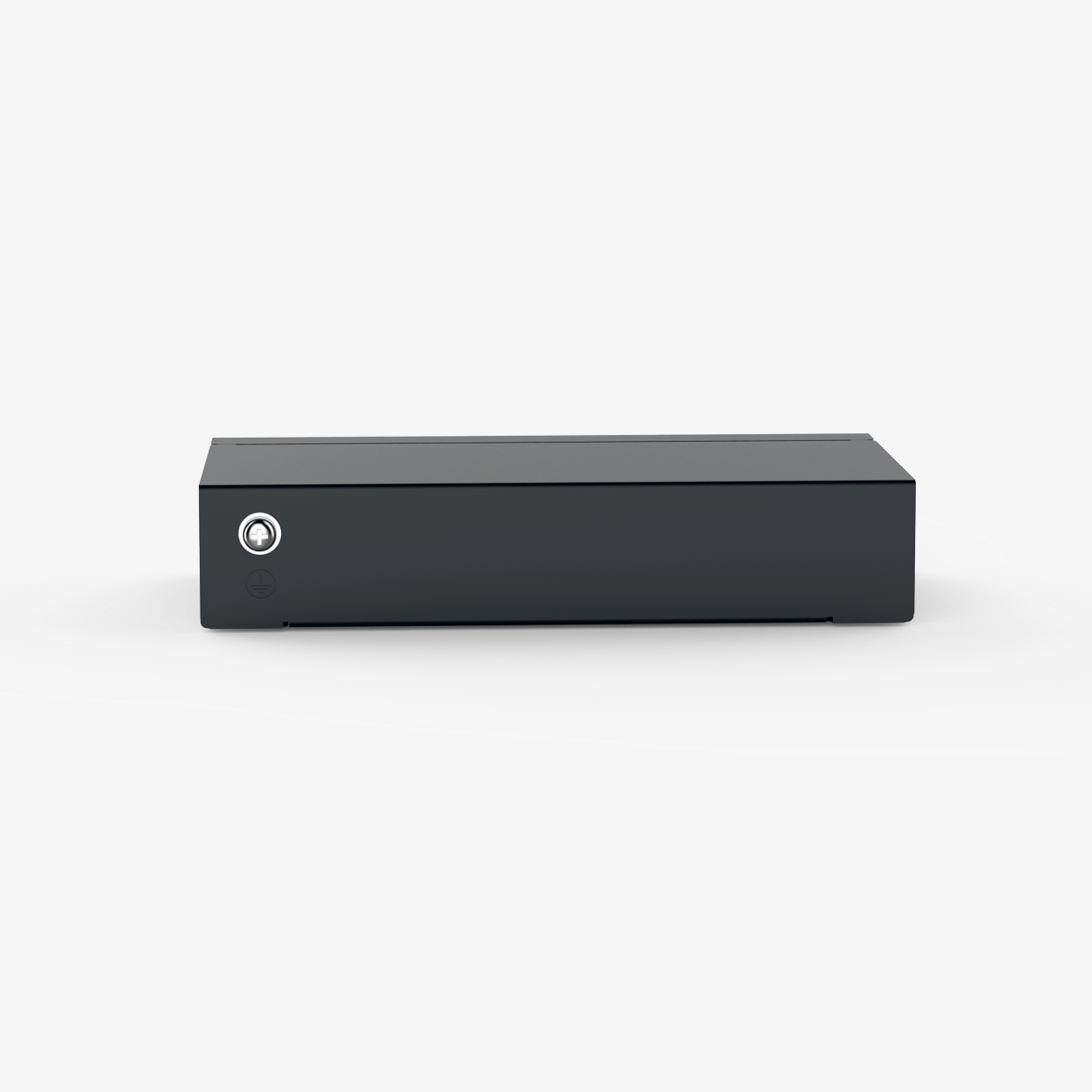

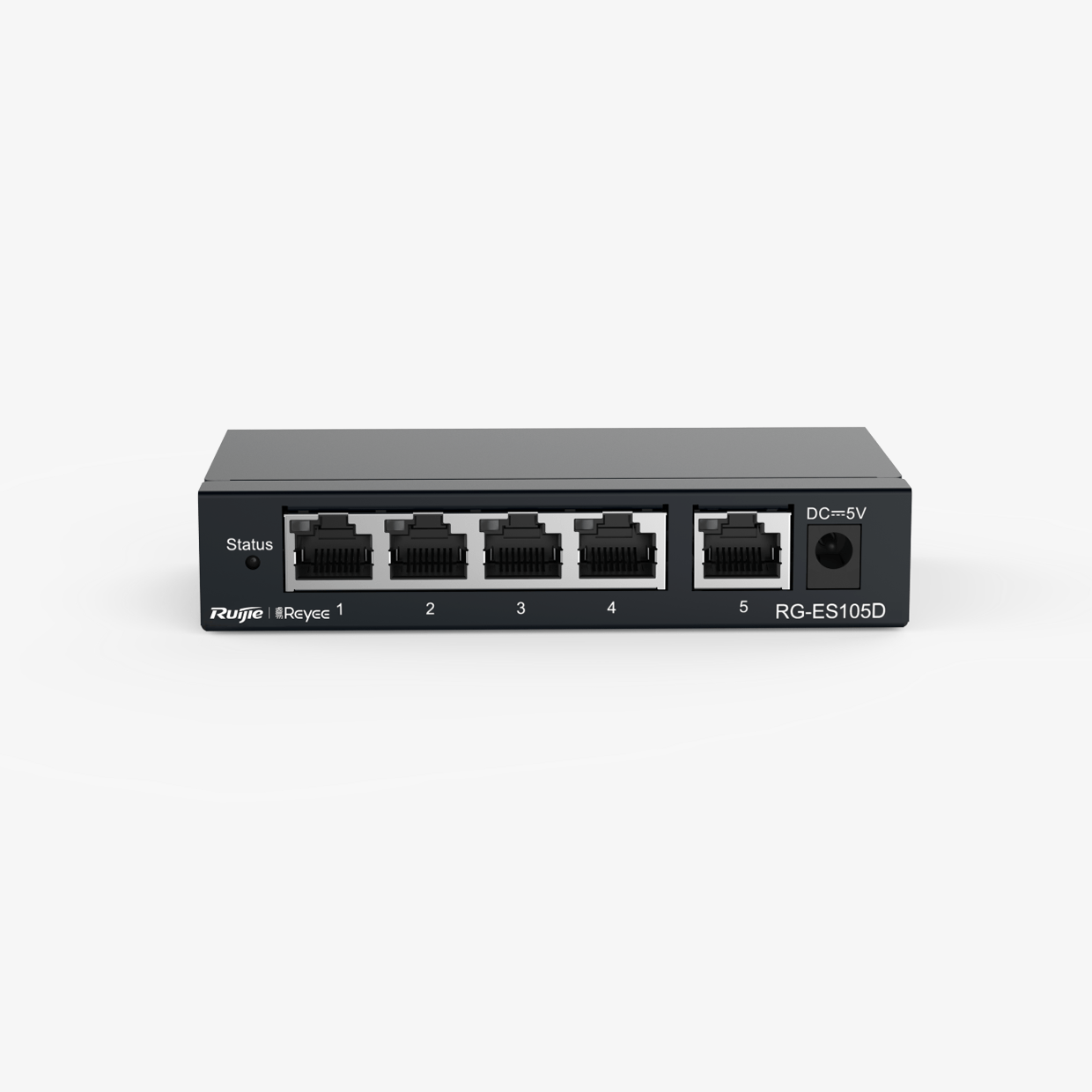

Ruijie Reyee RG-ES105D — 5-Port Unmanaged Desktop Switch

The Ruijie Reyee RG-ES105D is a 5-port unmanaged 10/100 Mbps desktop switch ideal for small offices, CCTV setups, and home networks. It offers plug-and-play simplicity, 1 Gbps switching capacity, and up to 744 Kpps forwarding. With a fanless, silent design and compact build, it’s a reliable choice for expanding wired connectivity without configuration.

Description

The RG-ES105D is a 5-port Fast Ethernet unmanaged switch from the Reyee ES100 series. Designed for simplicity and reliability, it’s perfect for small networks, CCTV systems, or adding extra ports to routers or NVRs. Because it’s unmanaged, setup is effortless — no configurations required.

It delivers a switching capacity of 1 Gbps and can forward traffic at up to 744 Kpps. The MAC address table supports up to 1,000 entries. To protect connected devices, the switch includes a 6 kV surge protection rating on ports.

The RG-ES105D operates silently with zero fan noise and comes in a compact, durable metal (or plastic variant) casing. It is also visible in the Ruijie Cloud interface when co-deployed with managed switches. Backed by a 3-year warranty, it’s a cost-effective, low-maintenance solution for wired expansion.


Application

Home networks, CCTV deployments, Small offices, Retail outlets, Branch offices, Network extension, Edge wiring closets


Key Features

✔️ 5 × 10/100 Mbps Ethernet ports (Fast Ethernet)
✔️ 1 Gbps switching capacity
✔️ Forwarding rate up to 744 Kpps
✔️ Supports up to 1,000 MAC addresses
✔️ Silent, fanless operation
✔️ 6 kV port surge protection
✔️ Unmanaged plug-and-play simplicity
✔️ Visible in Ruijie Cloud when with managed devices
✔️ 3-year warranty

Specifications

SpecificationDetails
Ports5 × 10/100Base-T (Fast Ethernet)
PoENot supported
Layer TypeUnmanaged
Switching Capacity1 Gbps
Forwarding Rate744 Kpps
MAC Address Table1,000 entries
Maximum VLANsNot applicable
Cooling / FanFanless
Port Surge Protection6 kV
Dimensions (W × D × H)119 × 62 × 24 mm
Weight (with package)~0.45 kg
MTBFNot specified by vendor
Warranty3 Years
CertificationsCE (implied)
Package ContentsRG-ES105D switch, power adapter, quick guide
