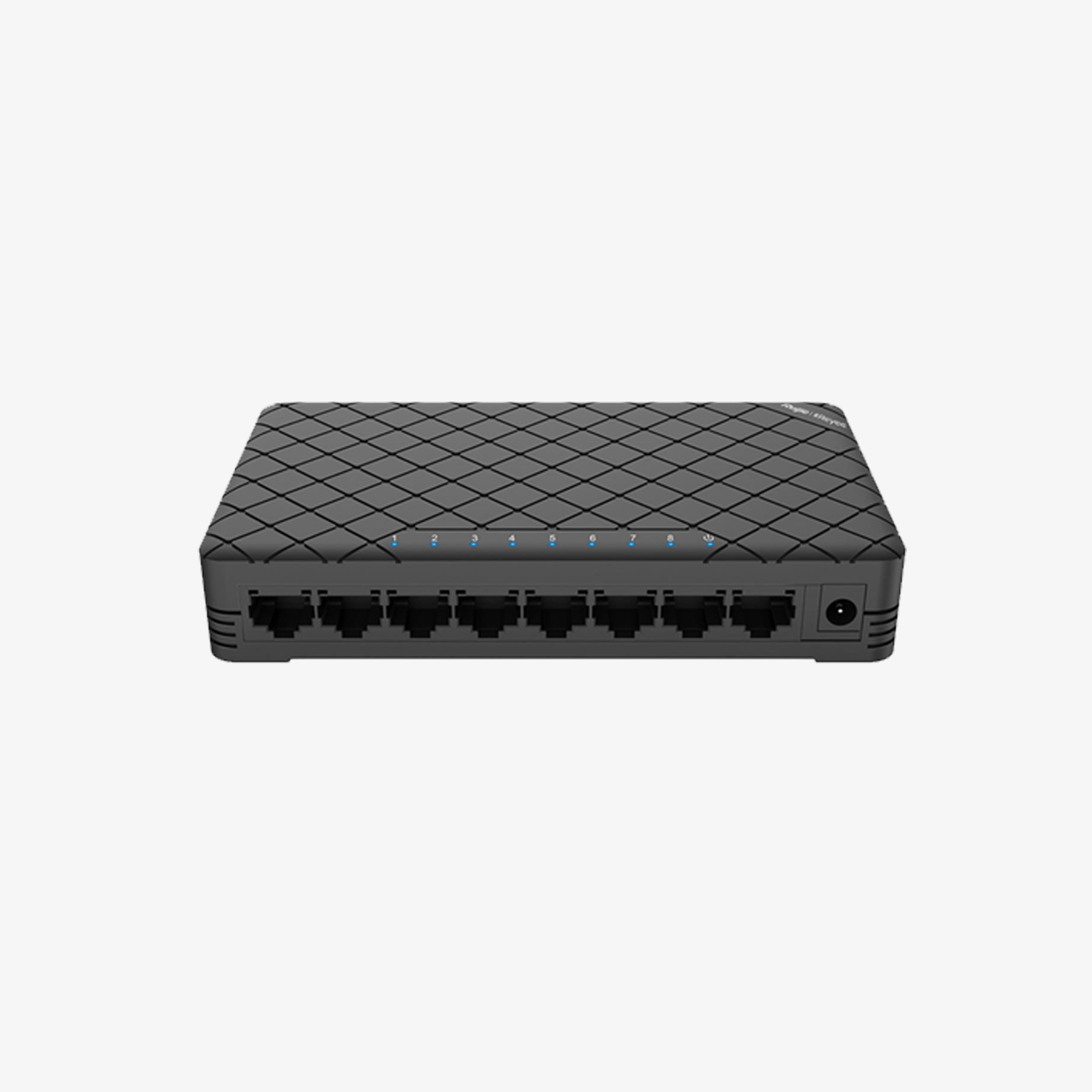

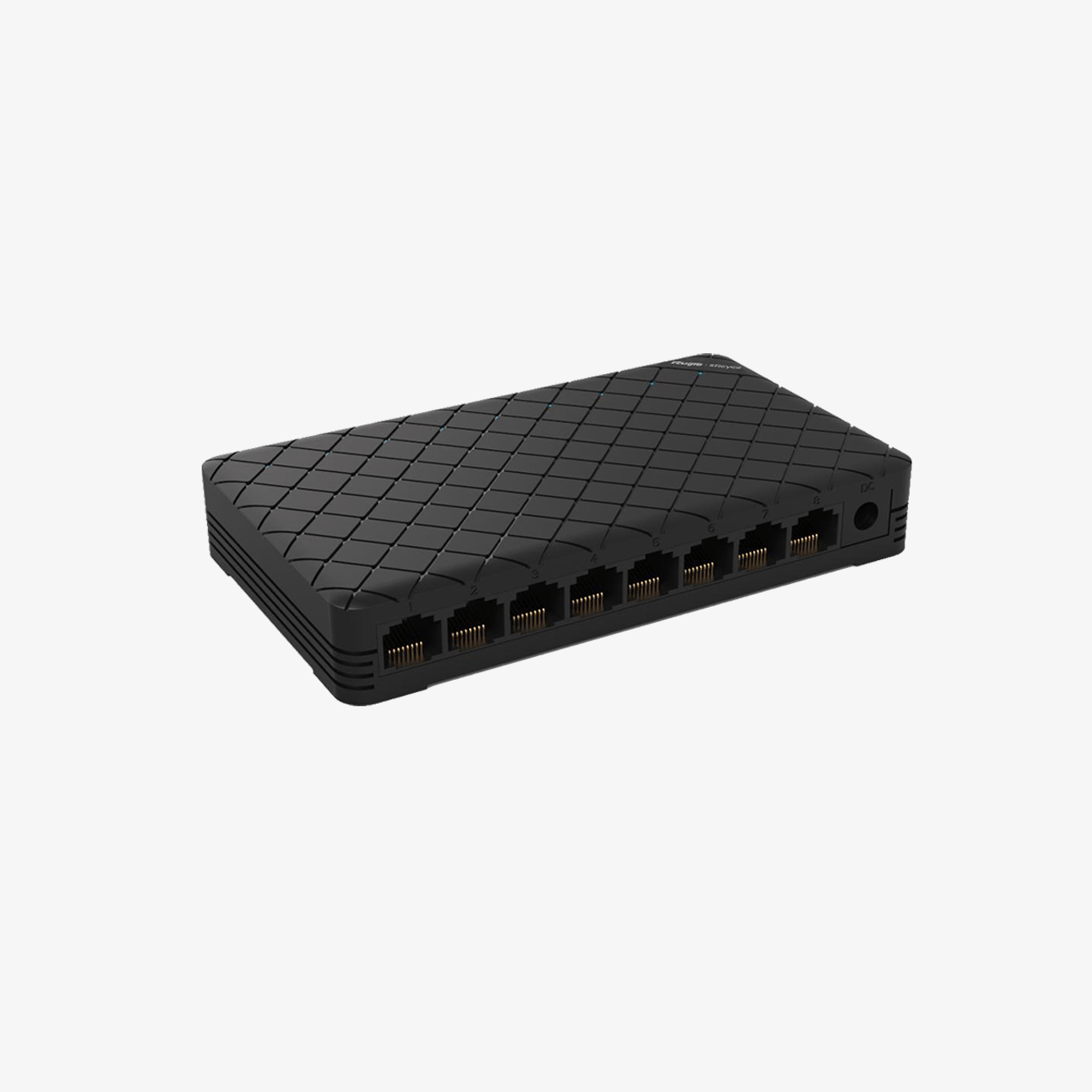

Ruijie Reyee RG-ES08 — 8-Port Unmanaged Desktop Switch

The Ruijie Reyee RG-ES08 is an 8-port unmanaged Fast Ethernet desktop switch ideal for small offices, CCTV systems, and home networks. It features 10/100 Mbps auto-sensing ports, plug-and-play operation, and a silent, fanless design. With efficient power consumption and automatic energy-saving features, it’s an excellent choice for adding network capacity with minimal fuss and zero configuration.

Description

The Ruijie Reyee RG-ES08 belongs to the “Real-easy” plastic series of unmanaged desktop switches, designed for plug-and-play simplicity in small networks, surveillance deployments, and SOHO (Small Office/Home Office) environments.

This model provides 8 × 10/100 Mbps auto-sensing Ethernet ports, allowing you to connect cameras, PCs, printers, and other network devices without needing configuration. Backplane bandwidth is 1.6 Gbps, and the forwarding rate is 1.1904 Mpps.

It supports a MAC address table of 1,000 entries. The RG-ES08 draws minimal power (≤ 3.5 W) and is powered by an external 5 V DC / 0.6 A adapter. The design is fanless, leading to silent operation and minimal maintenance.

Its physical size is 144 × 85 × 23 mm and packaged weight about 0.33 kg. The operating temperature is from 0 °C to 40 °C, and storage temperature from –40 °C to 70 °C. The switch also supports basic energy-saving functions—unused ports lower power draw automatically.

With its compact build, silent operation, and zero-configuration approach, the RG-ES08 is ideal for users wanting to expand network ports quickly and reliably.


Application

Home networks, CCTV systems, Small offices, Retail outlets, Branch offices, Edge wiring closets, SOHO deployments


Key Features

✔️ 8 × 10/100 Mbps auto-sensing Ethernet ports
✔️ Plug-and-play, zero-configuration switch
✔️ 1.6 Gbps switching capacity, 1.1904 Mpps forwarding rate
✔️ Supports up to 1,000 MAC address entries
✔️ Silent fanless operation — no moving parts
✔️ Energy-saving functionality (idle ports reduce power)
✔️ Rugged plastic housing with heat dissipation vents
✔️ Compact desktop form factor
✔️ Low power consumption (≤ 3.5 W)
✔️ Wall-mountable via hidden holes
✔️ CE compliant, tested for reliability

Specifications

SpecificationDetails
Ports8 × 10/100 Mbps (Fast Ethernet)
PoENot supported
Layer TypeUnmanaged
Switching Capacity1.6 Gbps
Forwarding Rate1.1904 Mpps
MAC Address Table1,000 entries
Maximum VLANsNot applicable
Cooling / FanFanless
Power SupplyExternal DC 5 V / 0.6 A adapter
Max Power Consumption≤ 3.5 W
Dimensions (W × D × H)144 × 85 × 23 mm
Weight (with package)0.33 kg
Operating Temperature0 – 40 °C
Storage Temperature–40 – 70 °C
Operating Humidity10% – 90% RH
Storage Humidity5% – 95% RH
CertificationsCE
Surge Protection / Other SpecsNot explicitly listed
Package ContentsRG-ES08 switch, power adapter, user guide
