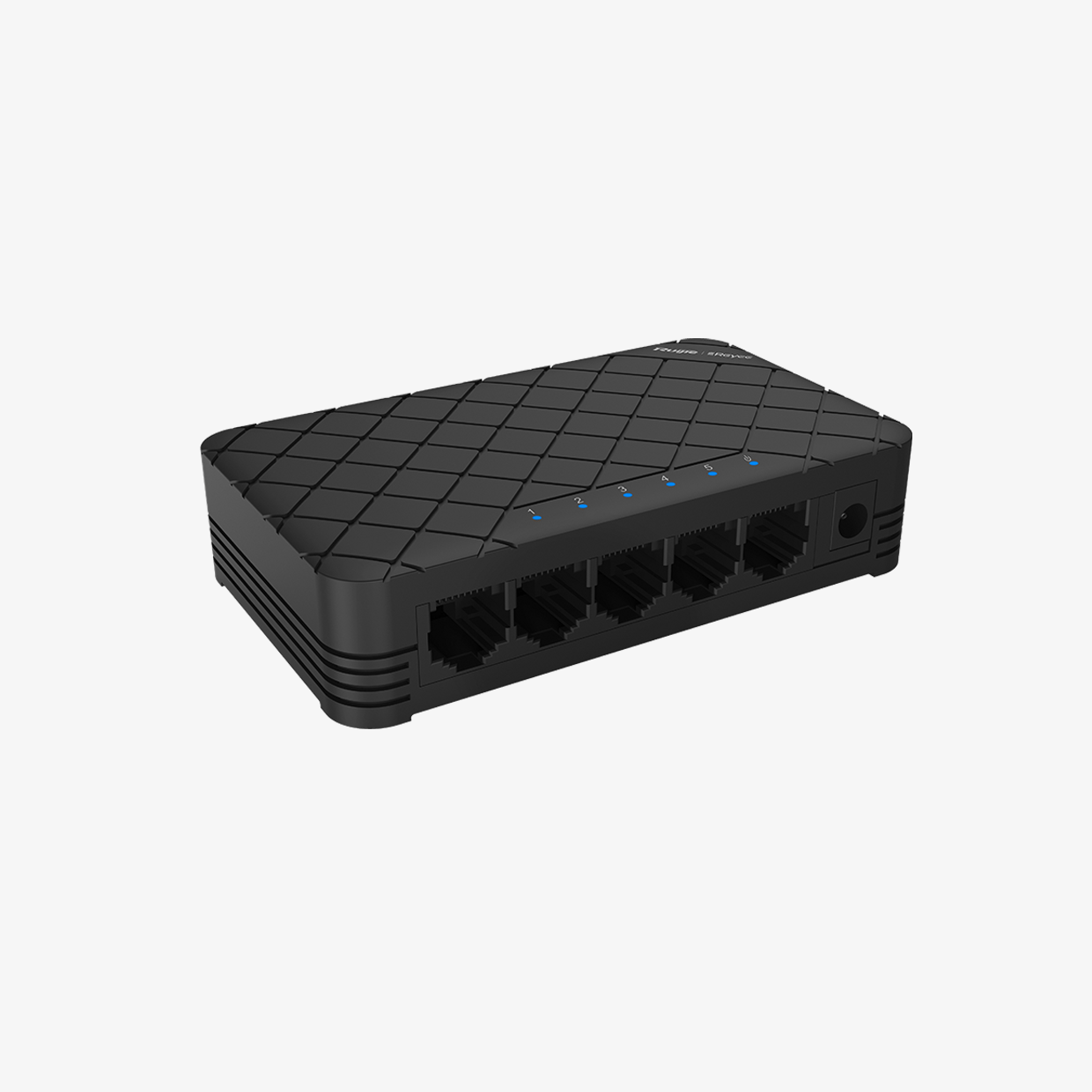

Ruijie Reyee RG-ES05 — 5-Port Unmanaged Desktop Switch

The Ruijie Reyee RG-ES05 is a compact, 5-port unmanaged 10/100 Mbps desktop switch ideal for small offices, CCTV systems, and home networking. It supports plug-and-play operation, low power consumption (< 2.5 W), and silent, fanless performance. Built for simplicity and durability, it’s an excellent choice when you need basic wired expansion without configuration.

Description

The RG-ES05 is part of the Reyee “Real-easy” plastic switch series—designed for small enterprises, surveillance systems, SOHO setups, and home networks. With zero configuration required, the switch works the moment you plug it in, making deployment fast and hassle-free.

This model offers 5 auto-sensing 10/100 Mbps Ethernet ports with a backplane bandwidth of 1 Gbps and a forwarding rate of 0.744 Mpps. Its MAC address table supports up to 1,000 entries. Power is delivered via an external AC adapter (5.0 V / 0.6 A), consuming no more than ~2.5 W under load.

Featuring a fanless design, the RG-ES05 operates silently and relies on natural heat dissipation. Its compact footprint (108.1 × 64 × 24.8 mm) and lightweight build (0.19 kg with packaging) make it easy to place on desks or in small wiring spaces. It is rated to operate in temperatures from 0 °C to 40 °C and store between –40 °C and 70 °C.

In summary, the RG-ES05 is ideal when you need a simple, reliable switch for basic wired connectivity—no configuration, quiet operation, and minimal power draw.


Application

Home networks, CCTV deployments, Small offices, Retail outlets, Branch offices, Edge wiring closets, SOHO setups


Key Features

✔️ 5 × 10/100 Mbps Ethernet ports (auto-negotiation)
✔️ 1 Gbps backplane bandwidth
✔️ Forwarding rate up to 0.744 Mpps
✔️ 1,000-entry MAC address table
✔️ Silent, fanless operation
✔️ Low power consumption (< 2.5 W)
✔️ Plug-and-play, zero configuration
✔️ Compact and lightweight (108.1 × 64 × 24.8 mm, ~0.19 kg)
✔️ Operating temperature 0 – 40 °C, storage –40 – 70 °C

Specifications

SpecificationDetails
Ports5 × 10/100 Mbps Base-TX
PoENot supported
Layer TypeUnmanaged (Layer 2 auto)
Backplane / Switching Bandwidth1 Gbps
Forwarding Rate0.744 Mpps
MAC Address Table1,000 entries
Maximum VLANsNot applicable (unmanaged)
Cooling / FanFanless (passive)
Power SupplyExternal DC 5.0 V / 0.6 A
Power Consumption≤ 2.5 W
Operating Temperature0 ~ 40 °C
Storage Temperature–40 ~ 70 °C
Dimensions (W × D × H)108.1 × 64 × 24.8 mm
Weight (with package)0.19 kg
