Description

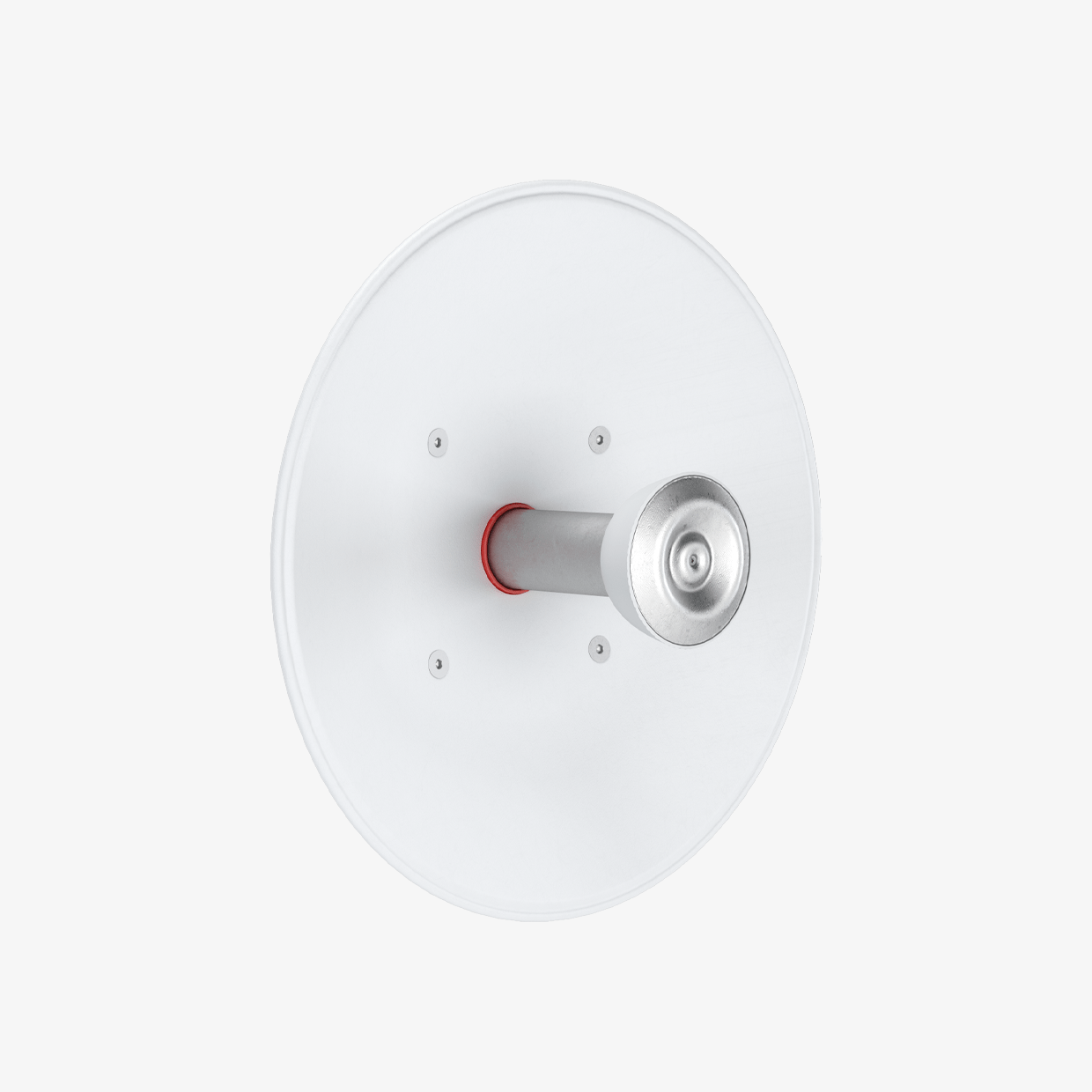

The UltraDish™ TP-24 (2-Pack) from RF Elements delivers exceptional performance for demanding wireless networks, including subscriber modules and point-to-multi-point (PtMP) deployments. With a 24.4 dBi gain, it ensures excellent signal strength and throughput over the 5180-6775 MHz frequency range.

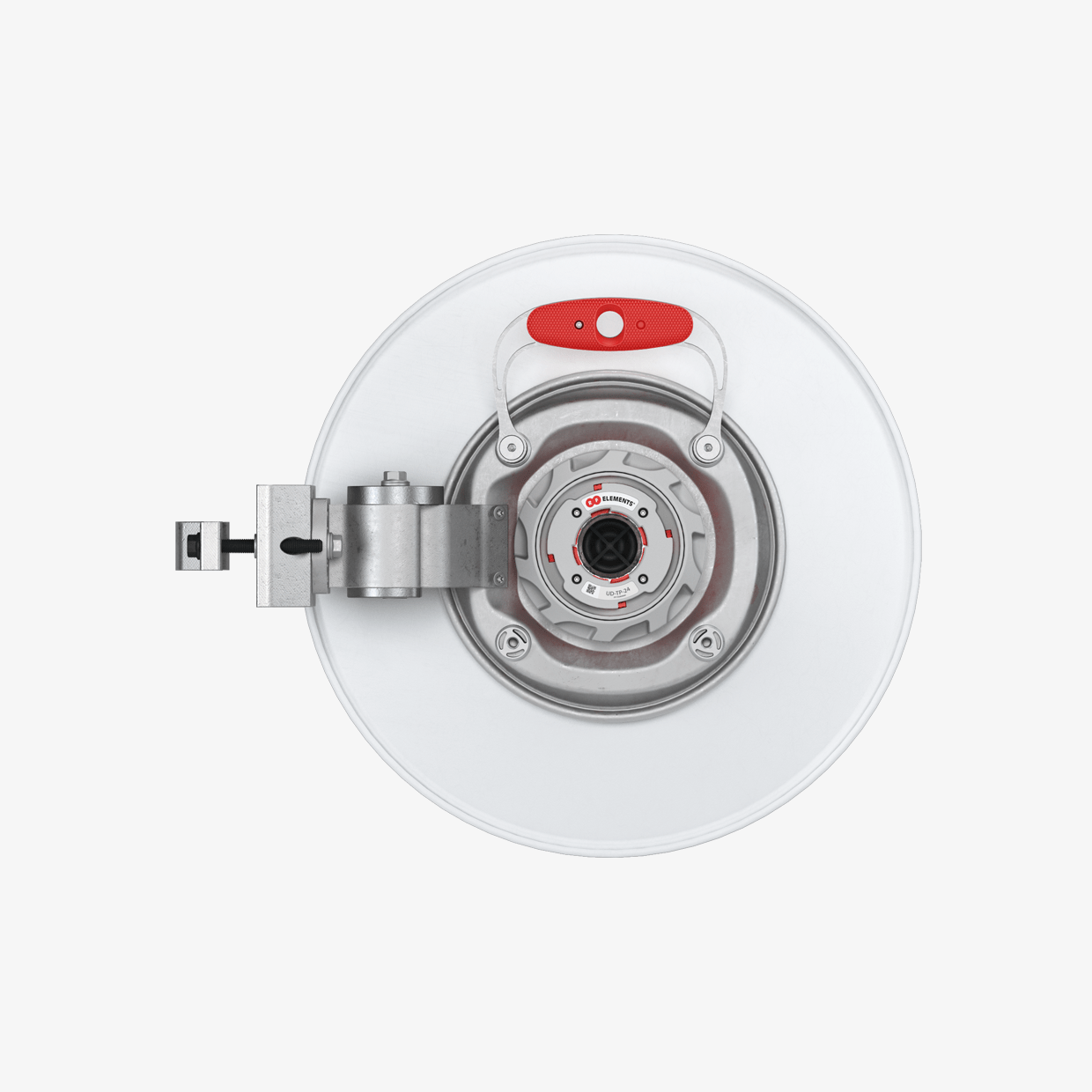

Each antenna features the TwistPort™ quick-locking waveguide connector, a virtually lossless radio interface that simplifies installation and minimizes signal loss compared to coaxial solutions. This makes it highly efficient for modern outdoor radios that support TwistPort compatibility.
The antennas are engineered with a durable aluminium reflector for consistent performance, while the radome and other components use UV-stabilized ABS and polycarbonate. Combined with IP65 weatherproofing, a –40 °C to +60 °C operating range, and survival in winds up to 160 km/h, the UltraDish TP-24 stands up to tough environments.

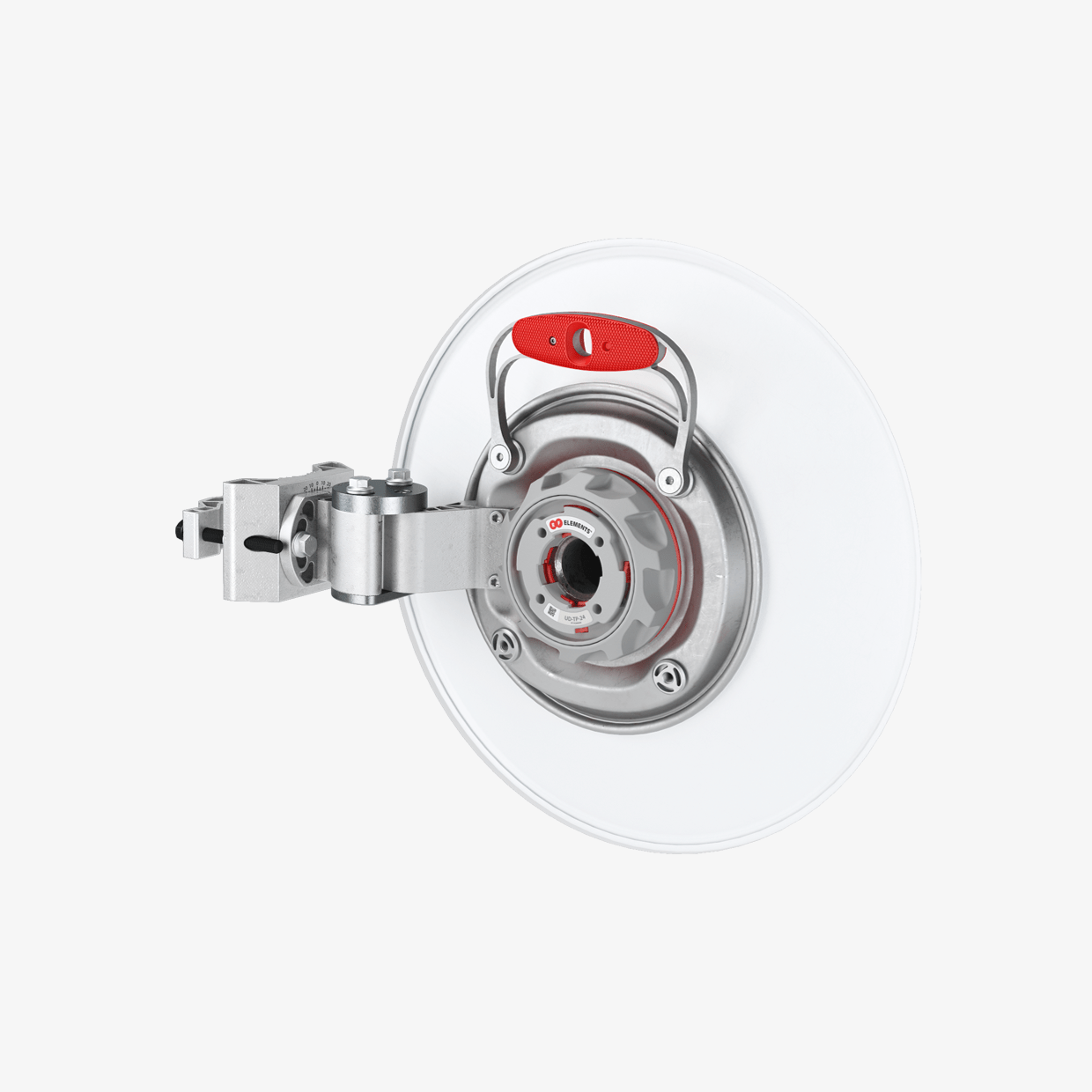

The heavy-duty mount uses stainless steel hardware with anti-seizing surface treatment and accommodates pole diameters from 40–80 mm, ensuring stable installations. Delivered as a convenient 2-pack, it saves on shipping costs while supplying two fully equipped antennas, perfect for scalable network rollouts.
Whether used for backhaul links, subscriber access, or precision-focused wireless coverage, the UltraDish TP-24 is a powerful, reliable choice trusted by network operators worldwide.
Application
Wireless broadband, WISP deployments, Rural connectivity, PTP links
Key Features
✔️ 24.4 dBi gain for long-range, high-throughput wireless links
✔️ Wide 5180-6775 MHz operating band
✔️ TwistPort™ quick-locking waveguide connector with near-zero loss
✔️ IP65 weather protection and rugged outdoor design
✔️ Aluminium reflector with UV-resistant ABS/PC radome
✔️ Heavy-duty mount with stainless steel anti-seize hardware
✔️ Wind survival rating of 160 km/h
✔️ Delivered as a 2-pack, lowering shipping and deployment costs
