Description

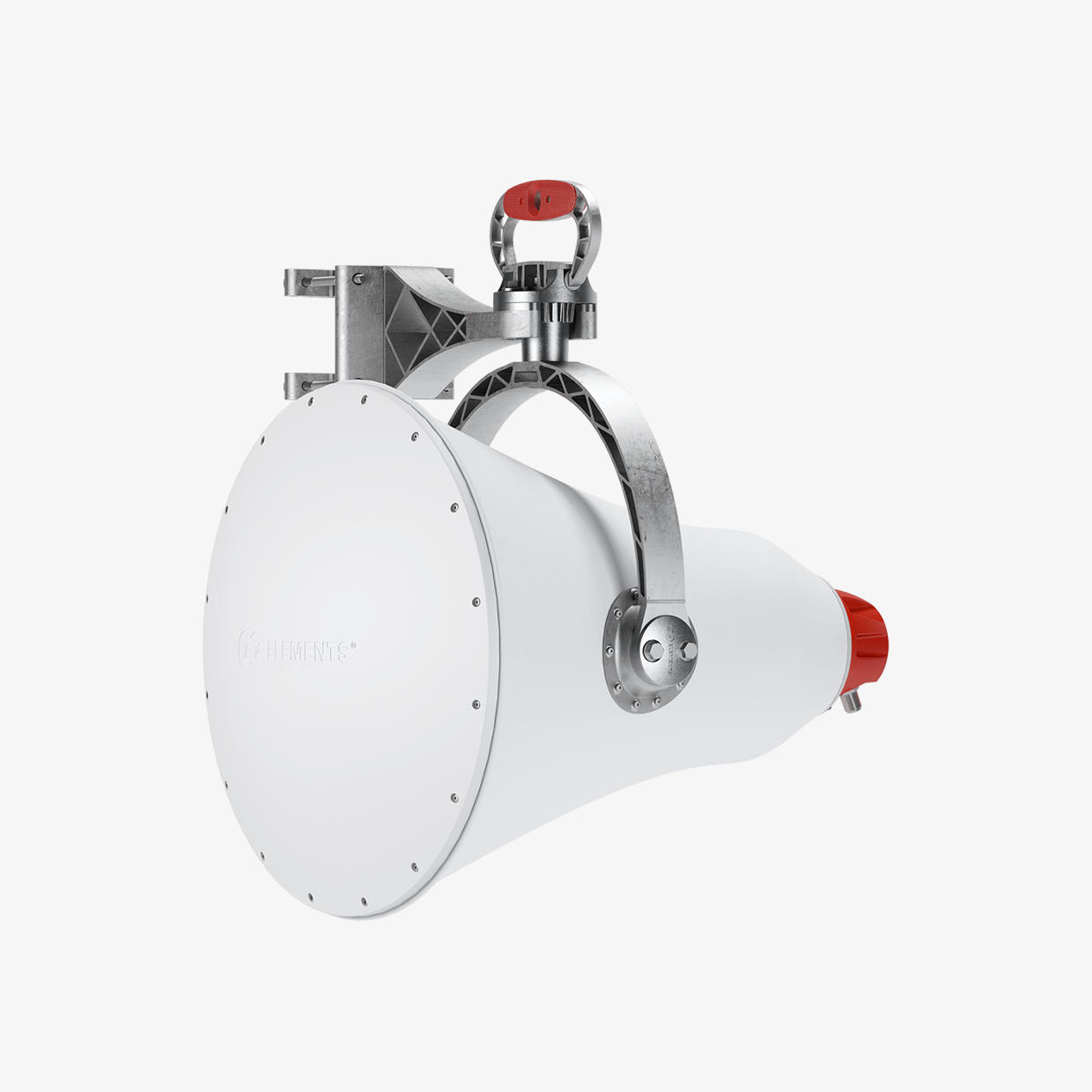

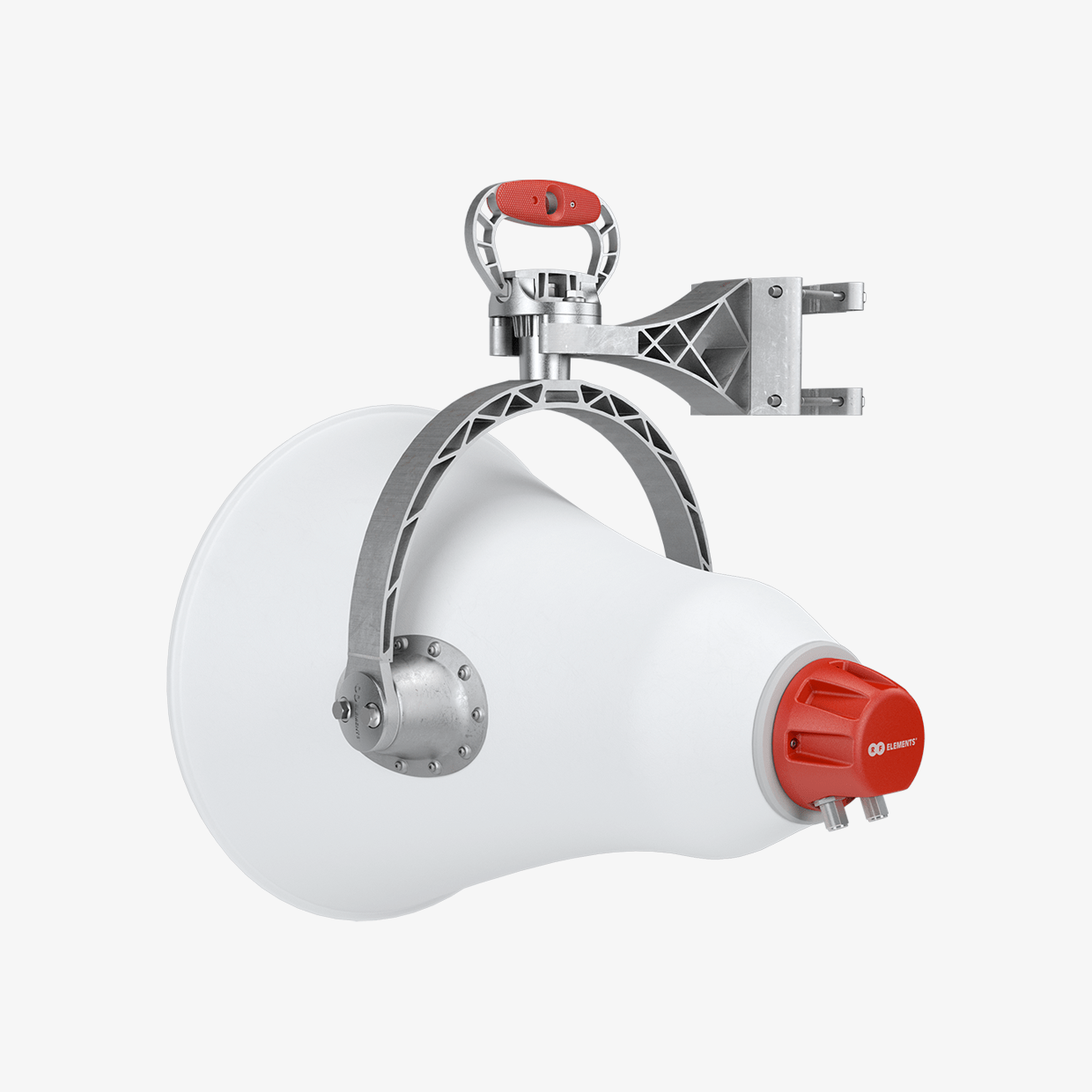

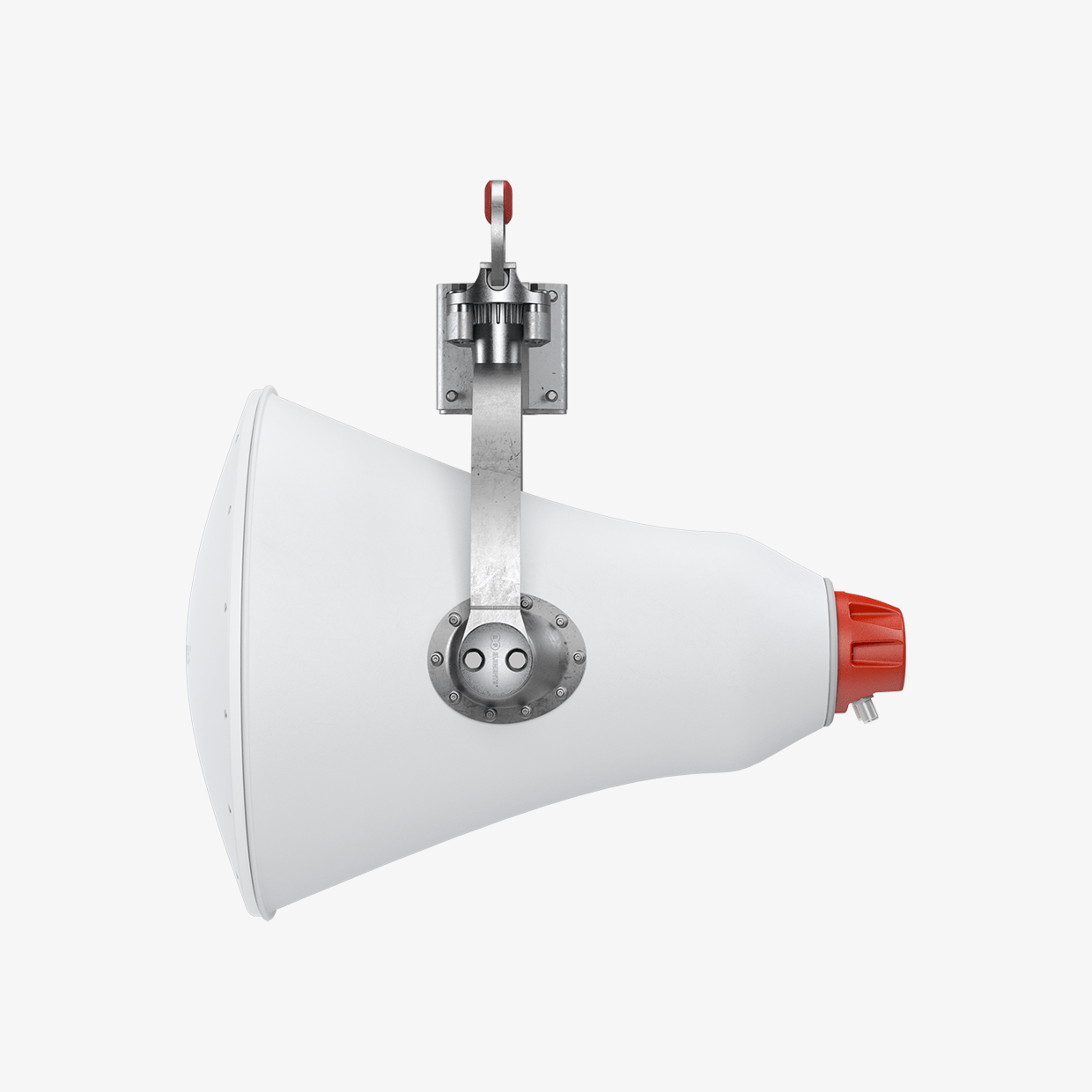

The UltraHorn™ Carrier Class UH-CC-5-24 is a professional-grade horn antenna engineered for high-density 5 GHz point-to-point wireless deployments. Its precision horn design focuses the RF energy into a narrow beam, minimizing interference from surrounding devices and providing superior noise rejection, making it ideal for WISPs, enterprise backhaul, and ISP networks.

Operating across a wide 5180–6775 MHz frequency range, the UH-CC-5-24 delivers 24 dBi gain with a highly efficient 11° x 11° beamwidth. Dual linear polarization (H+V) ensures maximum signal quality and flexibility in alignment. The antenna features two N-female bulkhead connectors and supports mounting on poles ranging from 30 to 80 mm in diameter.

Built from UV-stabilized ABS, polycarbonate, polypropylene, aluminum, and stainless steel, this antenna withstands harsh outdoor conditions with a wind survival rating of 160 km/h and an operating temperature range of -40°C to +60°C. Its IP55-rated enclosure eliminates the need for additional shielding, simplifying installation and reducing overall deployment costs. With easy alignment and a durable design, the UH-CC-5-24 is a smart choice for reliable, high-performance point-to-point links.

Application

WISP deployments, Enterprise backhaul, Point-to-point wireless links, High-interference 5 GHz networks

Key Features

✅ 24 dBi gain with 11° x 11° beamwidth for precise coverage
✅ Dual linear polarization (H+V) for flexible alignment
✅ Superior side-lobe rejection reduces interference
✅ Wideband 5180–6775 MHz operation for maximum compatibility
✅ Robust outdoor design with IP55 rating and -40°C to +60°C operation
✅ Wind-resistant up to 160 km/h
✅ Pole mount 30–80 mm for flexible installation
✅ No radome required thanks to advanced horn design
