Description

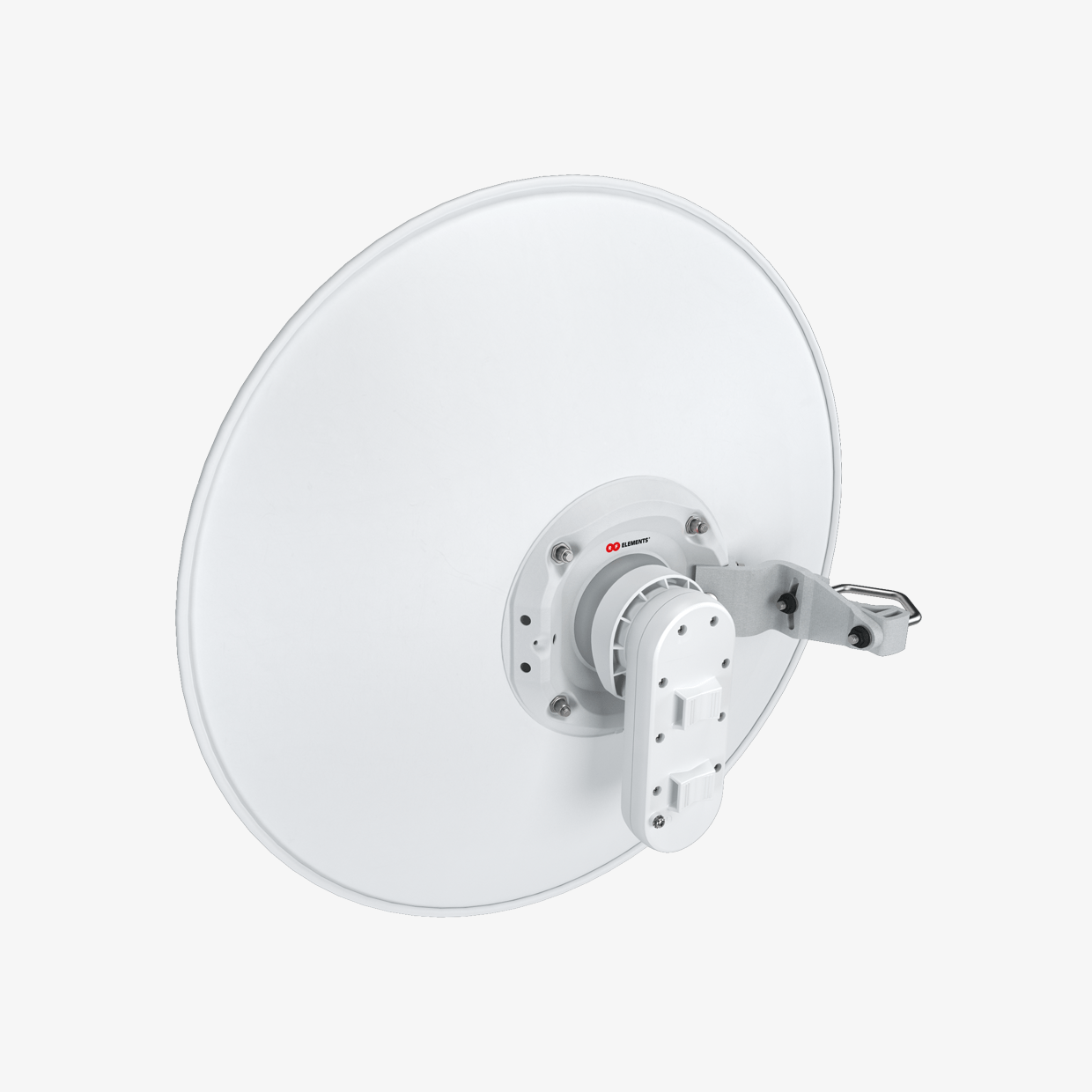

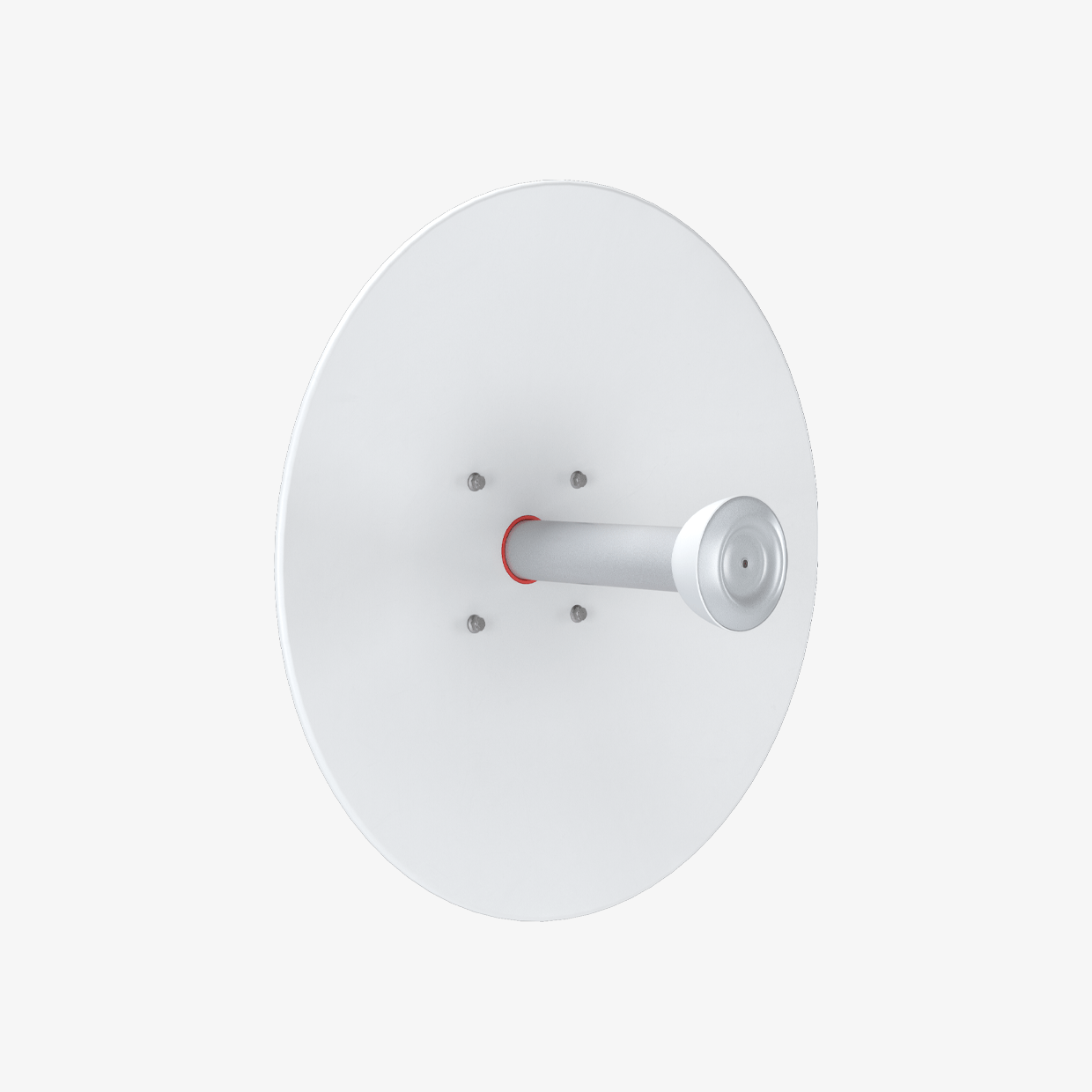

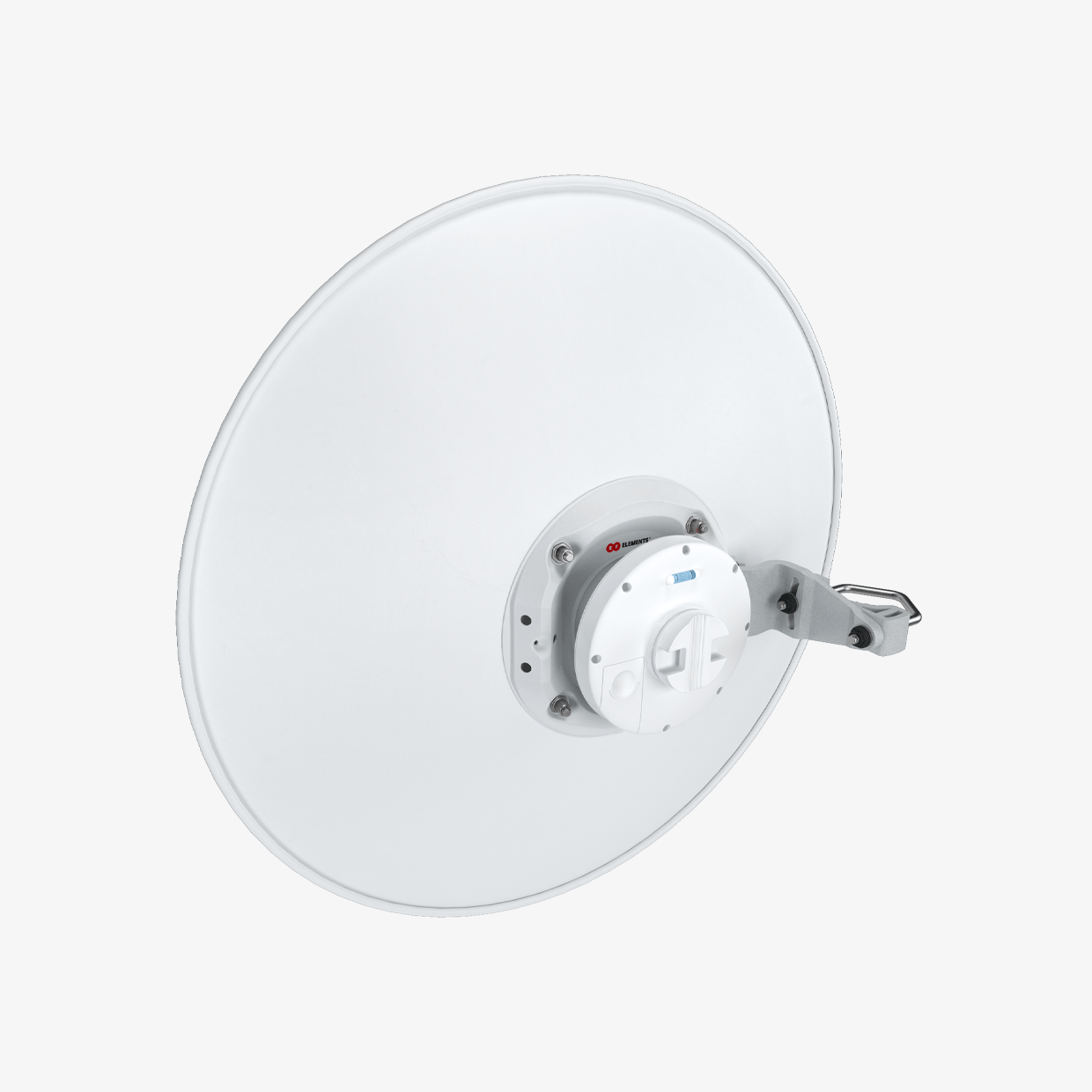

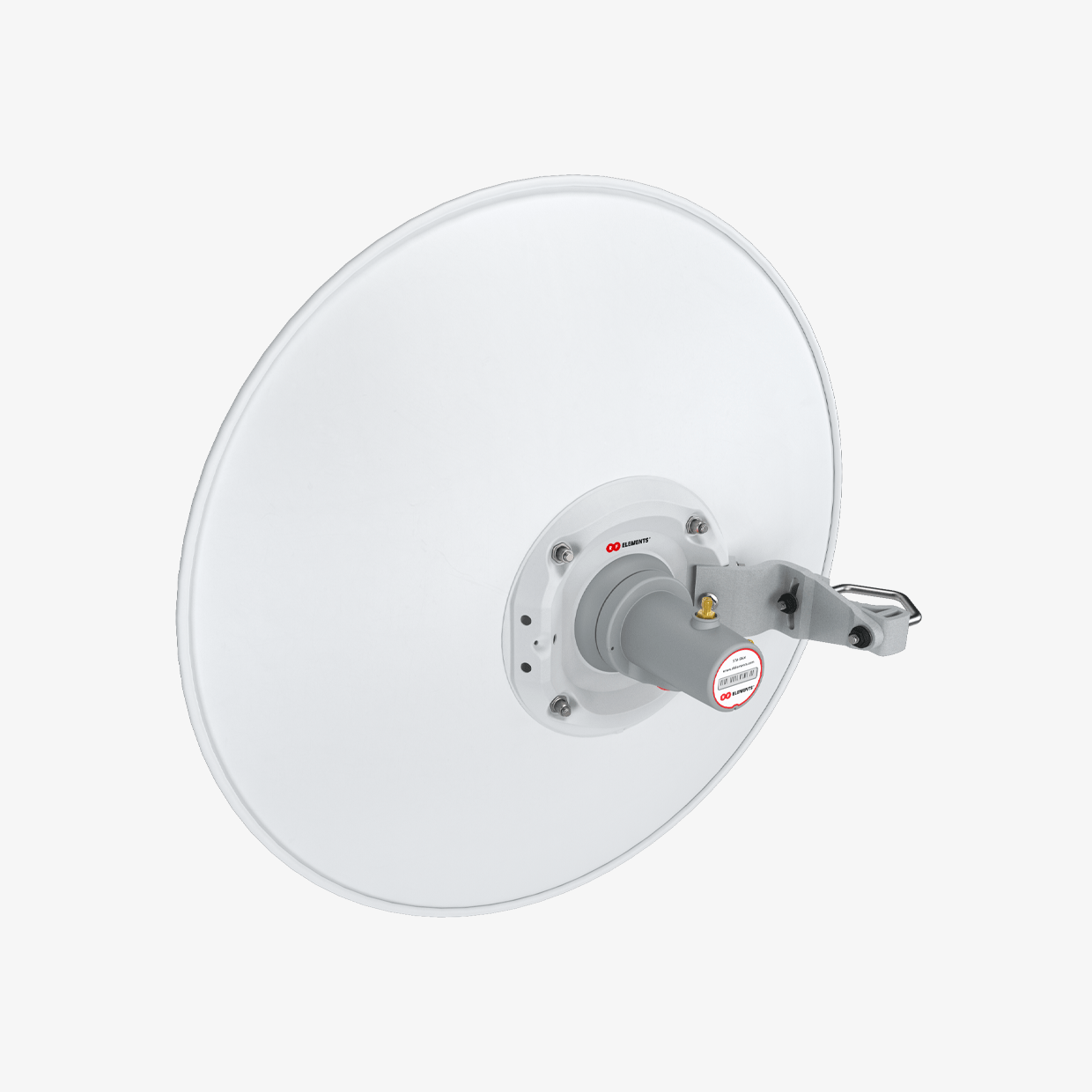

The RF Elements StarterDish™ 27 UM (STD-27-UM) is a compact, carrier-grade parabolic antenna engineered for wireless ISPs, rural broadband providers, and demanding outdoor deployments. With 27 dBi gain and a narrow 8° beamwidth, it ensures precise signal focusing and strong interference rejection, making it ideal for high-density radio environments.
Designed for the 5.15–6.4 GHz spectrum, the StarterDish 27 UM is compatible with Ubiquiti and Mimosa radios via its Waveguide port. Optional StarterAdapters allow connection to radios with coaxial connectors, expanding flexibility across different setups.
Built for long-term reliability, the antenna features UV-resistant ABS plastic, aluminum, and stainless steel hardware. It meets IP65 environmental protection, ensuring reliable operation in challenging outdoor conditions. The robust design supports wind speeds up to 160 km/h, with adjustable elevation of ±15° for precise alignment during installation.
Lightweight at just 2.5 kg, the StarterDish 27 UM is easy to mount on poles (20–55 mm) while maintaining strong mechanical stability. For ISPs seeking affordable, durable, and high-gain connectivity, the StarterDish 27 UM offers an excellent balance of performance, reliability, and cost-efficiency.
Application
Wireless broadband, WISP deployments, Rural connectivity, PTP links
Key Features
✔️ 27 dBi high-gain parabolic antenna for long-range links
✔️ Narrow 8° beamwidth for focused coverage and interference rejection
✔️ Wide frequency support from 5150–6400 MHz
✔️ Waveguide port compatible with Ubiquiti & Mimosa radios
✔️ Weather-resistant IP65 design for outdoor reliability
✔️ Lightweight 2.5 kg build for easy installation
✔️ Adjustable ±15° elevation for precise alignment
✔️ Robust construction with UV-resistant ABS, aluminum & stainless steel
