Description

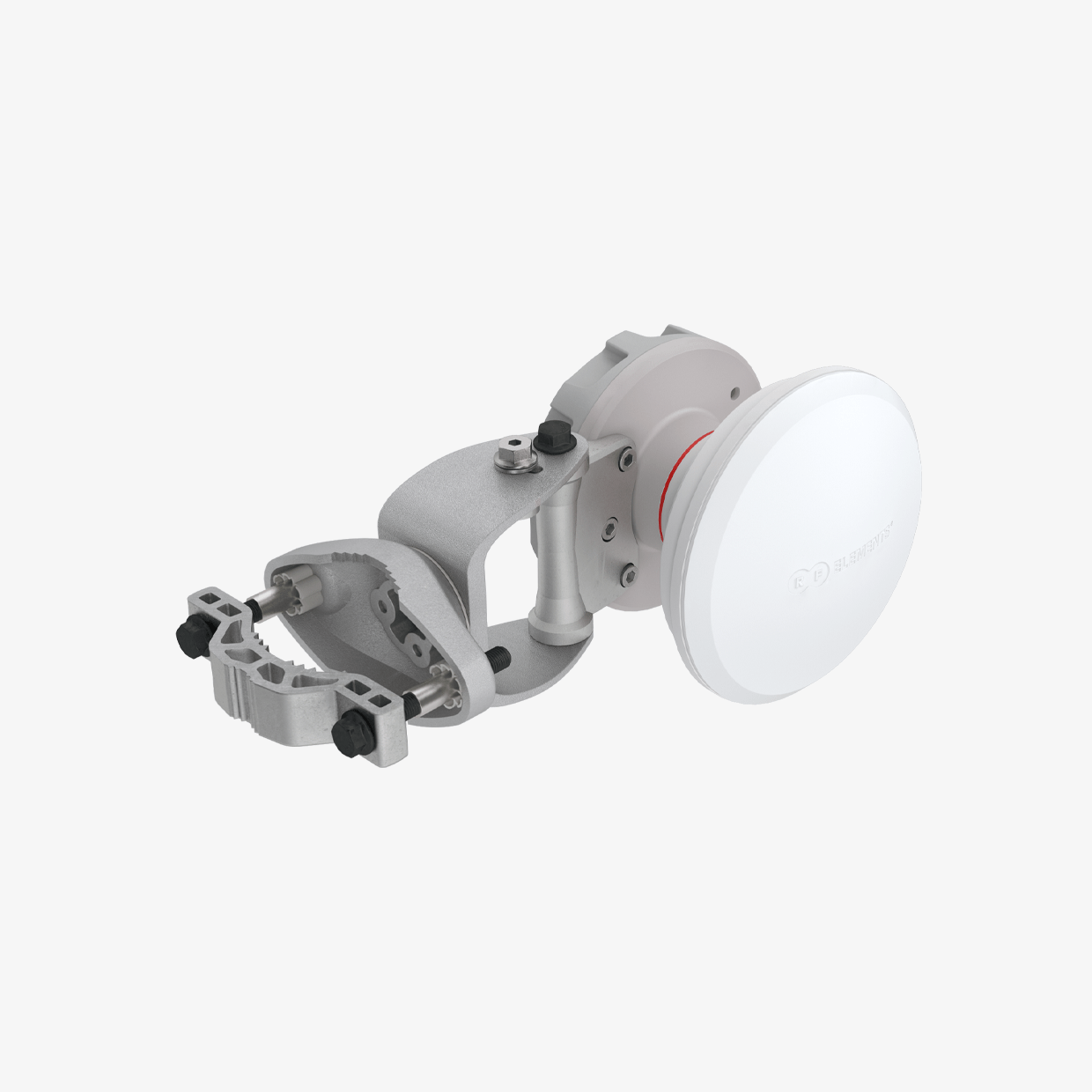

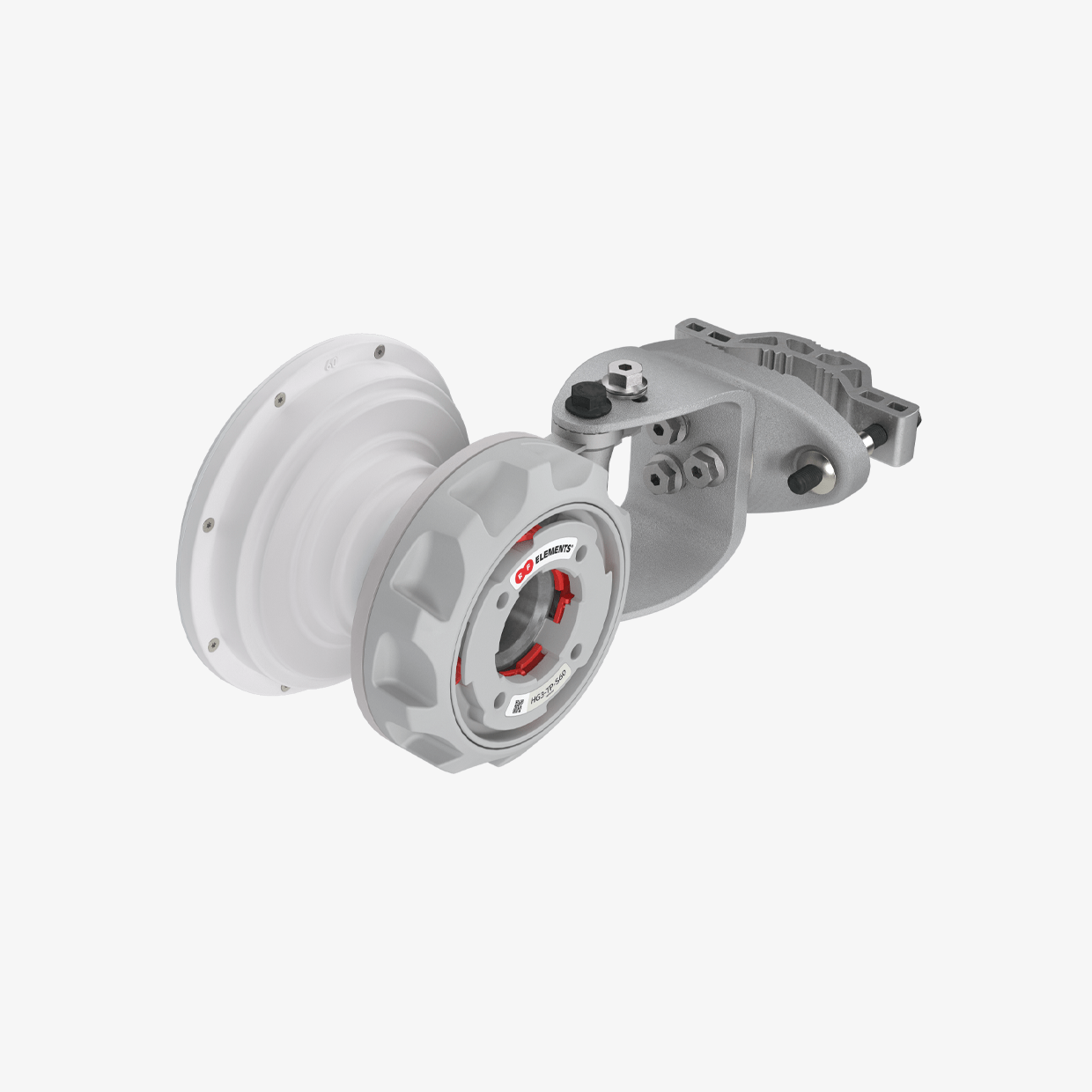

The RF Elements HG3-TP-S60 Symmetrical Horn Antenna Gen2 provides exceptional performance for 5 GHz point-to-multipoint (PtMP) deployments. Its 60° symmetrical beam ensures consistent coverage while eliminating sidelobe interference, making it ideal for dense network environments or co-located radios.
With 13.2 dBi gain, the antenna offers strong signal strength over wide areas, while dual linear polarization supports diverse wireless applications. The TwistPort™ quick-locking waveguide port provides a secure, low-loss connection for compatible radios, ensuring high throughput and easy installation.
Designed for outdoor use, the HG3-TP-S60 is housed in UV-stable ABS and polycarbonate materials, rated IP55 for dust and water resistance. Its mechanical tilt of ±25° allows precise alignment, and it can be mounted on poles 30–80 mm in diameter. Surviving wind speeds up to 160 km/h, this antenna combines durability with high performance, making it a smart choice for ISPs, WISPs, and enterprise wireless networks seeking reliable sector coverage.
Application
Home Wi-Fi, Small offices, Enterprise networks, ISPs, Point-to-Multipoint wireless networks, Sector coverage
Key Features
✅ 5 GHz symmetrical horn antenna with 60° beamwidth
✅ 13.2 dBi gain for strong signal coverage
✅ TwistPort™ connector for virtually lossless performance
✅ Dual linear polarization (H + V)
✅ IP55-rated, weatherproof enclosure for outdoor use
✅ ±25° mechanical tilt for precise alignment
✅ Pole-mountable (30–80 mm diameter)
✅ Survives wind speeds up to 160 km/h
