Description

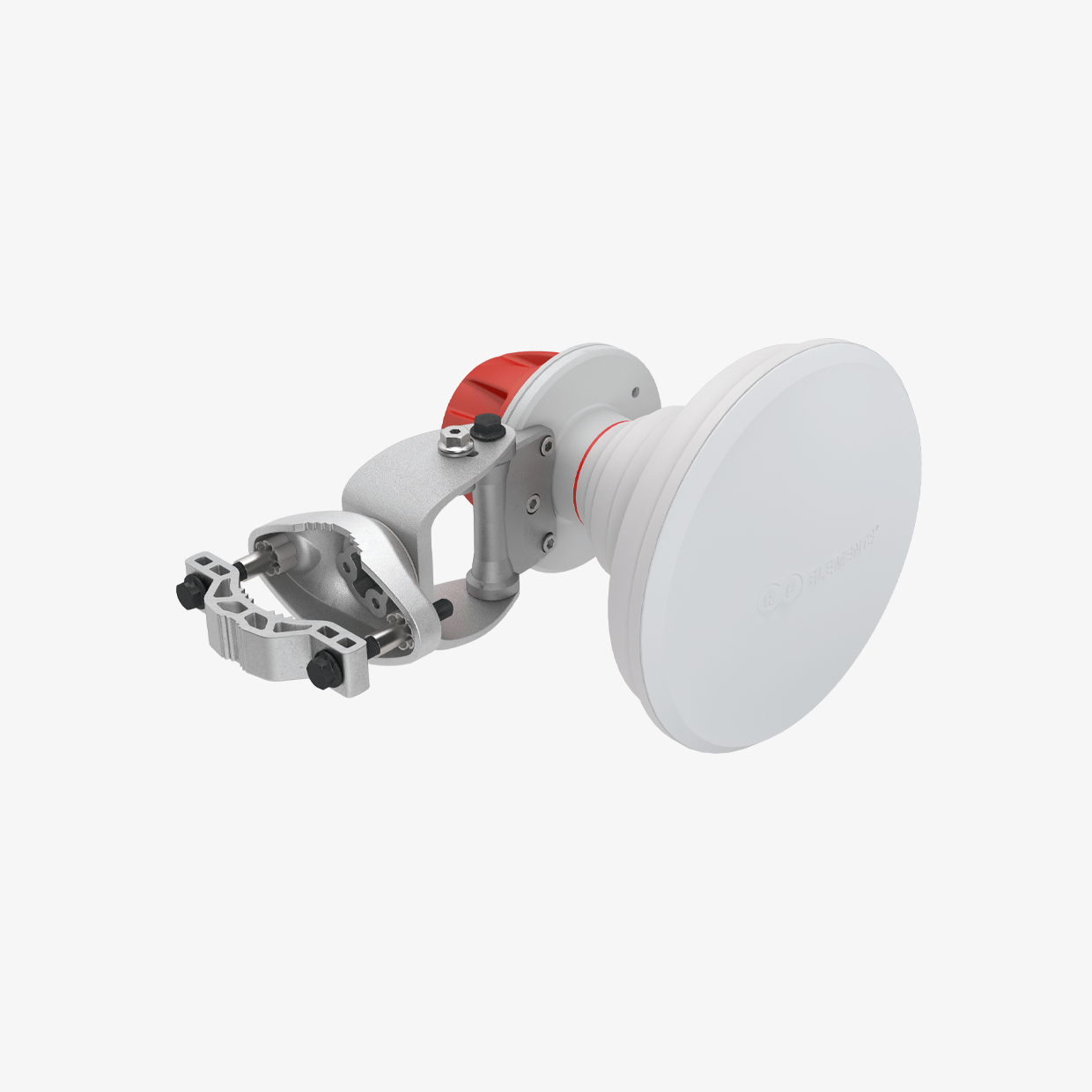

The RF Elements HG3-CC-S40 is engineered for high-performance wireless networking in demanding environments. With a symmetrical 40° beamwidth, this antenna provides exceptional interference suppression, making it ideal for co-located access points and dense network deployments.
It operates across a 5180–6400 MHz frequency range, offering 16.2 dBi gain and dual linear polarization for improved signal reliability. Its VSWR is ≤1.6 (5180–5850 MHz) and ≤1.9 (5850–6400 MHz), while the front-to-back ratio reaches 35 dB. Beam efficiency is 93%, ensuring maximum signal delivery.
The HG3-CC-S40 features a durable aluminum body with UV-stable polycarbonate and polypropylene components. Compact dimensions (273 × 180 × 151 mm) and 1.7 kg weight enable flexible mounting on poles from 30–80 mm in diameter, with ±25° mechanical tilt adjustment. Rated IP55 and able to survive winds up to 160 km/h, this antenna ensures reliable operation in harsh outdoor conditions.
Compatible with a wide range of radios from Cambium Networks, MikroTik, LigoWave, and others, it is ideal for point-to-multipoint links, high-density deployments, and environments where clients are closely located to access points.
Application
Home Wi-Fi, Small offices, Enterprise networks, ISPs, Wireless broadband, WISP deployments
Key Features
✅ 5 GHz symmetrical horn with 40° beamwidth
✅ 16.2 dBi gain for reliable coverage
✅ Dual linear (H + V) polarization
✅ 2x N-female bulkhead connectors
✅ Compact, lightweight, weather-resistant design
✅ ±25° mechanical tilt for precise alignment
✅ IP55-rated for harsh outdoor conditions
✅ Survives wind speeds up to 160 km/h
