Description

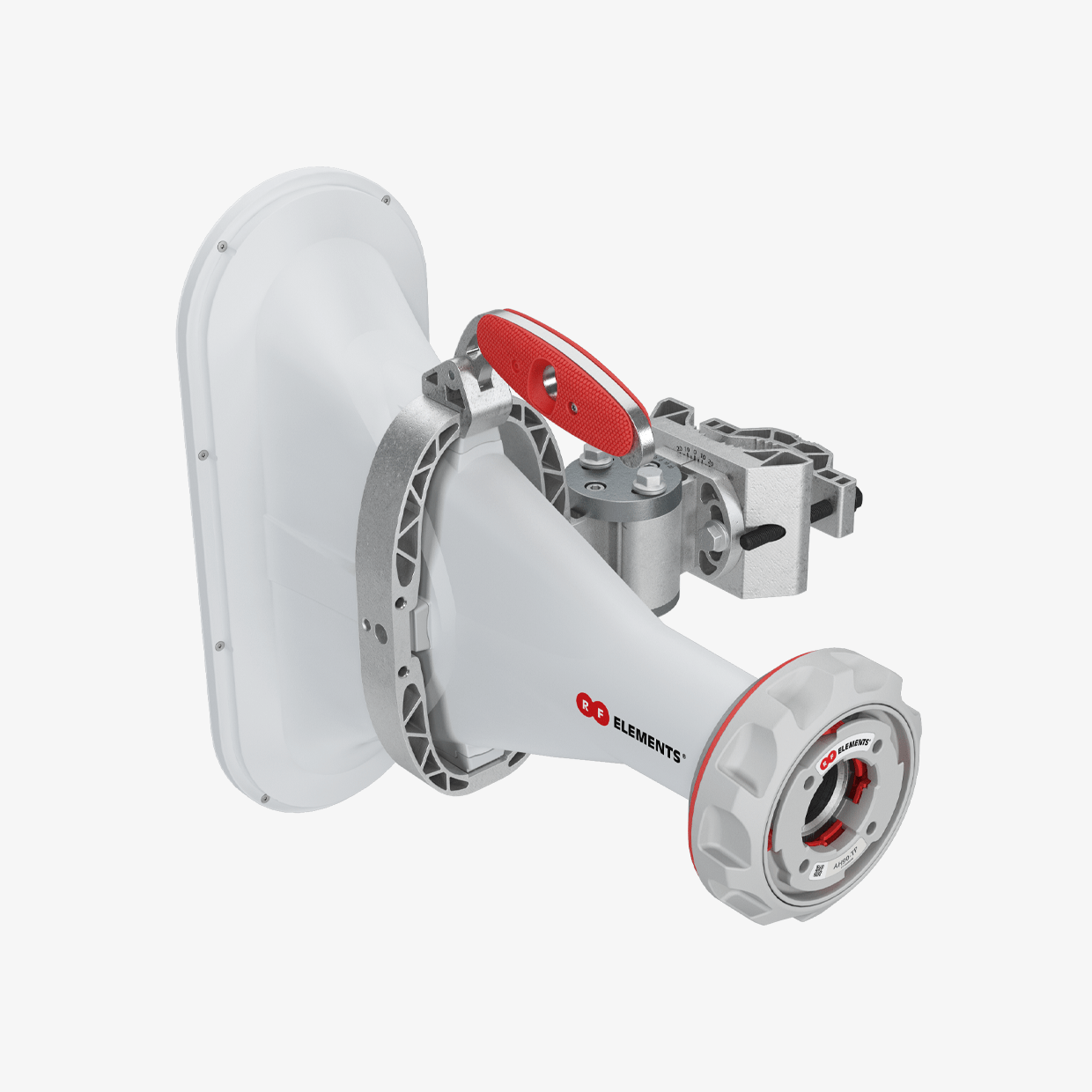

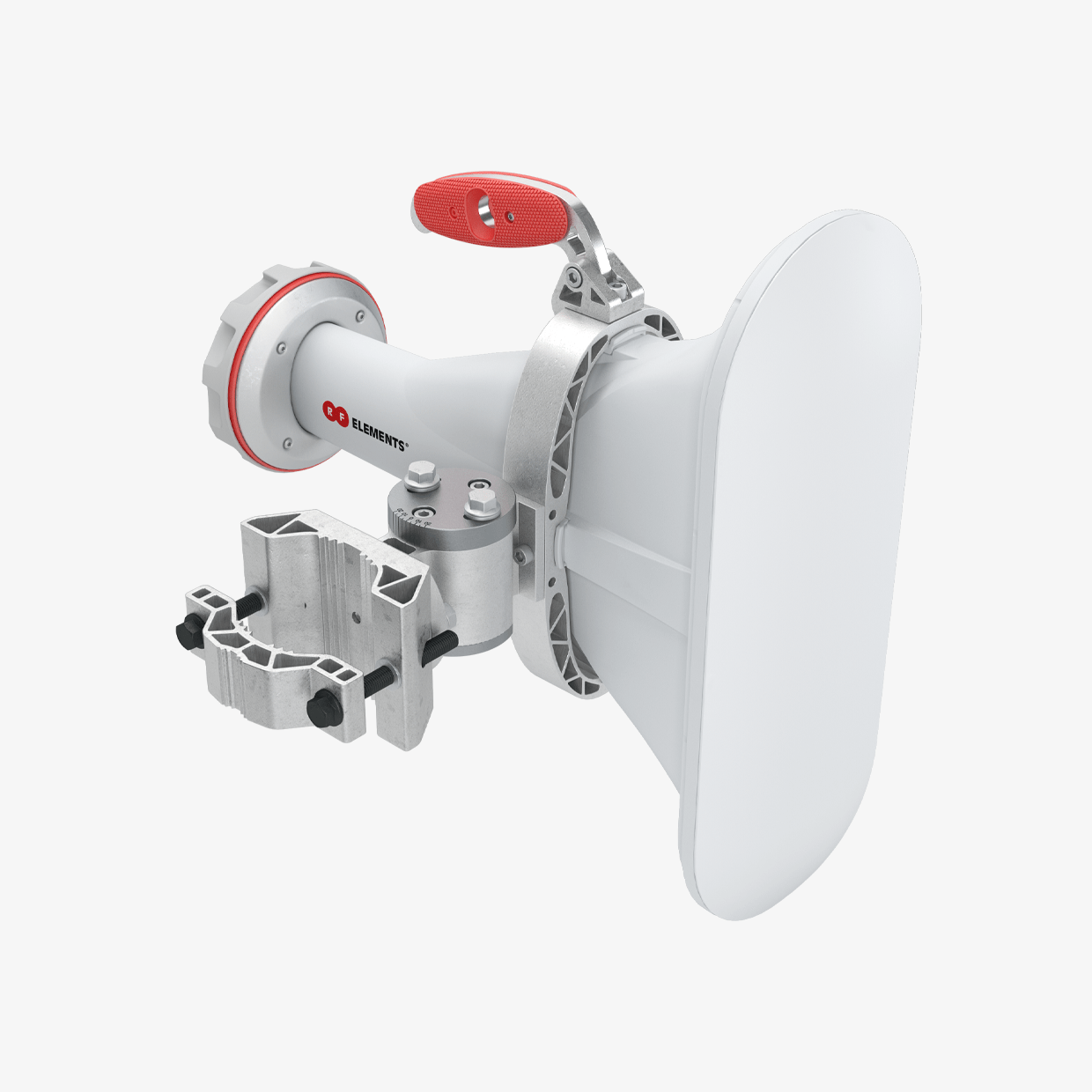

The RF Elements HG3-TP-A90 is a professional-grade 90° Asymmetrical Horn antenna engineered to meet the needs of ISPs, WISPs, and large wireless networks. Unlike traditional sector antennas, its unique horn design provides an asymmetrical beam pattern: a wide 90° horizontal coverage paired with a narrow 25° vertical beam. This ensures efficient coverage in diverse terrains, minimizes interference, and maximizes spectral efficiency.
With 16 dBi gain and excellent beam efficiency, the HG3-TP-A90 delivers strong, stable signal distribution. Its TwistPort® connector simplifies integration by eliminating coaxial cables, reducing signal loss, and enabling fast, secure radio installation. Compatible with a range of radios via TwistPort adaptors, it offers unmatched flexibility in network design.
The antenna is built for durability, featuring weather-resistant ABS, polycarbonate, HDPE, aluminium, and stainless steel components. Certified IP55, it withstands harsh outdoor conditions, including wind speeds up to 160 km/h. Adjustable mounting hardware allows precise azimuth and elevation alignment for optimal coverage.
For service providers expanding network capacity, rural deployments, or enterprise outdoor connectivity, the HG3-TP-A90 ensures dependable, high-quality performance. Its proven design reduces noise, simplifies deployment, and provides long-term operational reliability.
Application
Wireless broadband, WISP deployments, Rural connectivity, PTP links
Key Features
✔️ 16 dBi gain with asymmetrical 90° H × 25° V beam pattern
✔️ TwistPort® waveguide connector for quick, lossless radio installation
✔️ Optimized noise rejection with high beam efficiency
✔️ Durable weather-resistant construction (UV-stable materials)
✔️ IP55 rating for outdoor reliability
✔️ Wind survival up to 160 km/h with low wind load
✔️ Adjustable mounting with ±25° elevation and ±20° azimuth control
✔️ Compatible with multiple radios via TwistPort adaptors
