Description

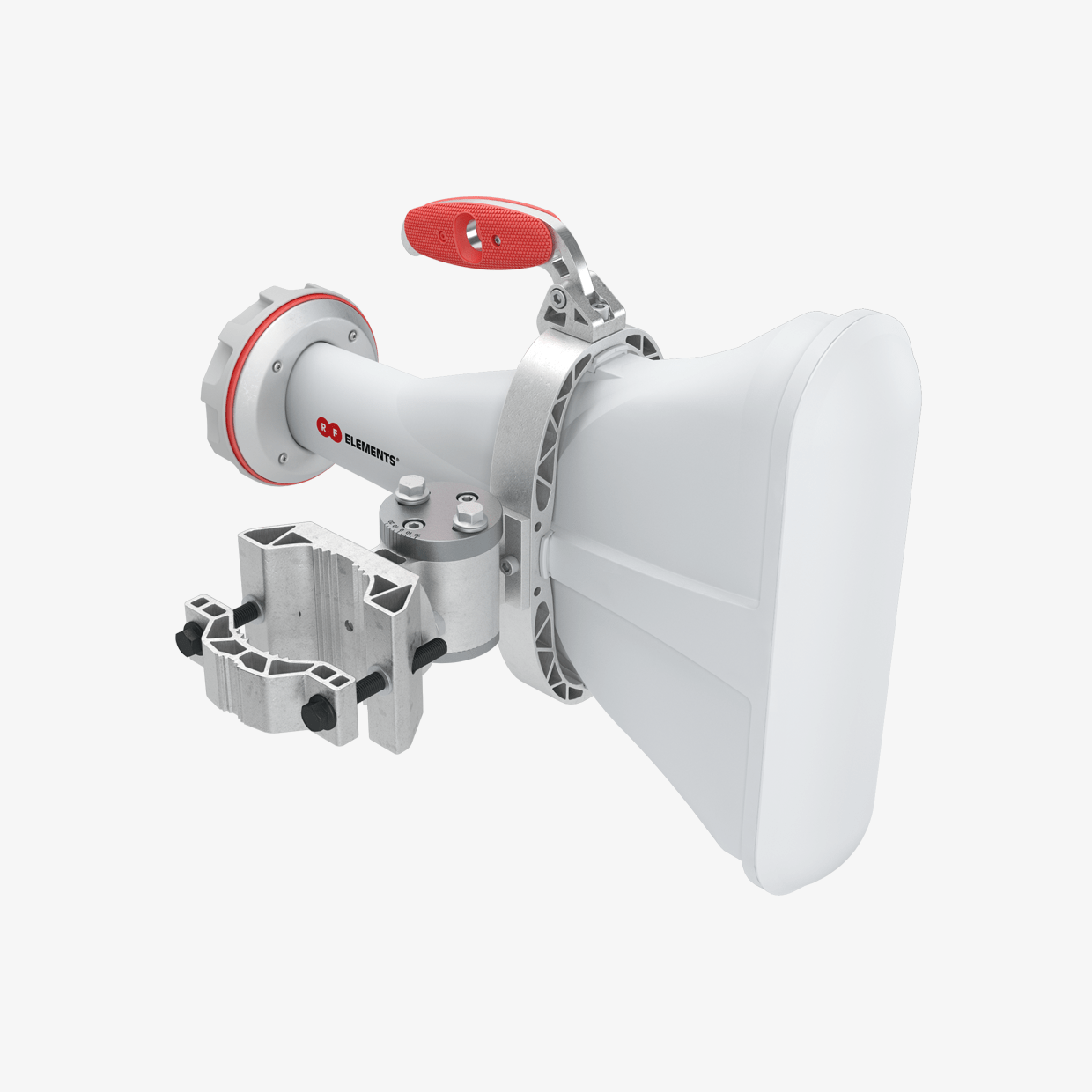

The RF Elements HG3-TP-A60 Asymmetrical Horn Antenna is engineered for wireless service providers and enterprise networks that require high efficiency and stable sector coverage. Featuring a 60° azimuth beam and 17 dBi gain, it balances focused coverage with wide reach, making it ideal for rural connectivity, PTP links, or dense urban deployments.
Unlike traditional sector antennas, the Asymmetrical Horn series ensures minimal side lobes and outstanding noise rejection, significantly improving signal quality and reducing interference. Its TwistPort™ connector allows quick, lossless installation of compatible radios, eliminating coaxial cables and adapters.
Constructed from UV-resistant ABS plastic, polycarbonate, aluminum, and stainless steel, the HG3-TP-A60 is built to endure harsh outdoor conditions. It holds IP55 weather protection, operates in temperatures from -35°C to +60°C, and withstands winds up to 160 km/h. Mounting flexibility is enhanced with ±20° azimuth and elevation adjustment.
With beam efficiency reaching up to 95% and a 27 dB front-to-back ratio, the HG3-TP-A60 ensures high throughput and reliable connectivity. This antenna is a durable, future-proof solution for ISPs, WISPs, and enterprise networks seeking consistent performance in demanding environments.
Application
Wireless broadband, WISP deployments, Rural connectivity, PTP links
Key Features
✔️ 17 dBi gain with high beam efficiency (95%)
✔️ 60° asymmetrical beam with minimal side lobes
✔️ TwistPort™ quick-locking radio connection
✔️ Outstanding noise rejection and interference suppression
✔️ IP55 weather-resistant with UV-protected materials
✔️ Robust wind survival up to 160 km/h
✔️ Flexible pole mounting with ±20° adjustment
✔️ Durable construction for long-term outdoor use
